Product code: C003776

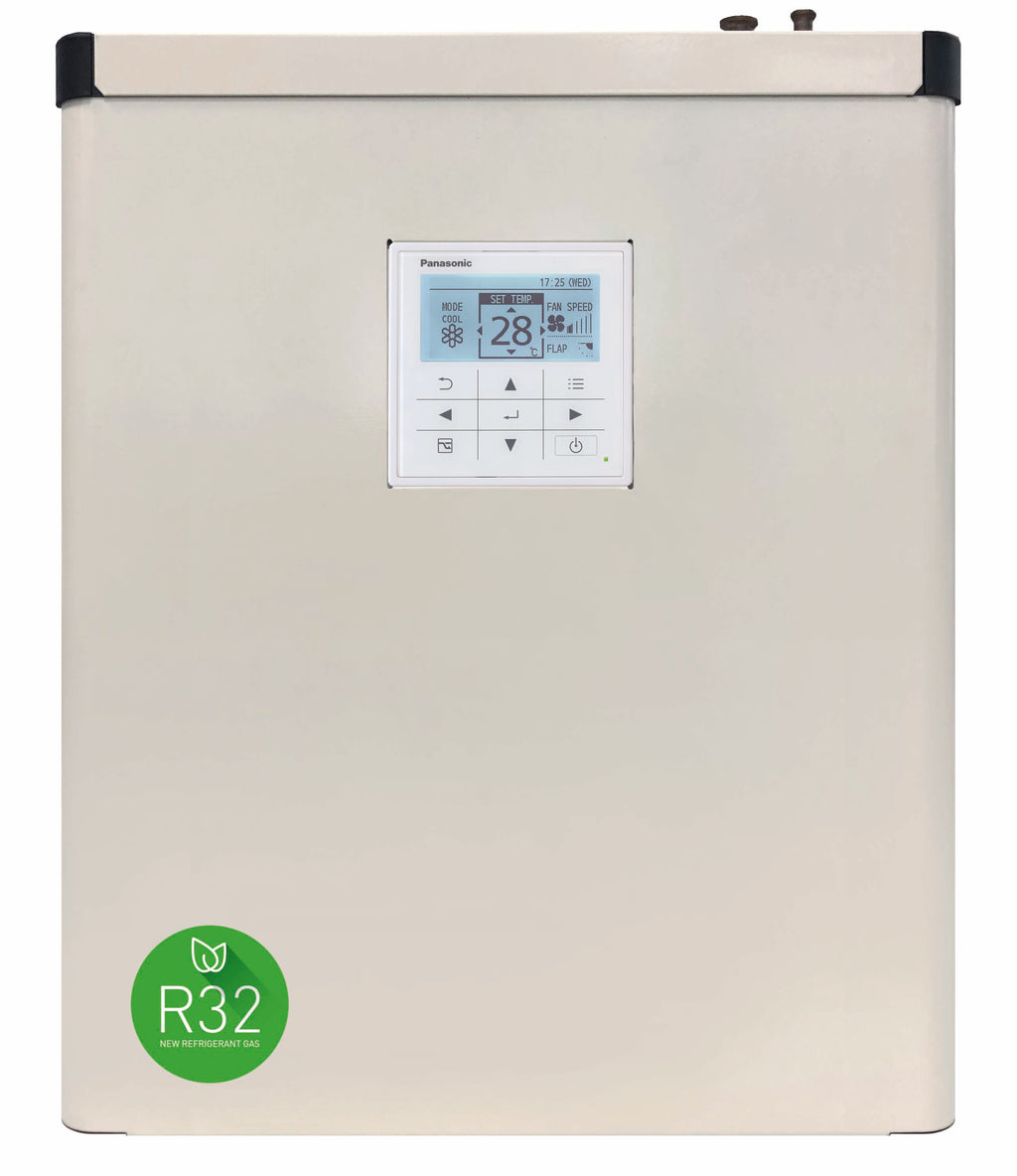

Panasonic PAW-250W5APAC-1 Water Heat Exchanger for PACi 25kW

The Panasonic PACi with Water Heat Exchanger introduces a highly efficient solution for chilled and hot water production, expanding the versatility of the PACi Series with hydronic options ...

Read more
  • Highly efficient solution for chilled and hot water production
  • Part of Panasonic PACi heating and cooling split system
  • Suitable for domestic and commercial use
  • Lower cost than regular VRF systems
  • Heating water outlet temperature of 50°C
  • Cooling water outlet temperature of 15°C
£4,870.00 excl. VAT
£5,844.00inc. VAT


Available


Description

The Panasonic PACi with Water Heat Exchanger introduces a highly efficient solution for chilled and hot water production, expanding the versatility of the PACi Series with hydronic options. Achieving an A+++ energy efficiency rating (on a scale from A+++ to D), this innovative product offers cost-effective water project solutions at a lower cost compared to VRF systems, while reducing the use of HFC refrigerants. Designed for flexible installation, it can be wall-mounted or floor-standing, with a compact and lightweight unit design weighing just 27 kg. The quick mounting process, included flow switch kit, direct access to the electrical box, and operation capability down to -20°C without glycol make this unit a convenient and efficient choice.

As this product is part of a heating and cooling system, an outdoor unit is required. Please contact your nearest Oceanair branch for a tailored specification breakdown and compatibility information.

  • Highly efficient solution for chilled and hot water production
  • Part of Panasonic PACi heating and cooling split system
  • Suitable for domestic and commercial use
  • Lower cost than regular VRF systems
  • Heating water outlet temperature of 50°C
  • Cooling water outlet temperature of 15°C
  • Compatible with Panasonic PACi R32 outdoor units
  • Operates down to -20°C
  • Easy and flexible installation
  • Wall-mounted or floor-standing compact and lightweight unit
  • Includes flow switch and water filter
  • Constant 55°C flow available

*See Technical Attachments for more precise parameters and conditions.

Specification

Brand Panasonic
Colour White
Compatible with Compatible with various Panasonic heating and cooling solutions systems. Compatible with Panasonic U-250PZH2E8 outdoor unit. Contact Oceanair for more details.
Connection Type Water Pipe Male Thread 1 1/4"
COP* 2.95
EER* 2.89
Energy Rating (Cooling)* A++
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No PAW-250W5APAC-1
Nom. Cooling Capacity 25.0kW
Nom. Heating Capacity 28.0kW
Product Depth 205mm
Product Height 550mm
Product Width 455mm
Range Description Panasonic PACi Range
Refrigerant Type R32
System Suitability Suitable for Domestic Use. Suitable for Commercial Use.
Type Water Heat Exchanger
* Efficiency Data Notes Cooling capacity and EER data refers to 7°C leaving chilled water temperature and 35°C ambient air temperature, according to EN14511 standard. Heating capacity and COP data refers to 45°C leaving warm water temperature and 7°C ambient air temperature according to EN14511 standard.

Visit your local branch or contact us for more information.
