Single SplitProduct code: Circular Cassette Eco Flow for Large Rooms 3ph

Fujitsu Airstage Eco Circular Cassette Large Rooms 3ph - R32

Name: Fujitsu Airstage Eco Circular Cassette Large Rooms 3ph - R32
Brand: Fujitsu Airstage
Availability: InStock

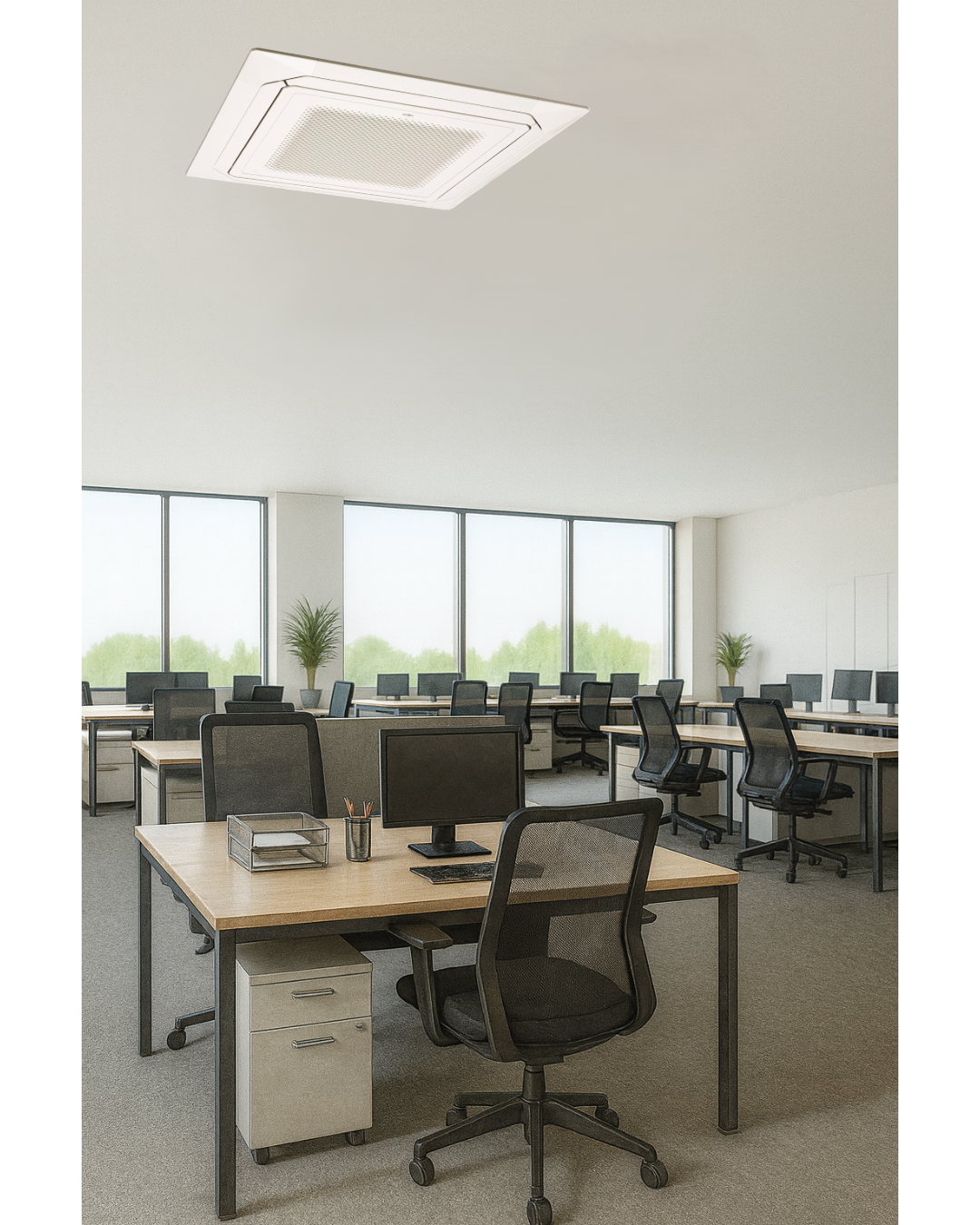

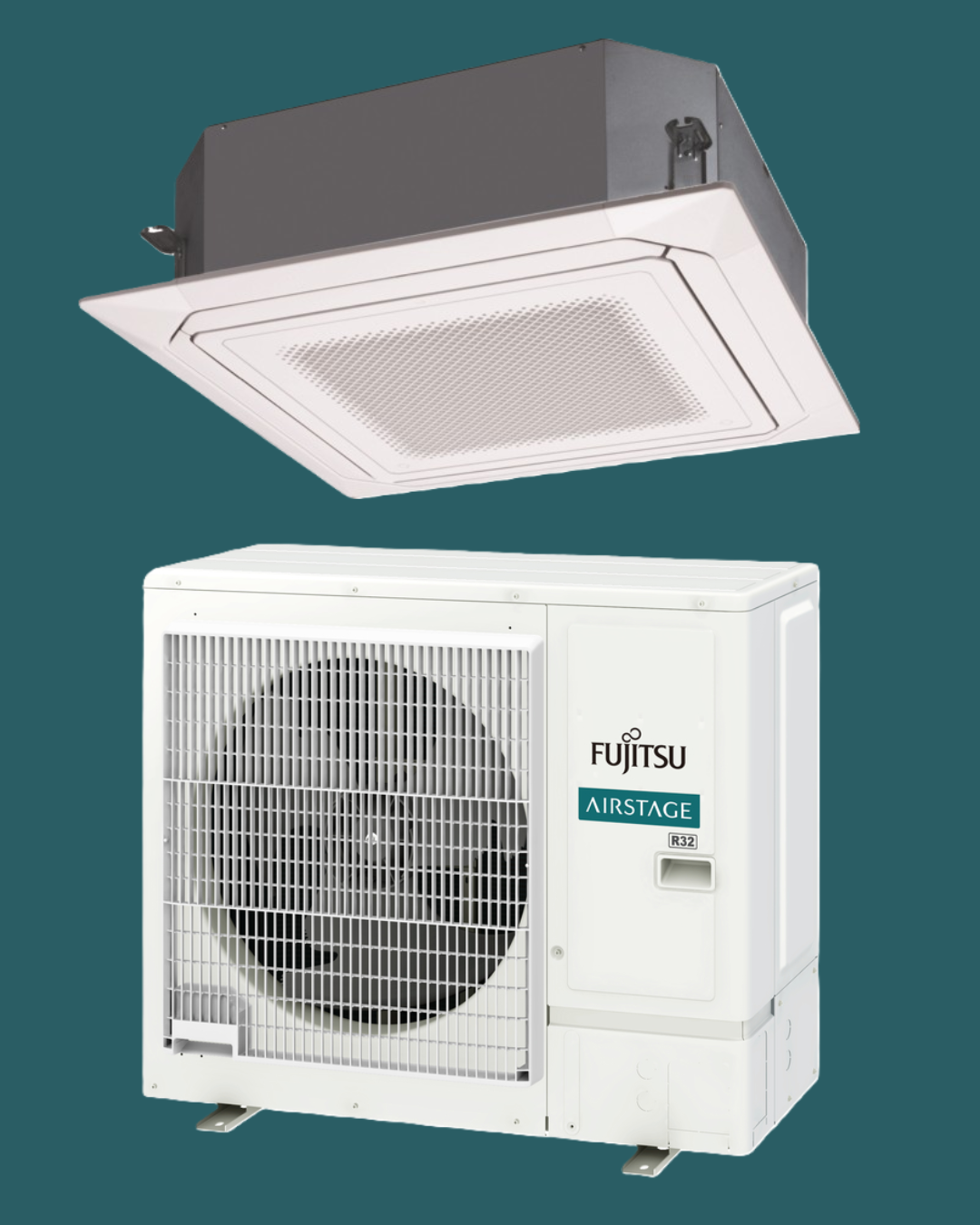

The Fujitsu ECO Circular Cassette with 3-phase outdoor unit is engineered for powerful, ultra-efficient climate control in large rooms and commercial spaces. Its 360° airflow delivers consistent temperature distribution, making it ideal for open-plan offices, conference areas, retail stores, hospitality venues, and spacious residential environments. Supported by a robust 3-phase power supply, this system offers higher output, improved stability, and reduced electrical load. The slim ceiling cassette blends discreetly into modern interiors, while advanced inverter technology and R32 refrigerant ensure excellent energy efficiency and low running costs. Quiet performance and flexible installation make it a reliable solution for larger projects requiring strong, year-round heating and cooling.

Fujitsu Airstage Cassette Eco Range Catalogue 25 26 Eco Circular Cassette Brochure & Tech Specs Installation Manual KQTA Specifications Sheet Fujitsu Airstage Controls Brochure 25 26

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
AUXG36KRLB	AOEG36KQTA	9.5	10.8	30	4.0	6.1	16	5/8	3/8	Three	Optional
AUXG45KRLB	AOEG45KQTA	12.1	13.5	30	3.8	5.40	16	5/8	3/8	Three	Optional
AUXG54KRLB	AOEG54KQTA	13.4	13.7	30	3.85	6.00	16	5/8	3/8	Three	Optional
	For more information, see Technical Specifications.

Key features

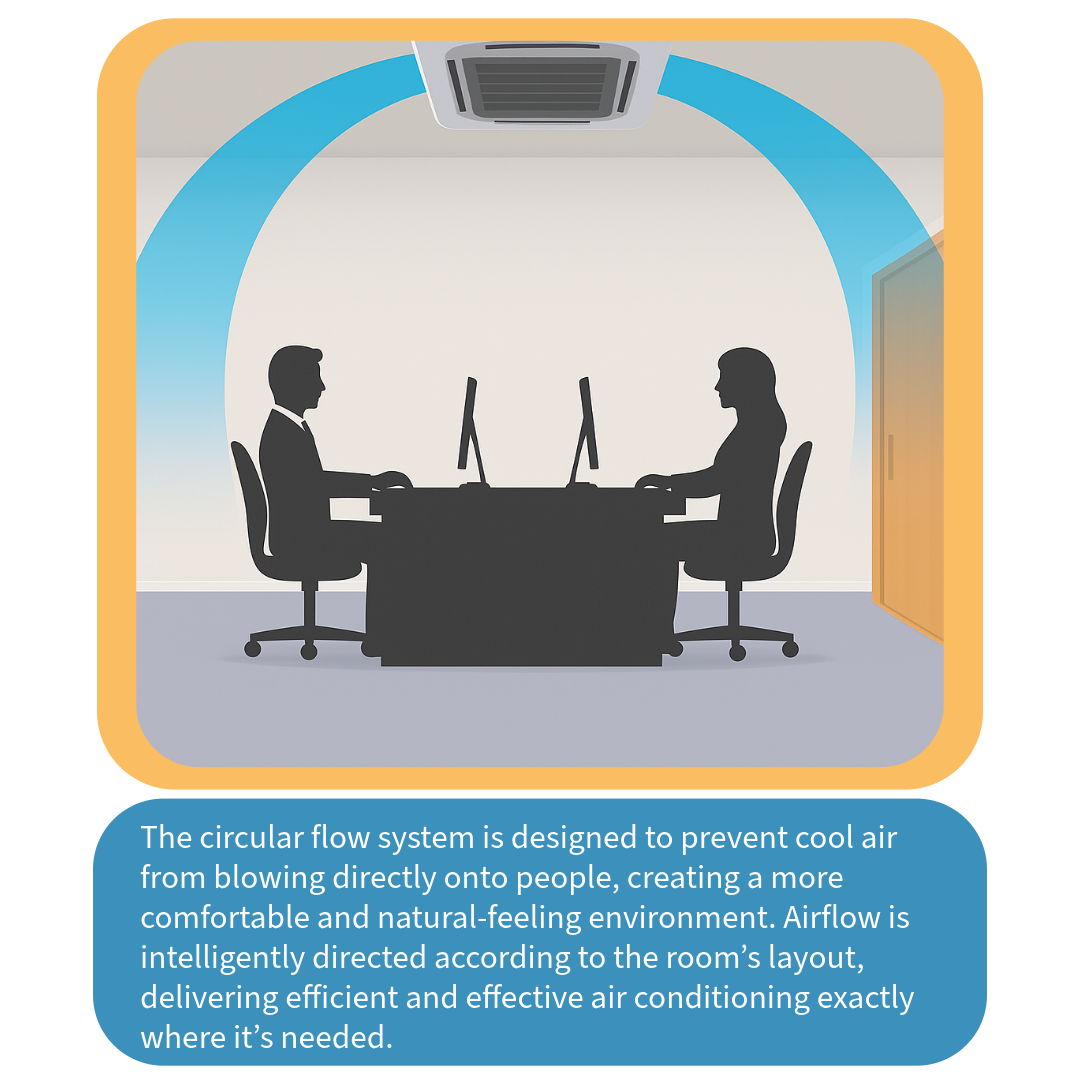

Unique Circular Flow Design for Full-Room Comfort

The Fujitsu Circular Cassette achieves true 360° airflow, ensuring balanced temperature distribution across the entire space. Powered by a high-efficiency DC fan motor and turbo fan, and enhanced by a seamless airflow louver design, the system delivers strong, smooth air movement that eliminates hot and cold spots and creates optimal comfort in any environment.

Individual Louver Control

Each louver can be adjusted independently using the touch-panel wired controller, allowing airflow to be directed precisely according to the room layout.

Compatible with UTY-RNRYZ5 wired remote controller.

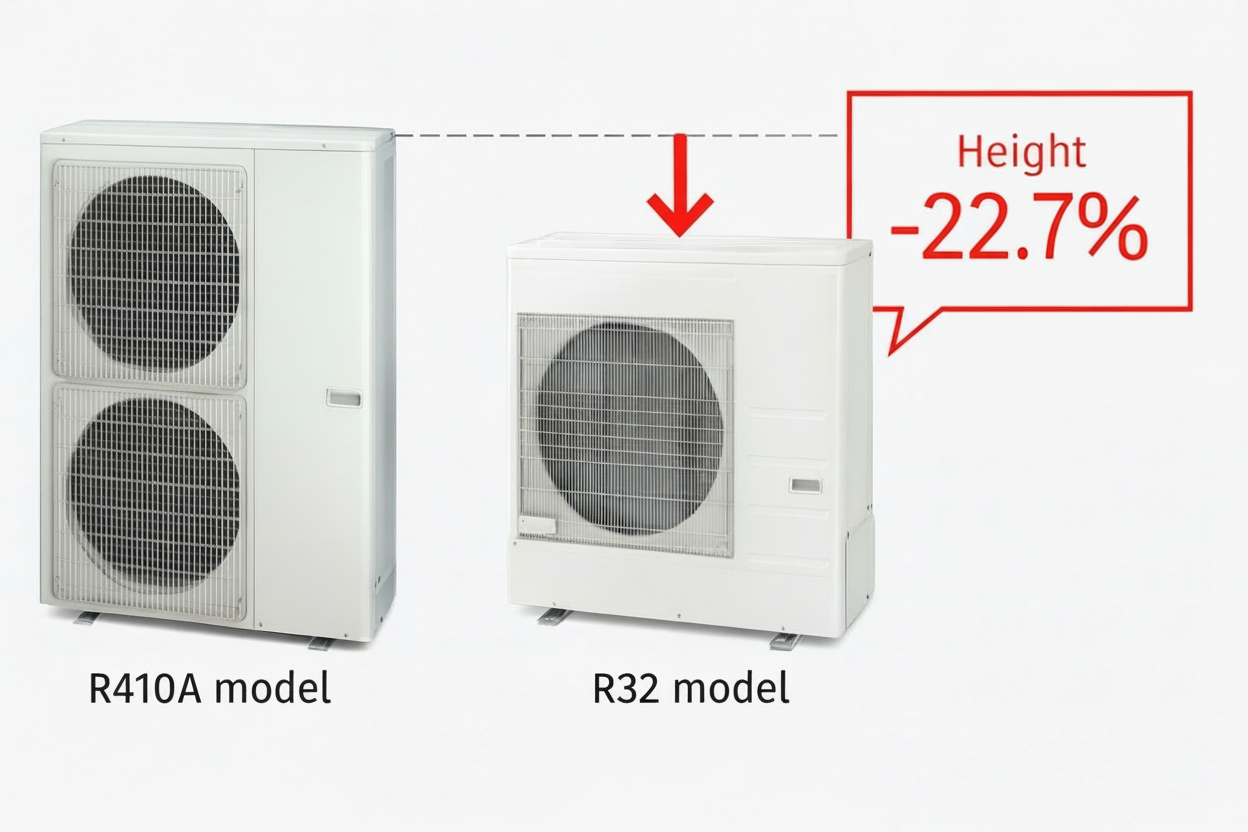

Redesigned Compact and Lightweight Outdoor Unit

The outdoor units used in the 45,000 BTU and 54,000 BTU models have been fully redesigned to deliver a smaller, lighter, and more installation-friendly format. This improved structure simplifies handling on-site and allows for easier placement in tight or challenging outdoor locations, enhancing both installation efficiency and flexibility.

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

Fujitsu Airstage Eco Circular Cassette Large Rooms 3ph - R32-Fujitsu Airstage-Oceanair

Technical Data	Model Pairing (Indoor + Outdoor Unit)
Technical Data	AUXG36KRLB + AOEG36KQTA	AUXG45KRLB + AOEG45KQTA	AUXG54KRLB + AOEG54KQTA
Power Source	3-phase, ~400 V, 50 Hz
Cooling Capacity (Rated) kW	9.5	12.1	13.4
Cooling Capacity (Min–Max) kW	2.8–10.6	4.0–12.6	4.5–13.8
Heating Capacity (Rated) kW	10.8	13.5	13.7
Heating Capacity (Min–Max) kW	2.7–12.5	4.2-15.0	4.7–16.0
Input Power Cooling / Heating (kW)	3.06 / 2.58	4.32 / 3.77	4.87 / 4.86
EER (Cooling) W/W	3.10	2.80	2.75
COP (Heating) W/W	4.19	3.58	3.19
Pdesign (Cooling / Heating -10°C) kW	9.5 / 8.7	12.1 / 9.2	13.4 / 9.5
SEER (Cooling) W/W	6.1	5.4	6.00
SCOP (Heating) W/W	4.0	3.8	3.85
Energy Efficiency Class (Cooling / Heating)	A++/A+	-	-
Max Operating Current (Cooling / Heating) A	10.5/10.5	13.6/13.6	13.6/13.6
Annual Energy Consumption – Cooling (kWh/a)	545	-	-
Annual Energy Consumption – Heating (kWh/a)	3,044	-	-
Sound Pressure Level Indoor (Cooling) H/M/L/Q dB(A)	44/41/38/34	46/42/39/35	47/43/40/36
Sound Pressure Level Indoor (Heating) H/M/L/Q dB(A)	44/41/38/34	46/42/39/35	47/43/40/36
Sound Pressure Level Outdoor (Cooling/Heating) High dB(A)	55 / 55	60/ 60	61/ 61
Sound Power Level Cooling / Heating (Indoor High) dB(A)	58 / 58	-	-
Sound Power Level Cooling / Heating (Outdoor High) dB(A)	70 / 70	-	-
Airflow Rate Indoor/Outdoor (Cooling) High m³/h	1,870 / 3,750	2,000 / 4,450	2,100 / 4,450
Airflow Rate Indoor/Outdoor (Heating) High m³/h	1,870 / 3,750	2,000 / 4,780	2,100 / 4,780
Dimensions Indoor (H × W × D) mm	288 × 840 × 840	288 × 840 × 840	288 × 840 × 840
Dimensions Outdoor (H × W × D) mm	788 × 940 × 320	998 × 940 × 320	998 × 940 × 320
Weight Indoor / Outdoor (kg)	29 / 63	29 / 62	29 / 63
Pipe Diameter (Liquid / Gas) mm	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88
Max Pipe Length (Pre-charge) m	30 (30)	30 (30)	30 (30)
Operating Range (Cooling) °CDB	-10 to 46
Operating Range (Heating) °CDB	-15 to 24
Refrigerant (GWP)	R32 (675)

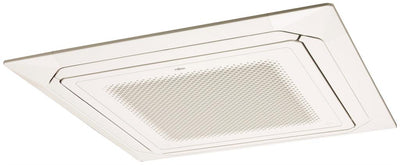

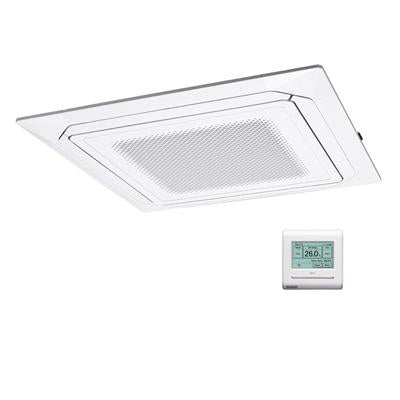

Cassette Grille Model	UTG-UKYA-W / UTG-UKYC-W / UTG-UKYA-B
Dimensions (H × W × D) mm	53 × 950 × 950
Weight (kg)	6.0
