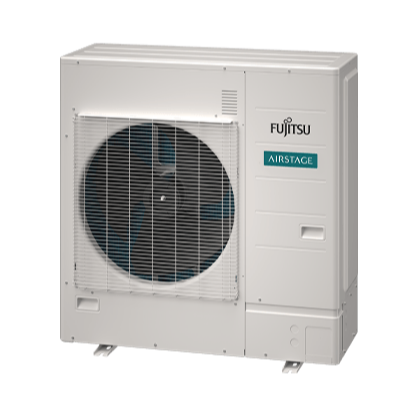

Fujitsu VRF Outdoor Units - J-IVS Series

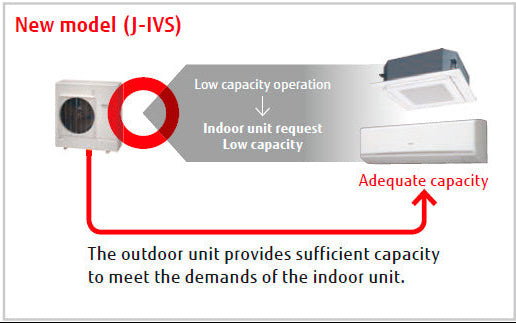

Fujitsu General is proposing outdoor units equipped with refrigerant control function.

The refrigerant control operates with suitable control corresponding to the heat load of the room and offers a more comfortable environment. The refrigerant control can also provide increased energy savings.

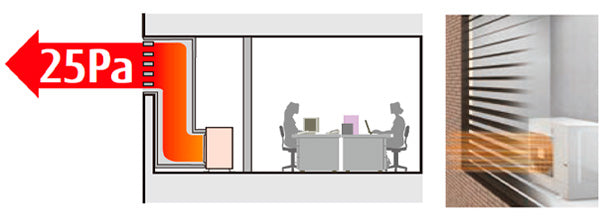

External static pressure measures up to 25 Pa for 4/5/6 HP models.

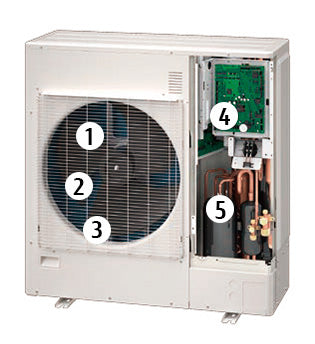

1. Large propeller fan
2. DC fan motor
3. Large heat exchanger
4. DC inverter control
5. Compact and high-performance DC twin-rotary compressor

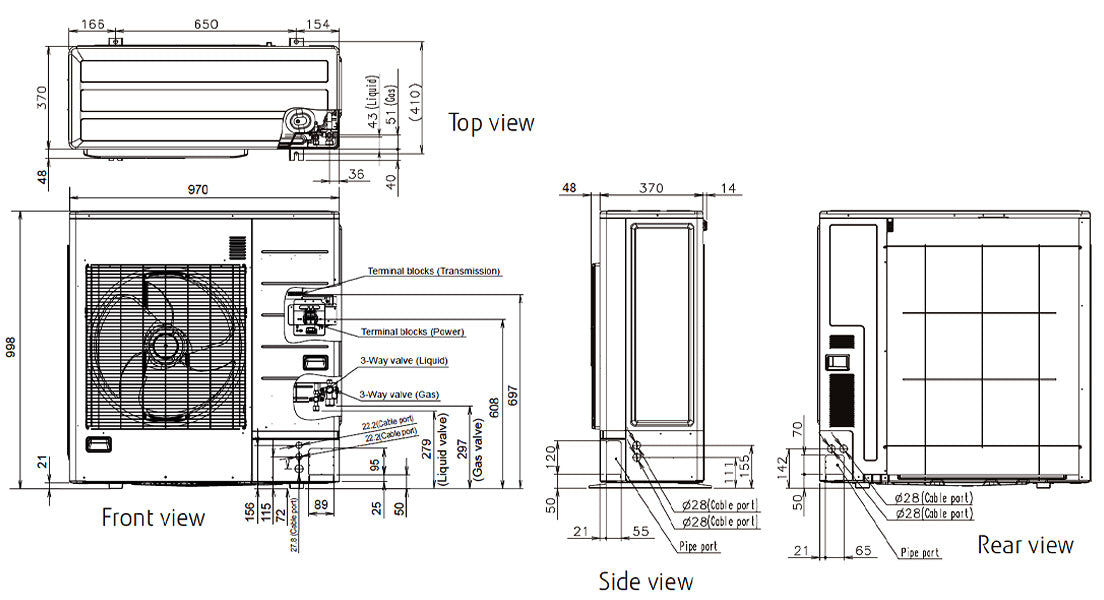

Small, lightweight outdoor unit

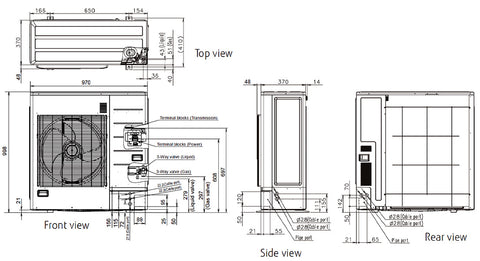

The outdoor units in this series are much more compact than conventional outdoor units of comparable capacity.They can be installed on a balcony, fitting below the height of the railing. With a height of less than 1 m, they can be installed in tight spaces such as under windows.

Low noise design

Significantly low noise levels are achieved by the use of a DC twin-rotary compressor, inverter technology, and an advanced airflow structure design.

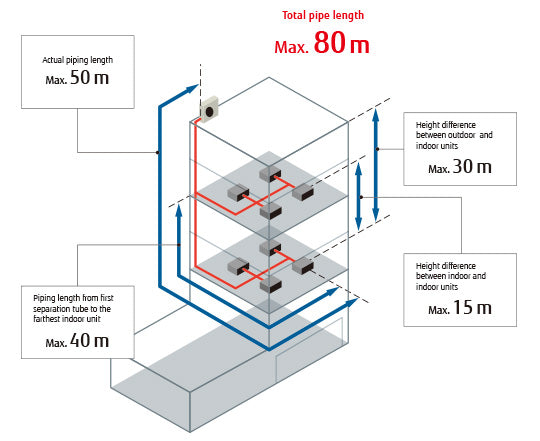

Our advanced refrigerant control technology extends the maximum allowable length of refrigerant piping to 80 m. This provides greater flexibility in system design.

The combination of smaller but sufficiently powerful indoor units and a new outdoor unit with an optimized heat exchanging structure makes it possible to connect up to 13 indoor units, which is the best in its class.

* 6 HP model

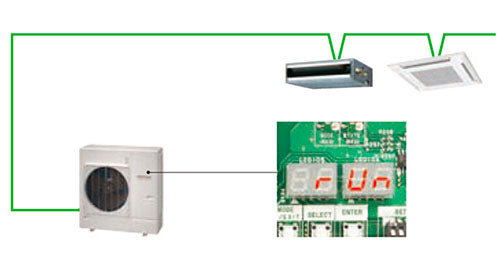

Connection check function: Wiring connections and address settings can be checked thanks to the quick check run function.

• Displays the number of each connected indoor unit.
• Displays the duplicate address number assigned to an indoor unit.
