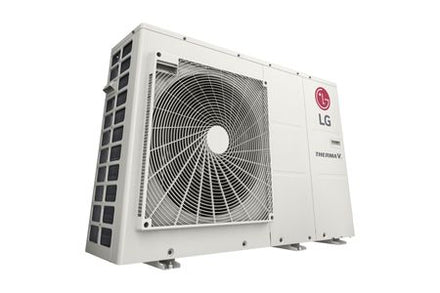

LG Therma V 5kW R32 Monobloc S Air Source Heat Pump HM051MR.U44

LG Therma V 9kW R32 Monobloc S Air Source Heat Pump HM091MR.U44-LG-Oceanair
LG Therma V 9kW R32 Monobloc S Air Source Heat Pump HM091MR.U44-LG-Oceanair
LG Therma V 9kW R32 Monobloc S Air Source Heat Pump HM091MR.U44-LG-Oceanair
LG Therma V 9kW R32 Monobloc S Air Source Heat Pump HM091MR.U44-LG-Oceanair

The LG THERMA V R32 Monobloc S offers top performance with the lowest noise levels in the series. This all-in-one unit integrates indoor and outdoor components and connects via water piping only - no refrigerant lines required.

Read more
  • Integrated outdoor unit with all essential hydronic components
  • Eliminates the need for refrigerant piping
  • Achieves ErP energy label ratings of A+++ at 35°C and A++ at 55°C LWT
  • Delivers high leaving water temperatures up to 65°C and operates efficiently in ambient conditions as low as -25°C
  • Quiet operation enables flexible installation in various locations
A+++ or A++
£2,211.60 £3,686.00 excl. VAT
£2,653.92 £4,423.20inc. VAT


Available


Description

The LG THERMA V R32 Monobloc S is the second generation in LG’s R32 Monobloc lineup. As the name suggests, it delivers superior performance with significantly reduced noise levels - the quietest in the THERMA V series. This all-in-one unit combines both indoor and outdoor components into a single module, connected solely by water piping, eliminating the need for refrigerant lines. Key hydronic components are integrated within the unit for added convenience. Engineered for outstanding heating performance, especially in low ambient temperatures, the R32 Monobloc S also reduces carbon emissions by using environmentally friendly R32 refrigerant.

For more specific details, contact Oceanair for compatibility and suitability advice.

  • Integrated outdoor unit with all essential hydronic components
  • Eliminates the need for refrigerant piping
  • Achieves ErP energy label ratings of A+++ at 35°C and A++ at 55°C LWT
  • Delivers high leaving water temperatures up to 65°C and operates efficiently in ambient conditions as low as -25°C
  • Quiet operation enables flexible installation in various locations
  • Compatible with Wi-Fi control via LG ThinQ, smart grid systems, and PV/ESS integration

*See Technical Attachments for more precise parameters and conditions.



Specification

Brand LG
Colour Light Grey
Compatible with Contact Oceanair for compatibility details.
Connection Type Male PT 1"
COP* 4.70
EER* 3.30
Energy Rating A+++
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No HM051MR.U44
Max. Working Temperature 65°C
Nom. Cooling Capacity 5.50kW
Nom. Heating Capacity 5.50kW
Operating Ambient Temperature Range (Cooling) 5°C to 48°C
Operating Ambient Temperature Range (Heating) -25°C to 35°C
Operating Ambient Temperature Range (Hot Water) -25°C to 35°C
Phase Single Phase
Power Voltage Supply 220-240V, 1, 50Hz
Product Depth 330mm
Product Height 834mm
Product Width 1239mm
Range Description LG Therma V
Refrigerant Type R32
SCOP 4.46
Sound Power Level 57 dBA
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for Domestic Use. Suitable for Domestic Air Source Heat Pump Systems.
Type Monobloc Air Source Heat Pump
Wi-Fi Enabled Connectivity Available with LG ThinQ, smart grid and PV/ESS
* Efficiency Data Notes COP (A +7°C, W 35°C); Cooling capacity (A 35°C, W 7°C); Heating average climate (W 35°C / W 55°C). EER and COP calculation is based in accordance to EN14511. SCOP (35°C)
