Product code: C003427

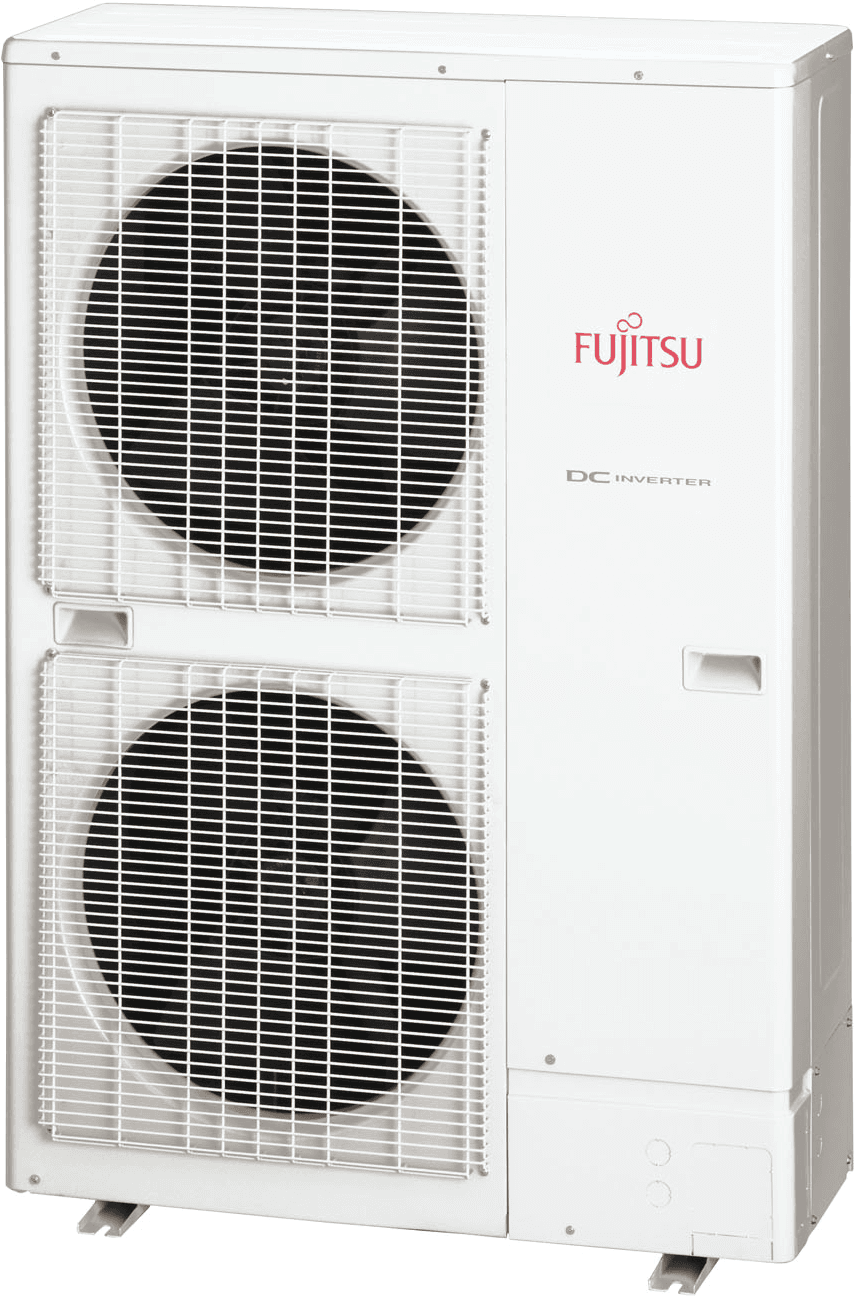

Fujitsu 15.0kW Single Split Outdoor Unit R410A Three Phase AOYG60LATT

Fujitsu Airstage High Static Pressure Duct - R410A-Fujitsu Airstage-Oceanair

The Fujitsu 15.0kW Single Split Outdoor Unit R410A Three Phase AOYG60LATT has a corrugate aluminium heat exchanger with a twin rotary compressor ...

Read more
  • 3 Year warranty
  • Compatible with Fujitsu ARYG60LHTA High Static Pressure Duct
  • Suitable for light commercial environments
  • Uses R410A refrigerant
  • Easy to install
View more details

This product must be installed by an F-GAS Certified Installer.

Login for your trade price

Or a apply for a Trade Account to view your personalised Oceanair trade prices.

If not an F-Gas Certified Installer but still interested in this product, contact your nearest branch for expert advice.

Available

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Fujitsu 15.0kW Single Split Outdoor Unit R410A Three Phase AOYG60LATT has a corrugate aluminium heat exchanger with a twin rotary compressor. Designed to be used with high static pressure duct units, this single split AC outdoor unit is ideal for light commercial spaces.

As outdoor units can be paired with various indoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • 3 Year warranty
  • Compatible with Fujitsu ARYG60LHTA High Static Pressure Duct
  • Suitable for light commercial environments
  • Uses R410A refrigerant
  • Easy to install

*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 115 m³/min
Brand Fujitsu
Colour Beige
Compatible with Compatible with Fujitsu R410A Air Conditioners. Compatible with ARYG60LHTA High Static Pressure Duct. Contact Oceanair for more details.
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 5/8"
Liquid Pipe Size 3/8"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No AOYG60LATT
Max. Pipe Run 75m
Nom. Cooling Capacity 15.0kW
Nom. Heating Capacity 18.0kW
No. of Indoor Units 1
Operating Temperature Range (Cooling) -15°CDB to 46°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Phase Three Phase
Power Rating (Watts kW) 15.0kW
Power Source 400V, 50Hz
Product Depth 330mm
Product Height 1290mm
Product Width 900mm
Range Description Fujitsu Standard Range
Refrigerant Type R410A
Sound Pressure Level 56 dBA
Suggested House Size Suitable for Larger Homes
System Suitability Suitable for Domestic Heating Systems. Suitable for Commercial Heating Systems.
Type Single Split Outdoor Unit
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.

Visit your local branch or contact us for more information.

Downloads

High Static Duct 60 Sales Sheet AOYG60LATT Sales Data Sheet AOYG60LATT Specifications AOYG60LATT Installation Manual
