Panasonic RAC Solo - R32 Range
The complete range of Panasonic RAC Solo air conditioners — the only wall-mounted heating and cooling system that needs no outdoor unit. Choose from four models from 1.7kW to 3.0kW, available as a unit only or as a complete bundle with everything needed for installation.
Which RAC Solo Is Right for You?
All four models share the same slim 165mm deep design with no outdoor unit required. The key difference is capacity — choose based on the size of the room you want to heat or cool.
P-MOG16IC5-UK
Small Rooms & Home Offices
The most compact model in the range at just 810mm wide. Uses eco-friendly R290 refrigerant with an ultra-low global warming potential. Ideal for single bedrooms, home offices and small living spaces.
P-MOZ20IC5-UK
Bedrooms & Smaller Living Rooms
The most energy efficient model in the range with the highest SCOP rating of 3.80. Ideal for average sized bedrooms and smaller living rooms.
P-MOZ25IC5-UK
Living Rooms & Open Plan Spaces
A versatile mid-range model suitable for most living rooms, open plan spaces and larger bedrooms.
P-MOZ30IC5-UK
Larger Rooms & Open Plan Living
The most powerful model in the range. Note this model requires slightly larger 202mm wall holes compared to the other three models.
Not sure which model is right for your space? Contact Oceanair and we'll be happy to advise.
|
Model Reference |
Nom. Cool (kW) |
Nom. Heat (kW) |
Max Pipe (m) |
EuP Lot 10 Energy Rating |
Max. Current (A) |
Wall Hole Diameter (mm) |
Refrigerant |
Electrical Supply |
Wi-Fi Control |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | SCOP | SEER | ||||||||
| P‑MOG16IC5‑UK | N/A | 1.73 | 1.71 | 15 | 3.70 | 4.60 | 3.9 | 162 | R290 | Single | Built-In |
| P‑MOZ20IC5‑UK | N/A | 2.09 | 2.08 | 15 | 3.80 | 4.70 | 4.1 | 162 | R32 | Single | Built-In |
| P‑MOZ25IC5‑UK | N/A | 2.33 | 2.31 | 15 | 3.70 | 4.60 | 4.6 | 162 | R32 | Single | Built-In |
| P‑MOZ30IC5‑UK | N/A | 2.87 | 2.75 | 15 | 3.40 | 4.10 | 6.3 | 202 | R32 | Single | Built-In |
| For more information, see Technical Specifications. |
|||||||||||
Key features
No outdoor unit. Just two small holes

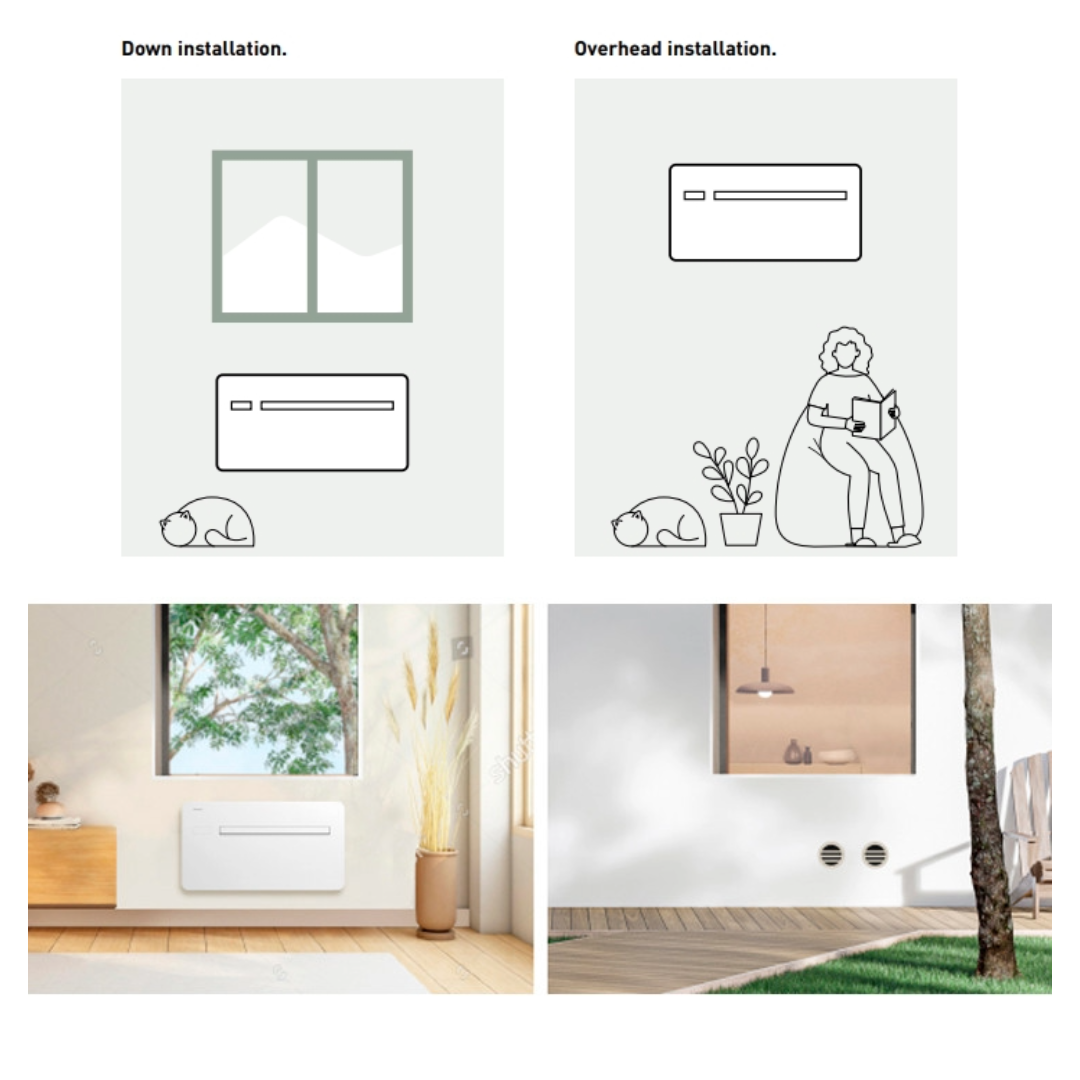

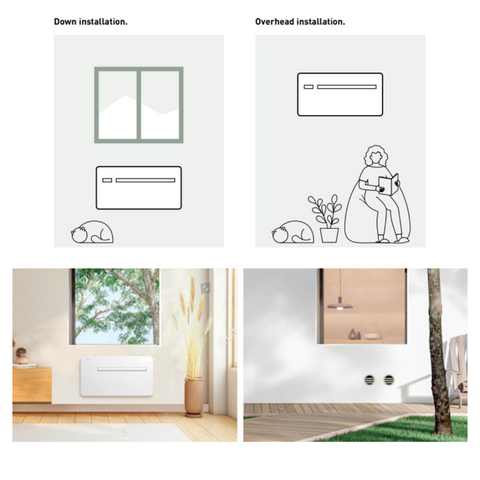

The RAC Solo is a completely self-contained unit that requires no outdoor condenser. Just two small wall holes — 162mm for most models, 202mm for the 3.0kW — are all that's needed to exchange air with the outside. No external fixings, no impact on your building's appearance and no planning permission required in most cases.
Heats Down to -15°C
The RAC Solo isn't just a summer cooling solution — it's a full heat pump capable of operating in heating mode down to -15°C outdoor temperature. All models feature a no frost system with a preheated condenser water tray to maintain performance through even the coldest UK winters, making it a genuine year-round comfort solution.
No F-Gas Certification Required
Unlike a conventional split system air conditioner, the RAC Solo arrives pre-charged with refrigerant and has no refrigerant connections during installation. This means installation does not require F-Gas certification, making it faster, more accessible and more straightforward to install than a traditional system.
DC inverter technology
DC Inverter technology continuously adjusts the RAC Solo's output to match the exact heating or cooling demand of your room — rather than simply switching on and off. The result is more consistent comfort, quieter operation and significantly lower energy consumption compared to fixed speed systems. The Dual Power mode also allows the unit to reach your desired temperature in the shortest possible time.
A-Rated Heating Efficiency
All RAC Solo models carry an A-rated SCOP heating efficiency rating — the second highest energy label category available. As a heat pump the RAC Solo produces significantly more heat energy than the electrical energy it consumes, typically delivering around 3kW of heat for every 1kW of electricity used. This makes it a far more cost effective heating solution than electric panel heaters or storage heaters.
RAC Solo Unit Specification Table
| Unit Technical Data | Model Number | |||
|---|---|---|---|---|
| P‑MOG16IC5‑UK | P‑MOZ20IC5‑UK | P‑MOZ25IC5‑UK | P‑MOZ30IC5‑UK | |
| Cooling (kW) - Nominal | 1.73 (0.70 - 2.35) | 2.09 (0.83 - 2.64) | 2.33 (0.92 - 3.10) | 2.87 (1.40 - 3.50) |
| Heating (kW) - Nominal | 1.71 (0.75 - 2.40) | 2.08 (0.71 - 2.64) | 2.31 (0.79 - 3.05) | 2.75 (1.35 - 3.50) |
| Sound Pressure - Hi / Lo / Q-Lo (dBA) | 39 / 29 / 27 | 39 / 30 / 26 | 41 / 31 / 27 | 43 / 33 / 29 |
| Outside Sound Pressure - Hi / Lo (dBA) | 49 / 36 | 49 / 36 | 51 / 38 | 53 / 40 |
| Height (mm) | 549 | 549 | 549 | 549 |
| Width (mm) | 810 | 1010 | 1010 | 1010 |
| Depth (mm) | 165 | 165 | 165 | 165 |
| Weight (kg) | 38 | 41 | 41 | 41 |
| Air Flow - Max / Average / Min (m³/min) | 6.0 / 5.0 / 4.0 | 6.3 / 5.2 / 4.3 | 6.7 / 5.3 / 4.5 | 7.5 / 5.8 / 5.0 |
| External Air Flow - Max / Average / Min (m³/min) | 7.2 / 6.0 / 5.3 | 7.7 / 6.3 / 5.5 | 8.0 / 6.5 / 5.7 | 9.2 / 7.7 / 6.7 |
| Moisture Removal Volume (L/h) | 0.7 | 0.8 | 0.9 | 1.2 |
| Power Supply (V) | 230 | 230 | 230 | 230 |
| Max Current (A) | 3.9 | 4.1 | 4.6 | 6.3 |
| Operating Range Cool (Min - Max °C) | -5 ~ +43 | -5 ~ +43 | -5 ~ +43 | -5 ~ +43 |
| Operating Range Heat (Min - Max °C) | -15 ~ +18 | -15 ~ +18 | -15 ~ +18 | -15 ~ +18 |
| Refrigerant / Charge (kg) | R290 / 0.14 | R32 / 0.5 | R32 / 0.5 | R32 / 0.5 |
