Product code: H001262

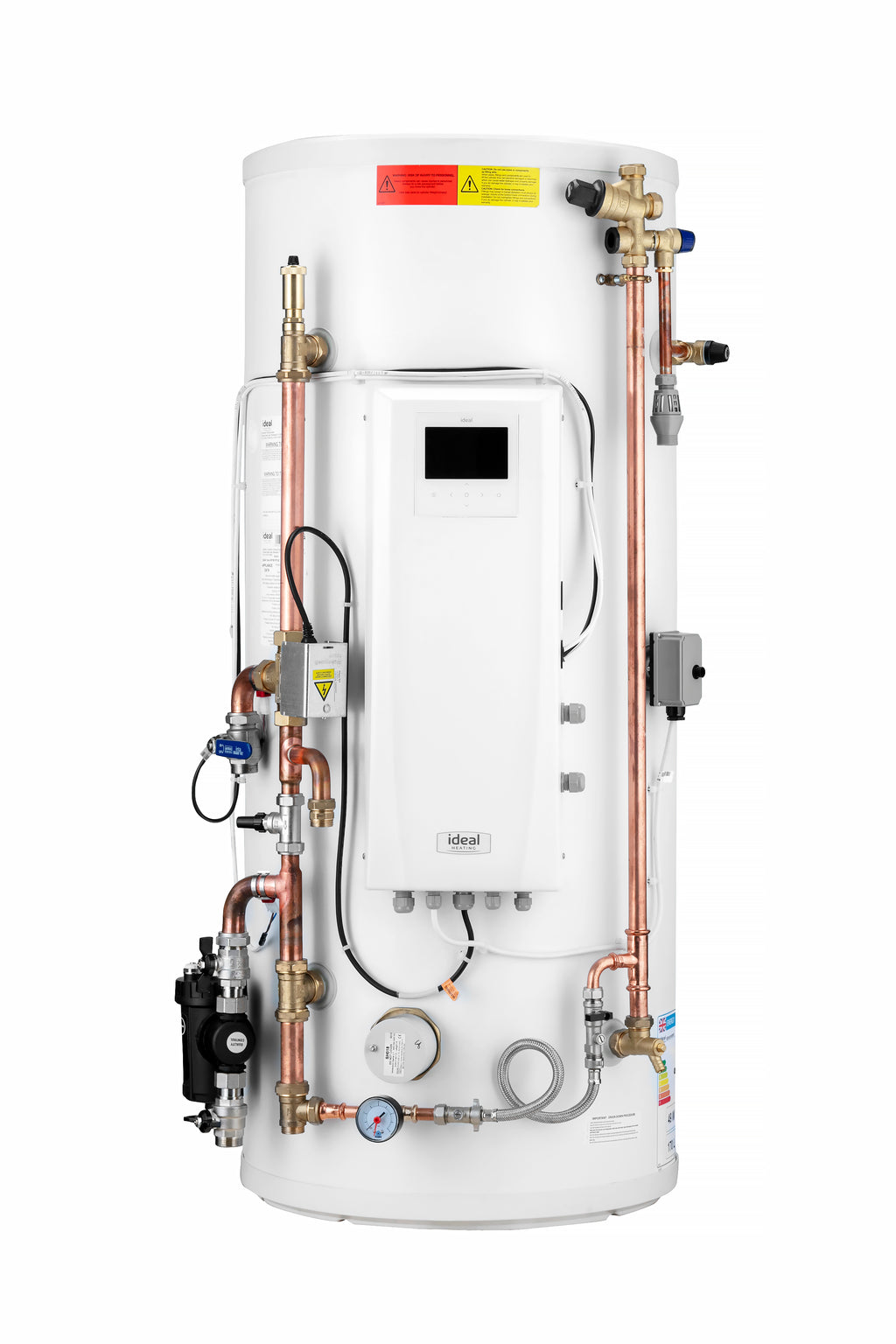

Ideal Heating HP290 DHW Pre-Plumbed Cylinder 180L 1 Zone Inc Control Box 240123

Ideal Heating’s UK-made stainless steel pre-plumbed hot water cylinders are designed for efficient heat pump use, offering fast reheat times and simplified, space-saving installation with all key components pre-fitted.

Read more
  • Single zone DHW heat pump cylinder compatible with air source heat pumps
  • Easy and quick to install as pre-wired and pre-plumbed
  • Heat up time from 10°C to 50°C* of 22.17 min
  • 25 Year warranty (T's & C's apply)
  • Primary heat exchanger surface area 2.5m2
  • Includes control box, expansion vessel, heat pump filter
B
£1,945.81 excl. VAT
£2,334.97inc. VAT


Available


Description

Ideal Heating's stainless steel pre-plumbed hot water cylinders offer a perfect blend of efficiency and convenience. Designed and manufactured in the UK, they feature industry-leading reheat times and are specifically engineered to store and generate hot water efficiently using a heat pump. By eliminating much of the complexity and cost associated with traditional heat pump installations, these pre-plumbed cylinders simplify the process. Fully assembled in our UK factory, they come with all essential components pre-fitted, including the three-port valve and filter, saving both time and space during installation.

Additionally, the cylinders are pre-wired, with key elements such as pipe sensors and thermostatic cut-outs already integrated to optimise installation and enhance reliability. The pre-plumbed cylinder range also includes models with an integrated buffer, combining the domestic hot water cylinder and a separate buffer tank within a single unit, along with pre-wired circulation pumps and standard pre-plumbed components.

For system suitability and compatibility advice, please contact Oceanair for more details.

  • Single zone DHW heat pump cylinder compatible with air source heat pumps
  • Easy and quick to install as pre-wired and pre-plumbed
  • Heat up time from 10°C to 50°C* of 22.17 min
  • 25 Year warranty (T's & C's apply)
  • Primary heat exchanger surface area 2.5m2
  • Includes control box, expansion vessel, heat pump filter
  • Suitable for new and retrofit installations
  • Fully pre-wired and pre-plumbed
  • Available in standard sizes and slimline sizes
  • Highly efficient multi-coil heat exchanger
  • Compatible with IDeal Heating HP290 Air to Water Heat Pumps
  • Includes 3kW immersion heater
  • Also available as 2 zone cylinders

*Heat Up Time, HWA Heat Pump Test 002:2020 (flow rate 0.42l/s and flow temperature of 55°C). See Technical Attachments for more precise parameters and conditions.

Specification

Brand Ideal Heating
Colour White
Compatible with Compatible with Ideal HP290 Air Source Heat Pumps. Contact Oceanair for more details.
Direct/Indirect Indirect
Energy Loss 49 W/h Heat Loss
Energy Rating B
Manufacturer's Model No 240123
Material Stainless Steel
Mounting Orientation Vertical
Power Rating (Watts kW) 3kW Immersion Heater
Pre-Wired Pre-Wired
Product Contents Includes Control box, Heat pump filter, DHW 3-port valve, P&T relief valve, High temp cut out, Expansion vessel, Pressure gauge, Automatic air vent(s), Isolation valves, 3kW Immersion, Flow thermistors, DHW thermistor, Outdoor sensor
Product Depth 983mm
Product Diameter 550mm
Product Height 1384mm
Product Width 636mm
Range Description Ideal HP290 Air Source Heat Pump Cylinders
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for Domestic Use.
System Type Suitable for use with Air Source Heat Pump Systems only.
Tank Capacity 170L
Type Air Source Heat Pump Hot Water Cylinder

Visit your local branch or contact us for more information.
