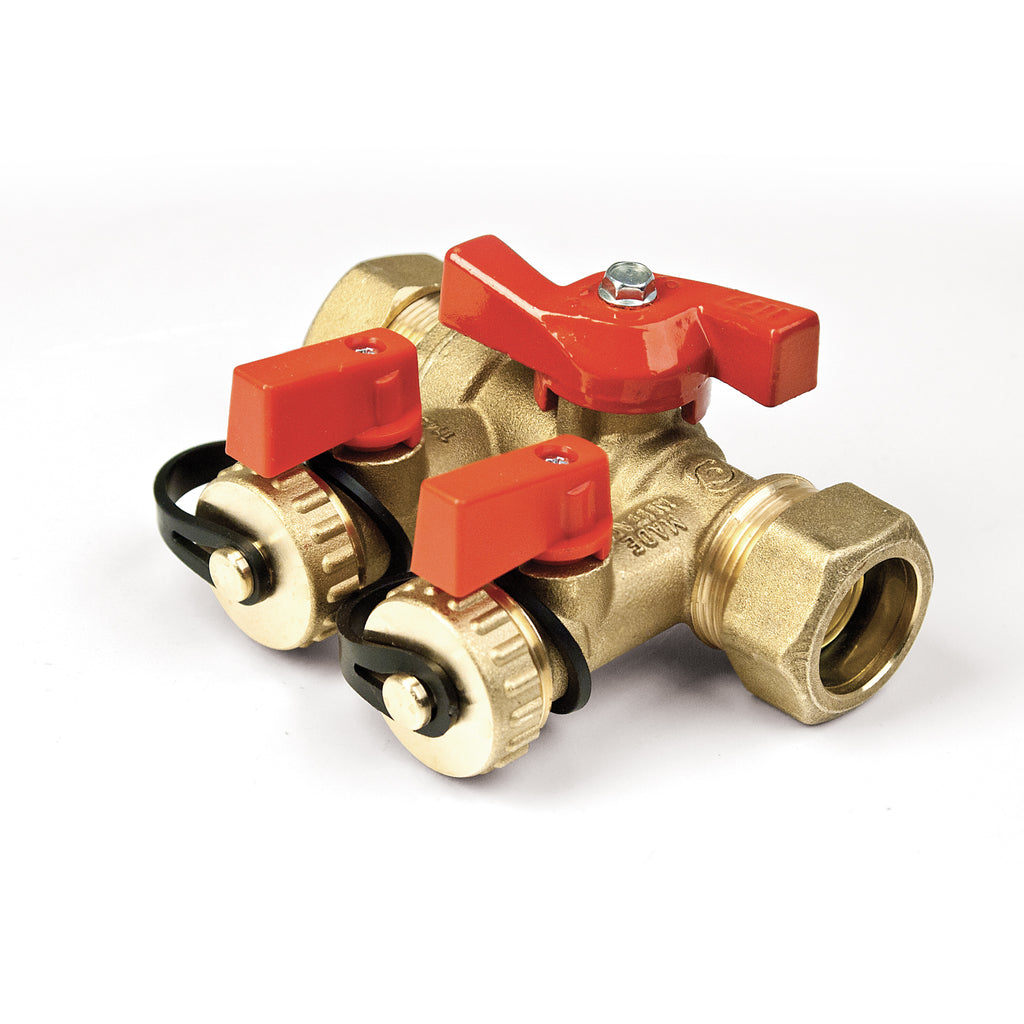

Inta 28mm Fill And Flush Valve INFAF28
Inta 28mm fill and flush valve for heating systems. Brass construction, glycol compatible and easy filling and flushing in one fitting.
Read more- Combined fill and flush valve for simple system commissioning
- Suitable for water and glycol mixtures (up to 50%)
- Solid brass construction for durability
- 28mm compression connections (BS EN 1252-2 compliant)
- Protective cover caps to prevent dust build-up and accidental discharge
- Max inlet pressure: 16 bar
View all products by Inta
Description
The Inta 28mm Fill and Flush Valve (INFAF28) is designed to simplify system commissioning and maintenance by combining filling and flushing functions into one convenient fitting. Manufactured from solid brass and suitable for use with water and glycol mixtures up to 50%, the valve provides a durable and reliable solution for modern heating systems, including heat pump installations. With 22mm compression connections compliant with BS EN 1252-2, it ensures a secure and straightforward installation. Supplied with protective cover caps to prevent dust ingress and accidental discharge, the Inta fill and flush valve offers a practical, installer-friendly solution for efficient system setup and servicing.
- Combined fill and flush valve for simple system commissioning
- Suitable for water and glycol mixtures (up to 50%)
- Solid brass construction for durability
- 28mm compression connections (BS EN 1252-2 compliant)
- Protective cover caps to prevent dust build-up and accidental discharge
- Max inlet pressure: 16 bar
- Working temperature range: -5°C to 99°C
- Available in 22mm and 28mm options
*WRAS approved. See technical attachments for more details.
Specification
Downloads
Technical Data SheetYou may also like:
