Panasonic RAC Solo 2.5kW Bundle | No Outdoor Unit Air Conditioner | P-MOZ25IC5-UK

£0.00
Panasonic RAC Solo 2.5kW | No Outdoor Unit Air Conditioner | P-MOZ25IC5-UK
£1,766.10
Panasonic External Grille Kit 162mm Holes PCZ-GB0738
£66.15
Panasonic Insect Protection Kit PCZ-GB0755
£58.59

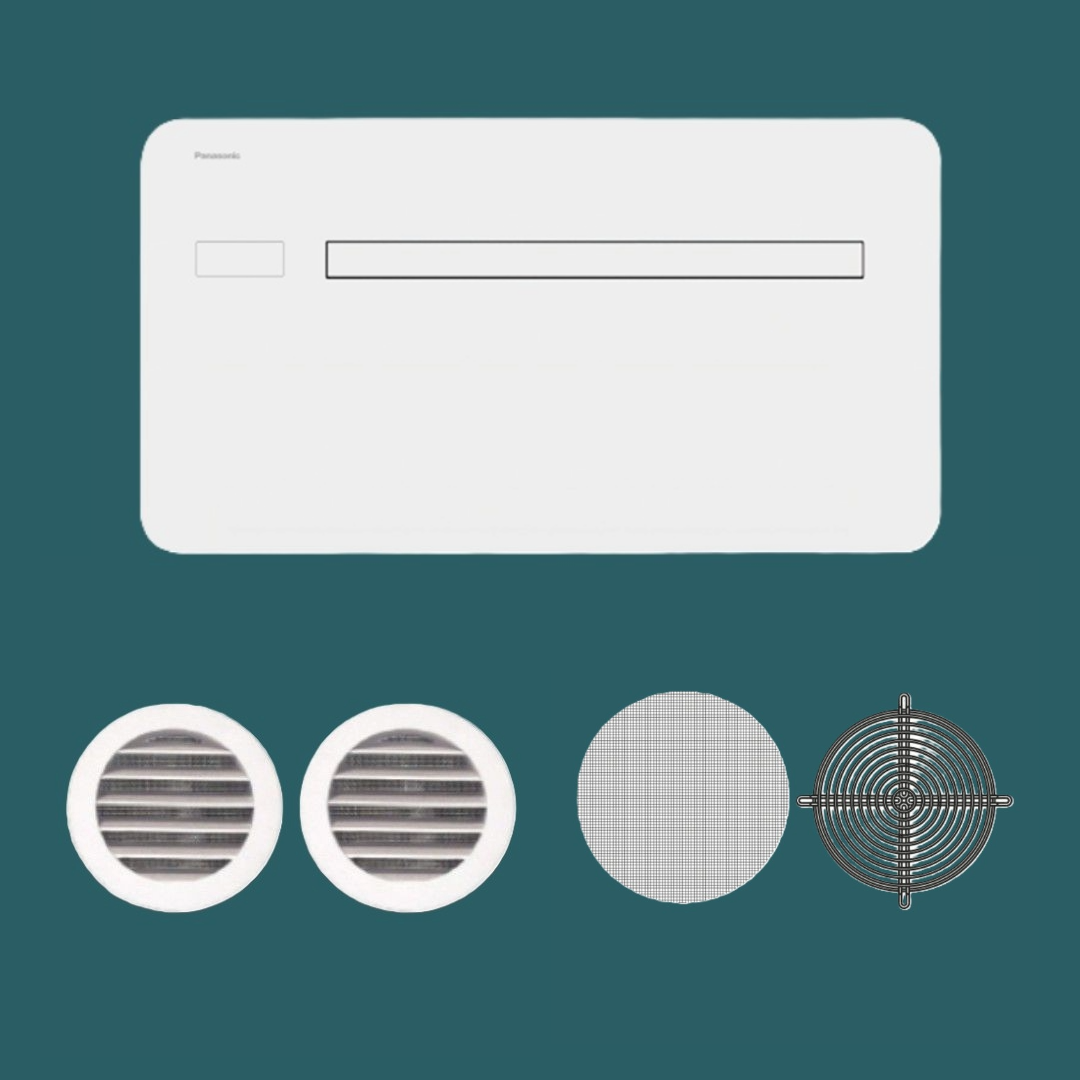

The Panasonic RAC Solo 2.5kW Complete Bundle includes everything you need for installation in one purchase — the mid-range RAC Solo model paired with external aluminium grilles and an insect protection kit, so your installer has everything required from day one.

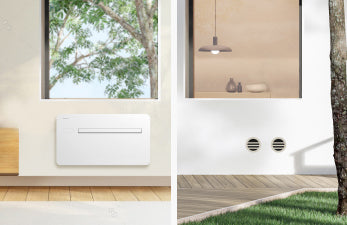

The RAC Solo 2.5kW is a complete heating and cooling system that requires no outdoor unit and no refrigerant connections. Ideal for rooms up to approximately 25m², it operates quietly and efficiently using DC Inverter technology with R32 refrigerant. Just two 162mm holes in a perimeter wall are all that’s needed for installation — no F-Gas certification required and no planning permission in most cases.

Bundle includes:

• Panasonic RAC Solo 2.5kW unit P-MOZ25IC5-UK

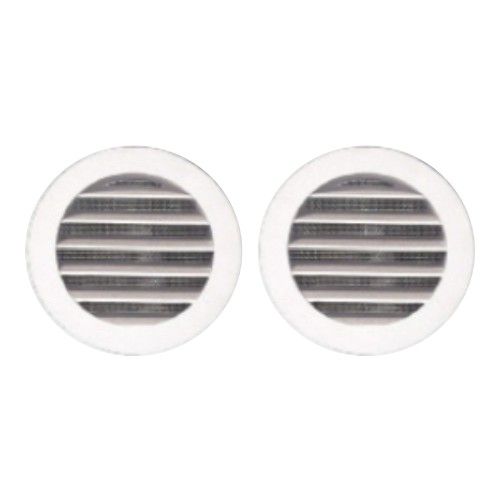

• Kit of external aluminium grilles with fixed fins (162mm holes) PCZ-GB0738

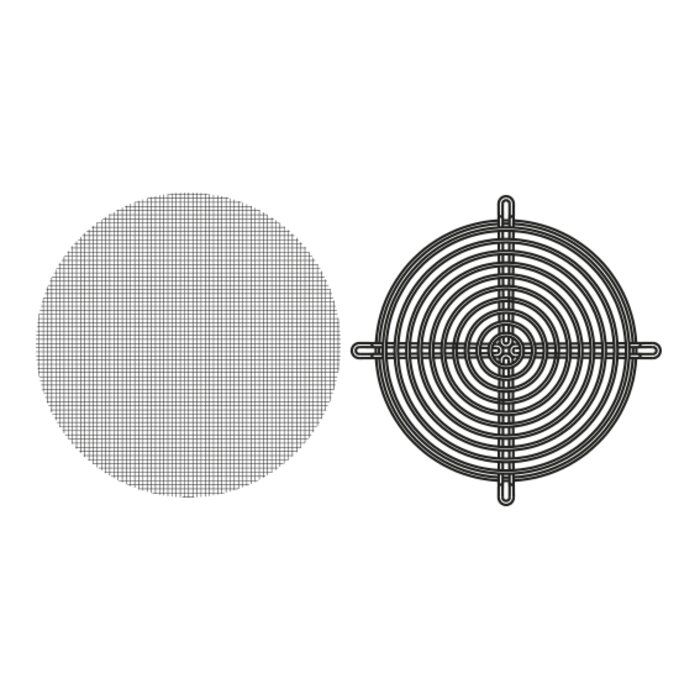

• Insect protection kit PCZ-GB0755

Also available as a unit only if you prefer to source accessories separately.

Key features:

  • ?

Efficiency Data Notes: 1) EER and COP calculation is based in accordance to EN 14511. 2) Energy Label Scale from A+++ to D. 3) The sound pressure shows the value measured at 2 m, according to ISO 7779.

*See Technical Attachments for more precise parameters and conditions.



The Panasonic RAC Solo is an innovative air conditioning solution ideal for spaces where installing a conventional outdoor unit isn't feasible.
  • No outdoor unit — just two 162mm wall holes required
  • Heats and cools — operating range -15°C to +43°C
  • A-rated SCOP of 3.70 for efficient year-round heating
  • Quiet operation — as low as 27dB(A) internally
  • DC Inverter technology with Dual Power mode
  • R32 refrigerant — environmentally responsible

Description

The Panasonic RAC Solo 2.5kW Complete Bundle includes everything you need for installation in one purchase — the mid-range RAC Solo model paired with external aluminium grilles and an insect protection kit, so your installer has everything required from day one.

The RAC Solo 2.5kW is a complete heating and cooling system that requires no outdoor unit and no refrigerant connections. Ideal for rooms up to approximately 25m², it operates quietly and efficiently using DC Inverter technology with R32 refrigerant. Just two 162mm holes in a perimeter wall are all that’s needed for installation — no F-Gas certification required and no planning permission in most cases.

Bundle includes:

• Panasonic RAC Solo 2.5kW unit P-MOZ25IC5-UK
• Kit of external aluminium grilles with fixed fins (162mm holes) PCZ-GB0738
• Insect protection kit PCZ-GB0755

Also available as a unit only if you prefer to source accessories separately.

Key features:

  • No outdoor unit — just two 162mm wall holes required
  • Heats and cools — operating range -15°C to +43°C
  • A-rated SCOP of 3.70 for efficient year-round heating
  • Quiet operation — as low as 27dB(A) internally
  • DC Inverter technology with Dual Power mode
  • R32 refrigerant — environmentally responsible
  • Wi-Fi control via the Panasonic Aquarea Home App
  • No F-Gas certification required for installation
  • Everything needed for installation included in one purchase

Efficiency Data Notes: 1) EER and COP calculation is based in accordance to EN 14511. 2) Energy Label Scale from A+++ to D. 3) The sound pressure shows the value measured at 2 m, according to ISO 7779.

*See Technical Attachments for more precise parameters and conditions.



Specification

Brand Panasonic
Colour Matt White
Compatibility Compatible with various accessories such as Panasonic External Grille Kit PCZ-GB0738, Panasonic Side Exit Framework PCZ-L00773. Contact Oceanair for more details.
Installation Configuration Down Installation or Overhead Installation
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No P-MOG25IC5-UK
Orientation Horizontal
Phase Single Phase
Range Description Panasonic RAC Solo
Air Flow Min / Average / Max 6,7 / 5,3 / 4,5 m³/min
External Air Flow Min / Average / Max 8,0 / 6,5 / 5,7 m³/min
Moisture Removal Volume 0,9 L/h
Cooling Capacity Nominal (Min-Max) 2,33 (0,92 - 3,10) kW
EER (1) 3,25 W/W
SEER (2) 4,60 B
Input Power 0.73 kW
Heating Capacity Nominal (Min-Max) 2,31 (0,79 - 3,05)
Heating Capacity at -7 °C 1,52 kW
COP (1) 3,28 W/W
SCOP (2) 3,70 A
Input Power 0,71 kW
Power Supply 230 V
Maximum Current 4,60 A
Sound Pressure (3) Hi / Lo / Q-Lo 41 / 31 / 27 dB(A)
Outside Sound Pressure (3) Hi / Lo 51 / 38 dB(A)
Refrigerant / Charge R32 / 0,5 kg
Product Contents 1 x RAC Solo unit, 1 x External Grille, 1 x Insect Protection Kit
Product Depth 165mm
Product Height 549mm
Product Width 1010mm
Product Weight 41 kg
Wall Hole Diameter 162mm
Distance Between Wall Holes 293mm
Cooling Operating Range Min - Max -5 ~ +43 °C
Heating Operating Range Min - Max -15 - +18 °C
Suitable System Suitable for Domestic Heating Systems. Suitable for HVAC Systems. Contact Oceanair for more details.
Type Compact Heating Air Conditioner
Wi-Fi Enabled Built in Wi-Fi
Works with iOS App Works with iOS App
Works with Android App Works with Android App
