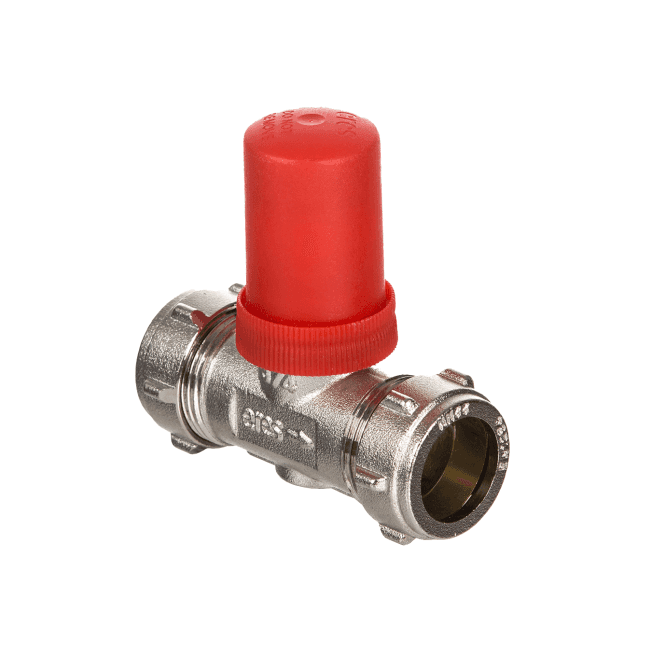

Altecnic Eres Straight Auto Bypass Valve 22mm ER-22MMSTRBI
The Altecnic Eres 22mm Straight Bypass Valve is an automatic differential bypass valve that can be used with most circulating pumps.
Read more- Helps maintain efficiency in central heating system
- 10 bar max pressure
- Maximum glycol concentration: 30%
- Operating temperature range: 0 to 100 °C
- Adjustable setting range: Straight installation: 1–6 m head (10–60 kPa)
Description
Installed between the flow and return pipework, these valves open automatically as differential pressure increases, allowing controlled flow through the bypass. This action maintains the preset differential pressure between the flow and return pipes, ensuring stable system operation and protecting system components.
- Helps maintain efficiency in central heating system
- 10 bar max pressure
- Maximum glycol concentration: 30%
- Operating temperature range: 0 to 100 °C
- Adjustable setting range: Straight installation: 1–6 m head (10–60 kPa)
* See technical attachments for more details.
Specification
Brand
Altecnic
Certifications Met
BS EN 1252-2
Colour
Brass
Connection Size
22mm
Connection Type
Compression
Finish
Chrome
Fitting Requirements
Must be Fitted by a Qualified Installer
Manufacturer Guarantee/ Manufacturer Warranty
1 Year Guarantee
Manufacturer's Model No
ER-22MMSTRBI
Material
Chrome-Plated brass
Max. Working Pressure
10 bar
Operating Temperature Range
Up to 100°C
Pack Size
1
Product Thickness
22mm
Range Description
Altecnic Eres
Suitable System
Suitable for Hot Water Central Heating Systems
Suitability
Suitable for use with copper pipes.
Type
Straight Bypass Valve
