Fujitsu Airstage Standard Range KM Series Large Room / Special Cooling Wall Mounted - R32
Single SplitProduct code: KM Series Large Room / Special Cooling Wall-Mounted

Fujitsu Airstage Standard Range KM Series Large Room / Special Cooling Wall Mounted - R32

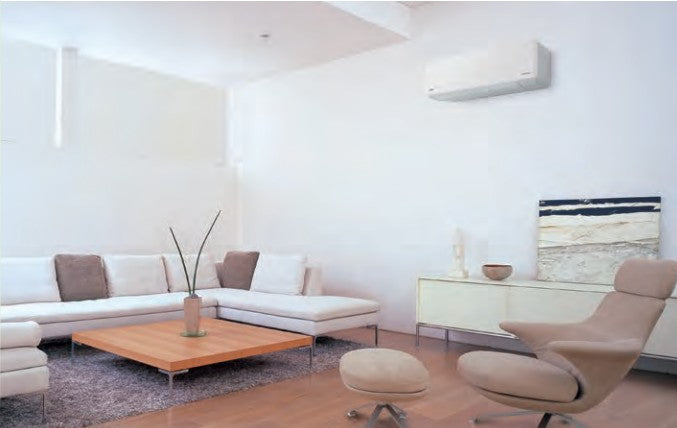

Discover the exceptional comfort of the Fujitsu KM Series for large-room or server room applications (KMTB models). Engineered with high-density heat-exchanger technology and R32-refrigerant, this high-efficiency system delivers powerful cooling and heating while retaining a sleek wall-mounted profile. Ideal for open-plan living spaces or commercial environments, the range pairs whisper-quiet operation with smart-device control compatibility and professional installation features to ensure year-round comfort, energy savings and flexible performance.

Fujitsu Airstage Standard Range KM Series Large Room / Special Cooling Wall Mounted - R32
(inc. Infra Red Controller)

Model Reference

Cool
Capacity
(kW)
Heat
Capacity
(kW)

Max
Pipe
(m)
EuP Lot 10
Energy Rating

Suggested MCB
(A)

Pipe
Size
Gas
(inch)

Pipe
Size
Liquid
(inch)

Electrical
Supply

Wi-Fi
Control
Indoor Unit Outdoor Unit SCOP SEER
ASEH30KMTB AOEH30KMTB 8.0 8.8 50 4.50 6.68 25 5/8 3/8 Single Optional
ASEH36KMTB AOEH36KMTB 9.4 10.1 50 4.50 6.10 25 5/8 3/8 Single Optional

For more information, see Technical Specifications.

Key features

Elegant Design for Modern Spaces

Elegant Design for Modern Spaces

Elegant, smart square design with refined ridge-line detailing that complements modern interiors, paired with a high-performance, enlarged heat exchanger that delivers superior energy savings and powerful operation in a compact unit.

Convenient Smart Device Control Anywhere

Convenient Smart Device Control Anywhere

With the optional WLAN adapter (UTY-TFSXH3), the air conditioner can be controlled remotely from any location using your smartphone or tablet. By installing the AIRSTAGE Mobile app, users gain full access to operating modes, temperature settings, and scheduling features, enabling effortless and flexible climate management whether at home or away.

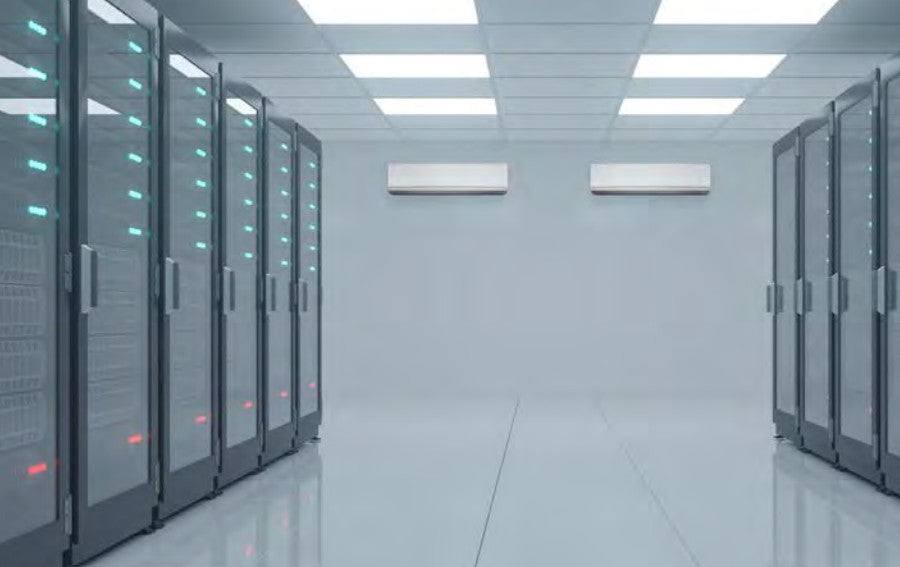

Stable Cooling Performance for High-Heat Load Environments

Stable Cooling Performance for High-Heat Load Environments

The Special Cooling function enables consistent cooling performance even when outdoor temperatures are low, making it suitable for rooms with high internal heat loads. When used with the wired remote controller (UTY-RNRYZ5), the system maintains reliable operation in low-humidity environments, providing controlled cooling where constant temperature management is essential.

* Terms and conditions apply. See Fujitsu Airstage Catalogue for more details.

Energy-Saving Operation with Occupancy Sensor

Energy-Saving Operation with Occupancy Sensor

The integrated occupancy sensor detects room activity and automatically reduces the air conditioner’s capacity when the space is unoccupied, helping to save energy. When movement is detected again, the system seamlessly returns to the previous operating mode for consistent comfort.

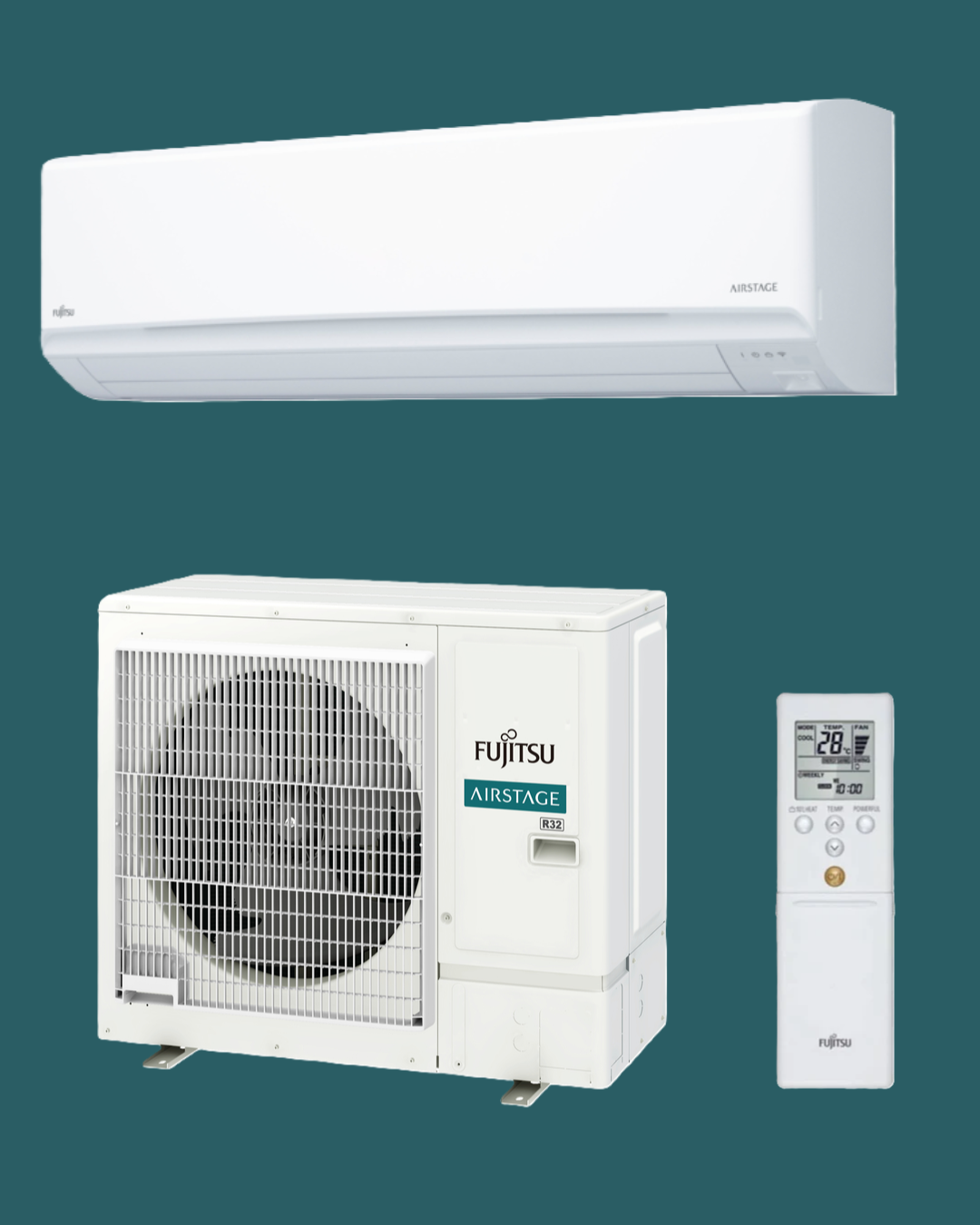

Fujitsu Airstage Standard Range KM Series Large Room / Special Cooling Wall Mounted - R32-Fujitsu Airstage-Oceanair
Fujitsu Airstage Standard Range KM Series Large Room / Special Cooling Wall Mounted - R32-Fujitsu Airstage-Oceanair
Fujitsu Airstage KM Series 8.0kW Wall Mounted Split Air Conditioner ASEH30KMTB-Fujitsu-Oceanair
Fujitsu Airstage 8.0kW Economy Single Split Outdoor Unit R32 Single Phase AOEG30KATA-Fujitsu-Oceanair
Fujitsu Airstage Eco+ Range KN Series Wall Mounted - R32-Fujitsu Airstage-Oceanair
Elegant Design for Modern Spaces

Elegant Design for Modern Spaces

Elegant, smart square design with refined ridge-line detailing that complements modern interiors, paired with a high-performance, enlarged heat exchanger that delivers superior energy savings and powerful operation in a compact unit.

Convenient Smart Device Control Anywhere

Convenient Smart Device Control Anywhere

With the optional WLAN adapter (UTY-TFSXH3), the air conditioner can be controlled remotely from any location using your smartphone or tablet. By installing the AIRSTAGE Mobile app, users gain full access to operating modes, temperature settings, and scheduling features, enabling effortless and flexible climate management whether at home or away.

Stable Cooling Performance for High-Heat Load Environments

Stable Cooling Performance for High-Heat Load Environments

The Special Cooling function enables consistent cooling performance even when outdoor temperatures are low, making it suitable for rooms with high internal heat loads. When used with the wired remote controller (UTY-RNRYZ5), the system maintains reliable operation in low-humidity environments, providing controlled cooling where constant temperature management is essential.

* Terms and conditions apply. See Fujitsu Airstage Catalogue for more details.

Energy-Saving Operation with Occupancy Sensor

Energy-Saving Operation with Occupancy Sensor

The integrated occupancy sensor detects room activity and automatically reduces the air conditioner’s capacity when the space is unoccupied, helping to save energy. When movement is detected again, the system seamlessly returns to the previous operating mode for consistent comfort.

Fujitsu Airstage Standard Range KM Series Large Room / Special Cooling Specification Table

< < <
Technical DataModel Number (Indoor Unit + Outdoor Unit)
ASEH30KMTBASEH36KMTB
AOEH30KMTBAOEH36KMTB
Power SourceSingle phase, ~230 V, 50 HzSingle phase, ~230 V, 50 Hz
Cooling Capacity (kW) /td>8.09.4
Heating Capacity (kW) - Nominal8.810.1
UK Total Cooling / UK Sensible Cooling5.82 / 6.707.55 / 8.87
Input Power Cooling/Heating (kW)2.33 / 2.203.16 / 2.73
EER (W/W)3.432.97
COP (W/W)4.003.70
Pdesign Cooling/Heating (-10°C) kW 5.2 / 4.88.0 / 6.59.4 / 7.1
SEER (W/W)6.686.10
SCOP (W/W)4.504.50
Energy Efficiency Class - CoolingA++A++
Energy Efficiency Class - HeatingA+A+
Annual Energy Consumption Cooling / Heating (kWh/a)419 / 1,994534 / 2,189
Moisture Removal Volume (L/h)2.63.8
Sound Pressure Level Indoor Cooling - H/M/L/Q (dBA)50 / 44 / 40 / 3350 / 44 / 40 / 33
Sound Pressure Level Indoor Heating - H/M/L/Q (dBA)49 / 44 / 39 / 3349 / 44 / 39 / 33
Sound Pressure Level Outdoor Cooling / Heating - High (dBA)53 / 5555 / 55
Airflow Rate Indoor/Outdoor (Cooling) High (m3/h)1,330 / 3,7501,330 / 3,750
Airflow Rate Indoor/Outdoor (Heating) High (m3/h)1,330 / 3,7501,330 / 3,750
Net Dimensions H x W x D Weight - Indoor (mm / kg)340 × 1,150 × 280 / 18.5340 × 1,150 × 280/ 18.5
Net Dimensions H x W x D Weight - Outdoor (mm / kg)788 × 940 × 320 / 52.0788 × 940 × 320 / 52.0
Remote Controller Type (Supplied With UnitWireless Wireless
Interconnecting Cable (Suggested cable size 1.5mm)3 Core + Earth3 Core + Earth
Suggested MCB Size (A)2525
Max. Operating Current - Cooling / Heating (A)21.0 / 21.021.5 / 21.5
Connection Pipe Diameter - Liquid/Gas (Inch)3/8 & 5/83/8 & 5/8
Max. Pipe Length (m) 5050
Pre-Charge Pipe Length (m)3030
Max. Height Difference (m)3030
Refrigerant Type / Global Warming Potential R32 / 675R32 / 675
Refrigerant Charge / CO2eq-T (g)1900 / 1.2831900 / 1.283
Refrigerant Additional Charge (g/m) 4040
Operating Range - Cooling (°CDB)-15 to 46-15 to 46
Operating Range - Heating (°CDB) -15 to 24-15 to 24
