Product code: H000154

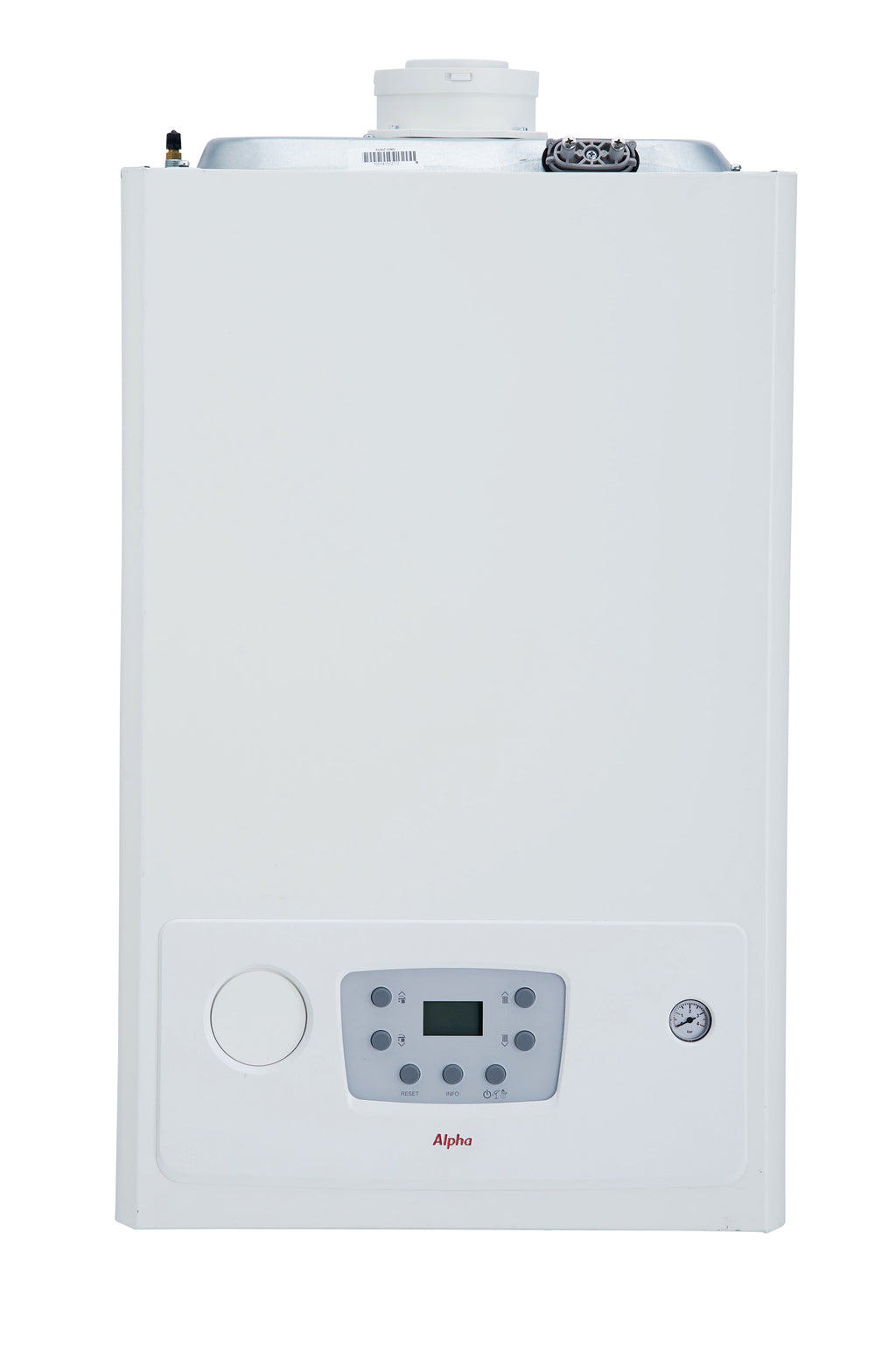

Alpha Evoke 33NX 32kW Combi Boiler 3.033115
The Evoke NX retains the original design with a stronger, lighter composite casing and an upgraded heat exchanger, while keeping the durable stainless steel coil.
Read more- 7 Year Warranty
- Grundfos hydroblock assembly with Delta T variable speed operation pump
- Adjustable heating flow temperature for increased efficiency
- Range output adaptable to system requirements
- Combined expansion relief
- Weather compensation compatible with an external sensor
Description
The Evoke NX stays true to the original Evoke series design, with an upgraded heat exchanger. Its robust casing is constructed with a composite thermoplastic material that not only ensures durability but also reduces the boiler's weight. The stainless steel coil remains unchanged.
- 7 Year Warranty
- Grundfos hydroblock assembly with Delta T variable speed operation pump
- Adjustable heating flow temperature for increased efficiency
- Range output adaptable to system requirements
- Combined expansion relief
- Weather compensation compatible with an external sensor
- OpenTherm and Alpha BUS control compatible
- Removable push fit flue connection for quick installation of vertical or horizontal flues
* See Technical Attachments for more precise details.
Specification
Brand
Alpha
Boiler Depth
255mm
Boiler Height
712mm
Boiler Type
Combi Boiler
Boiler Width
440mm
Colour
White
Compatibility
Compatible with Alpha CD Condensing Flues. Contact Oceanair for more details.
Display
Backlit Display
Energy Rating (Heating)
A
ERP Rating
A
Fitting Requirements
Must be Fitted by a Gas Safe Registered Installer
Flow Rate (Ltr/Min)
14.1 Ltr/min
Flow Temperature Range (Heating)
< 85 °C
Flue Connection Diameter
60/100mm
Flue Supplied
Flue Not Supplied
Frost Protection
Frost Protection in Boiler Only
Fuel Type
Natural Gas
Manufacturer Guarantee/ Manufacturer Warranty
7 years
Manufacturer's Model No
3.033115
Max. Heat Output DHW (Pn)
32 kW
Model Name
Alpha Evoke NX
NOx Class
6
Range Description
Combi Boilers
SAP Seasonal Efficiency
94%
SEDBUK SAP 2005 Rating
A
SEDUK SAP 2009 Rating
89.40%
Type
Gas Combi Boiler
