Product code: P001478

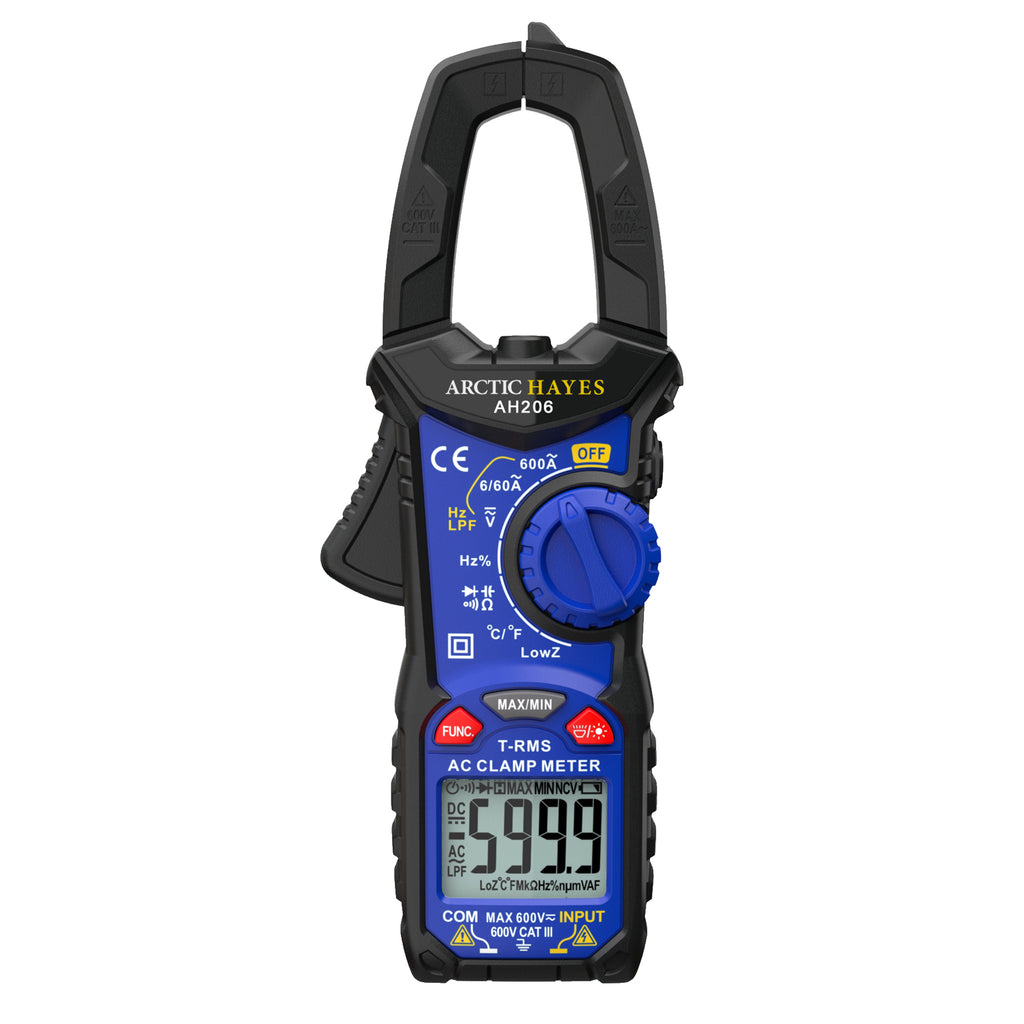

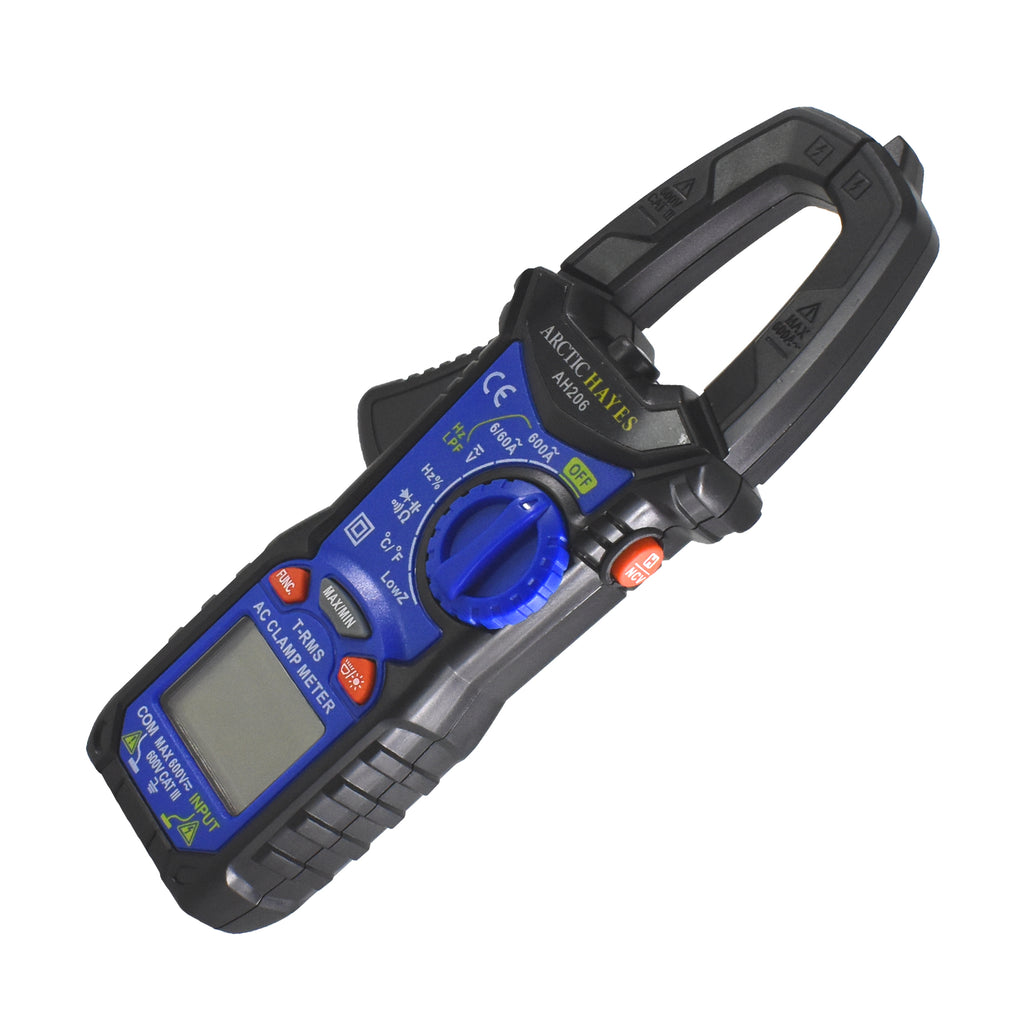

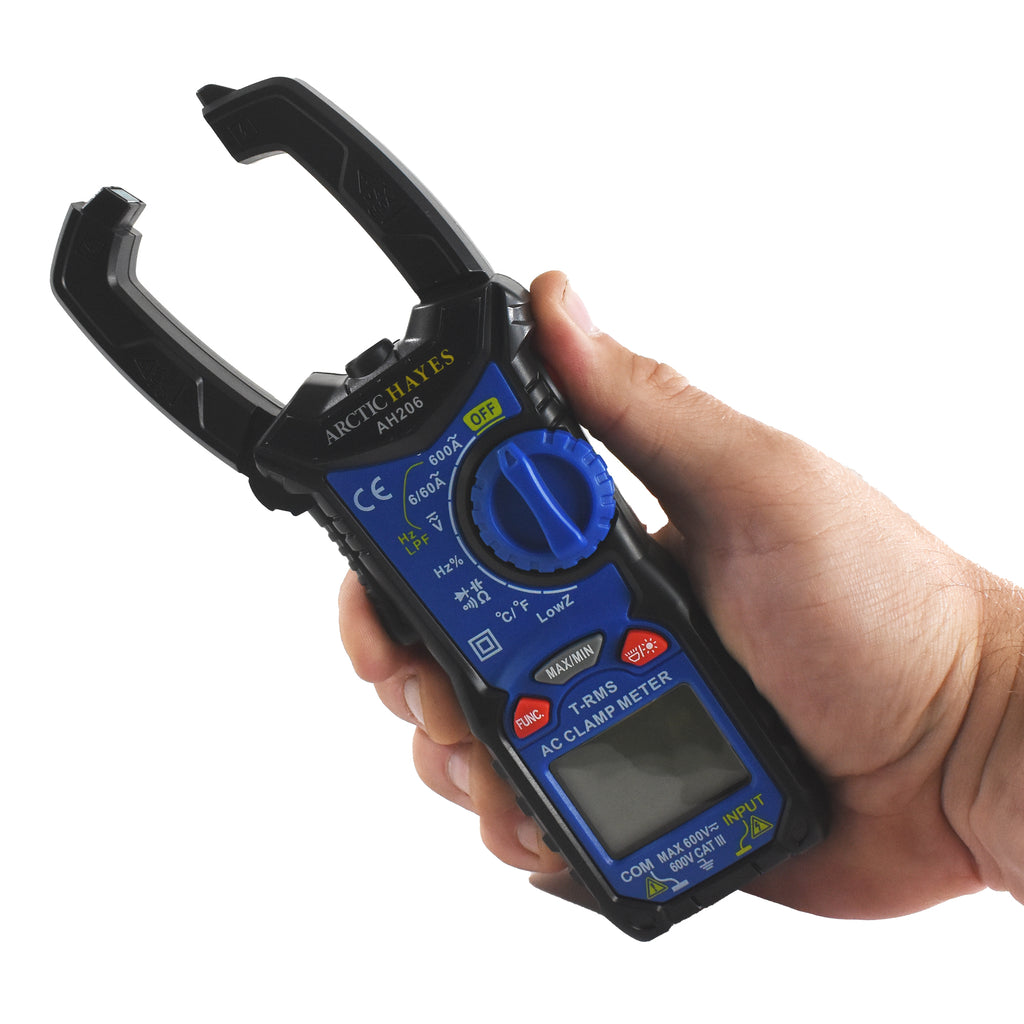

Arctic Hayes Digital Clamp Meter with Temperature Function AH206
User-friendly clamp meter featuring a large trigger jaw and intuitive rotary dial for easy feature selection.
Read more- Dual-colour backlit display
- Audible and visual alerts
- Measures voltage, current, capacitance, resistance, frequency and temperature
- 6000-count true RMS accuracy
- Max/Min recording and data hold functions
- Built-in flashlight for low-light use
Description
User-friendly clamp meter featuring a large trigger jaw and intuitive rotary dial for easy feature selection. Includes a temperature measurement function and is capable of measuring current up to 600A AC and voltage up to 600V AC.
- Dual-colour backlit display
- Audible and visual alerts
- Measures voltage, current, capacitance, resistance, frequency and temperature
- 6000-count true RMS accuracy
- Max/Min recording and data hold functions
- Built-in flashlight for low-light use
- Overload protection for added safety
- 25mm jaw opening
- Temperature range: -20°C to +1000°C / -4°F to 1832°F
- Maximum current: 600A AC (no DC current measurement)
- Maximum voltage: 600V AC/DC
- Meets CAT III 600V, EN 61010-1, and EN 61010-2-033 standards

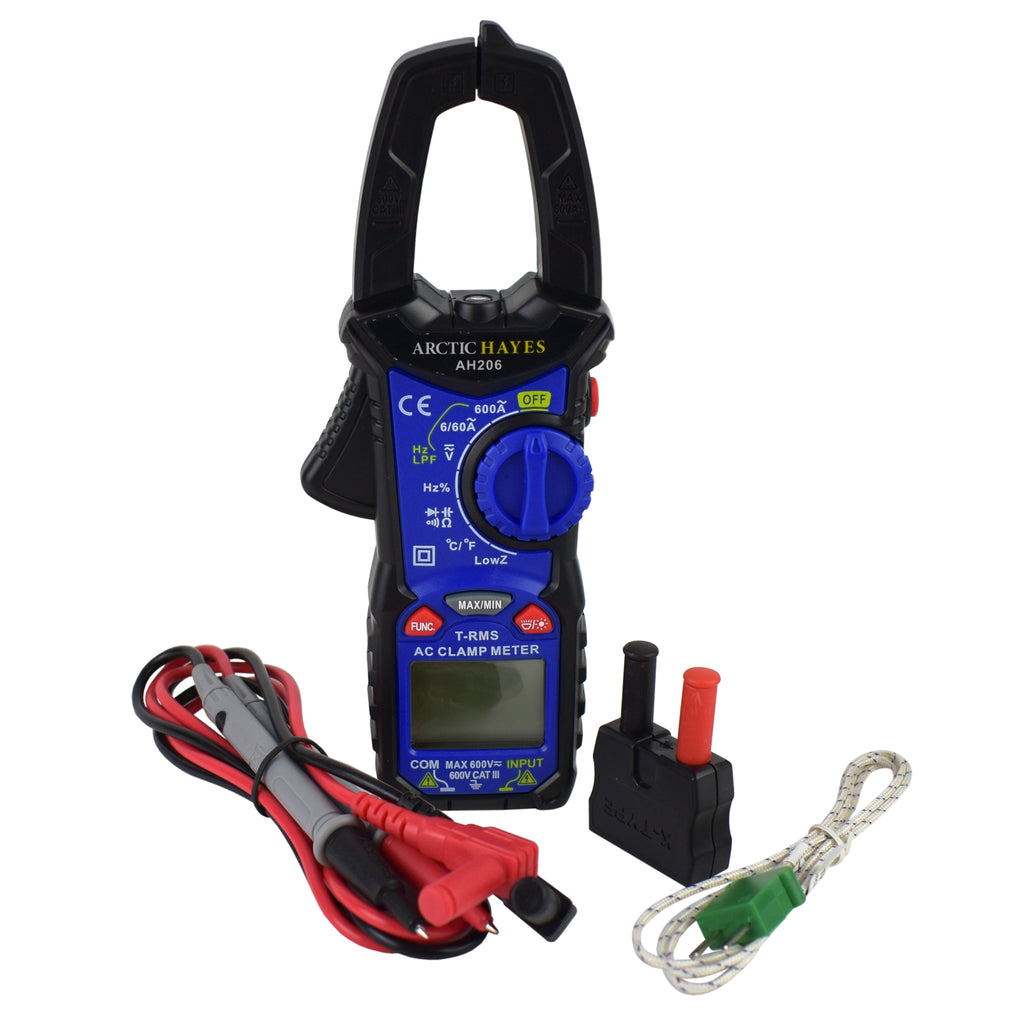

- Supplied with 1m K-Type thermocouple and adaptor (EN 60584 compliant)
- Conforms to LVD, EMC, and RoHS directives
- CE and UKCA certified
- Powered by 2 x 1.5V AAA batteries (included)
* See Technical Attachments for more details.
Specification
Battery Type
2 x 1.5V AAA Batteries (included)
Brand
Arctic Hayes
Colour
Black & Blue
Current Type
AC
Display
LCD Display
Manufacturer Guarantee / Manufacturer Warranty
1 Year Guarantee
Manufacturer's Model No
AH206
Max. Jaw Opening
25mm
Pieces in Pack
1
Product Depth
34.5mm
Product Height
194mm
Product Width
73.4mm
Range Description
Multimeters
Temperature Range
-20°C to +1000°C / -4°F to 1832°F
Type
Clamp Meter
Arctic Hayes Digital Clamp Meter with Temperature Function AH206
In stock
