Product code: P000322

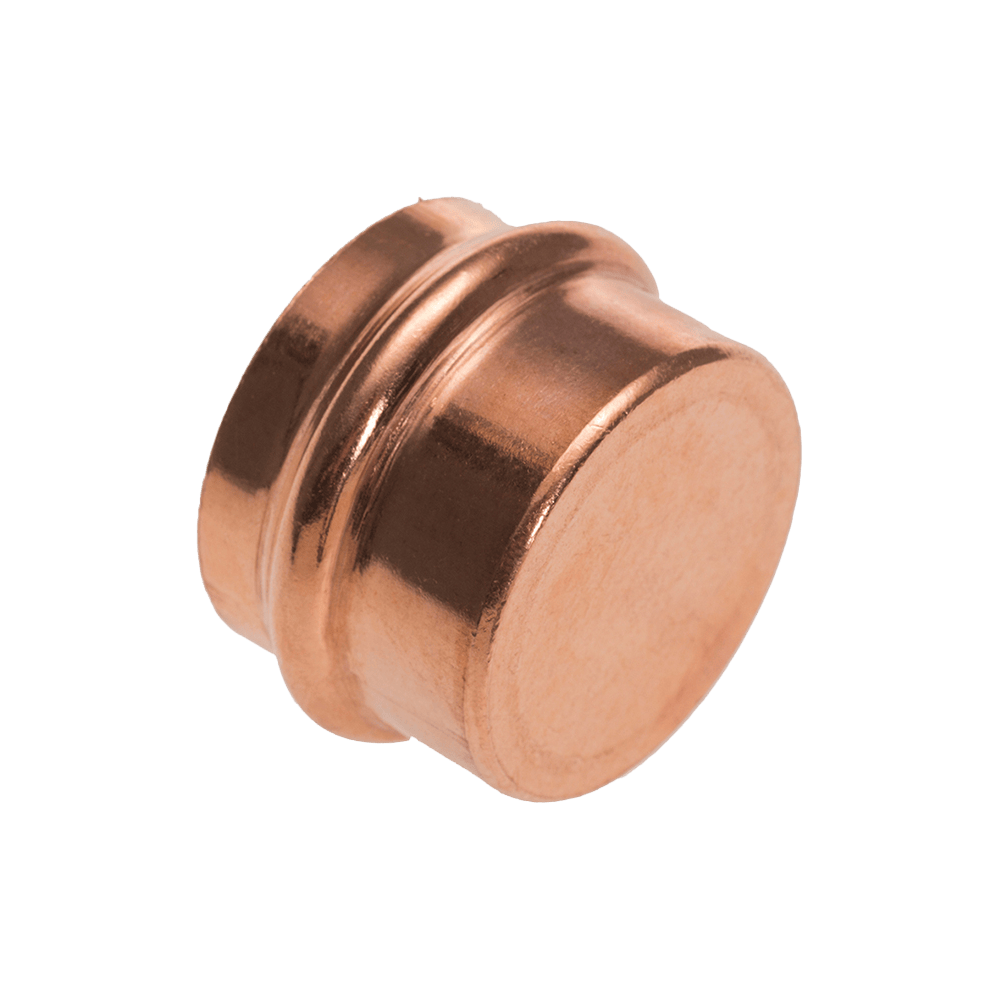

Conex Banninger B Press Copper Stop End 22mm P5301 02200000
Discover the innovative Conex B-Press, a 3-point press fitting that offers a long-lasting, leak-free connection with a cutting-edge design ...
Read more- 25 year guarantee
- Caps off copper pipes
- WRAS approved
- Leak-free connections
- Suitable for drinking water
- Suitable for water systems
View all products by Conex Banninger
Description
Discover the innovative Conex B-Press, a 3-point press fitting that offers a long-lasting, leak-free connection with a cutting-edge design. Keep an eye on unpressed joints with our convenient joint indicator. Perfect for heating, ventilation, and drinking water systems. Works seamlessly with various press tools, B/V and M profile jaws, and requires no hot works. Made for use with hard, half-hard and soft copper tube.
- 25 year guarantee
- Caps off copper pipes
- WRAS approved
- Leak-free connections
- Suitable for drinking water
- Suitable for water systems
- Suitable for use with compressed air
- Suitable for use with non-medical gases and vacuum
- Permanent and secure 3 point press
- Safer and flame-free copper tube jointing system
- Indicator identify unpressed joints
- Suitable for use with Press Tools & B/V & M Profile Jaws (15-28mm)
Specification
Brand
Conex Banninger
CE Standard (Tested to EN…)
BS 8537, BSI Kitemark
Colour
Copper
Connection Type
B Press
Manufacturer Guarantee/ Manufacturer Warranty
25 Year Guarantee
Manufacturer's Model No
P5301 02200000
Material
Copper / EPDM
Max. Operating Temperature
110°C
Max. Working Pressure
16 bar
Minimum Operating Temperature
-35°C
Pipe Fitting System
Press-Fit
Product Diameter
22mm
Range Description
Conex Banninger >B< Press Copper Fittings
Suitable System
Suitable for Hot and Cold Water Systems and Suitable for Drinking Water Systems. Suitable for Cooling Systems. Suitable for Heating Systems
Suitable Water Hardness
Suitable for Hard & Soft Water Areas
Type
B Press Stop End
Conex Banninger B Press Copper Stop End 22mm P5301 02200000
In stock
