Product code: H000339

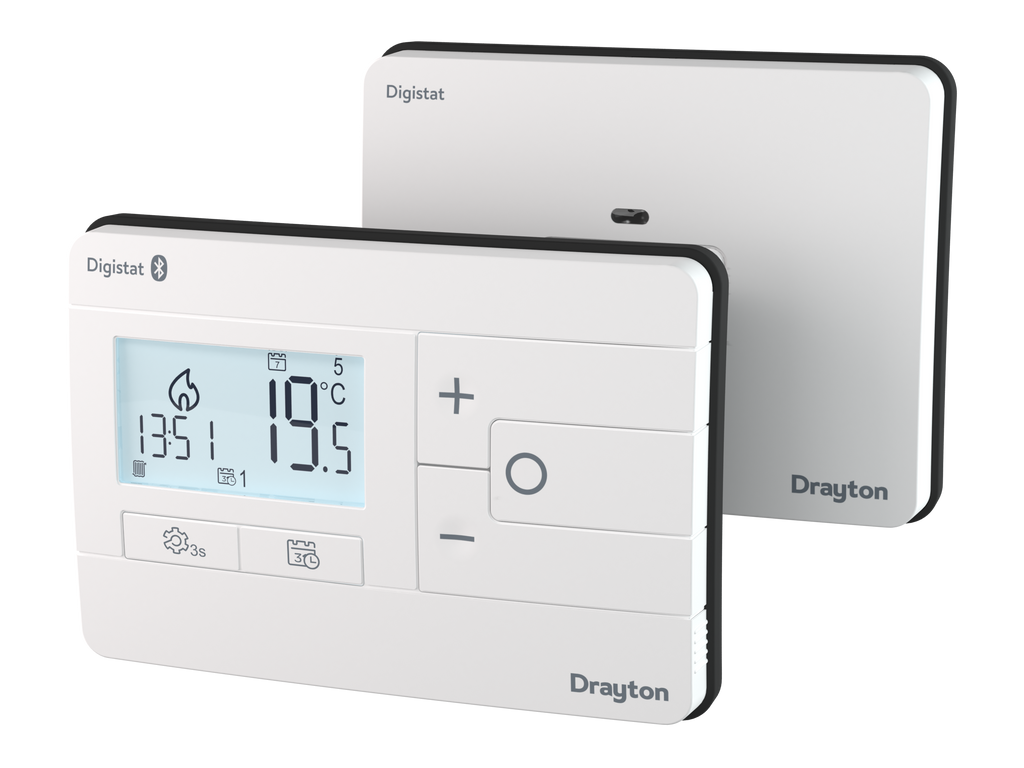

Drayton Digistat Single Channel RF with OpenTherm RF901
The Drayton Digistat RF901 is an award-winning wireless thermostat offering flexible universal operation with 3A relay or OpenTherm outputs - no Wi-Fi required. Control it manually or via smartphone using Bluetooth, with 7-day, 5/2-day, or 24-hour programming options compatible with gas, heat pump, and oil systems.
Read more- No need for Wi-Fi
- Compatible with 3A relay or OpenTherm outputs
- Programmable using the app by Bluetooth connection or manual control on the thermostat
- Same easy to use features and operation as other Digistat products
- 7 day, 5/2 day, 24 hour programming or simply use as a room thermostat
- Includes receiver which pairs with thermostat automatically on power up
Description
The Digistat RF901, produced by Drayton, is an award-winning product that offers wireless connectivity to boilers and features 3A relay or OpenTherm outputs. With its universal operation and optional smartphone control, this product provides unmatched flexibility for the user.
- No need for Wi-Fi
- Compatible with 3A relay or OpenTherm outputs
- Programmable using the app by Bluetooth connection or manual control on the thermostat
- Same easy to use features and operation as other Digistat products
- 7 day, 5/2 day, 24 hour programming or simply use as a room thermostat
- Includes receiver which pairs with thermostat automatically on power up
- Compatible with gas, heat pump and oil systems
* See technical attachments for more details.
Specification
Batteries Supplied/Required
Alkaline Batteries Required
Brand
Drayton
Central Heating Control Type
Thermostat
Colour
White
Communication Protocol
OpenTherm
Compatible Boiler Type
All Boilers
Control Operation
Digital
Current Type
AC
Display
Backlit Display
ERP Control Class
Class 5
Frequency Band (Smart)
434 MHz
Heating System Mode
Heating
Hertz (Hz)
50 Hz
Holiday Mode
Holiday Mode
Installation Type
2-Wire Installation
IP Rating
IP30
Manufacturer's Model No
RF901
Material
Plastic
Max. Load (Inductive)
1A
Max. Load (Resistive)
3A
Model Name
Digistat RF1
Mounting Type
Wall-Mounted
No. of Zones
1
Product Contents
Drayton RF901 Digistat and Single Channel Receiver
Range Description
Drayton Digistat
Receiver Included
Receiver Included
Receiver Mount Type
Wall Mounted
Receiver Power Source
Mains-Powered
Sensor Type
Electronic Sensor
Smart
Not Smart
Switching Type
SPDT
Temperature Range
5°C - 30 °C
Thermostat Power Source
Battery-Powered
Timer
6 Day, 5/2 Day or 24 Hour Programmable
Type
Wireless Room Thermostat
Voltage
230V
Wired or Wireless
Wireless
Works with Android App
Works with Android App
Works with iOS App
Works with iOS App
