Product code: H000317

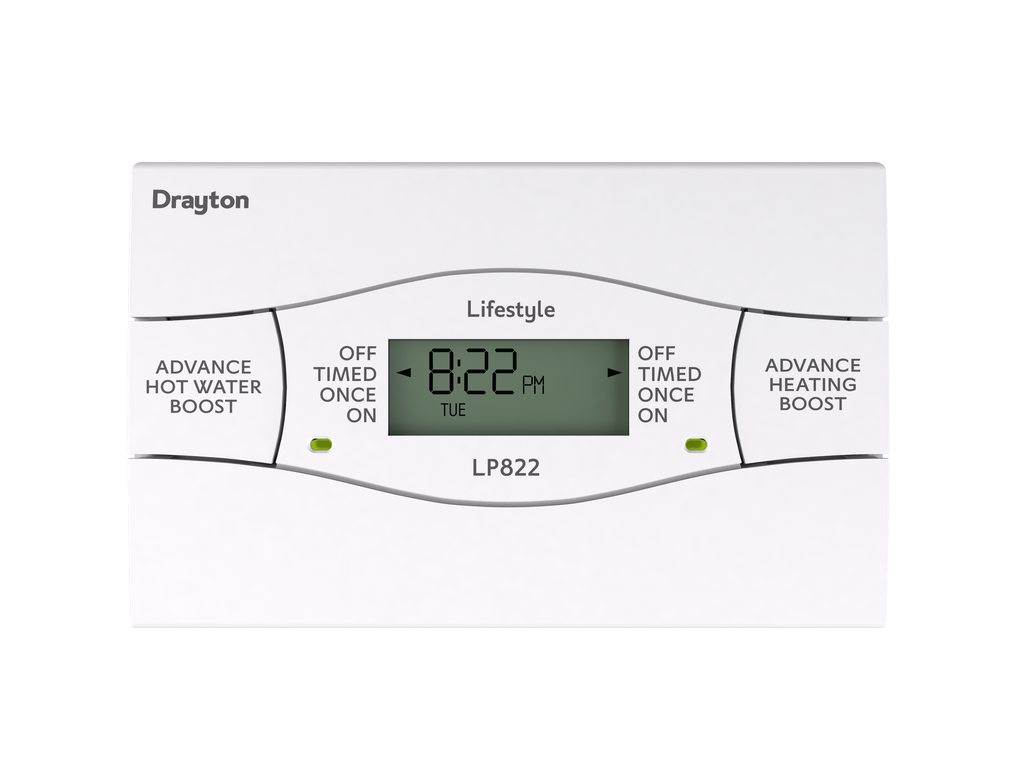

Drayton LP822 Universal Programmer 25464

Gain more precision in regulating your heat and hot water with the Drayton LP822, which allows the choice between the LP241, LP522, or LP722 features upon installation.

Read more
  • Allows separate timings for hot water and heating
  • Boost and advance functions
  • Auto summer/winter time change
  • 24 hour, 5/2 day or 7 day timer cycles
  • Holiday mode

This product will be available in conjunction
with our new Perth branch opening.

Description

Gain more precision in regulating your heat and hot water with the Drayton LP822, which allows the choice between the LP241, LP522, or LP722 features upon installation. Pick from 24-hour, 5/2 day, or 7-day programming options for separate heating and hot water timings. Designed for both fully pumped and gravity-fed hot water systems, this device offers a boost and advance feature, automatic time adjustments for summer and winter, and a built-in standard program with 3 on/off settings per day. Enjoy easy access and visibility with a backlit screen and industry-standard wall plate.

  • Allows separate timings for hot water and heating
  • Boost and advance functions
  • Auto summer/winter time change
  • 24 hour, 5/2 day or 7 day timer cycles
  • Holiday mode

Specification

Batteries Supplied/Required Lithium Batteries Required
Brand Drayton
Certifications Met EN60730-1 and EN60730-2-7
Colour White
Control Operation Digital
Current Type AC
Display Backlit Display
Hertz (Hz) 50 Hz
Holiday Mode Holiday Mode
Manufacturer's Model No 123089
Material Plastic
Model Name LP822
Mounting Type Wall-Mounted with industry standard wall plate
No. of Zones 1
Product Depth 31mm
Product Height 93mm
Product Width 148mm
Range Description Universal Programmers
Smart Not Smart
Suitable System Suitable for Fully Pumped or Gravity Hot Water Systems
Temperature Range 0°C - 50°C
Timer 7 Day, 5/2 Day or 24 Hour Programmable
Type Programmer
Voltage 230V
Wired or Wireless Wired

Visit your local branch or contact us for more information.
