Product code: C003438

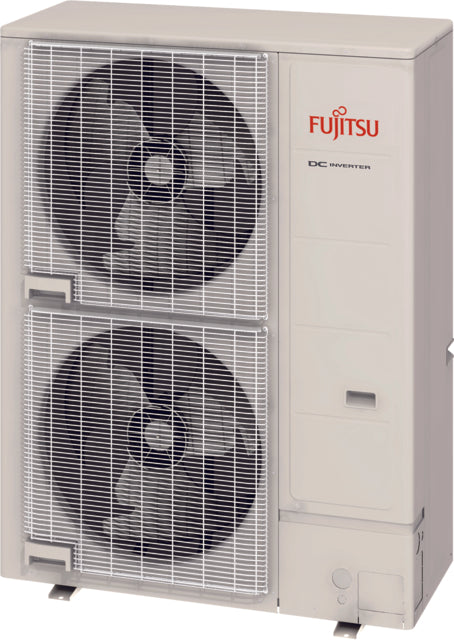

Fujitsu 19.0kW Simultaneous Multi Split Outdoor Unit R410A Three Phase AOYG72LRLA

Fujitsu Airstage Big Duct - R410A-Fujitsu Airstage-Oceanair
Fujitsu Airstage Big Duct - R410A-Fujitsu Airstage-Oceanair

This Fujitsu 19kW 3 phase multi-split outdoor air conditioning unit is not only compact and easy to install, but also significantly decreases emissions and the use of refrigerants with a high Global Warming Potential ...

Read more
  • 3 Year warranty
  • Suitable for large open plan offices
  • Compatible with twin/ triple/ double twin simultaneous multi-split types
  • Suitable for retail stores
  • Compatible with up to 4 indoor units under simultaneous control
  • Uses DC technology for energy efficiency

This product must be installed by an F-GAS Certified Installer.


Login for your trade price

Or a apply for a Trade Account to view your personalised Oceanair trade prices.

If not an F-Gas Certified Installer but still interested in this product, contact your nearest branch for expert advice.


Available

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

This Fujitsu 19kW 3 phase multi-split outdoor air conditioning unit is not only compact and easy to install, but also significantly decreases emissions and the use of refrigerants with a high Global Warming Potential. Its advanced technology helps buildings meet strict environmental requirements. Experience versatile applications with the Fujitsu 19.0kW Sim Multi Split Outdoor Unit, accommodating large open plan offices and retail stores equipped with up to 4 indoor units.

As outdoor units can be paired with various indoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • 3 Year warranty
  • Suitable for large open plan offices
  • Compatible with twin/ triple/ double twin simultaneous multi-split types
  • Suitable for retail stores
  • Compatible with up to 4 indoor units under simultaneous control
  • Uses DC technology for energy efficiency
  • Compatible with R410A refrigerant
  • 100m max. pipe run

*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 140 m³/min
Brand Fujitsu
Colour Beige
Compatible with Compatible with Fujitsu R410A Air Conditioners. Compatible with High Static Pressure Duct. Contact Oceanair for more details.
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 7/8"
Liquid Pipe Size 1/2"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No AOYG72LRLA
Max. Pipe Run 100mm
Nom. Cooling Capacity 19.0kW
Nom. Heating Capacity 22.4kW
No. of Indoor Units 4
Operating Temperature Range (Cooling) -15°CDB to 46°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Phase Three Phase
Power Rating (Watts kW) 19.0kW
Power Source 400V, 50Hz
Product Depth 480mm
Product Height 1428mm
Product Width 1080mm
Range Description Fujitsu Standard Range
Refrigerant Type R410A
Sound Pressure Level 55 dBA
System Suitability Suitable for Commercial Heating Systems.
Type Sim Multi Split Air Conditioning Outdoor Unit
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.

Visit your local branch or contact us for more information.
