Single SplitProduct code: Under Ceiling Eco Series

Fujitsu Airstage Eco Ceiling Suspended Units - R32

Name: Fujitsu Airstage Eco Ceiling Suspended Units - R32
Brand: Fujitsu Airstage
Availability: InStock

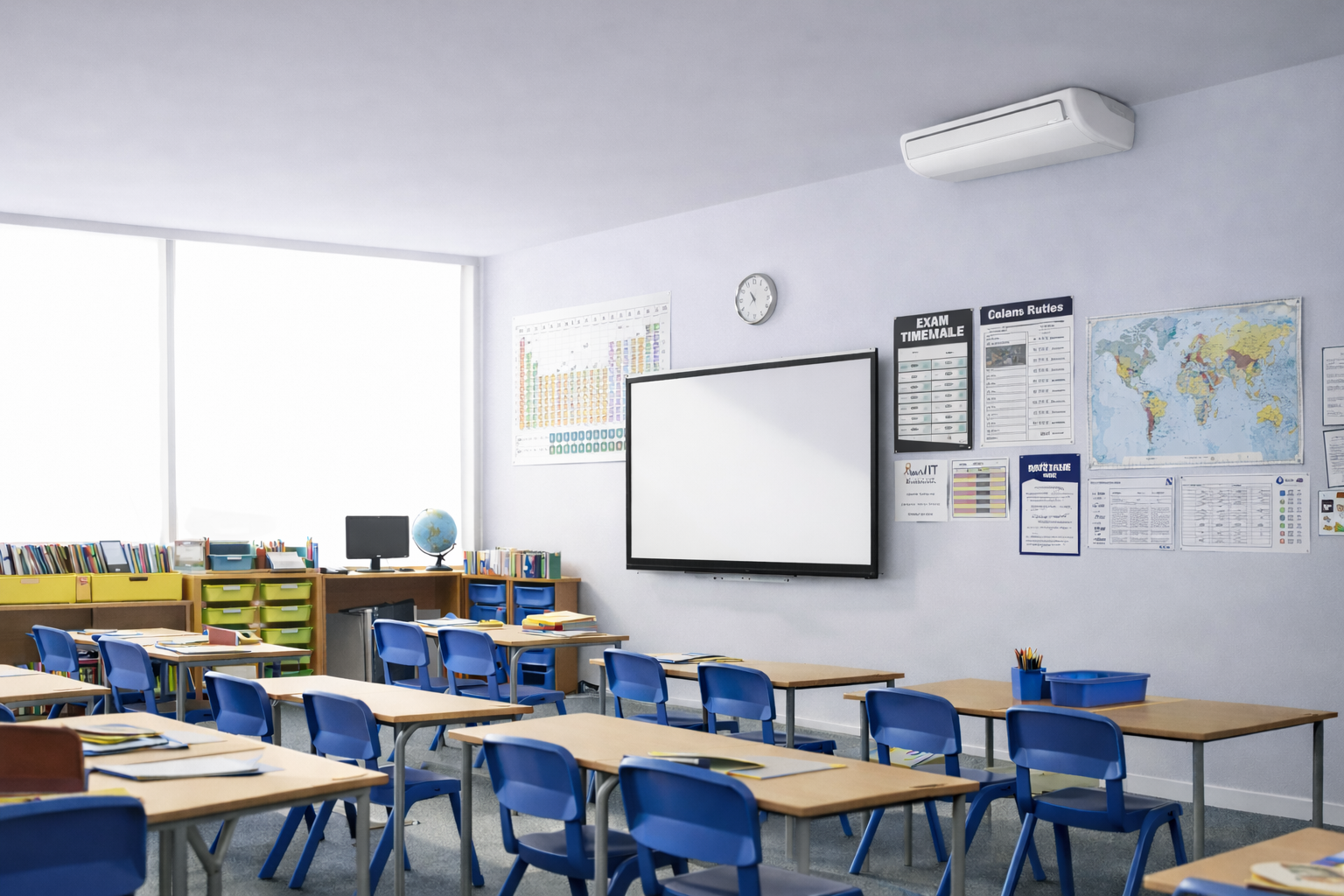

The Fujitsu Airstage ABEG**KRTA Ceiling Suspended Unit / Fujitsu Airstage Eco Outdoor Unit R32 AOEG**KATA pairing delivers a high-performance climate control solution perfect for commercial and residential spaces. Engineered to work as a single split system, this pairing combines Fujitsu’s advanced DC inverter technology with the stable single-phase and three-phase power of the KATA / KQTA outdoor units to provide efficient, reliable heating and cooling year-round, at a cost-effective price. The ceiling-mounted indoor unit’s compact profile and quiet operation make it unobtrusive in offices, classrooms, and meeting rooms, while the outdoor unit ensures consistent performance, reduced running current, and robust efficiency even under continuous load. This system keeps costs down without compromising comfort or durability - a smart choice for quality-driven HVAC projects.

Fujitsu Ceiling Suspended Catalogue 25 26 Under Ceiling KRTA Product Data Sheet Fujitsu Airstage Features Explained 25 26 Fujitsu Airstage Controls Brochure 25 26 KATA Outdoor Unit Installation Manual KQTA Installation Manual KQTA Specifications Sheet KRTA Ceiling Operation Manual KRTA Ceiling Installation Manual

Please Note: Remote controller available separately.

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
ABEG18KRTA	AOEG18KATA	5.2	6.0	20	3.8	5.8	13	1/2	1/4	Single	Optional
ABEG22KRTA	AOEG22KATA	6.0	7.0	25	3.8	5.6	16	1/2	1/4	Single	Optional
ABEG24KRTA	AOEG24KATA	6.8	7.5	25	3.9	6.0	20	1/2	1/4	Single	Optional
ABEG30KRTA	AOEG30KATA	8.5	10.0	30	3.9	5.8	25	5/8	3/8	Single	Optional
ABEG36KRTA	AOEG36KATA	9.5	10.8	30	3.9	5.6	25	5/8	3/8	Single	Optional
ABEG45KRTA	AOEG45KATA	12.1	13.5	30	3.8*	5.2*	32	5/8	3/8	Single	Optional
ABEG36KRTA	AOEG36KQTA	9.5	10.8	30	3.9	5.6	16	5/8	3/8	Three	Optional
ABEG45KRTA	AOEG45KQTA	12.1	13.5	30	3.8*	5.2*	16	5/8	3/8	Three	Optional
	For more information, see Technical Specifications.

* Calculated Result

Key features

Redesigned Compact and Lightweight Outdoor Unit

The outdoor units used in the 45,000 BTU and 54,000 BTU models have been fully redesigned to deliver a smaller, lighter, and more installation-friendly format. This improved structure simplifies handling on-site and allows for easier placement in tight or challenging outdoor locations, enhancing both installation efficiency and flexibility.

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

Easy Maintenance & Service Access

The unit is designed for safe, efficient maintenance, with a front panel that opens without removal to allow quick access during servicing. A removable drain pan simplifies cleaning, while the wide side opening provides easy access to control box components, helping reduce service time and improve long-term reliability.

Red Dot Award-Winning Design

The Fujitsu Ceiling Suspended Unit features an award-winning, slimline design recognised with the Red Dot Design Award 2020. Its clean, modern profile integrates seamlessly into commercial and contemporary interiors while delivering efficient, evenly distributed airflow for reliable comfort.

Optional Remote Smart Control

With the optional Wi-Fi adaptor, the Fujitsu Ceiling Suspended Unit can be controlled remotely using the Fujitsu Airstage app. Adjust temperature settings, operating modes, and schedules from anywhere, giving you greater convenience, energy efficiency, and control—whether on-site or away.

Fujitsu Airstage Standard Ceiling Suspended Units - R32-Fujitsu Airstage-Oceanair

Fujitsu Airstage Eco Circular Cassette Large Rooms 3ph - R32-Fujitsu Airstage-Oceanair

Under Ceiling Eco Range Specification Table

Technical Data	Model Number (Indoor Unit + Outdoor Unit)
Technical Data	ABEG18KRTA+ AOEG18KATA	ABEG22KRTA+ AOEG22KATA	ABEG24KRTA+ AOEG24KATA	ABEG30KRTA+ AOEG30KATA	ABEG36KRTA+ AOEG36KATA	ABEG45KRTA+ AOEG45KATA	ABEG36KRTA+ AOEG36KQTA	ABEG45KRTA+ AOEG45KQTA
Power Source	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	3-phase, ~400 V, 50 Hz	3-phase, ~400 V, 50 Hz
Cooling Capacity (Rated) kW	5.2	6.0	6.8	8.5	9.5	12.1	9.5	12.1
Heating Capacity (Rated) kW	6.0	7.0	7.5	10.0	10.8	13.5	10.8	13.5
Input Power (Cooling / Heating) kW	1.66 / 1.71	1.95 / 2.09	2.19 / 2.00	2.78 / 2.86	3.13 / 3.03	4.84 / 4.18	3.13 / 3.03	4.84 / 4.18
EER (Cooling) W/W	3.13	3.08	3.11	3.06	3.04	2.50	3.04	2.50
COP (Heating) W/W	3.51	3.35	3.75	3.5	3.56	3.23	3.56	3.23
Pdesign (Cooling / Heating -10°C) kW	5.2 / 3.8	6.0 / 4.4	6.8 / 5.4	8.5 / 8.0	9.5 / 8.7	-	9.5 / 8.7	-
SEER (Cooling) W/W	5.8	5.6	6.0	5.8	5.6	5.2*	5.6	5.2*
SCOP (Heating, Average) W/W	3.8	3.8	3.9	3.9	3.9	3.80*	3.9	3.80*
Energy Efficiency Class – Cooling	A+	A+	A+	A+/td>	A+/td>	-	A+/td>	-
Energy Efficiency Class – Heating	A	A	A	A	A	-	A	-
Max Operating Current (Cooling / Heating) A	10.1 / 10.1	11.6 / 11.6	12.6 / 12.6	22.5 / 22.5	22.5 / 22.5	28.1 / 28.1	10.5 / 10.5	13.6 / 13.6
Annual Energy Consumption – Cooling (kWh/a)	538	375	679	512	594	–	594	–
Annual Energy Consumption – Heating (kWh/a)	1,398	1,618	1,935	2,871	3,117	–	3,117	–
Sound Pressure Level Indoor Cooling H/M/L/Q dB(A)	38/36/33/31	42/37/34/31	41/36/32/29	45/40/35/32	44/40/37/32	45/41/39/34	44/40/37/32	45/41/39/34
Sound Pressure Level Indoor Heating H/M/L/Q dB(A)	38/36/33/31	42/37/34/31	41/36/32/29	45/40/35/32	44/40/37/32	45/41/39/34	44/40/37/32	45/41/39/34
Sound Pressure Level Outdoor Cooling/Heating High dB(A)	51/52	52/53	54/55	53/55	55/55	58/59	55/55	60/60
Sound Power Level Indoor Cooling/Heating High dB(A)	53/53	57/57	56/56	60/60	59/59	60/60	59/59	60/60
Sound Power Level Outdoor Cooling/Heating High dB(A)	63/64	64/65	66/67	68/69	70/70	72/73	70/70	72/73
Airflow Rate Indoor/Outdoor Cooling High m³/h	840/1,710	900/2,240	1,230/2,885	1,400/3,750	1,850/3,750	1,900/4,450	1,850/3,750	1,900/4,450
Airflow Rate Indoor/Outdoor Heating High m³/h	840/1,840	900/2,240	1,230/2,350	1,400/3,750	1,850/3,750	1,850/4,450	1,850/3,750	1,850/4,450
Remote Controller Type	No Controller Supplied with this Unit. Please Order Separately
Net Dimensions Indoor (H × W × D) mm	235 × 1,080 × 705	235 × 1,080 × 705	235 × 1,390 × 705	235 × 1,390 × 705	235 × 1,700 × 705	235 × 1,700 × 705	235 × 1,700 × 705	235 × 1,700 × 705
Net Dimensions Outdoor (H × W × D) mm	542×799×290	632×799×290	632×799×290	788×940×320	788×940×320	998×940×320	788×940×320	998×940×320
Weight Indoor / Outdoor kg	24/33	24/36	31/38	31/52	38/52	38/61	38/63	38/62
Connection Pipe Diameter (Liquid / Gas) mm	6.35/12.70	6.35/12.70	6.35/12.70	9.52/15.88	9.52/15.88	9.52/15.88	9.52/15.88	9.52/15.88
Max Pipe Length (Pre-charge) m	20 (15)	25 (15)	25 (20)	30 (30)	30 (30)	30 (30)	30 (30)	30 (30)
Operating Range – Cooling °CDB	-10 to 46	-10 to 46	-10 to 46	-10 to 46	-10 to 46	-10 to 46	-10 to 46	-10 to 46
Operating Range – Heating °CDB	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24
Refrigerant Type (GWP)	R32 (675)
Refrigerant Charge / CO2eq-T (g)	900 / 0.608	1100 / 0.743	1250 / 0.844	1900 / 1.283	1900 / 1.283	2400 / 1.620	1900 / 1.283	2400 / 1.620
Refrigerant Additional Charge (g/m)	20	20	20	-	-	-	-	-
