Single SplitProduct code: Eco Medium Static Pressure Duct Range

Fujitsu Airstage Eco Medium Static Pressure Duct - R32

Name: Fujitsu Airstage Eco Medium Static Pressure Duct - R32
Brand: Fujitsu Airstage
Availability: InStock

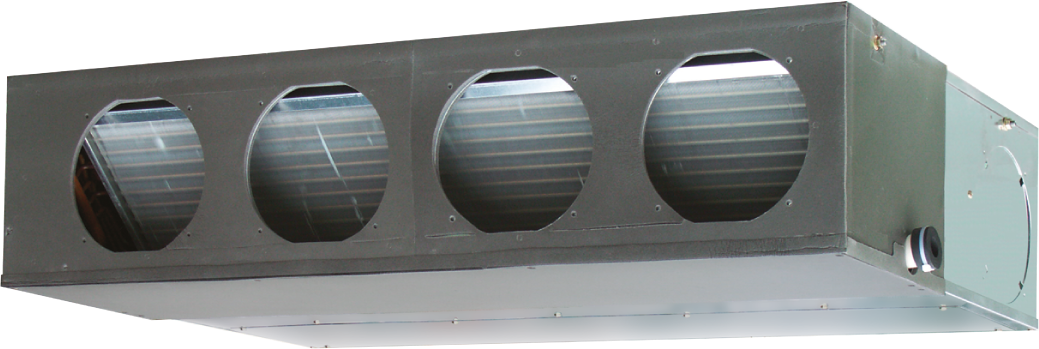

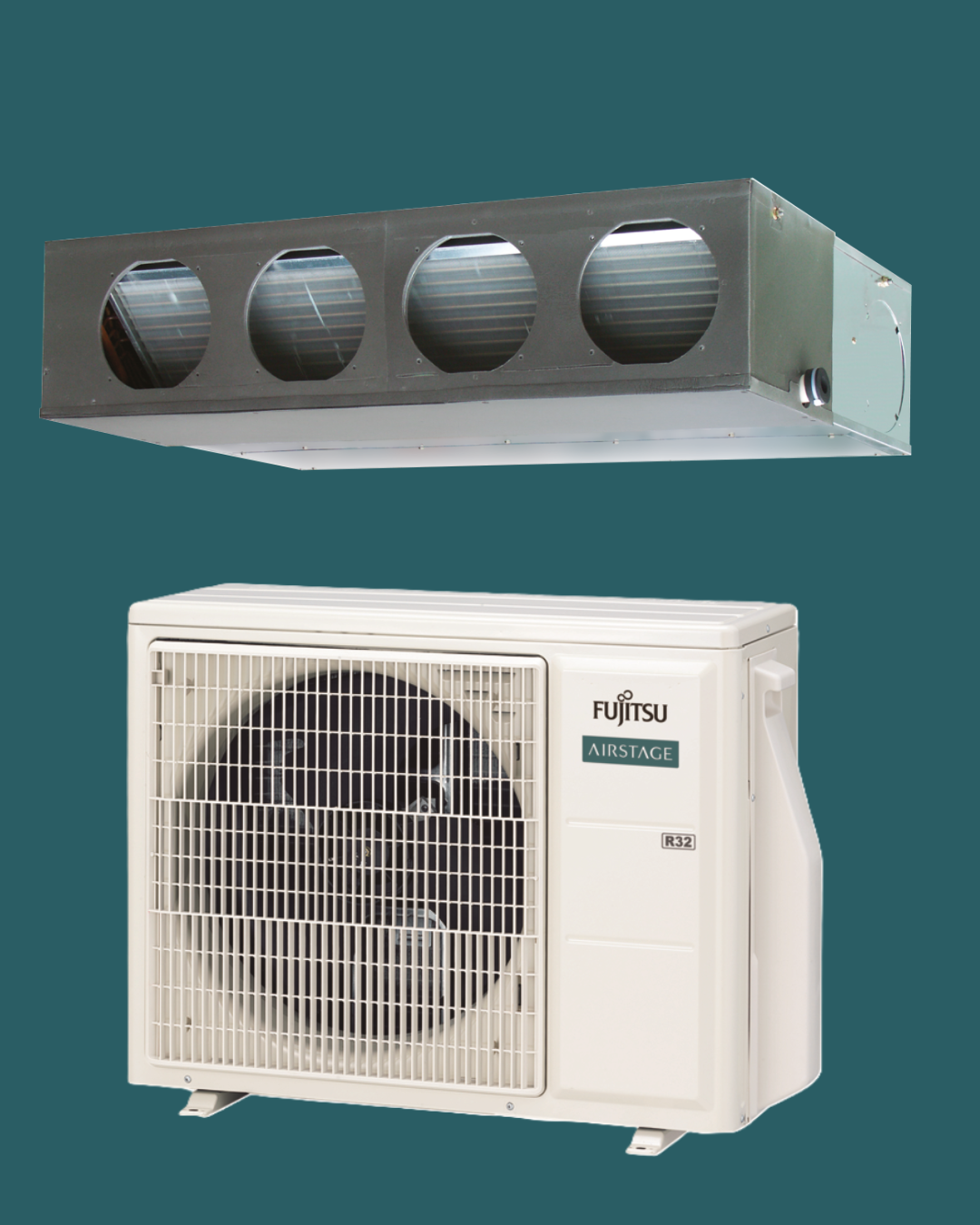

The Fujitsu Airstage Eco Medium Static Pressure Duct (KMLA + KATA/KQTA) system combines efficient, quiet operation with flexible installation to deliver reliable heating and cooling across a wide range of residential and commercial environments. Available in single-phase and three-phase models, the range can accommodate larger rooms and higher-load applications while maintaining stable performance. Featuring a slim, compact indoor unit design that fits easily into restricted ceiling voids and lightweight outdoor units for simplified siting, this medium static pressure system provides consistent airflow through ducted installations. With easy maintenance access, low ambient operation, and adaptable drain piping, the Eco Medium Static Duct range delivers dependable comfort, energy efficiency, and discreet integration into modern interiors.

Medium Static Duct KMLA Cata 25 26 Product Data Sheet Fujitsu Airstage Features Summary 25 26 KATA Outdoor Unit Installation Manual KMLA Operation Manual KMLA Installation Manual Fujitsu Airstage Controls Brochure 25 26

Please Note: Remote controller available separately.

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
ARXG22KMLA	AOEG22KATA	6.0	7.0	25	3.8	5.8	16	1/2	1/4	Single	Optional
ARXG24KMLA	AOEG24KATA	6.8	7.5	25	3.9	5.9	20	1/2	1/4	Single	Optional
ARXG30KMLA	AOEG30KATA	8.5	10.0	30	3.9	5.8	25	5/8	3/8	Single	Optional
ARXG36KMLA	AOEG36KATA	9.5	10.8	30	3.9	5.6	25	5/8	3/8	Single	Optional
ARXG45KMLA	AOEG45KATA	12.1	13.5	30	3.55*	4.85*	32	5/8	3/8	Single	Optional
ARXG36KMLA	AOEG36KQTA	9.5	10.8	30	3.9	5.6	16	5/8	3/8	Three	Optional
ARXG45KMLA	AOEG45KQTA	12.1	13.5	30	3.55*	4.85*	16	5/8	3/8	Three	Optional
	* Calculated Result. For more information, see Technical Specifications.

Key features

Redesigned Compact and Lightweight Outdoor Unit

The outdoor units used in the 45,000 BTU and 54,000 BTU models have been fully redesigned to deliver a smaller, lighter, and more installation-friendly format. This improved structure simplifies handling on-site and allows for easier placement in tight or challenging outdoor locations, enhancing both installation efficiency and flexibility.

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

Compact Duct Length for Flexible Layouts

Shortened duct grille size from 1,200mm to 1,132mm: provides greater installation flexibility in tight and narrow spaces without compromising airflow performance.

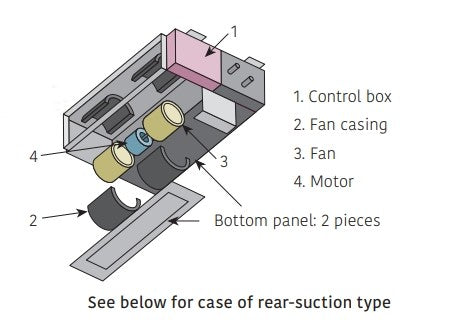

Easy Access Maintenance Design

Two-piece bottom panel and split fan casing allow direct access to the fan and motor from the rear, enabling straightforward maintenance while keeping the main chassis in place.

Fujitsu Airstage Standard Medium Static Pressure Duct - R32-Fujitsu Airstage-Oceanair

Fujitsu Airstage KL Series Eco Range Wall Mounted - R32-Fujitsu Airstage-Oceanair

Fujitsu Airstage KE Series 2.0kW R32 Wall Mounted Split Air Conditioner inc Wi-Fi Silver ASEG07KETF-B-Fujitsu-Oceanair

Medium Static Pressure Duct Eco Range Specification Table

Technical Data	Model Number (Indoor Unit + Outdoor Unit)
Technical Data	ARXG22KMLA + AOEG22KATA	ARXG24KMLA + AOEG24KATA	ARXG30KMLA + AOEG30KATA	ARXG36KMLA + AOEG36KATA	ARXG45KMLA + AOEG45KATA	ARXG36KMLA + AOEG36KQTA	ARXG45KMLA + AOEG45KQTA
Power Source	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Three phase, ~400 V, 50 Hz	Three phase, ~400 V, 50 Hz
Cooling Capacity (Rated) kW	6.0(0.9-6.3)	6.8(0.9-7.4)	8.5(2.8-9.6)	9.5(2.8-10.6)	12.1(4.0-12.6)	9.5(2.8-10.6)	12.1(4.0-12.6)
Heating Capacity (Rated) kW	7.0(0.9-7.4)	7.5(0.9-8.6)	10.0(2.7-10.8)	10.8(2.7-12.5)	13.5(4.2-15.0)	10.8(2.7-12.5)	13.5(4.2-15.0)
Input Power (Cooling / Heating) kW	1.92/2.00	2.19/2.00	2.78/2.77	3.13/3.03	4.84/4.18	3.13/3.03	4.84/4.18
EER (Cooling) W/W	3.13	3.11	3.06	3.04	2.50	3.04	2.50
COP (Heating) W/W	3.50	3.75	3.61	3.56	3.23	3.56	3.23
Pdesign (Cooling / Heating -10°C) kW	6.0/4.4	6.8/5.4	8.5/8.0	9.5/8.7	-	9.5/8.7	-
SEER (Cooling) W/W	5.8	5.9	5.8	5.6	4.85*	5.6	4.85*
SCOP (Heating, Average) W/W	3.8	3.9	3.9	3.9	3.55*	3.9	3.55*
Energy Efficiency Class – Cooling	A+	A+	A+	A+	-	A+	-
Energy Efficiency Class – Heating (Average)	A	A	A	A	-	A	-
Max Operating Current (Cooling / Heating) A	11.6/11.6	12.6/12.6	22.5/22.5	22.5/22.5	28.1/28.1	10.5/10.5	13.6/13.6
Annual Energy Consumption – Cooling (kWh/a)	362	403	513	594	-	594	-
Annual Energy Consumption – Heating (kWh/a)	1,620	1,935	2,871	3,122	-	3,122	-
Sound Pressure Level Indoor Cooling H/M/L/Q dB(A)	31/29/27/25	31/29/27/25	39/35/30/26	39/35/30/26	42/38/32/28	39/35/30/26	42/38/32/28
Sound Pressure Level Indoor Heating H/M/L/Q dB(A)	31/29/27/25	31/29/27/25	42/35/30/26	42/35/30/26	42/38/32/28	42/35/30/26	42/38/32/28
Sound Pressure Level Outdoor Cooling/Heating High dB(A)	52/53	54/55	53/55	55/55	58/59	55/55	58/59
Sound Power Level Indoor Cooling/Heating High dB(A)	60/62	60/62	65/69	65/70	68/70	65/70	68/70
Sound Power Level Outdoor Cooling/Heating High dB(A)	64/65	66/67	68/69	70/70	72/73	70/70	72/73
Airflow Rate Indoor/Outdoor (Cooling) High m³/h	1,100/2,240	1,100/2,885	1,900/3,750	1,900/3,750	2,100/4,450	1,900/3,750	2,100/4,450
Airflow Rate Indoor/Outdoor (Heating) High m³/h	1,100/2,240	1,100/2,350	2,100/3,750	2,100/3,750	2,100/4,450	2,100/3,750	2,100/4,450
Static Pressure Range (Standard) Pa	30 - 150 (35)	30 - 150 (35)	30 - 150 (47)	30 - 150 (47)	30 - 150 (60)	30 - 150 (47)	30 - 150 (60)
Net Dimensions Indoor (H × W × D) mm	270×1,135×700	270×1,135×700	270×1,135×700	270×1,135×700	270×1,135×700	270×1,135×700	270×1,135×700
Net Dimensions Outdoor (H × W × D) mm	632×799×290	632×799×290	788×940×320	788×940×320	998×940×320	788×940×320	998×940×320
Weight Indoor / Outdoor kg	35 / 36	35/ 38	38 / 52	38 / 52	39 / 61	38 / 52	39 / 61
Connection Pipe Diameter (Liquid / Gas) Inch	1/2 & 1/4	1/2 & 1/4	5/8 & 3/8	5/8 & 3/8	5/8 & 3/8	5/8 & 3/8	5/8 & 3/8
Max Pipe Length (Pre-charge) m	25 (15)	25 (15)	30 (30)	30 (30)	30 (30)	30 (30)	30 (30)
Operating Range – Cooling °CDB	-10 to 46	-10 to 46	-10 to 46	-10 to 46	-10 to 46	-10 to 46	-10 to 46
Operating Range – Heating °CDB	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24
Refrigerant Type (GWP)	R32 (675)
Refrigerant Charge g	1100	1250	1900	1900	2400	1900	2400
