Single SplitProduct code: Eco Slim Duct

Fujitsu Airstage Eco Slim Duct - R32

Name: Fujitsu Airstage Eco Slim Duct - R32
Brand: Fujitsu Airstage
Availability: InStock

Fujitsu Airstage Eco Slim Duct air conditioning units deliver efficient, space-saving comfort cooling and heating with a slim 198 mm profile ideal for installation in narrow ceiling voids, making them a versatile choice for residential and light commercial applications where space is at a premium. These systems feature a compact, lightweight outdoor unit, flexible static pressure adjustment up to 90 Pa, and optional accessories such as the auto louvre grille kit that enhances airflow comfort and interior integration. Built with energy-efficient operation in mind, Airstage Slim Duct units support low ambient performance and high seasonal efficiency, helping engineers achieve reliable temperature control with reduced running costs and installation flexibility.

Fujitsu Airstage Slim Duct Catalogue 25 26 Fujitsu Airstage Features Explained 25 26 KATA Outdoor Unit Installation Manual Slim Duct Operation Manual Slim Duct Installation Manual Fujitsu Airstage Controls Brochure 25 26

Please Note: Remote controller available separately.

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control

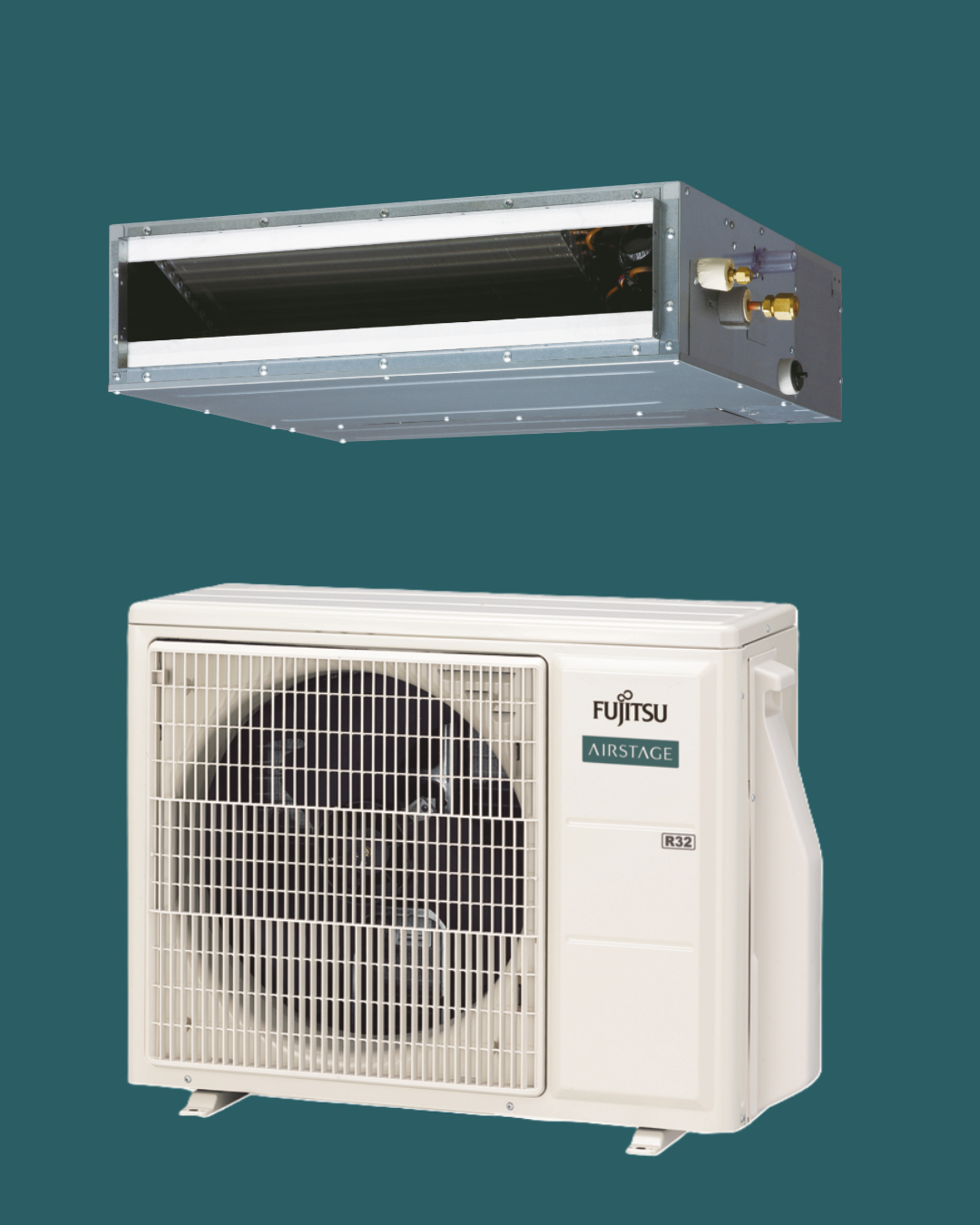

ARXG09KLLAP	AOEG09KATA	2.5	3.2	15	3.8	5.9	10	3/8	1/4	Single	Optional
ARXG12KLLAP	AOEG12KATA	3.5	4.1	15	3.8	5.8	10	3/8	1/4	Single	Optional
ARXG14KLLAP	AOEG14KATA	4.3	5.0	20	3.8	5.6	13	3/8	1/4	Single	Optional
ARXG18KLLAP	AOEG18KATA	5.2	6.0	20	3.8	5.8	13	1/2	1/4	Single	Optional
	For more information, see Technical Specifications.

Key features

Slim Design for Space-Saving Installations

Slim 198mm design allows application in narrow ceiling voids, with a drain hose supplied as standard to support straightforward and efficient installation.

Fujitsu Airstage WLAN Adaptor UTY-TFSXJ3 – Wi-Fi Control Accessory

Fujitsu Airstage WLAN Adaptor (UTY-TFSXJ3) enables convenient Wi-Fi connectivity for compatible Fujitsu air conditioning systems, allowing remote control and monitoring via smartphone or tablet for improved system management and comfort.

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

Auto Louvre Grille Kit – Luxury Airflow Control for Air Conditioning Systems

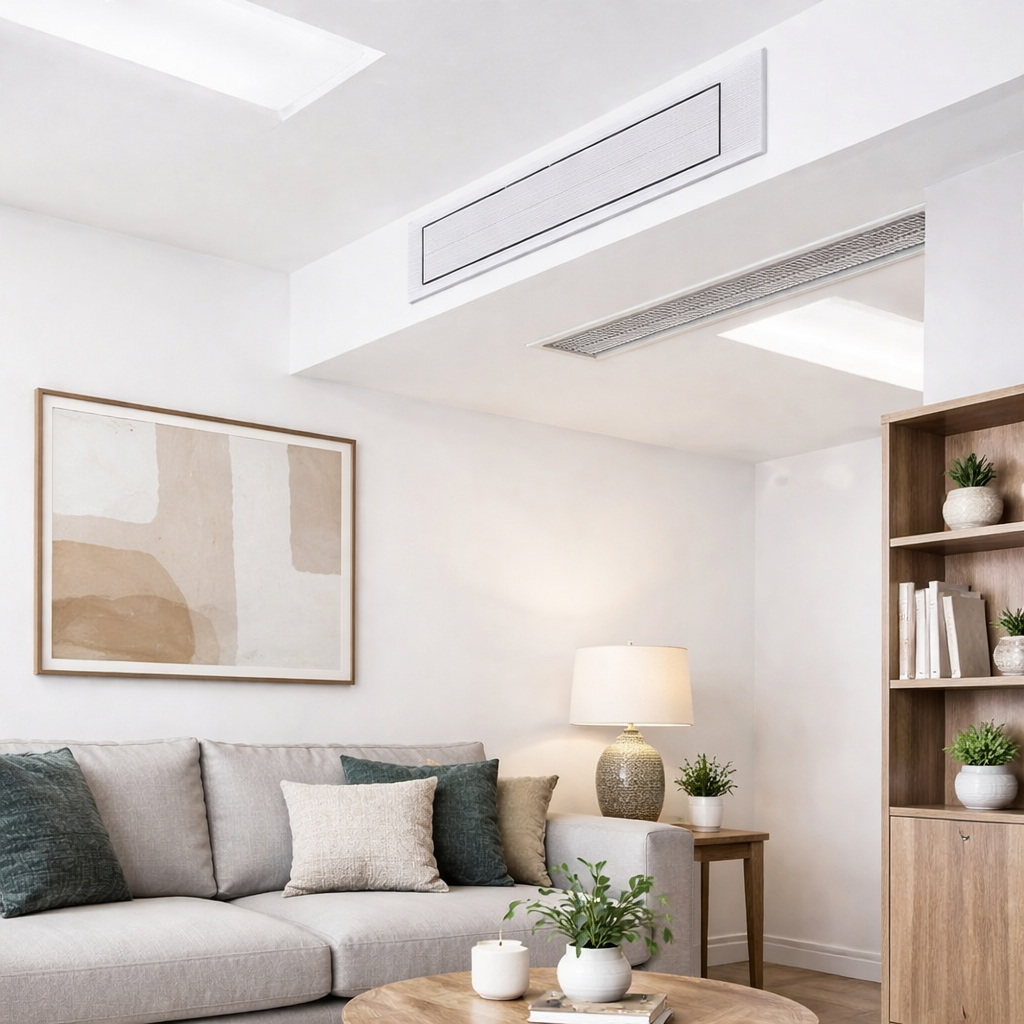

Optional available for an auto louvre grille kit. This provides smooth, comfortable airflow with a clean, flat design to complements luxury interiors.

Fujitsu Airstage Eco Slim Duct - R32-Fujitsu Airstage-Oceanair

Fujitsu 2.5kW R32 Split Air Conditioner Slim Ducted Indoor Unit ARXG09KLLAP-Fujitsu-Oceanair

Fujitsu Airstage 2.5kW Economy Single Split Outdoor Unit R32 Single Phase AOEG09KATA-Fujitsu-Oceanair

Fujitsu Airstage KE Series 2.0kW R32 Wall Mounted Split Air Conditioner inc Wi-Fi Silver ASEG07KETF-B-Fujitsu-Oceanair

Slim Duct Eco Range Specification Table

Technical Data	Model Number (Indoor Unit + Outdoor Unit)
Technical Data	ARXG09KLLAP + AOEG09KATA	ARXG12KLLAP+ AOEG12KATA	ARXG14KLLAP+ AOEG14KATA	ARXG18KLLAP+ AOEG18KATA
Power Source	Single-phase, 230 V, 50 Hz
Cooling Capacity (Rated) kW	2.5	3.5	4.3	5.2
Heating Capacity (Rated) kW	3.2	4.1	5.0	6.0
Total Input Power Cooling / Heating (kW)	0.69 / 0.88	1.09 / 1.17	1.37 / 1.42	1.66 / 1.71
Pdesign (Cooling / Heating ) kW	2.5 / 2.3	3.5 / 2.8	4.3 / 3.2	5.2 / 3.8
EER (Cooling) W/W	3.62	3.21	3.14	3.13
COP (Heating) W/W	3.64	3.50	3.52	3.51
SEER (Cooling) W/W	5.9	5.8	5.6	5.8
SCOP (Heating) W/W	3.8	3.8	3.8	3.8
Energy Efficiency Class (Cooling)	A+	A+	A+	A+
Energy Efficiency Class (Heating – Average Climate)	A	A	A	A
Annual Energy Consumption – Cooling (kWh/a)	148	211	269	313
Annual Energy Consumption – Heating (kWh/a)	847	1,031	1,177	1,398
Sound Pressure Level Indoor (Cooling) H/M/L/Q dB(A)	28 / 27 / 26 / 25	29 / 28 / 26 / 25	32 / 30 / 28 / 26	32 / 30 / 29 / 27
Sound Pressure Level Indoor (Heating) H/M/L/Q dB(A)	28 / 26 / 25 / 24	29 / 28 / 26 / 24	32 / 30 / 28 / 25	32 / 30 / 29 / 27
Sound Pressure Level Outdoor (Cooling / Heating) dB(A)	47 / 48	49 / 50	50 / 51	51 / 52
Airflow Rate Indoor (Cooling / Heating) High m³/h	600 / 600	650 / 650	800 / 800	940 / 940
Airflow Rate Outdoor (Cooling / Heating) High m³/h	1,610 / 1,550	1,630 / 1,410	1,670 / 1,580	1,710 / 1,840
Static Pressure Range (Standard) Pa	0 to 90 (25)	0 to 90 (25)	0 to 90 (25)	0 to 90 (25)
Dimensions Indoor (H × W × D) mm	198 × 700 × 620	198 × 700 × 620	198 × 700 × 620	198 × 900 × 620
Dimensions Outdoor (H × W × D) mm	542 × 799 × 290	542 × 799 × 290	542 × 799 × 290	632× 799 × 290
Interconnecting Cable (Suggested cable size 1.5mm) m	Outdoor
Connection Pipe Diameter (Liquid & Gas) Inch	1/4 & 3/8	1/4 & 3/8	1/4 & 3/8	1/4 & 1/2
Max Pipe Length (Pre-Charge) m	15 (15)	15 (15)	20 (15)	20 (15)
Max Height Difference	15	15	15	15
Weight Indoor / Outdoor (kg)	17 / 23	17 / 25	17 / 32	20 / 33
Refrigerant (GWP)	R32 (675)
Refrigerant Charge (CO2eq-T) g	600 (0.405)	700 (0.473)	850 (0.574)	900 (0.608)
Additional Charge g/m	-	-	20	20
Operating Range (Cooling) °CDB	-15 to 46
Operating Range (Heating) °CDB	-15 to 24
