Fujitsu Airstage High Static Pressure Duct - R32

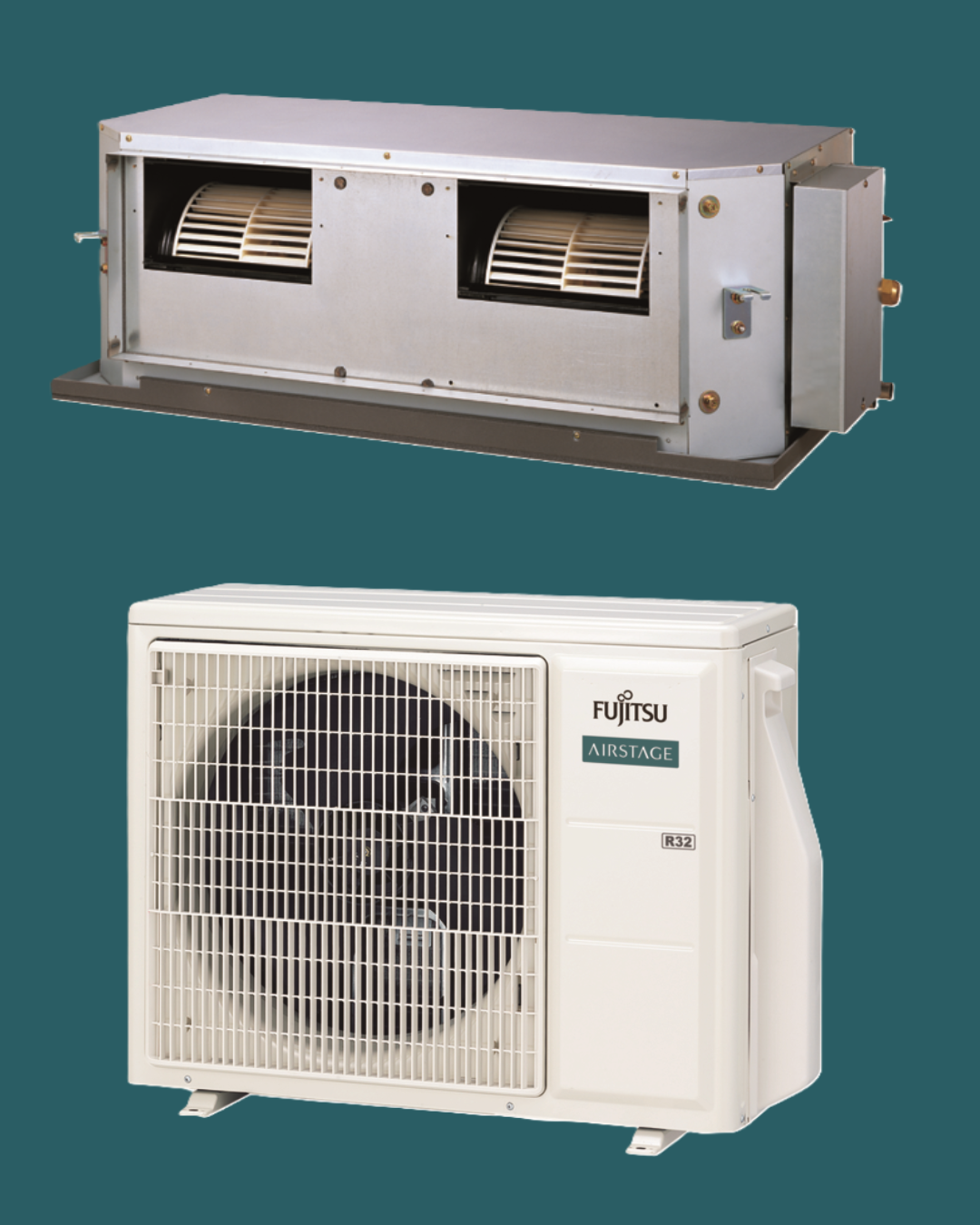

The Fujitsu Airstage High Static Pressure Duct system (KHTB + KBTB/KRTA) is designed for demanding ducted installations requiring long duct runs and consistent airflow. Using R32 refrigerant and available with single-phase and three-phase outdoor units, the range supports flexible system design for larger residential and commercial applications. With high static pressure capability, quiet operation, and compact indoor units, Fujitsu Airstage high static pressure systems deliver reliable, energy-efficient comfort for complex HVAC layouts.
|
Model Reference |
Cool Capacity (kW) |
Heat Capacity (kW) |
Max Pipe (m) |
EuP Lot 10 Energy Rating |
Suggested MCB (A) |
Pipe Size Gas |
Pipe Size Liquid |
Electrical Supply |
Wi-Fi Control |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | SCOP | SEER | ||||||||

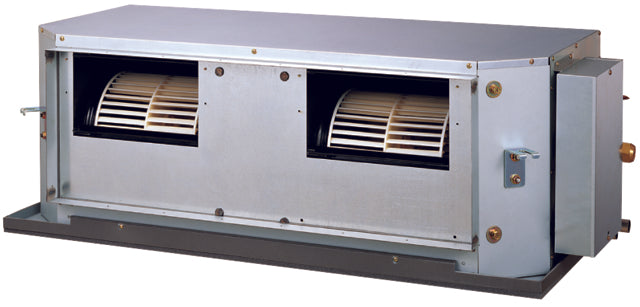

| ARXG45KHTB | AOEG45KBTB | 12.1 | 13.5 | 50 | 4.00 | 5.14 | 32 | 5/8 | 3/8 | Single | Optional |
| ARXG54KHTB | AOEG54KBTB | 13.4 | 15.5 | 50 | 3.96 | 5.10 | 32 | 5/8 | 3/8 | Single | Optional |
| ARXG45KHTB | AOEG45KRTA | 12.1 | 13.5 | 50 | 4.00 | 5.14 | 16 | 5/8 | 3/8 | Single | Optional |
| ARXG54KHTB | AOEG54KRTA | 13.4 | 15.5 | 50 | 3.96 | 5.10 | 16 | 5/8 | 3/8 | Single | Optional |
| For more information, see Technical Specifications. |
|||||||||||
Key features
Fujitsu Airstage WLAN Adaptor UTY-TFSXJ3 – Wi-Fi Control Accessory
Fujitsu Airstage WLAN Adaptor (UTY-TFSXJ3) enables convenient Wi-Fi connectivity for compatible Fujitsu air conditioning systems, allowing remote control and monitoring via smartphone or tablet for improved system management and comfort.
Central Control System Integration (Optional)
For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

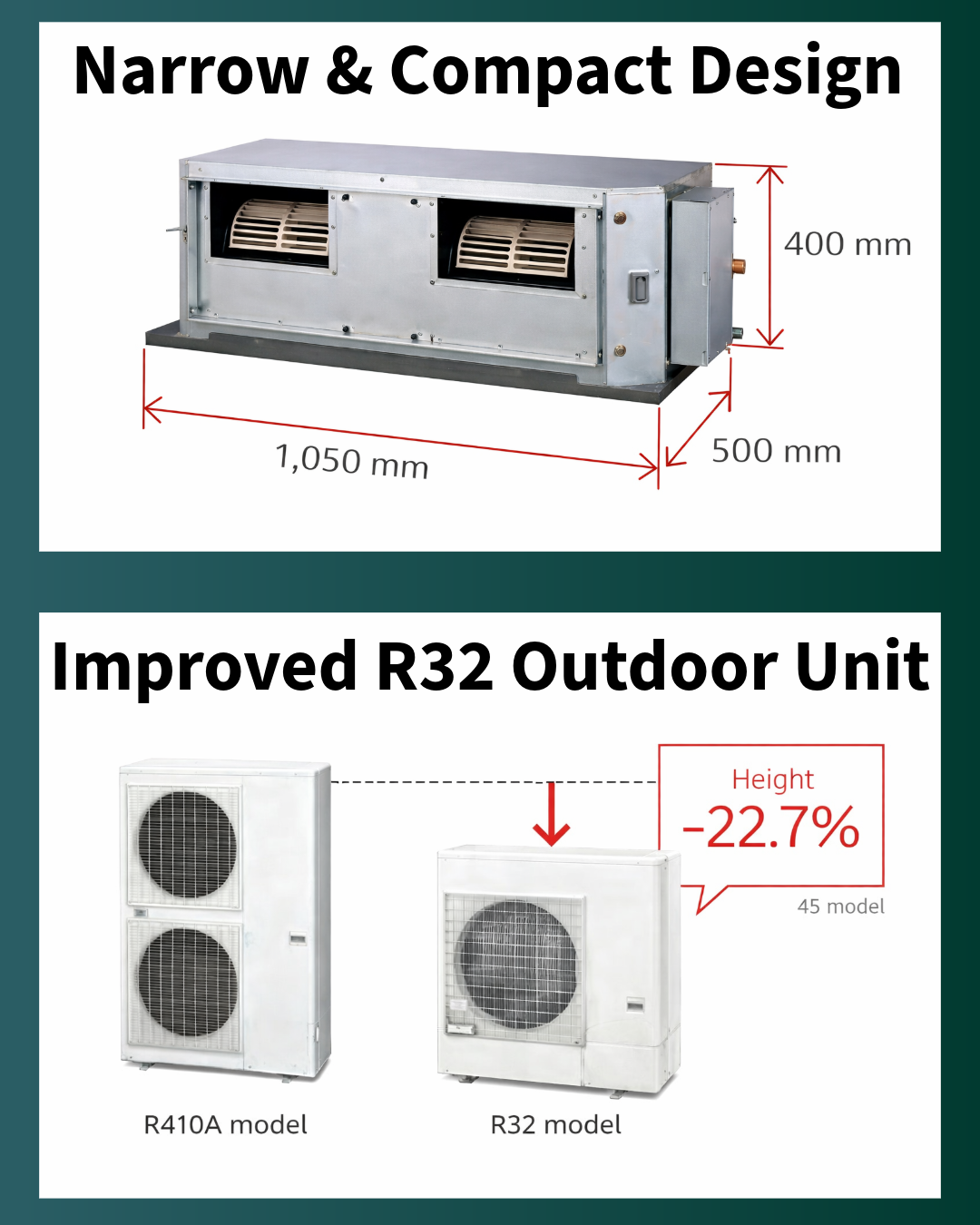

Compact & Lightweight Design for Easy Installation
The indoor and outdoor units feature a reduced chassis size and lower overall weight, enabling easier handling and installation while remaining suitable for high static pressure ducted applications.
Low Noise Operation
Slanted top corners help reduce turbulent airflow, while the use of a plastic casing and plastic fan minimises vibration and airflow noise for quieter system operation. This creates a medium noise level of 40 dB(A) for the high static R410A model and 43 dB(A) for the R32 models.
Fujitsu Airstage WLAN Adaptor UTY-TFSXJ3 – Wi-Fi Control Accessory
Fujitsu Airstage WLAN Adaptor (UTY-TFSXJ3) enables convenient Wi-Fi connectivity for compatible Fujitsu air conditioning systems, allowing remote control and monitoring via smartphone or tablet for improved system management and comfort.
Central Control System Integration (Optional)
For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.
Compact & Lightweight Design for Easy Installation
The indoor and outdoor units feature a reduced chassis size and lower overall weight, enabling easier handling and installation while remaining suitable for high static pressure ducted applications.
Low Noise Operation
Slanted top corners help reduce turbulent airflow, while the use of a plastic casing and plastic fan minimises vibration and airflow noise for quieter system operation. This creates a medium noise level of 40 dB(A) for the high static R410A model and 43 dB(A) for the R32 models.
High Static Pressure Duct Standard Range Specification Table
| Technical Data | Model Number (Indoor Unit + Outdoor Unit) | |||
|---|---|---|---|---|
| ARXG45KHTB+ AOEG45KBTB | ARXG54KHTB+ AOEG154KBTB | ARXG45KHTB+ AOEG45KRTA | ARXG54KHTB+ AOEG54KRTA | |
| Power Source | Single-phase, 230 V, 50 Hz | Three-phase, 400 V, 50 Hz | ||
| Cooling Capacity (Rated) kW | 12.1 | 13.4 | 12.1 | 13.4 |
| Heating Capacity (Rated) kW | 13.5 | 15.5 | 13.5 | 15.5 |
| Total Input Power Cooling / Heating (kW) | 4.16/3.61 | 4.77/4.18 | 4.16/3.61 | 4.77/4.18 |
| EER (Cooling) W/W | 2.91 | 2.81 | 2.91 | 2.81 |
| COP (Heating) W/W | 3.74 | 3.71 | 3.74 | 3.71 |
| SEER (Cooling) W/W | 5.14 | 5.10 | 5.14 | 5.10 |
| SCOP (Heating) W/W | 4.00 | 3.96 | 4.00 | 3.96 |
| Energy Efficiency Class (Cooling / Heating) | -/- | -/- | -/- | -/- |
| Annual Energy Consumption – Cooling (kWh/a) | 141 | 201 | 259 | 293 |
| Annual Energy Consumption – Heating (kWh/a) | - | - | - | - |
| Sound Pressure Level Indoor (Cooling) H/M/L/Q dB(A) | 47/43/40 | 47/43/40 | 47/43/40 | 47/43/40 |
| Sound Pressure Level Indoor (Heating) H/M/L/Q dB(A) | 47/43/40 | 47/43/40 | 47/43/40 | 47/43/40 |
| Sound Pressure Level Outdoor (Cooling / Heating) dB(A) | 57/57 | 57/59 | 57/57 | 57/59 |
| Airflow Rate Indoor (Cooling / Heating) High m³/h | 3,350/ 3,350 | 3,350/ 3,350 | 3,350/ 3,350 | 3,350/ 3,350 |
| Airflow Rate Outdoor (Cooling / Heating) High m³/h | 4,450/ 4,450 | 4,450/ 4,450 | 4,450/ 4,450 | 4,450/ 4,450 |

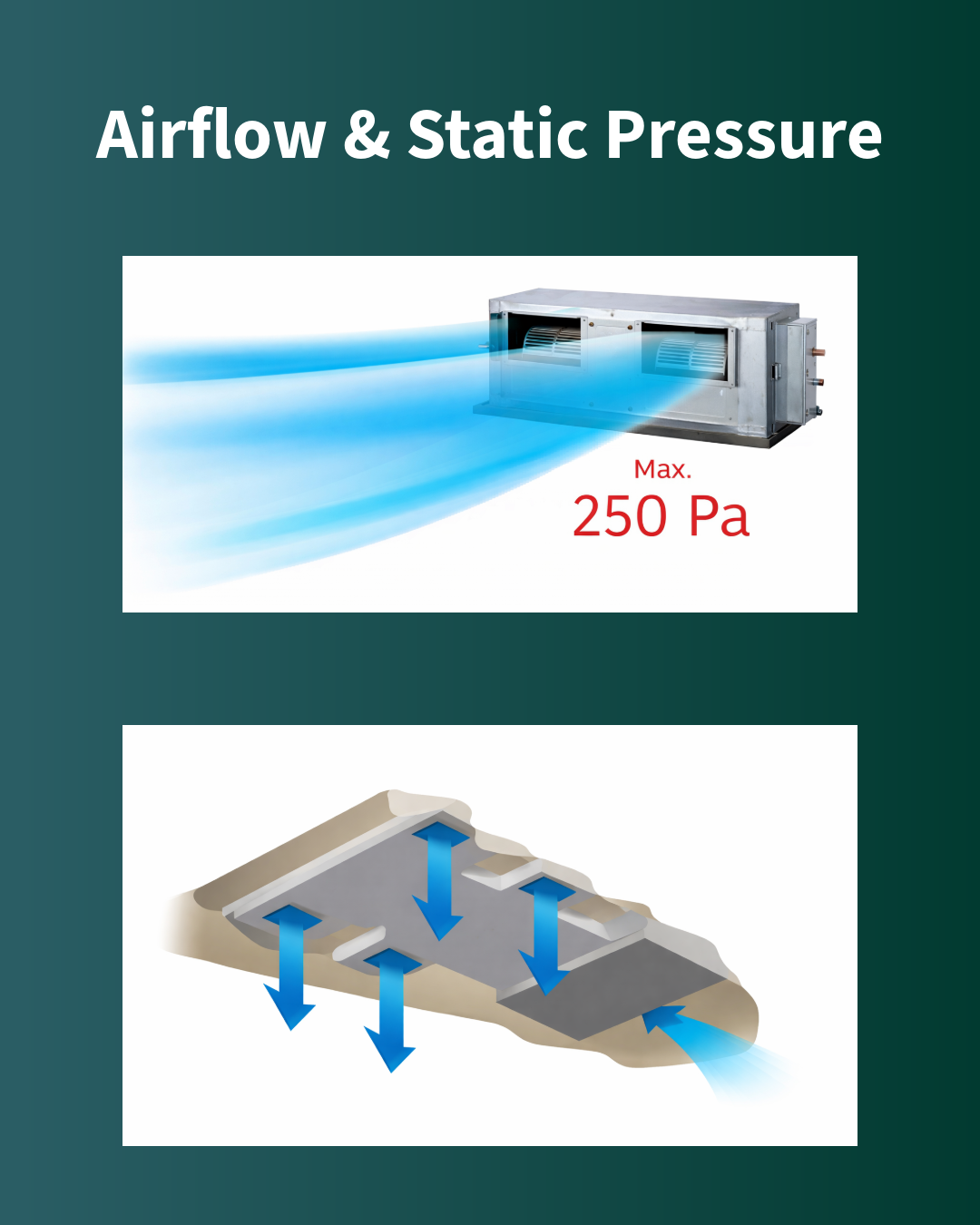

| Static Pressure Range (Standard) Pa | 100 to 250 (100) | 100 to 250 (100) | 100 to 250 (100) | 100 to 250 (100) |
| Dimensions Indoor (H × W × D) mm | 400 × 1,050 × 500 | 400 × 1,050 × 500 | 400 × 1,050 × 500 | 400 × 1,050 × 500 |
| Dimensions Outdoor (H × W × D) mm | 998 × 940 × 320 | 998 × 940 × 320 | 998 × 940 × 320 | 998 × 940 × 320 |
| Interconnecting Cable (Suggested cable size 1.5mm) m | Outdoor | |||
| Connection Pipe Diameter (Liquid & Gas) mm | 9.52/15.88 | 9.52/15.88 | 9.52/15.88 | 9.52/15.88 |
| Max Pipe Length (Pre-Charge) m | 50 (30) | 50 (30) | 50 (30) | 50 (30) |
| Max Height Difference | 30 | 30 | 30 | 30 |
| Weight Indoor / Outdoor (kg) | 46 / 67 | 46 / 67 | 46 / 67 | 46 / 67 |
| Refrigerant (GWP) | R32 (675) | |||
| Refrigerant Charge (CO2eq-T) kg | 2.70 (1.823) | |||
| Operating Range (Cooling) °CDB | -15 to 46 | |||
| Operating Range (Heating) °CDB | -15 to 24 | |||
This table is intended as a guide only. Please consult manufacturer's information for more details.
