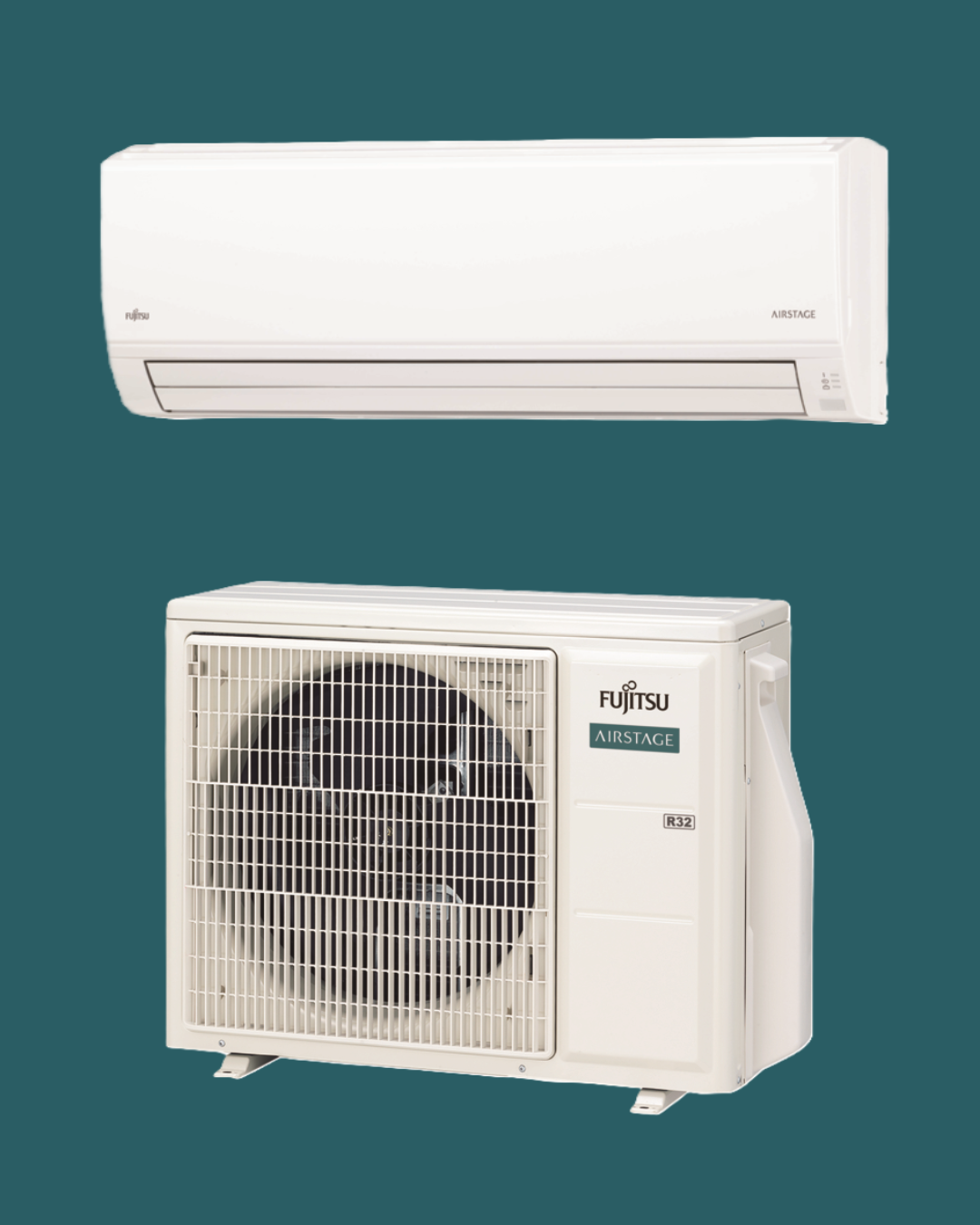

Fujitsu Airstage KL Series Eco Range Wall Mounted - R32
Experience efficient, reliable climate control with the Fujitsu Airstage KL Series — engineered for high energy savings without compromising comfort. Compact yet powerful, these units use eco-friendly R32 refrigerant and deliver efficient cooling for large rooms, even when outdoor temperatures reach up to 46 °C. Their minimalist, slim-profile design makes them ideal for modern interiors, while the large air louvers and refined airflow system ensure gentle, wide-area air distribution. An optional Wi-Fi module enables smart-device control via the AIRSTAGE Mobile App — giving you precise temperature management from anywhere at any time.
|
Model Reference |
Cool Capacity (kW) |
Heat Capacity (kW) |
Max Pipe (m) |
EuP Lot 10 Energy Rating |
Suggested MCB (A) |
Pipe Size Gas |
Pipe Size Liquid |
Electrical Supply |
Wi-Fi Control |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | SCOP | SEER | ||||||||
| ASEG18KLCA | AOEG18KLCA | 5.2 | 6.3 | 25 | 4.3 | 7.2 | 16 | 3/8 | 1/4 | Single | Optional |
| ASEG24KLCA | AOEG24KLCA | 7.1 | 8.0 | 30 | 4.0 | 7.1 | 20 | 1/2 | 1/4 | Single | Optional |
| For more information, see Technical Specifications. |
|||||||||||
Key features

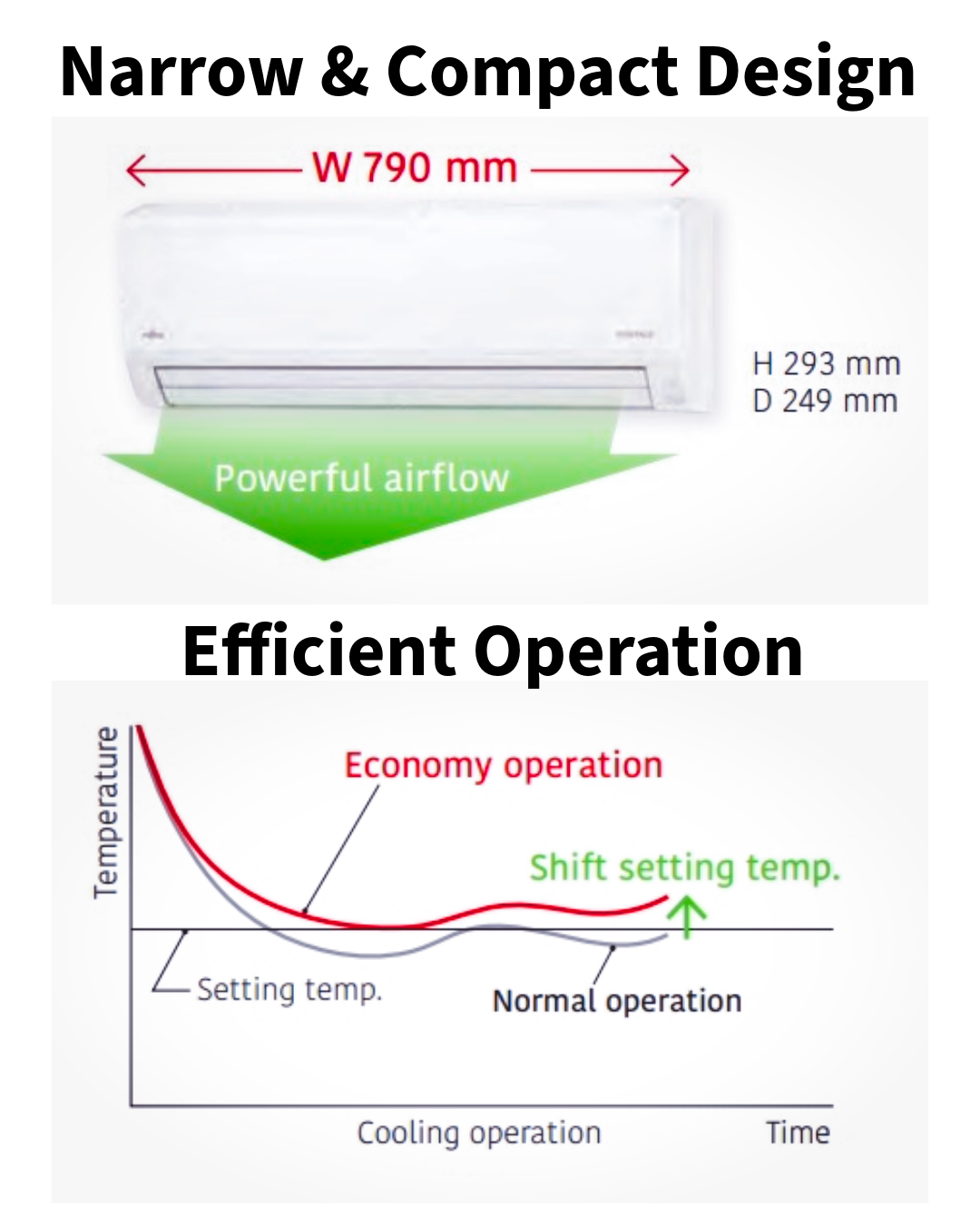

Compact Design with Powerful Airflow
With a narrow 790 mm width, this compact unit is ideal for bedrooms, home offices, and other small spaces, delivering strong, efficient airflow despite its minimal footprint.
Designed with a powerful output, the KLCA variants deliver ambient comfort for larger rooms and spaces too.
Intelligent Temperature Control and Rapid Comfort
Economy Operation automatically adjusts the set temperature by ±1°C to prevent unnecessary cooling or heating, improving overall energy efficiency. When quick comfort is needed, Powerful Operation boosts the compressor to maximum output for 20 minutes, delivering rapid cooling or heating with strong, immediate airflow.
Rapid Comfort with Powerful Operation Mode
Powerful Operation boosts the system to maximum output for 20 minutes, delivering strong airflow for fast cooling or heating and quickly bringing the room to a comfortable temperature.
Compact Design with Powerful Airflow
With a narrow 790 mm width, this compact unit is ideal for bedrooms, home offices, and other small spaces, delivering strong, efficient airflow despite its minimal footprint.
Designed with a powerful output, the KLCA variants deliver ambient comfort for larger rooms and spaces too.
Intelligent Temperature Control and Rapid Comfort
Economy Operation automatically adjusts the set temperature by ±1°C to prevent unnecessary cooling or heating, improving overall energy efficiency. When quick comfort is needed, Powerful Operation boosts the compressor to maximum output for 20 minutes, delivering rapid cooling or heating with strong, immediate airflow.
Rapid Comfort with Powerful Operation Mode
Powerful Operation boosts the system to maximum output for 20 minutes, delivering strong airflow for fast cooling or heating and quickly bringing the room to a comfortable temperature.
KL Series Eco Range Specification Table
| Technical Data | Model Number (Indoor Unit + Outdoor Unit) | |
|---|---|---|
| ASEG18KLCA | ASEG24KLCA | AOEG18KLCA | AOEG24KLCA |
| Power Source | Single phase, ~230 V, 50 Hz | Single phase, ~230 V, 50 Hz |
| Cooling Capacity (kW) /td> | 5.2 | 7.1 |
| Heating Capacity (kW) - Nominal | 6.3 | 8.0 |
| UK Total Cooling / UK Sensible Cooling | 4.95 / 3.69 | 6.80 / 4.63 |
| Input Power Cooling/Heating (kW) | 1.685/1.80 | 2.42/2.225 |
| EER (W/W) | 3.09 | 2.93 |
| COP (W/W) | 3.50 | 3.60 |
| Pdesign Cooling/Heating (-10°C) kW | 5.20/4.80 | 7.10/7.10 |
| SEER (W/W) | 7.20 | 7.10 |
| SCOP (W/W) | 4.30 | 4.00 |
| Energy Efficiency Class - Cooling | A++ | A++ |
| Energy Efficiency Class - Heating | A+ | A+ |
| Annual Energy Consumption Cooling / Heating (kWh/a) | 253 / 1563 | 350 / 2485 |
| Moisture Removal Volume (L/h) | 1.9 | 3.1 |
| Sound Pressure Level Indoor Cooling - H/M/L/Q (dBA) | 47/44/40/35 | 51/45/38/33 |
| Sound Pressure Level Indoor Heating - H/M/L/Q (dBA) | 50/45/41/37 | 52/45/41/37 |
| Sound Pressure Level Outdoor Cooling / Heating - High (dBA) | 50/56 | 55/57 |
| Airflow Rate Indoor/Outdoor (Cooling) High (m3/h) | 865/1,830 | 1,040/2,885 |
| Airflow Rate Indoor/Outdoor (Heating) High (m3/h) | 995/2,265 | 1,040/3,030 |
| Net Dimensions H x W x D Weight - Indoor (mm / kg) | 293 × 790 × 249/ 9.5 | 293 × 790 × 249 / 10.0 |
| Net Dimensions H x W x D Weight - Outdoor (mm / kg) | 542 × 799 × 290 / 33 | 542 × 799 × 290 / 38 |
| Remote Controller Type (Supplied With Unit | Wireless | Wireless & Wi-Fi |
| Interconnecting Cable (Suggested cable size 1.5mm) | 3 Core + Earth | 3 Core + Earth |
| Suggested MCB Size (A) | 16 | 20 |
| Max. Operating Current - Cooling / Heating (A) | 9.5/13.5 | 13.5/17.5 |
| Power Supply To | Outdoor | Outdoor |
| Connection Pipe Diameter - Liquid/Gas (Inch) | 1/4 & 3/8 | 1/4 & 1/2 |
| Max. Pipe Length (m) | 25 | 30 |
| Pre-Charge Pipe Length (m) | 15 | 15 |
| Max. Height Difference (m) | 20 | 25 |
| Refrigerant Type / Global Warming Potential | R32 / 675 | R32 / 675 |
| Refrigerant Charge / CO2eq-T (g) | 850 / 0.574 | 1100 / 0.743 |
| Refrigerant Additional Charge (g/m) | 20 | 20 |
| Operating Range - Cooling (°CDB) | -10 to 46 | -10 to 46 |
| Operating Range - Heating (°CDB) | -15 to 24 | -15 to 24 | <
Fujitsu Airstage 5.2kW Economy Wall Mounted Indoor Unit R32 ASEG18KLCA
Fujitsu Airstage 7.1kW Economy Wall Mounted Indoor Unit R32 ASEG24KLCA

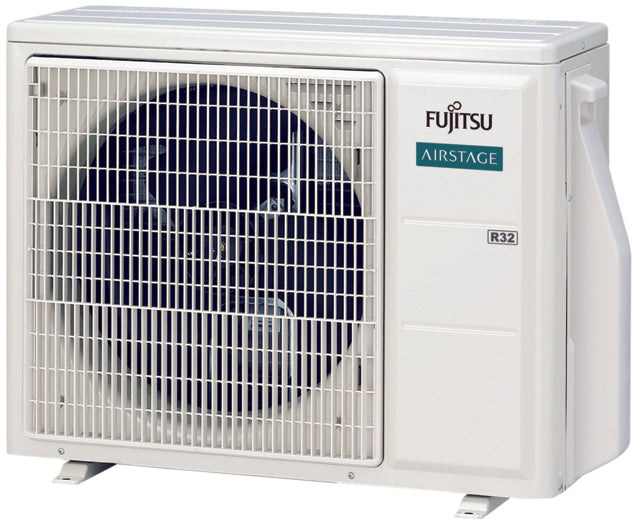

Fujitsu Airstage 5.2kW Economy Wall Mount Single Split Outdoor Unit R32 AOEG18KLCA
