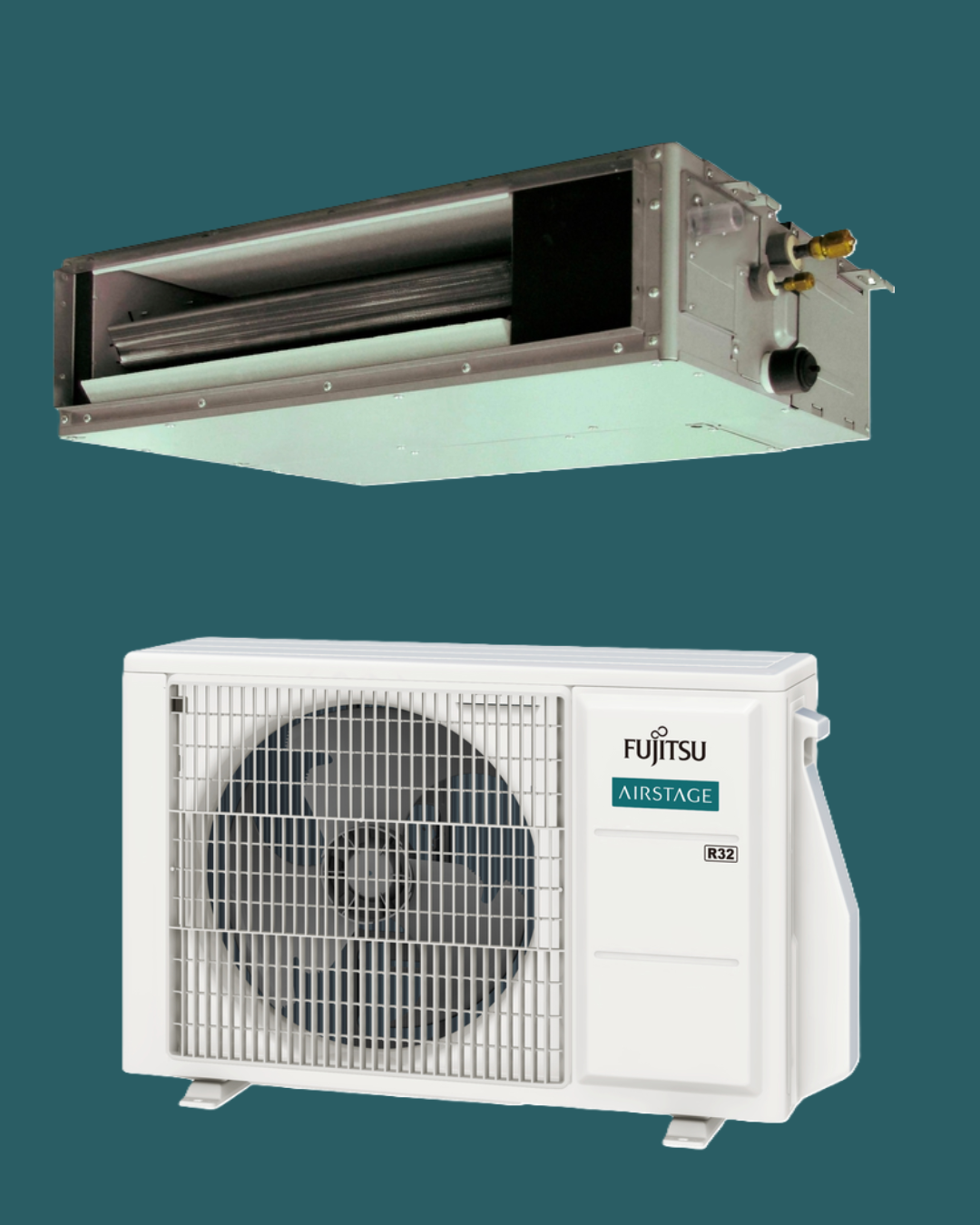

Fujitsu Airstage Multi-Split KSLAP Bulkhead Duct - R32
Multi-SplitProduct code: Multi-Split Bulkhead Duct - R32

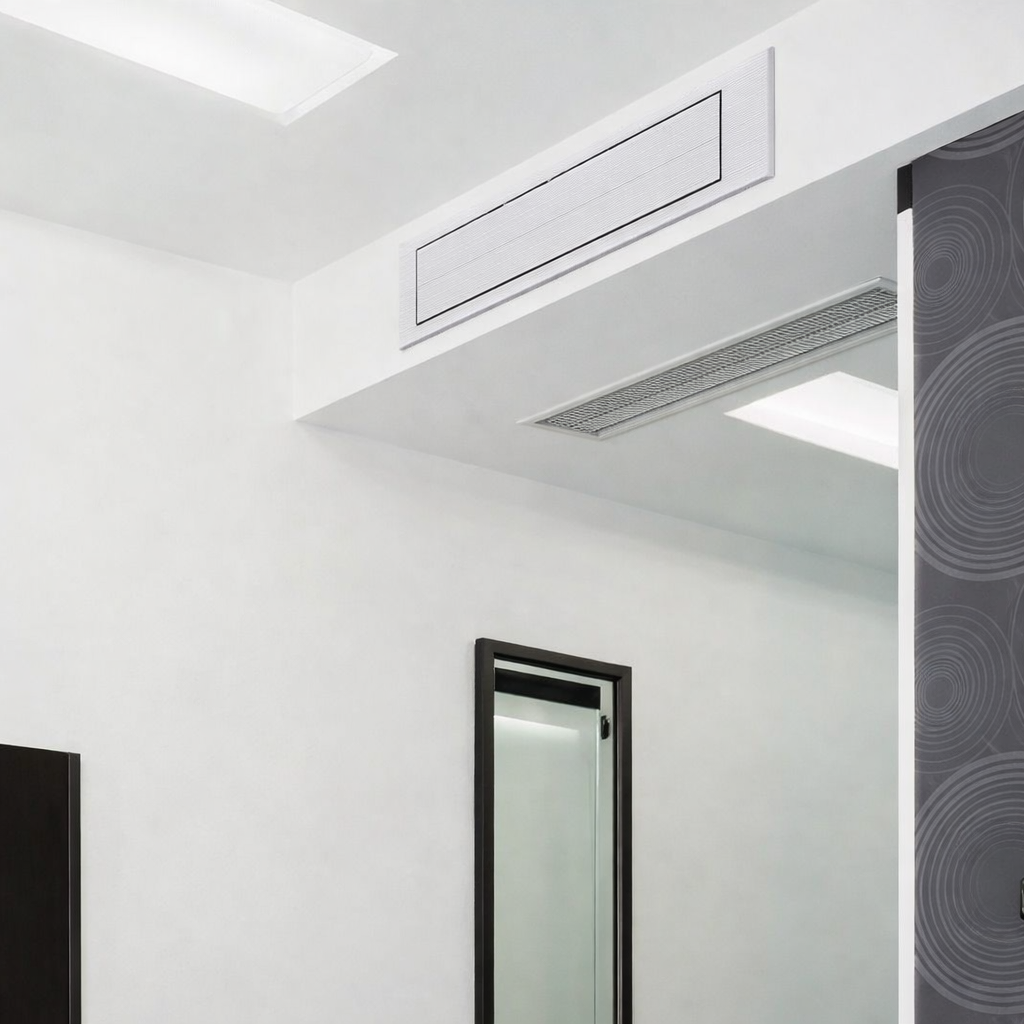

Fujitsu Airstage Multi-Split KSLAP Bulkhead Duct - R32

Fujitsu Airstage Mini Duct air conditioners offer dependable cooling and heating performance with a compact, low-profile ducted solution designed for discreet air conditioning in residential and light commercial applications. Built with robust components and engineered for efficient performance, the Mini Duct range as is exclusively for use with Fujitsu R32 multi-split systems. Connect 2 to 5 indoor units to a single outdoor unit, delivering independent temperature control for each room while maximising energy efficiency and minimising external equipment. Ideal for apartments, hotel rooms, offices, and retail spaces requiring flexible climate solutions.

Fujitsu Airstage Multi-Split KSLAP Bulkhead Duct - R32
Please Note: Remote controller available separately.

Model Reference

Capacity
kW
Class

Max
Pipe
(m)
EuP Lot 10
Energy Rating

Suggested MCB
(A)

Pipe
Size
Gas

Pipe
Size
Liquid

Electrical
Supply

Wi-Fi
Control
Indoor Unit SCOP SEER
ARXG07KSLAP 2.0 Please refer to

2 Unit to 5 Unit Multi-Split Condensers - R32 for more information or contact Oceanair.

3/8 1/4 Single Optional
ARXG09KSLAP 2.5 3/8 1/4 Single Optional
ARXG12KSLAP 3.5 3/8 1/4 Single Optional
ARXG14KSLAP 4.0 3/8 1/4 Single Optional
ARXG18KSLAP 5.0 1/2 1/4 Single Optional

For more information, see Technical Specifications.


Key features

Auto Louvre Grille Kit – Luxury Airflow Control for Air Conditioning Systems

Auto Louvre Grille Kit – Luxury Airflow Control for Air Conditioning Systems

Optional available for an auto louvre grille kit. This provides smooth, comfortable airflow with a clean, flat design to complements luxury interiors.

Slim Design for Space-Saving Installations

Slim Design for Space-Saving Installations

Slim 198mm design allows application in narrow ceiling voids, with a drain hose supplied as standard to support straightforward and efficient installation.

Central Control System Integration (Optional)

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

Flexible Multi-Zone Design for Precise Comfort Control

Flexible Multi-Zone Design for Precise Comfort Control

Supports a wide range of applications, from open-plan offices to retail environments, with up to four indoor units connected to a single outdoor unit. Engineers can select and position indoor units based on floor layout, occupancy levels, and solar gain, ensuring balanced airflow distribution and accurate load matching for consistent comfort across every zone.

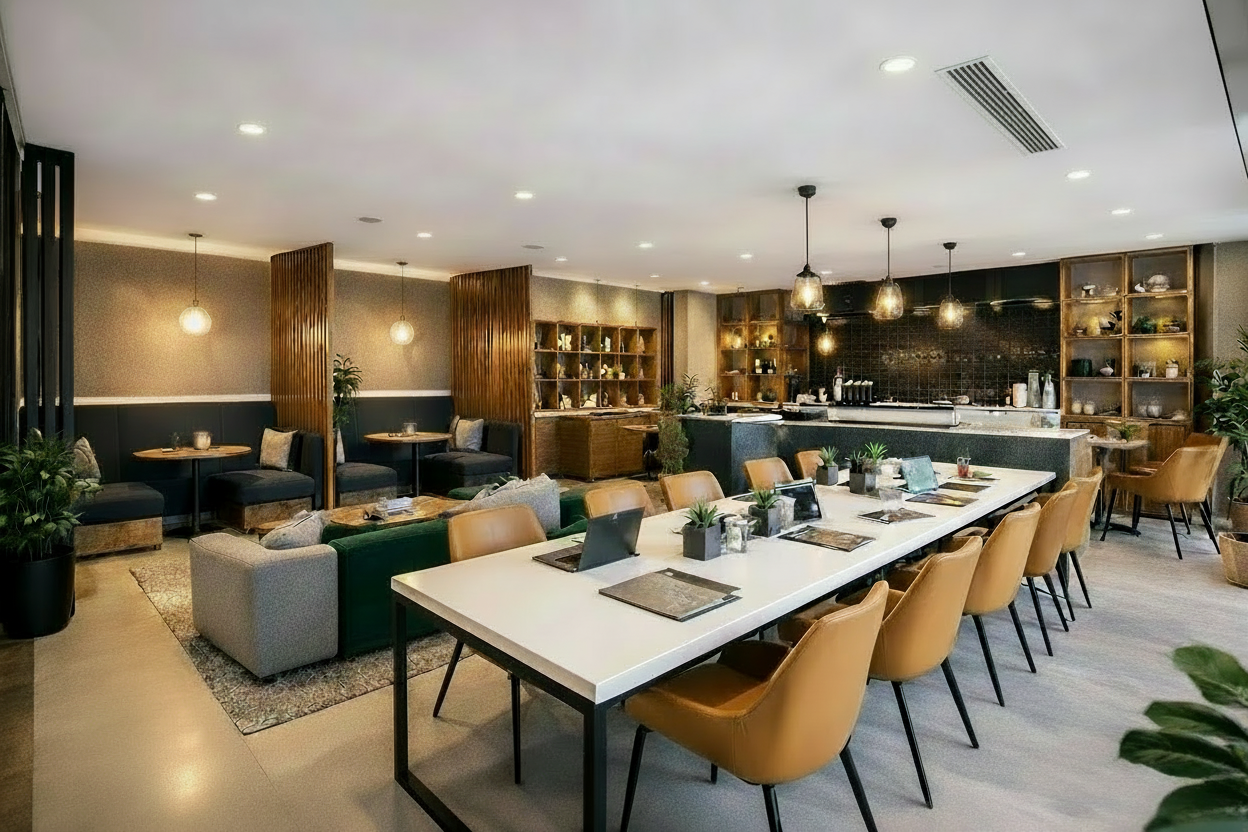

Fujitsu Airstage Eco Medium Static Pressure Duct Compact Size - R32-Fujitsu Airstage-Oceanair
Fujitsu Airstage Multi-Split KSLAP Bulkhead Duct - R32-Fujitsu Airstage-Oceanair
Fujitsu 2.0kW R32 Multi Split Bulkhead Duct Indoor Unit ARXG07KSLAP-Fujitsu-Oceanair
Fujitsu Airstage 2 Unit to 5 Unit Multi-Split Condensers - R32-Panasonic-Oceanair
Fujitsu Airstage Eco+ Range KN Series Wall Mounted - R32-Fujitsu Airstage-Oceanair
Auto Louvre Grille Kit – Luxury Airflow Control for Air Conditioning Systems

Auto Louvre Grille Kit – Luxury Airflow Control for Air Conditioning Systems

Optional available for an auto louvre grille kit. This provides smooth, comfortable airflow with a clean, flat design to complements luxury interiors.

Slim Design for Space-Saving Installations

Slim Design for Space-Saving Installations

Slim 198mm design allows application in narrow ceiling voids, with a drain hose supplied as standard to support straightforward and efficient installation.

Central Control System Integration (Optional)

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

Flexible Multi-Zone Design for Precise Comfort Control

Flexible Multi-Zone Design for Precise Comfort Control

Supports a wide range of applications, from open-plan offices to retail environments, with up to four indoor units connected to a single outdoor unit. Engineers can select and position indoor units based on floor layout, occupancy levels, and solar gain, ensuring balanced airflow distribution and accurate load matching for consistent comfort across every zone.

To view compatible outdoor units, click Fujitsu 2 Unit to 5 Unit Multi-Split Condensers - R32

Multi-Split Mini Duct Specification Table

Technical Data Model Number
ARXG07KSLAP ARXG09KSLAP ARXG12KSLAP ARXG14KSLAP ARXG18KSLAP
Power Source Single-phase, 230 V, 50 Hz
kW Class 2.0 2.53.54.05.0
Sound Pressure Level (Cooling) H/M/L/Q dB(A) 29 / 26 / 24 / 23 29 / 26 / 24 / 23 31 / 27 / 25 / 23 35 / 30 / 27 / 23 33 / 29 / 26 / 23
Sound Pressure Level (Heating) H/M/L/Q dB(A) 29 / 26 / 24 / 23 29 / 26 / 24 / 23 31 / 27 / 25 / 23 35 / 30 / 27 / 23 33 / 29 / 26 / 23
Airflow Rate (Cooling / Heating) High m³/h 550/ 550 600 / 600 650 / 650 800 / 800 940 / 940
Static Pressure Range - Recommended (Pa) 0 to 30 0 to 30 0 to 30 0 to 50 0 to 50
Dimensions (H × W × D) mm 198 × 700 × 450 198 × 700 × 450198 × 700 × 450198 × 700 × 450198 × 900 × 450
Power Supply To Outdoor
Connection Pipe Diameter (Liquid & Gas) Inch 1/4 & 3/81/4 & 3/8 1/4 & 3/8 1/4 & 3/8 1/4 & 1/2
Weight (kg) 15.5 15.5 15.5 15.5 18.5
Drain Pump Standard Standard Standard Standard Standard

This table is intended as a guide only. Please consult manufacturer's information for more details.
