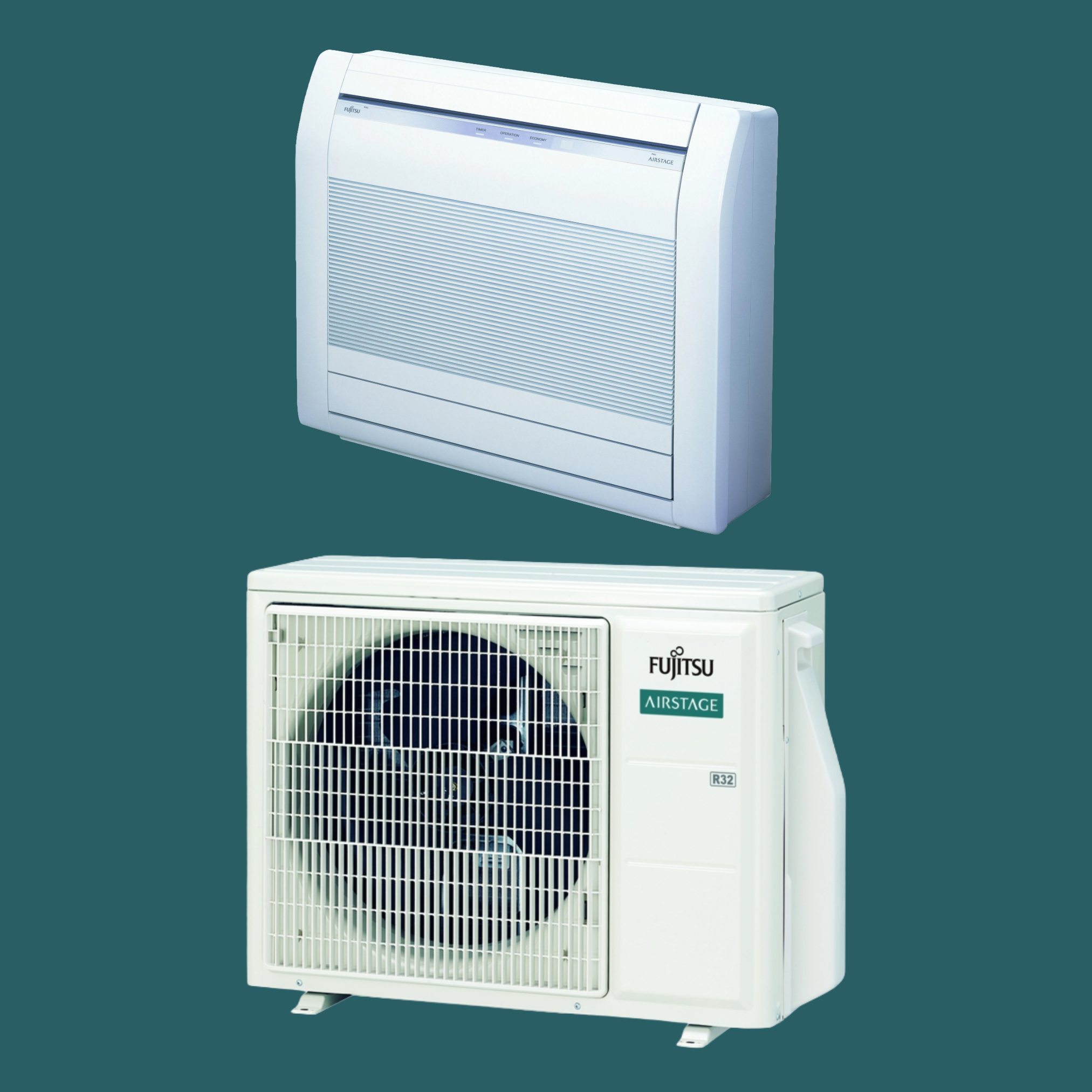

Fujitsu Airstage Multi-Split KVCA Floor Standing - R32
Multi-SplitProduct code: Multi-Split KVCA Floor Standing - R32

Fujitsu Airstage Multi-Split KVCA Floor Standing - R32

The Fujitsu Floor Standing range offers a compact and versatile heating and cooling solution for spaces where wall-mounted units aren't suitable. Ideal for installation beneath windows or against low walls, these systems combine quiet operation, high seasonal efficiency and flexible installation options for residential and light commercial applications. Available in 2.5 kW, 3.5 kW and 4.2 kW capacities, the range supports floor standing, wall mounted and semi-concealed installation, with optional Wi-Fi control available via the AIRSTAGE Mobile app.

Fujitsu Airstage Multi-Split KVCA Floor Standing - R32
Please Note: IR remote controller included.

Model Reference

Cool
Capacity
(kW)
Heat
Capacity
(kW)

Max
Pipe
(m)
EuP Lot 10
Energy Rating

Suggested MCB
(A)

Pipe
Size
Gas

Pipe
Size
Liquid

Electrical
Supply

Wi-Fi
Control
Indoor Unit SCOP SEER
AGEG09KVCA 2.6 3.5 Please refer to

2 Unit to 5 Unit Multi-Split Condensers - R32 for more information or contact Oceanair.

3/8 1/4 Single Optional
AGEG12KVCA 3.5 4.5 3/8 1/4 Single Optional
AGEG14KVCA 4.2 5.2 3/8 1/4 Single Optional

For more information, see Technical Specifications.


Key features

Flexible Installation

Flexible Installation

Designed to suit a wide variety of room layouts, the General Floor Standing range can be installed floor standing, wall mounted, partially recessed or semi-concealed. Six-direction pipe and drain connections also provide greater installation flexibility, making it ideal for both new installations and refurbishment projects.

High Energy Efficiency

High Energy Efficiency

Delivering efficient heating and cooling throughout the year, the range achieves high seasonal performance ratings of up to A+++ in cooling. The use of R32 refrigerant helps reduce environmental impact while maintaining excellent operating efficiency and lower running costs.

Compact, Space-Saving Design

Compact, Space-Saving Design

With a slim, low-profile cabinet, these units are ideal for installation beneath windows or against low walls where traditional wall-mounted air conditioners may not be suitable. Their discreet appearance allows them to blend naturally into modern homes, offices and commercial interiors.

Year-Round Comfort

Year-Round Comfort

Designed for dependable operation in every season, the range provides powerful cooling during warmer months and effective heating when temperatures fall. Features such as 10°C Heat help protect unoccupied properties from becoming too cold, while low ambient cooling operation down to -10°C makes the units suitable for applications requiring cooling even in cooler outdoor conditions.

Fujitsu Airstage Multi-Split KVCA Floor Standing - R32
To view compatible outdoor units, click Fujitsu 2 Unit to 5 Unit Multi-Split Condensers - R32

Multi-Split Compact Cassette Specification Table

Technical Data Model Number
AGEG09KVCA AGEG12KVCA AGEG14KVCA
Power Source Single phase, ~230 V, 50 Hz
kW Class 2.5 3.5 4.0
Sound Pressure Level (Cooling) H/M/L/Q (dB(A)) 39 / 34 / 28 / 22 42 / 36 / 30 / 22 44 / 38 / 31 / 22
Sound Pressure Level (Heating) H/M/L/Q (dB(A)) 39 / 35 / 30 / 22 42 / 38 / 32 / 22 44 / 39 / 33 / 22
Sound Power Level (Cooling / Heating) High (dB(A)) 52 / 52 55 / 55 56 / 56
Airflow Rate (Cooling) High (m³/h) 530 600 650
Airflow Rate (Heating) High (m³/h) 530 600 650
Net Dimensions H × W × D (mm) 600 × 740 × 200 600 × 740 × 200 600 × 740 × 200
Weight (kg) 14 14 14
Connection Pipe Diameter – Liquid / Gas (mm) 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52

This table is intended as a guide only. Please consult manufacturer's information for more details.
