Single SplitProduct code: Under Ceiling Standard Series

Fujitsu Airstage Standard Ceiling Suspended Units - R32

Name: Fujitsu Airstage Standard Ceiling Suspended Units - R32
Brand: Fujitsu Airstage
Availability: InStock

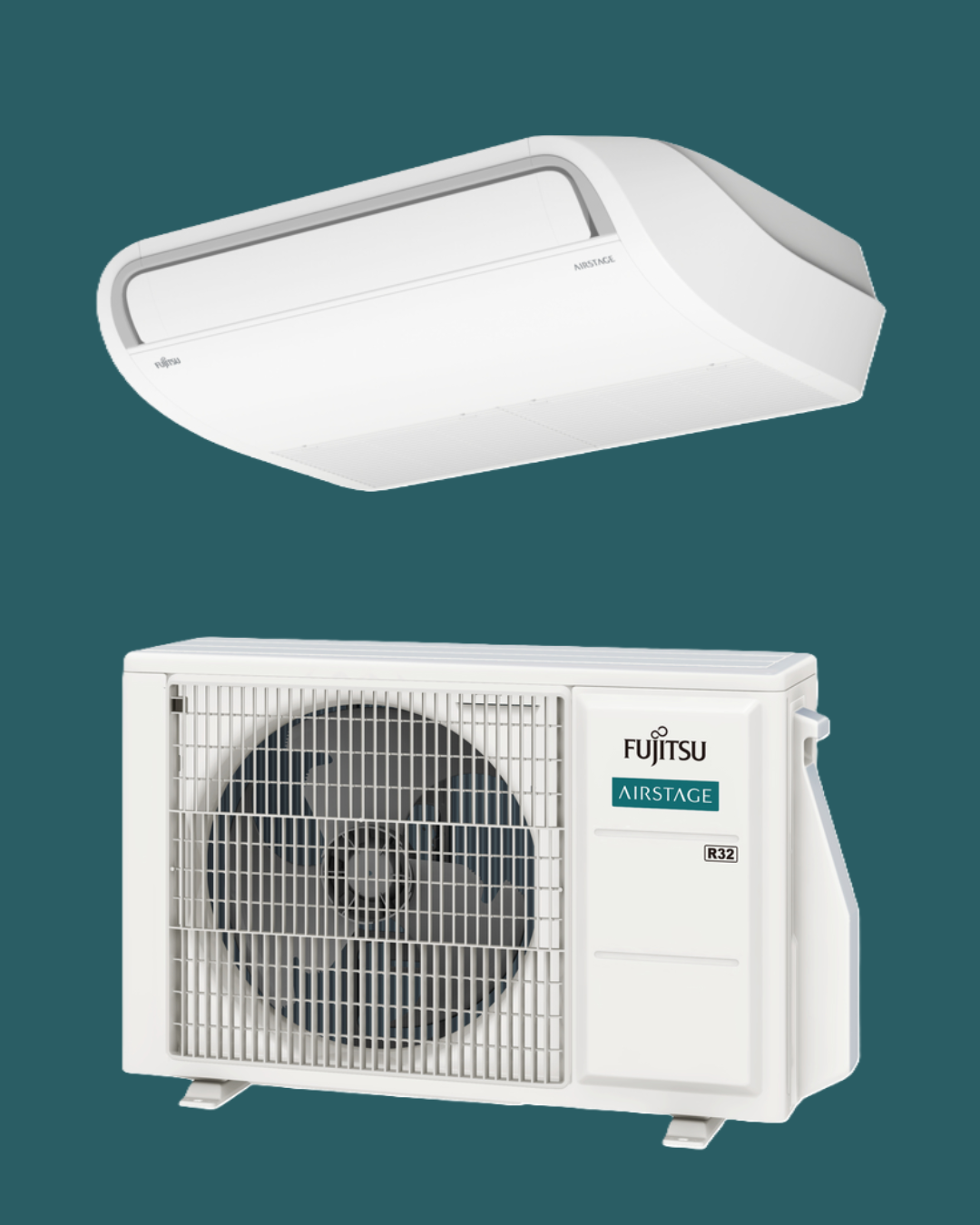

The Fujitsu Airstage KRTA Ceiling Suspended Indoor Unit paired with the KBTB Standard Outdoor Unit delivers efficient, high-performance heating and cooling for commercial and residential spaces. Designed as a single split system using advanced DC inverter technology, this pairing provides reliable year-round comfort with improved performance over Eco models. The KBTB Standard Outdoor Unit offers higher energy efficiency, a higher maximum operating current, and longer allowable pipe lengths, making it ideal for larger or more demanding installations. The slim, quiet KRTA ceiling unit integrates discreetly into offices, classrooms, and retail environments, delivering consistent airflow and dependable operation without compromising efficiency or flexibility.

Fujitsu Ceiling Suspended Catalogue 25 26 KRTA Ceiling Standard Product Data Sheet Fujitsu Airstage Features Explained 25 26 Fujitsu Airstage Controls Brochure 25 26 KQTA Specifications Sheet KRTA Ceiling Operation Manual KRTA Ceiling Installation Manual Outdoor Unit Product Data Sheet AOEG36KRTA Installation Manual

Please Note: Remote controller available separately.

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
ABEG18KRTA	AOEG18KBTB	5.2	6.0	30	4.1	6.2	16	1/2	1/4	Single	Optional
ABEG22KRTA	AOEG22KBTB	6.0	7.0	30	4.0	6.1	16	1/2	1/4	Single	Optional
ABEG24KRTA	AOEG24KBTB	6.8	7.5	30	4.1	6.2	20	1/2	1/4	Single	Optional
ABEG30KRTA	AOEG30KBTB	8.5	10.0	50	4.0	6.1	25	5/8	3/8	Single	Optional
ABEG36KRTA	AOEG36KBTB	9.5	10.8	50	4.21	6.37	25	5/8	3/8	Single	Optional
ABEG45KRTA	AOEG45KBTB	12.1	13.5	50	4.05*	6.25*	32	5/8	3/8	Single	Optional
ABEG36KRTA	AOEG36KRTA	9.5	10.8	50	4.21	6.37	16	5/8	3/8	Three	Optional
ABEG45KRTA	AOEG45KRTA	12.1	13.5	50	4.05*	6.25*	16	5/8	3/8	Three	Optional
	For more information, see Technical Specifications.

* Calculated Result

Key features

Redesigned Compact and Lightweight Outdoor Unit

The outdoor units used in the 45,000 BTU and 54,000 BTU models have been fully redesigned to deliver a smaller, lighter, and more installation-friendly format. This improved structure simplifies handling on-site and allows for easier placement in tight or challenging outdoor locations, enhancing both installation efficiency and flexibility.

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

Easy Maintenance & Service Access

The unit is designed for safe, efficient maintenance, with a front panel that opens without removal to allow quick access during servicing. A removable drain pan simplifies cleaning, while the wide side opening provides easy access to control box components, helping reduce service time and improve long-term reliability.

Red Dot Award-Winning Design

The Fujitsu Ceiling Suspended Unit features an award-winning, slimline design recognised with the Red Dot Design Award 2020. Its clean, modern profile integrates seamlessly into commercial and contemporary interiors while delivering efficient, evenly distributed airflow for reliable comfort.

Optional Remote Smart Control

With the optional Wi-Fi adaptor, the Fujitsu Ceiling Suspended Unit can be controlled remotely using the Fujitsu Airstage app. Adjust temperature settings, operating modes, and schedules from anywhere, giving you greater convenience, energy efficiency, and control—whether on-site or away.

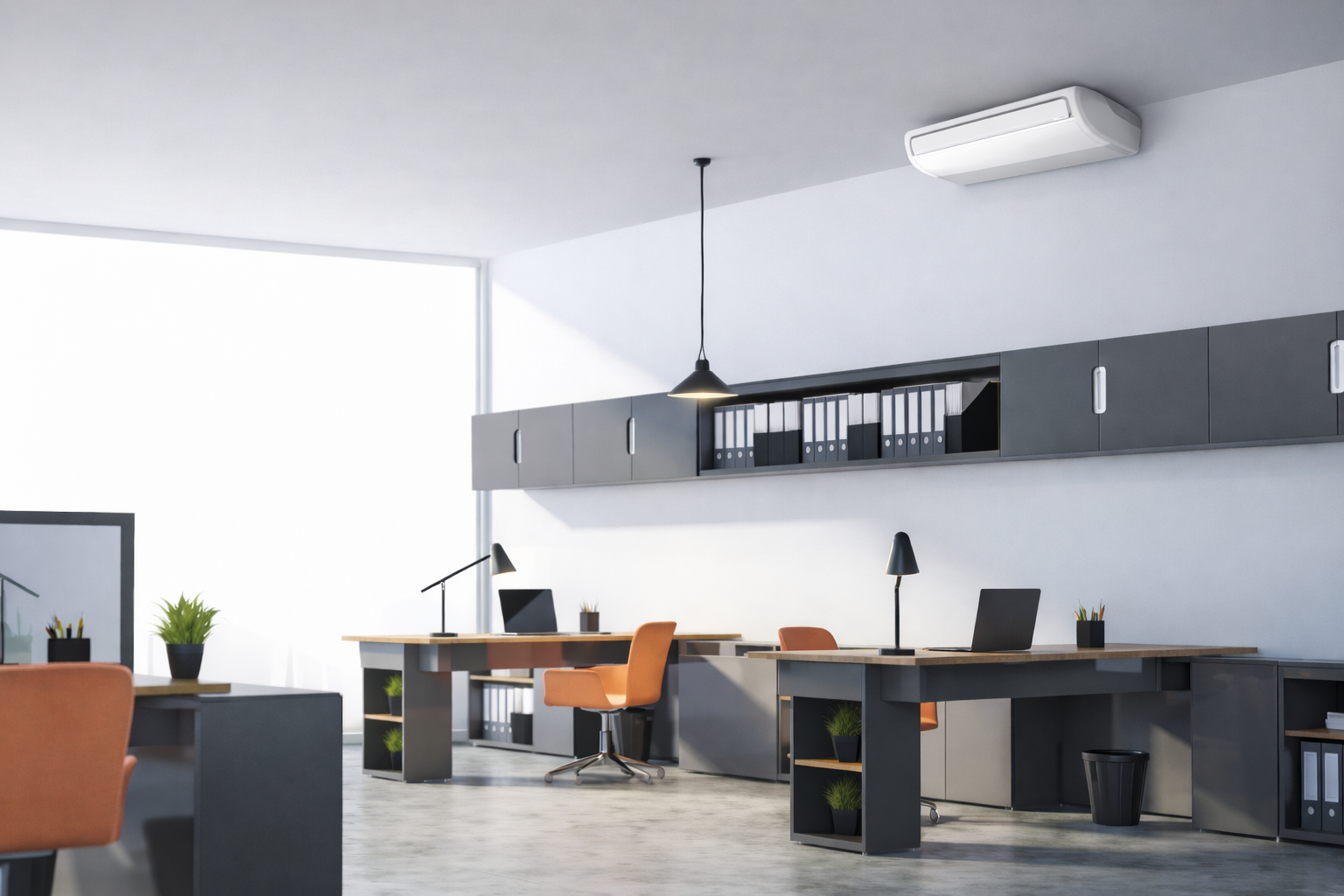

Fujitsu Airstage Standard Ceiling Suspended Units - R32-Fujitsu Airstage-Oceanair

Fujitsu Airstage Eco Circular Cassette Large Rooms 3ph - R32-Fujitsu Airstage-Oceanair

Under Ceiling Standard Range Specification Table

Technical Data	Model Number (Indoor Unit + Outdoor Unit)
Technical Data	ABEG18KRTA+ AOEG18KBTB	ABEG22KRTA+ AOEG22KBTB	ABEG24KRTA+ AOEG24KBTB	ABEG30KRTA+ AOEG30KBTB	ABEG36KRTA+ AOEG36KBTB	ABEG45KRTA+ AOEG45KBTB	ABEG36KRTA+ AOEG36KRTA	ABEG45KRTA+ AOEG45KRTA
Power Source	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	3-phase, ~400 V, 50 Hz	3-phase, ~400 V, 50 Hz
Cooling Capacity (Rated) kW	5.2	6.0	6.8	8.5	9.5	12.1	9.5	12.1
Heating Capacity (Rated) kW	6.0	7.0	7.5	10.0	10.8	13.5	10.8	13.5
Input Power (Cooling / Heating) kW	1.55 / 1.62	1.87 / 1.95	2.14 / 1.97	2.65 / 2.77	2.96 / 2.88	4.22 / 3.84	2.96 / 2.88	4.22 / 3.84
EER (Cooling) W/W	3.35	3.21	3.18	3.21	3.21	2.87	3.21	2.87
COP (Heating) W/W	3.70	3.59	3.81	3.61	3.75	3.52	3.75	3.52
Pdesign (Cooling / Heating -10°C) kW	5.2 / 4.4	6.0 / 4.8	6.8 / 6.0	8.5 / 8.0	9.5 / 8.7	-	9.5 / 8.7	-
SEER (Cooling) W/W	6.2	6.1	6.2	6.1	6.37	6.25*	6.37	6.25*
SCOP (Heating, Average) W/W	4.1	4.0	4.1	4.0	4.21	4.05*	4.21	4.05*
Energy Efficiency Class – Cooling	A++	A++	A++	A++	A++	-	A++	-
Energy Efficiency Class – Heating	A+	A+	A+	A+	A+	-	A+	-
Max Operating Current (Cooling / Heating) A	12.1 / 12.1	12.6 / 12.6	13.6 / 13.6	22.6 / 22.6	22.6 / 22.6	28.5 / 28.1	22.6 / 22.6	28.5 / 28.1
Annual Energy Consumption – Cooling (kWh/a)	293	344	384	486	524	–	524	–
Annual Energy Consumption – Heating (kWh/a)	1,501	1,677	2,042	2,796	2,904	–	2,904	–
Sound Pressure Level Indoor Cooling H/M/L/Q dB(A)	38/36/33/31	42/37/34/31	41/36/32/29	45/40/35/32	44/40/37/32	45/41/39/34	44/40/37/32	45/41/39/34
Sound Pressure Level Indoor Heating H/M/L/Q dB(A)	38/36/33/31	42/37/34/31	41/36/32/29	45/40/35/32	44/40/37/32	45/41/39/34	44/40/37/32	45/41/39/34
Sound Pressure Level Outdoor Cooling/Heating High dB(A)	50/50	51/51	53/54	53/55	55/55	57/57	55/55	57/57
Sound Power Level Indoor Cooling/Heating High dB(A)	53/53	57/57	56/56	60/60	59/59	60/60	59/59	60/60
Sound Power Level Outdoor Cooling/Heating High dB(A)	62/62	63/63	65/66	68/69	70/70	71/71	70/70	71/71
Airflow Rate Indoor/Outdoor Cooling High m³/h	840/2,160	900/2,240	1,230/2,700	1,400/3,750	1,850/3,750	1,900/4,450	1,850/3,750	1,900/4,450
Airflow Rate Indoor/Outdoor Heating High m³/h	840/1,830	900/1,960	1,230/2,700	1,400/3,750	1,850/3,750	1,850/4,450	1,850/3,750	1,850/4,450
Remote Controller Type	No Controller Supplied with this Unit. Please Order Separately
Net Dimensions Indoor (H × W × D) mm	235 × 1,080 × 705	235 × 1,080 × 705	235 × 1,390 × 705	235 × 1,390 × 705	235 × 1,700 × 705	235 × 1,700 × 705	235 × 1,700 × 705	235 × 1,700 × 705
Net Dimensions Outdoor (H × W × D) mm	632 × 799 × 290	632×799×290	716 × 820 × 315	788×940×320	788×940×320	998×940×320	788×940×320	998×940×320
Weight Indoor / Outdoor kg	24/36	24/38	31/42	31/52	38/52	38/67	38/52	38/67
Connection Pipe Diameter (Liquid / Gas) mm	6.35/12.70	6.35/12.70	6.35/12.70	9.52/15.88	9.52/15.88	9.52/15.88	9.52/15.88	9.52/15.88
Max Pipe Length (Pre-charge) m	30 (20)	30 (20)	30 (30)	50 (30)	50 (30)	50 (30)	50 (30)	50 (30)
Operating Range – Cooling °CDB	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46
Operating Range – Heating °CDB	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24
Refrigerant Type (GWP)	R32 (675)
Refrigerant Charge / CO2eq-T (g)	1020 / 0.689	1250 / 0.844	1250 / 0.844	1900 / 1.283	1900 / 1.283	2700 / 1.823	1900 / 1.283	2700 / 1.823
Refrigerant Additional Charge (g/m)	20	20	20	40	40	40	40	40
