Single SplitProduct code: Circular Cassette Standard Flow Series

Fujitsu Airstage Standard Circular Cassette Flow Range - R32

Name: Fujitsu Airstage Standard Circular Cassette Flow Range - R32
Brand: Fujitsu Airstage
Availability: InStock

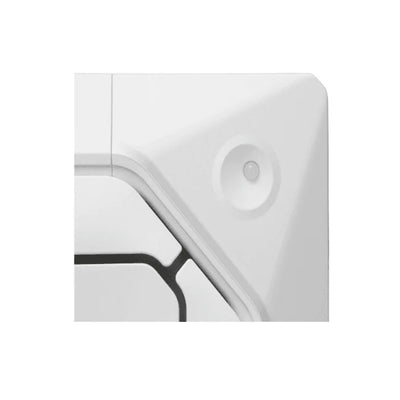

The Fujitsu Airstage Standard Circular Cassette Flow Range – R32 provides powerful, energy-efficient climate control with a smooth 360° airflow that delivers even comfort across both small and large rooms. Advanced inverter technology and eco-friendly R32 refrigerant ensure quiet, responsive performance for residential, commercial, and office environments. The slim, modern fascia integrates seamlessly into contemporary spaces, while larger 3-phase models offer greater capacity for demanding applications. With flexible installation options and support for the optional Occupancy Sensor Kit for smart energy savings, the Airstage Circular Cassette Flow Range is a versatile, future-ready solution for year-round comfort.

KRLB Cassette Unit Installation Manual KRLB Cassette Unit Operation Manual Product Data Sheet Circular Cassette Catalogue 25 26 Outdoor Unit Installation Manual Fujitsu Airstage Controls Brochure 25 26

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
AUXG18KRLB	AOEG18KBTB	5.2	6.0	20	4.1	6.2	16	1/2	1/4	Single	Optional
AUXG22KRLB	AOEG22KBTB	6.0	7.0	25	4.1	6.2	16	1/2	1/4	Single	Optional
AUXG24KRLB	AOEG24KBTB	6.8	7.5	25	4.0	6.1	16	1/2	1/4	Single	Optional
AUXG30KRLB	AOEG30KBTB	8.5	10.0	30	4.0	6.1	25	5/8	3/8	Single	Optional
AUXG36KRLB	AOEG36KBTB	9.5	10.8	30	4.0	6.1	25	5/8	3/8	Single	Optional
AUXG45KRLB	AOEG45KBTB	12.1	13.5	30	3.8	5.40	30	5/8	3/8	Single	Optional
AUXG54KRLB	AOEG54KBTB	13.4	13.7	30	3.85	6.0	30	5/8	3/8	Single	Optional
AUXG36KRLB	AOEG36KRTA	9.5	10.8	30	4.0	6.1	25	5/8	3/8	Three	Optional
AUXG45KRLB	AOEG45KRTA	12.1	13.5	30	3.8	5.40	30	5/8	3/8	Three	Optional
AUXG54KRLB	AOEG54KRTA	13.4	13.7	30	3.85	6.0	30	5/8	3/8	Three	Optional
	For more information, see Technical Specifications.

Key features

Unique Circular Flow Design for Full-Room Comfort

The Fujitsu Circular Cassette achieves true 360° airflow, ensuring balanced temperature distribution across the entire space. Powered by a high-efficiency DC fan motor and turbo fan, and enhanced by a seamless airflow louver design, the system delivers strong, smooth air movement that eliminates hot and cold spots and creates optimal comfort in any environment.

Individual Louver Control

Each louver can be adjusted independently using the touch-panel wired controller, allowing airflow to be directed precisely according to the room layout.

Compatible with UTY-RNRYZ5 wired remote controller.

Redesigned Compact and Lightweight Outdoor Unit

The outdoor units used in the 45,000 BTU and 54,000 BTU models have been fully redesigned to deliver a smaller, lighter, and more installation-friendly format. This improved structure simplifies handling on-site and allows for easier placement in tight or challenging outdoor locations, enhancing both installation efficiency and flexibility.

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

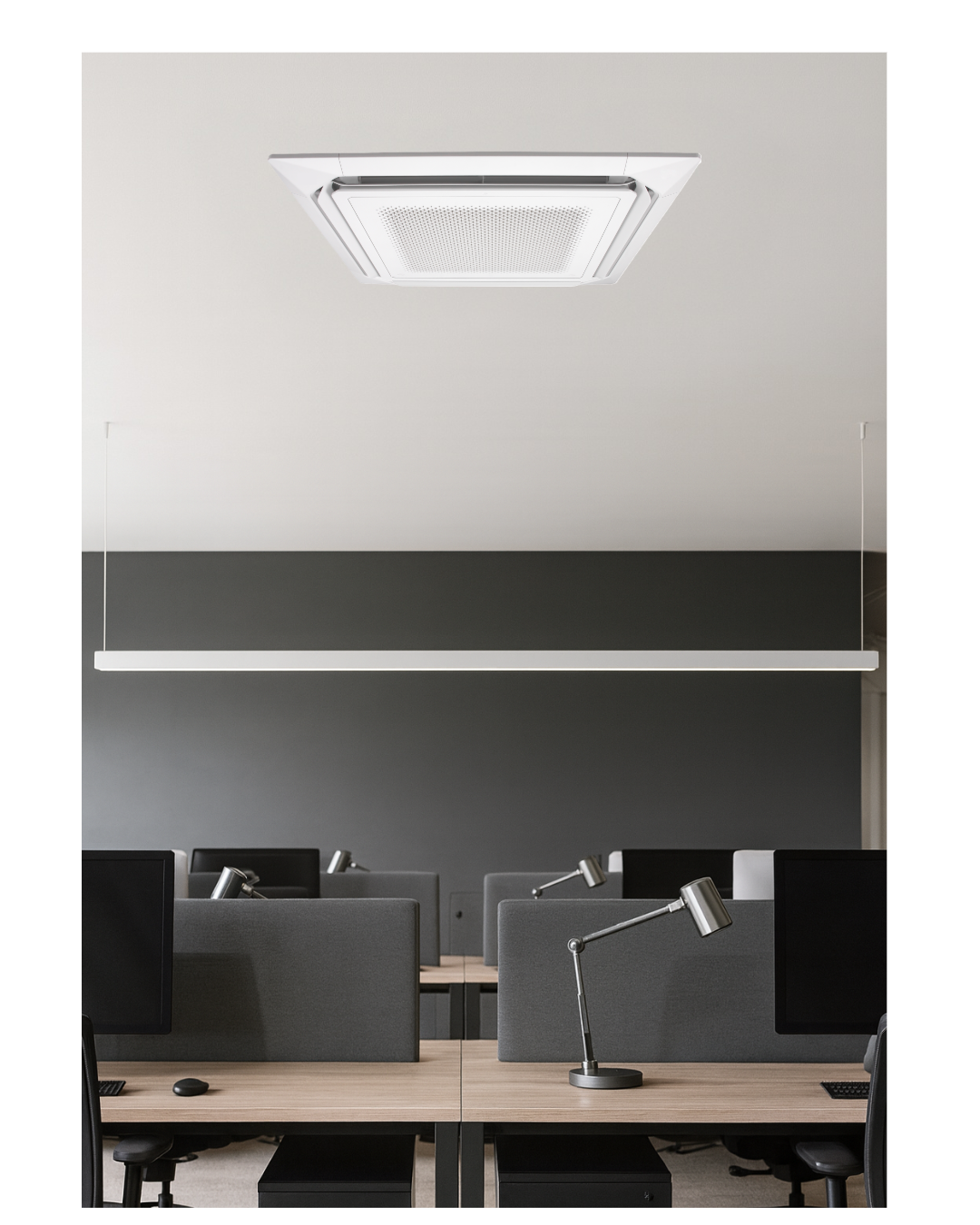

Fujitsu Airstage Standard Circular Cassette Flow Range - R32-Fujitsu Airstage-Oceanair

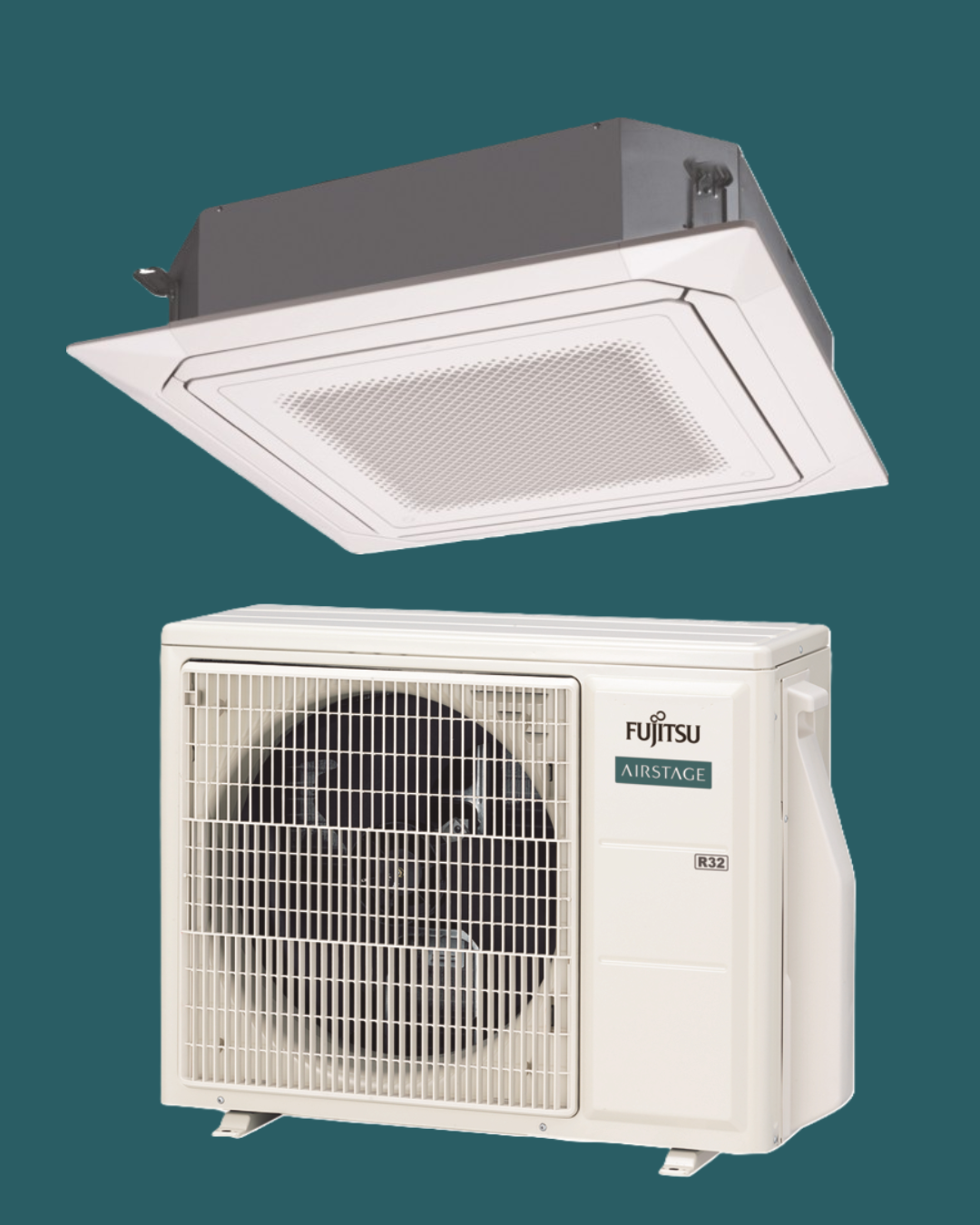

Fujitsu Airstage Eco Circular Cassette Large Rooms 3ph - R32-Fujitsu Airstage-Oceanair

Circular Flow Cassette Standard Range Specification Table

Technical Data	Model Number (Indoor Unit + Outdoor Unit)
Technical Data	AUXG18KRLB + AOEG18KBTB	AUXG22KRLB + AOEG22KBTB	AUXG24KRLB + AOEG24KBTB	AUXG30KRLB + AOEG30KBTB	AUXG36KRLB + AOEG36KBTB	AUXG45KRLB + AOEG45KBTB	AUXG54KRLB + AOEG54KBTB	AUXG36KRLB + AOEG36KRTA	AUXG45KRLB + AOEG45KRTA	AUXG54KRLB + AOEG54KRTA
Power Source	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Three phase, ~400 V, 50 Hz	Three phase, ~400 V, 50 Hz	Three phase, ~400 V, 50 Hz
Cooling Capacity (Rated) kW	5.2	6.0	6.8	8.5	9.5	12.1	13.4	9.5	12.1	13.4
Cooling Capacity (Min–Max) kW	0.9-5.9	0.9-6.7	0.9-8.0	2.8-10.0	2.8-11.2	4.0-14.0	4.5-14.5	2.8-11.2	4.0-14.0	4.5-14.5
Heating Capacity (Rated) kW	6.0	7.0	7.5	10.0	10.8	13.5	13.7	10.8	13.5	13.7
Heating Capacity (Min–Max) kW	0.9-7.5	0.9-8.0	0.9-9.1	2.7-11.2	2.7-12.7	4.2–16.2	4.7–16.5	2.7-12.7	4.2–16.2	4.7–16.5
Input Power (Cooling / Heating) kW	1.36/1.58	1.71/1.82	1.89/1.90	2.44/2.51	2.91/2.45	3.61/3.21	4.41/4.16	2.91/2.45	3.61/3.21	4.41/4.16
EER (Cooling) W/W	3.82	3.51	3.60	3.49	3.26	3.35	3.04	3.26	3.35	3.04
COP (Heating) W/W	3.80	3.85	3.95	3.98	4.40	4.20	3.73	4.40	4.20	3.73
Pdesign (Cooling / Heating -10°C) kW	5.2/4.4	6.0/4.8	6.8/6.0	8.5/8.0	9.5/8.7	12.1/9.2	13.4 / 9.5	9.5/8.7	12.1/9.2	13.4 / 9.5
SEER (Cooling) W/W	7.00	7.00	6.60	6.70	6.55	6.65	6.53	6.55	6.65	6.53
SCOP (Heating, Average) W/W	4.30	4.40	4.20	4.30	4.30	4.33	4.31	4.30	4.33	4.31
Energy Efficiency Class – Cooling	A++	A++	A++	A++	A++	-	-	A++	-	-
Energy Efficiency Class – Heating	A+	A+	A+	A+	A+	-	-	A+	-	-
Max Operating Current (Cooling / Heating) A	12.1/12.1	12.6/12.6	13.6/13.6	22.6/22.6	22.6/22.6	28.5/28.5	28.5/28.5	22.6/22.6	28.5/28.5	28.5/28.5
Annual Energy Consumption – Cooling (kWh/a)	260	300	360	444	507	–	–	507	–	–
Annual Energy Consumption – Heating (kWh/a)	1431	1527	1999	2601	2828	–	–	2828	–	–
Sound Pressure Level Indoor Cooling H/M/L/Q dB(A)	33 / 32 / 31 / 28	33 / 32 / 31 / 28	35 / 33 / 32 / 29	40 / 38 / 36 / 33	44 / 41 / 38 / 34	46 / 42 / 39 / 35	47 / 43 / 40 / 36	44 / 41 / 38 / 34	46 / 42 / 39 / 35	47 / 43 / 40 / 36
Sound Pressure Level Indoor Heating H/M/L/Q dB(A)	33 / 32 / 31 / 28	33 / 32 / 31 / 28	35 / 33 / 32 / 29	40 / 38 / 36 / 33	44 / 41 / 38 / 34	46 / 42 / 39 / 35	47 / 43 / 40 / 36	44 / 41 / 38 / 34	46 / 42 / 39 / 35	47 / 43 / 40 / 36
Sound Pressure Level Outdoor Cooling/Heating High dB(A)	50/50	51/51	53/54	53 / 55	55 / 55	57/57	57/59	55 / 55	57/57	57/59
Sound Power Level Indoor Cooling/Heating High dB(A)	47 / 47	49 / 49	49 / 49	54 / 54	58 / 58	60 / 60	61 / 61	58 / 58	60 / 60	61 / 61
Sound Power Level Outdoor Cooling/Heating High dB(A)	62/62	63/63	65/66	68/69	70/70	71/71	73/73	70/70	71/71	73/73
Airflow Rate Indoor/Outdoor Cooling High m³/h	1,050 / 2,160	1,050 / 2,240	1,150/2,700	1,600 / 3,750	1,870 / 3,750	2,000 / 4,450	2,100 / 4,450	1,870 / 3,750	2,000 / 4,450	2,100 / 4,450
Net Dimensions Indoor (H × W × D) mm	246 × 840 × 840	246 × 840 × 840	246 × 840 × 840	288 × 840 × 840	288 × 840 × 840	288 × 840 × 840	288 × 840 × 840	288 × 840 × 840	288 × 840 × 840	288 × 840 × 840
Net Dimensions Outdoor (H × W × D) mm	632 × 799 × 290	632 × 799 × 290	716 × 820 × 315	788 × 940 × 320	788 × 940 × 320	998 × 940 × 320	998 × 940 × 320	788 × 940 × 320	998 × 940 × 320	998 × 940 × 320
Weight Indoor / Outdoor kg	23 / 36	23 / 38	24 / 42	26 / 52	29 / 52	29 / 67	29 / 67	29 / 52	29 / 67	29 / 67
Connection Pipe Diameter (Liquid / Gas) mm	6.35 / 12.70	6.35 / 12.70	6.35 / 12.70	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88
Max Pipe Length (Pre-charge) m	30 (20)	30 (20)	30 (20)	50 (30)	50 (30)	50 (30)	50 (30)	50 (30)	50 (30)	50 (30)
Operating Range – Cooling °CDB	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46
Operating Range – Heating °CDB	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24
Refrigerant Type (GWP)	R32 (675)
Cassette Grille Model	UTG-UKYA-W: White wired remote controller (touch panel) UTG-UKYC-W: White/UTG-UKYA-B*1: Black
Cassette Grille Dimensions (H × W × D) mm	53 × 950 × 950
Cassette Grille Weight kg	6.0
