Fujitsu Airstage Standard Comfort Range KM Series Wall Mounted - R32

Name: Fujitsu Airstage Standard Comfort Range KM Series Wall Mounted - R32
Brand: Fujitsu Airstage
Availability: InStock

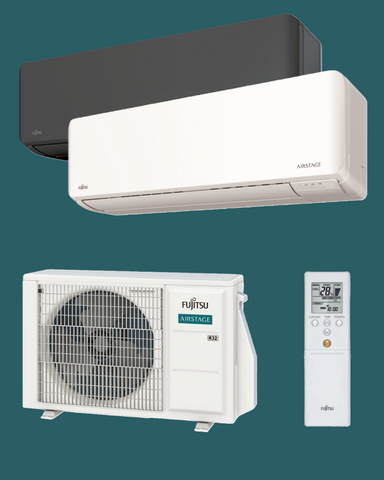

Discover superior comfort and outstanding efficiency with the Fujitsu AIRSTAGE KM Series (KMCG) wall-mounted air conditioners—designed to deliver powerful cooling and heating with modern style. Featuring a sleek square-profile indoor unit, eco-friendly R32 refrigerant and an advanced high-density heat exchanger, this range achieves exceptional energy savings while blending seamlessly into contemporary interiors. Quiet operation and enhanced airflow ensure comfort from floor to ceiling, and with optional WLAN control built-in, you can manage your climate remotely via smartphone or tablet. Ideal for homes or small commercial zones seeking efficient, flexible, and stylish air conditioning solutions.

Sales Brochure and Tech Specs KM Comfort Series Catalogue 25 26 Design & Technical Manual Operation Manual Fujitsu Airstage Controls Brochure 25 26 Airstage App Information

(inc. Infra Red Controller)

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
ASEH07KMCG(B)	AOEH07KMCG	2.0	2.5	20	4.6	8.4	10	3/8	1/4	Single	Built-In
ASEH09KMCG(B)	AOEH09KMCG	2.5	2.8	20	4.6	8.4	10	3/8	1/4	Single	Built-In
ASEH12KMCG(B)	AOEH12KMCG	3.4	4.0	20	4.6	7.7	10	3/8	1/4	Single	Built-In
ASEH14KMCG(B)	AOEH14KMCG	4.2	5.4	20	4.1	7.1	15	3/8	1/4	Single	Built-In
	For more information, see Technical Specifications.

Please note: KMCG denotes white indoor unit, (B) denotes black indoor unit.

Key features

Slim, Stylish Design with High Energy Efficiency

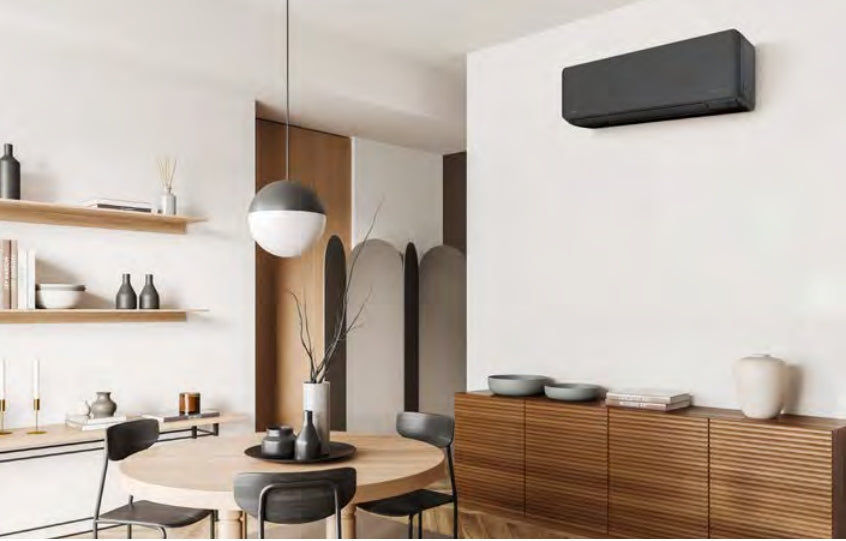

The slim square-profile indoor unit combines a high-density multipath heat exchanger and high-efficiency airflow design to deliver powerful performance in a compact, modern form. Available in white or soft black, the warm, understated colour options blend seamlessly into residential and light commercial interiors without strong visual contrast.

Advanced efficiency is achieved through a lambda-shaped heat exchanger, large cross-flow fan, and the latest refrigerant technology, delivering excellent energy savings alongside refined, quiet operation.

Comfortable, Ultra-Quiet Airflow Down to 20 dB(A)

A large louver and newly engineered air-blowing structure deliver smooth, comfortable airflow that reaches down to the user’s feet, while maintaining ultra-quiet cooling performance as low as 20 dB(A).

Smart Wi-Fi Control with Included WLAN Adapter

With a built-in WLAN adapter and the AIRSTAGE mobile app, you can monitor and control the air conditioner’s operation from anywhere—indoors or outdoors—using your smartphone or tablet.

Reliable Cooling Performance in Extreme Heat

Engineered for efficiency in demanding climates, the unit delivers stable, effective cooling even in high outdoor temperatures up to 50°C, ensuring indoor comfort is maintained regardless of the conditions outside.

Fujitsu Airstage Standard Comfort Range KM Series Wall Mounted - R32-Fujitsu Airstage-Oceanair

Fujitsu Airstage KM Series 2.0kW Wall Mounted Split Air Conditioner inc. Wi-Fi ASEH07KMCG-Fujitsu-Oceanair

Fujitsu Airstage KM Series 2.0kW Wall Mounted Indoor Unit inc. Wi-Fi-Fujitsu Airstage-Oceanair

Fujitsu Airstage KE Series 2.0kW R32 Wall Mounted Split Air Conditioner inc Wi-Fi Silver ASEG07KETF-B-Fujitsu-Oceanair

Standard Range KM Comfort Series Specification Table

Technical Data	Model Number (Indoor Unit + Outdoor Unit)
	ASEH07KMCG	ASEH09KMCG	ASEH12KMCG	ASEH14KMCG
	AOEH07KMCG	AOEH09KMCG	AOEH12KMCG	AOEH14KMCG
	Power Source	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz
Cooling Capacity (kW)	2.0	2.5	3.4	4.2
Heating Capacity (kW) - Nominal	2.5	2.8	4.0	5.4
UK Total Cooling / UK Sensible Cooling	1.97 / 1.17	2.46 / 1.56	3.33 / 2.15	3.95 / 3.21
Input Power Cooling/Heating (kW)	0.450 / 0.555	0.630 / 0.620	0.935 / 0.960	1.220 / 1.410
EER (W/W)	4.43	3.85	3.54	3.44
COP (W/W)	4.52	4.52	3.92	3.83
Pdesign Cooling/Heating (-10°C) kW	2.0 / 2.3	2.5 / 2.4	3.4 / 2.5	4.2 / 4.0
SEER (W/W)	8.40	8.40	7.70	7.10
SCOP (W/W)	4.60	4.60	4.60	4.10
Energy Efficiency Class - Cooling	A++	A++	A++	A++
Energy Efficiency Class - Heating	A++	A++	A++	A+
Annual Energy Consumption Cooling / Heating (kWh/a)	83/ 700	104/ 730	155/ 761	207/ 1366
Moisture Removal Volume (L/h)	1.0	1.3	1.8	2.1
Sound Pressure Level Indoor Cooling - H/M/L/Q (dBA)	38 / 33 / 29 / 20	40 / 34 / 29 / 20	40 / 35 / 30 / 20	43 / 36 / 30 / 20
Sound Pressure Level Indoor Heating - H/M/L/Q (dBA)	41 / 35 / 31 / 22	42 / 36 / 31 / 22	42 / 38 / 33 / 22	44 / 39 / 33 / 24
Sound Pressure Level Outdoor Cooling / Heating - High (dBA)	46 / 46	46 / 46	50 / 50	50 / 50
Airflow Rate Indoor/Outdoor (Cooling) High (m3/h)	650 / 1650	700 / 1650	700 / 1700	770 / 1680
Airflow Rate Indoor/Outdoor (Heating) High (m3/h)	720 / 1450	750 / 1450	780 / 1470	820 / 1580
Net Dimensions H x W x D Weight - Indoor (mm / kg)	270 × 834 × 222 / 10	270 × 834 × 222/ 10	270 × 834 × 222 / 10	270 × 834 × 222 / 10
Net Dimensions H x W x D Weight - Outdoor (mm / kg)	541 × 663 × 290 / 22	541 × 663 × 290 / 22	541 × 663 × 290 / 24	542 × 799 × 290 / 31
Remote Controller Type (Supplied With Unit)	Wireless & Wi-Fi	Wireless & Wi-Fi	Wireless & Wi-Fi	Wireless & Wi-Fi
Interconnecting Cable (Suggested cable size 1.5mm)	3 Core + Earth	3 Core + Earth	3 Core + Earth	3 Core + Earth
Suggested MCB Size (A)	10	10	10	15
Max. Operating Current - Cooling / Heating (A)	6.5 / 9.0	6.5 / 9.0	6.5 / 9.0	6.5 / 9.0
Power Supply To	Outdoor	Outdoor	Outdoor	Outdoor
Connection Pipe Diameter - Liquid/Gas (Inch)	1/4 & 3/8	1/4 & 3/8	1/4 & 3/8	1/4 & 3/8
Max. Pipe Length (m)	20	20	20	20
Pre-Charge Pipe Length (m)	15	15	15	15
Max. Height Difference (m)	15	15	15	15
Refrigerant Type / Global Warming Potential	R32 / 675	R32 / 675	R32 / 675	R32 / 675
Refrigerant Charge / CO2eq-T (kg)	600 / 0.405	600 / 0.405	700 / 0.473	850 / 0.574
Refrigerant Additional Charge (g/m)	20	20	20	20
Operating Range - Cooling (°CDB)	-10 to 50	-10 to 50	-10 to 50	-10 to 50
Operating Range - Heating (°CDB)	-15 to 24	-15 to 24	-15 to 24	-15 to 24
