Single SplitProduct code: Compact Cassette 4-Way Flow Series

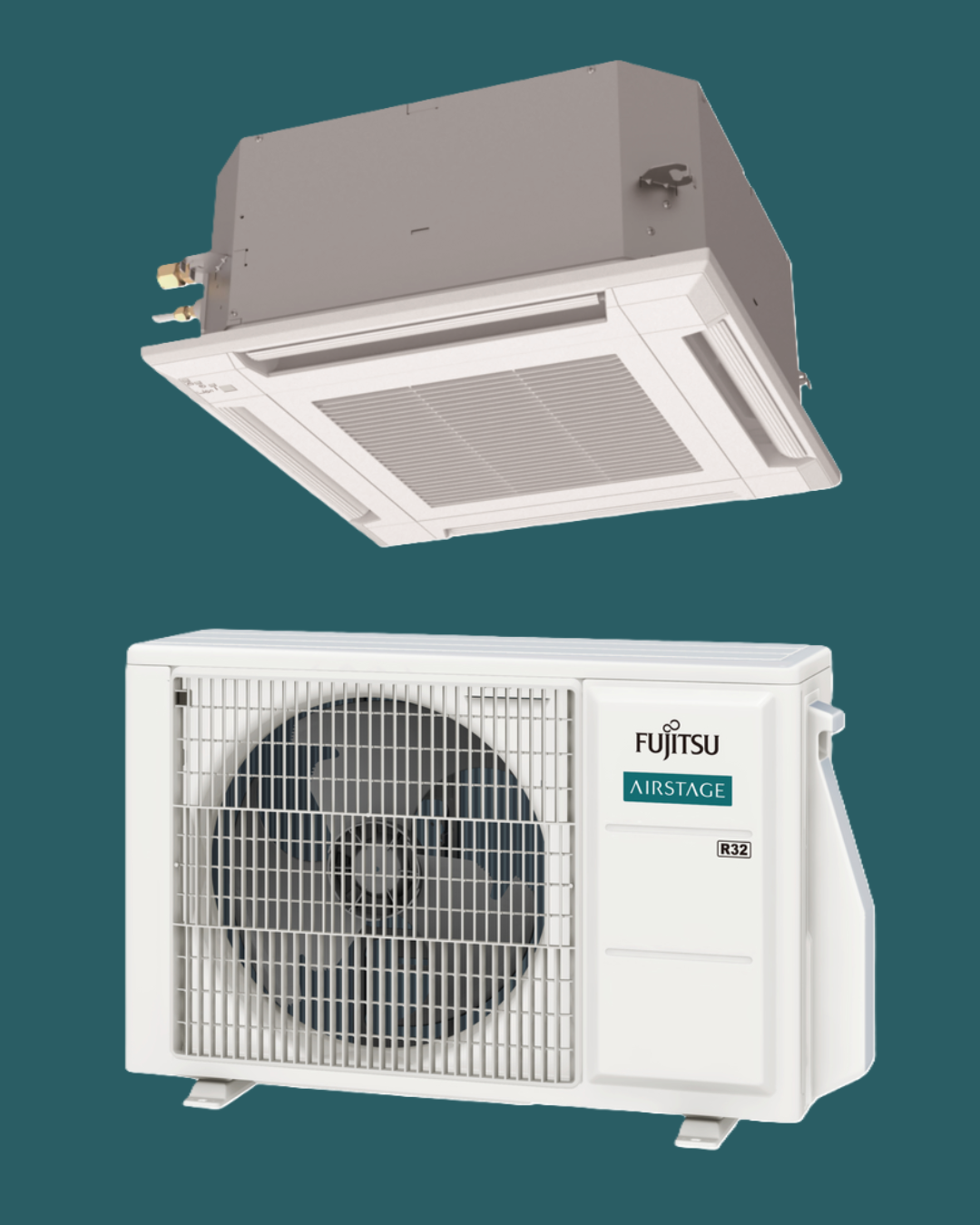

Fujitsu Airstage Standard Compact Cassette 4-Way Flow Range - R32

Name: Fujitsu Airstage Standard Compact Cassette 4-Way Flow Range - R32
Brand: Fujitsu Airstage
Availability: InStock

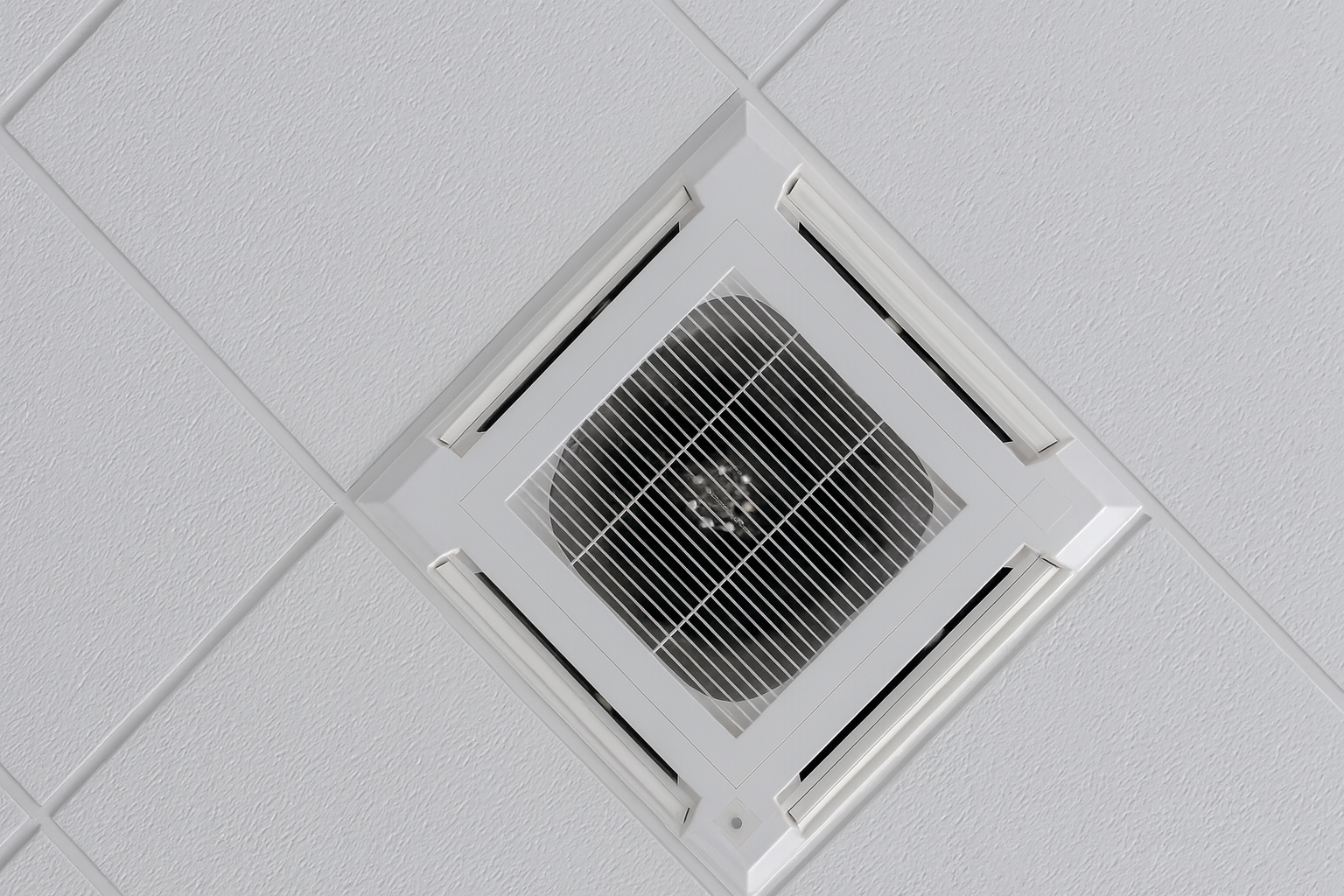

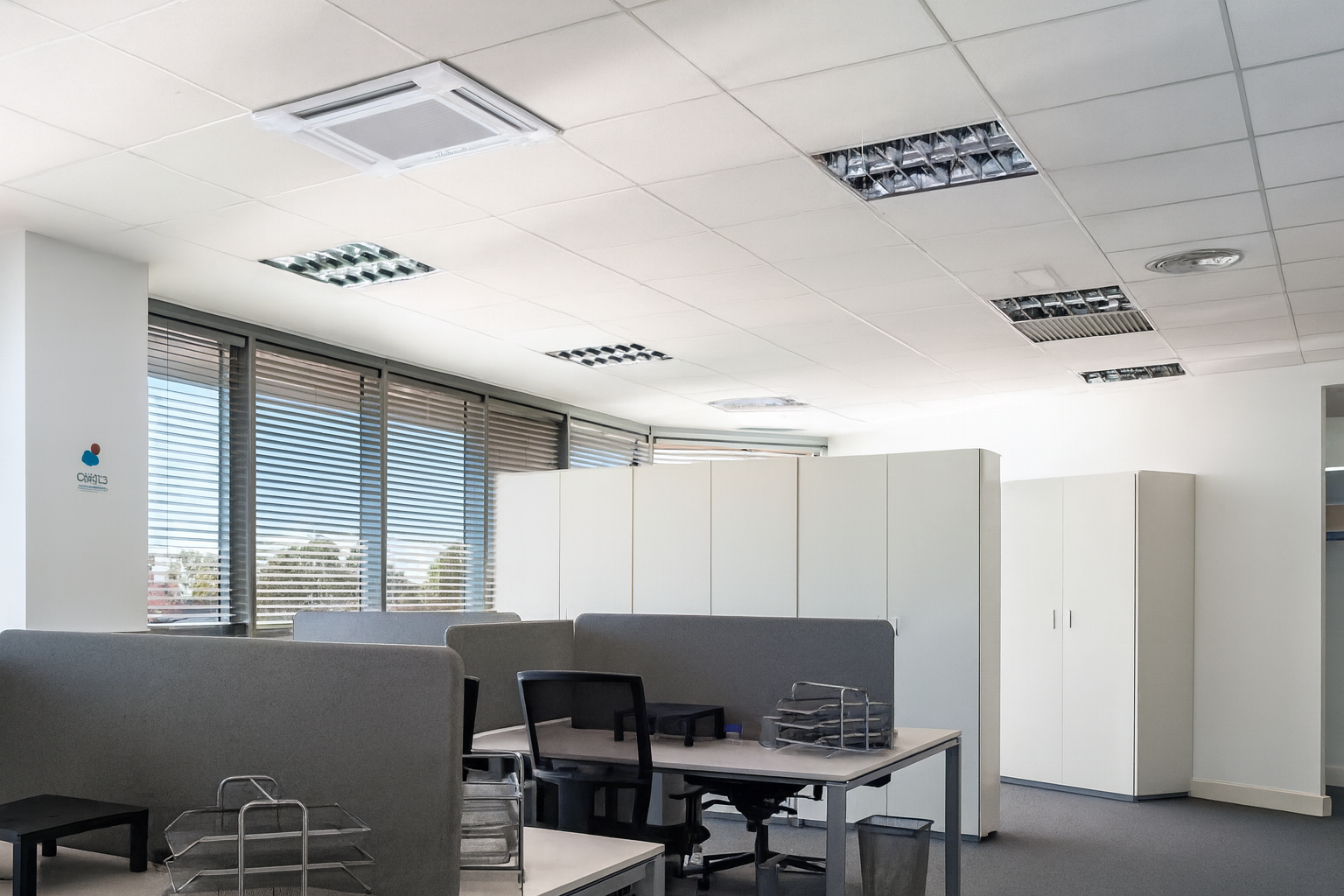

Experience flexible, efficient climate control with the Fujitsu AIRSTAGE Compact Cassette 4-Way Flow Series — a discreet, ceiling-mounted solution ideal for residential and commercial spaces. Designed for standard 620 × 620 mm ceiling grids, these compact cassette units blend seamlessly into interiors while delivering powerful, uniform airflow in all four directions for consistent cooling and heating coverage. Powered by eco-friendly R32 refrigerant and advanced inverter technology, the series offers excellent energy efficiency (A++ cooling / A+ heating), flexible installation, low-noise operation, and reliable performance across a wide ambient range. Whether for offices, small shops, hotels, or home use — it’s a smart, stylish way to achieve year-round comfort.

Standard Cassette Catalogue 25 26 Product Data Sheet Indoor Unit Installation Manual Indoor Unit Operation Manual Outdoor Unit Installation Manual Fujitsu Airstage Controls Brochure 25 26

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
AUXG09KVLA	AOEG09KBTB	2.5	3.2	20	4.40	6.70	10	3/8	1/4	Single	Optional
AUXG12KVLA	AOEG12KBTB	3.5	4.1	25	4.30	6.60	10	3/8	1/4	Single	Optional
AUXG14KVLA	AOEG14KBTB	4.3	5.0	25	4.40	6.50	16	3/8	1/4	Single	Optional
AUXG18KVLA	AOEG18KBTB	5.2	6.0	30	4.20	6.60	16	1/2	1/4	Single	Optional
AUXG22KVLA	AOEG22KBTB	6.0	7.0	30	4.30	6.60	16	1/2	1/4	Single	Optional
AUXG24KVLA	AOEG24KBTB	6.8	7.5	30	4.00	6.10	16	1/2	1/4	Single	Optional
	For more information, see Technical Specifications.

Key features

Compact, Stylish Panel Design for Seamless Ceiling Integration

Engineered for modern interiors, the compact and stylish panel fits perfectly into standard 620 × 620 mm grid-type ceilings, delivering a clean, linear aesthetic that blends effortlessly with contemporary commercial and residential spaces.

It can even be installed near lighting or a ventilation opening.

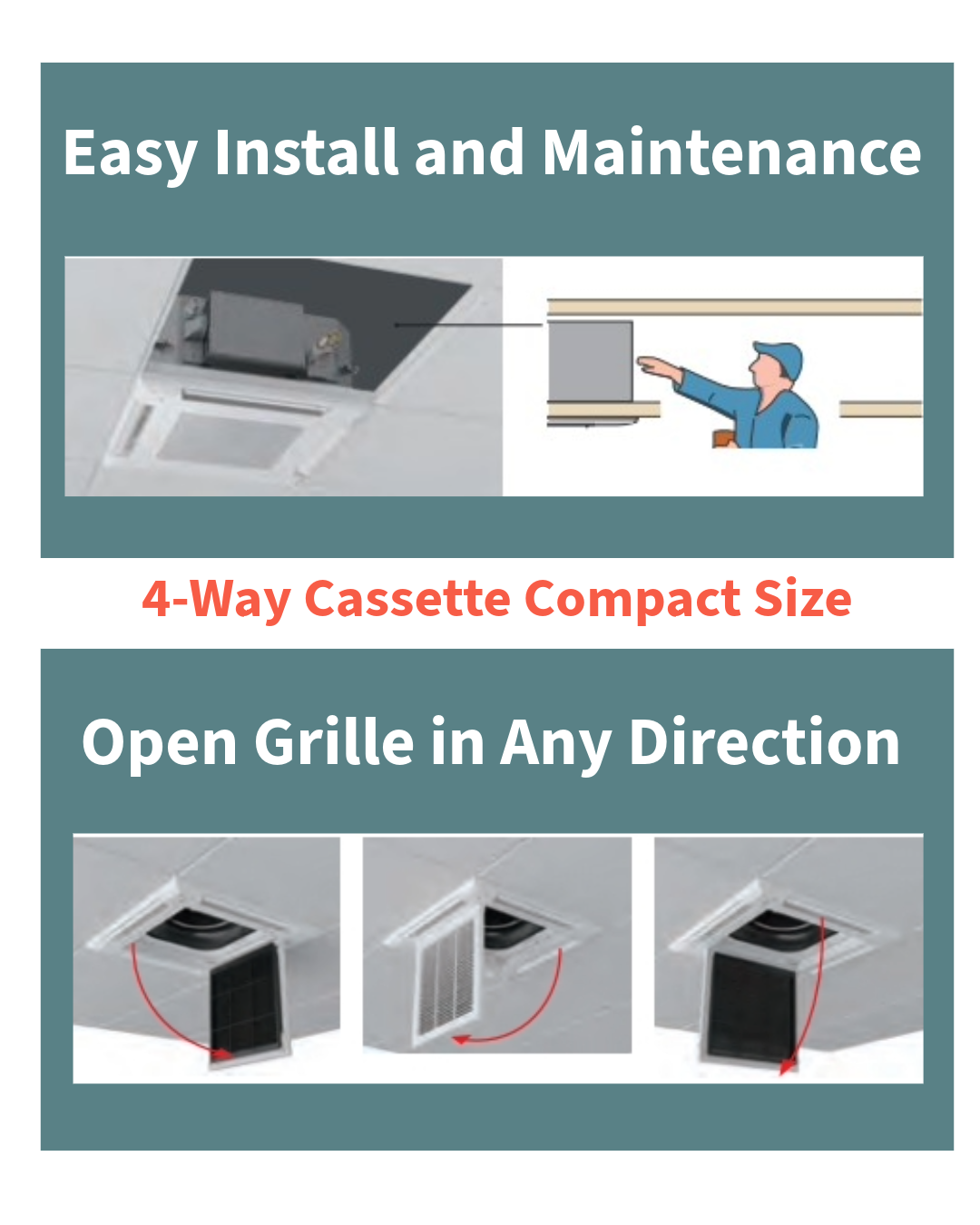

Easy, Cost-Saving Maintenance Access

Designed for hassle-free servicing, the unit allows maintenance access simply by removing an adjacent ceiling panel—eliminating the need for cutting inspection holes and reducing installation costs.

The air inlet grille can be configured to open in any direction, ensuring quick, flexible access for routine maintenance.

Flexible Integration with Central Control Systems

Compatible with a wide range of building management solutions, the unit can connect to central control systems via optional MODBUS or KNX interfaces, enabling seamless, centralised management of air conditioning alongside other facility equipment.

Fujitsu Airstage Eco Compact Cassette 4-Way Flow Range - R32-Fujitsu Airstage-Oceanair

Fujitsu 2.0kW Multi Split Air Conditioner Compact Cassette Indoor Unit AUXG07KVLA-Fujitsu-Oceanair

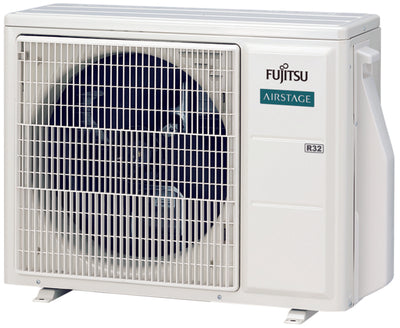

Fujitsu Airstage 2.5kW Single Split Outdoor Unit R32 Single Phase AOEG09KBTB-Fujitsu-Oceanair

Fujitsu Airstage KE Series 2.0kW R32 Wall Mounted Split Air Conditioner inc Wi-Fi Silver ASEG07KETF-B-Fujitsu-Oceanair

Compact Cassette – Compact 4-way Flow Range (Compact Size) Specification Table

Technical Data	Model Number (Indoor Unit + Outdoor Unit)
	AUXG09KVLA	AUXG12KVLA	AUXG14KVLA	AUXG18KVLA	AUXG22KVLA	AUXG24KVLA
	AOEG09KBTB	AOEG12KBTB	AOEG14KBTB	AOEG18KBTB	AOEG22KBTB	AOEG24KBTB
Power Source	Single phase, ~230 V, 50 Hz
Cooling Capacity (kW) – Rated	2.5	3.5	4.3	5.2	6.0	6.8
Cooling Capacity (kW) – Min.–Max.	0.9–3.2	0.9–4.4	0.9–5.4	0.9–5.9	0.9–6.7	0.9–8.0
Heating Capacity (kW) – Rated	3.2	4.1	5.0	6.0	7.0	7.5
Heating Capacity (kW) – Min.–Max.	0.9–4.7	0.9–5.7	0.9–6.5	0.9–7.5	0.9–8.0	0.9–9.1
Input Power Cooling / Heating (kW)	0.55 / 0.79	0.93 / 1.08	1.28 / 1.32	1.60 / 1.66	1.82 / 1.87	2.21 / 2.03
EER (W/W) – Cooling	4.57	3.76	3.36	3.25	3.30	3.08
COP (W/W) – Heating	4.05	3.80	3.79	3.61	3.74	3.69
Pdesign (kW) – Cooling / Heating (-10 °C)	2.5 / 2.6	3.5 / 3.4	4.3 / 3.8	5.2 / 4.4	6.0 / 4.8	6.8 / 6.0
SEER (W/W)	6.70	6.60	6.50	6.60	6.60	6.10
SCOP (W/W) – Heating (Average)	4.40	4.30	4.40	4.20	4.30	4.00
Energy Efficiency Class – Cooling	A++	A++	A++	A++	A++	A++
Energy Efficiency Class – Heating (Average)	A+	A+	A+	A+	A+	A+
Max. Operating Current – Cooling / Heating (A)	7.9 / 7.9	9.7 / 9.7	10.2 / 10.2	12.1 / 12.1	12.6 / 12.6	13.6 / 13.6
Annual Energy Consumption – Cooling (kWh/a)	131	186	231	275	318	390
Annual Energy Consumption – Heating (kWh/a)	826	1,106	1,208	1,466	1,562	2,097
Moisture Removal (l/h)	0.6	1.2	1.5	2.2	2.6	2.7
Sound Pressure Level – Indoor (Cooling) H/M/L/Q (dB(A))	33/31/29/27	37/34/30/27	38/34/30/27	38/34/30/26	44/42/36/30	49/44/36/30
Sound Pressure Level – Indoor (Heating) H/M/L/Q (dB(A))	34/32/29/27	37/34/31/29	43/38/34/30	43/38/34/30	45/43/40/33	49/45/40/33
Sound Pressure Level – Outdoor (Cooling / Heating) High (dB(A))	46 / 46	47 / 47	49 / 49	50 / 50	51 / 51	53 / 54
Sound Power Level – Indoor (Cooling / Heating) High (dB(A))	46 / 47	49 / 49	50 / 55	50 / 55	56 / 57	59 / 61
Sound Power Level – Outdoor (Cooling / Heating) High (dB(A))	59 / 59	61 / 61	62 / 62	62 / 62	63 / 63	65 / 66
Airflow Rate – Indoor / Outdoor (Cooling) High (m³/h)	540 / 1,480	600 / 1,580	680 / 1,670	680 / 2,160	830 / 2,240	930 / 2,700
Airflow Rate – Indoor / Outdoor (Heating) High (m³/h)	540 / 1,410	600 / 1,520	800 / 1,580	800 / 1,830	860 / 1,960	930 / 2,700
Net Dimensions H × W × D – Indoor (mm)	245 × 570 × 570	245 × 570 × 570	245 × 570 × 570	245 × 570 × 570	245 × 570 × 570	245 × 570 × 570
Net Dimensions H × W × D – Outdoor (mm)	542 × 799 × 290	542 × 799 × 290	542 × 799 × 290	632 × 799 × 290	632 × 799 × 290	716 × 820 × 315
Weight – Indoor (kg)	15	15	15	15	16	16
Weight – Outdoor (kg)	32	33	33	36	38	42
Connection Pipe Diameter – Liquid / Gas (mm)	6.35 / 9.52	6.35 / 9.52	6.35 / 9.52	6.35 / 12.70	6.35 / 12.70	6.35 / 12.70
Drain Hose Diameter – I.D. / O.D. (mm)	25 / 32	25 / 32	25 / 32	25 / 32	25 / 32	25 / 32
Max. Pipe Length (Pre-charge) (m)	20 (15)	25 (15)	25 (15)	30 (20)	30 (20)	30 (20)
Max. Height Difference (m)	15	20	20	20	25	25
Operating Range – Cooling (°CDB)	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46
Operating Range – Heating (°CDB)	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24
Refrigerant Type / Global Warming Potential	R32 / 675	R32 / 675	R32 / 675	R32 / 675	R32 / 675	R32 / 675
Refrigerant Charge / CO₂eq-T (kg / t)	0.85 / 0.574	0.85 / 0.574	0.85 / 0.574	1.02 / 0.689	1.25 / 0.844	1.25 / 0.844

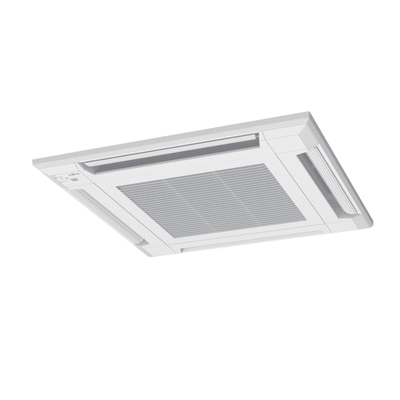

Cassette Grille – Model Name	UTG-UFYF-W	UTG-UFYF-W	UTG-UFYF-W	UTG-UFYF-W	UTG-UFYF-W	UTG-UFYF-W
Cassette Grille – Dimensions H × W × D (mm)	49 × 620 × 620	49 × 620 × 620	49 × 620 × 620	49 × 620 × 620	49 × 620 × 620	49 × 620 × 620
Cassette Grille – Weight (kg)	2.3	2.3	2.3	2.3	2.3	2.3
