Single SplitProduct code: Standard Medium Static Pressure Duct Range

Fujitsu Airstage Standard Medium Static Pressure Duct Compact Size - R32

Name: Fujitsu Airstage Standard Medium Static Pressure Duct Compact Size - R32
Brand: Fujitsu Airstage
Availability: InStock

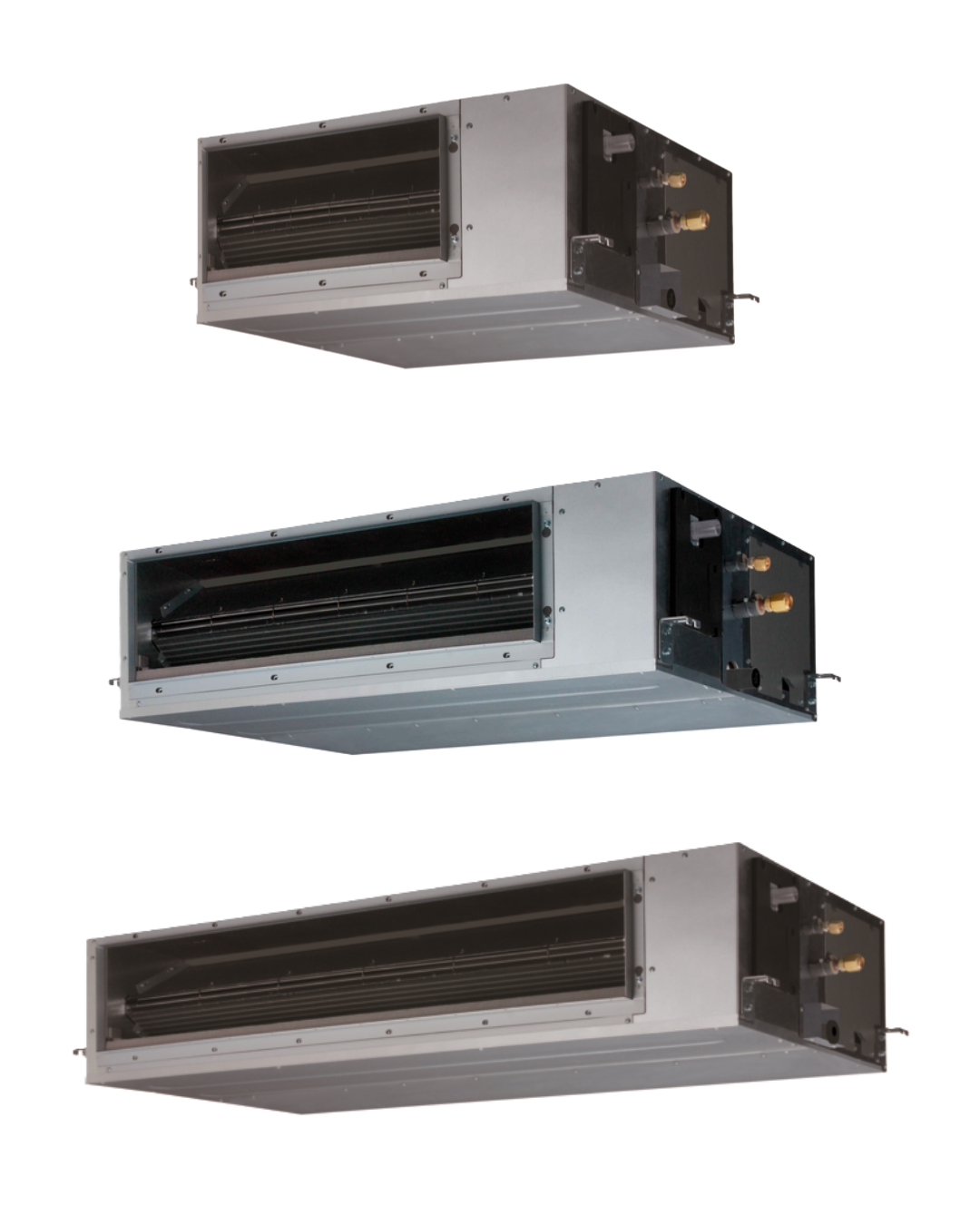

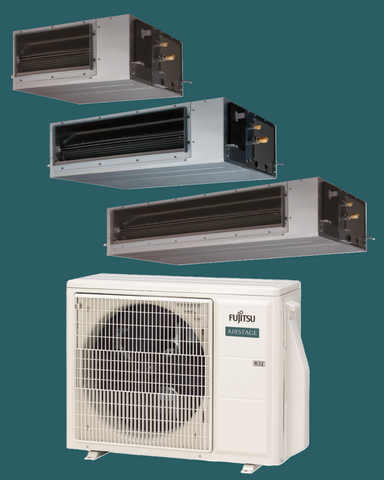

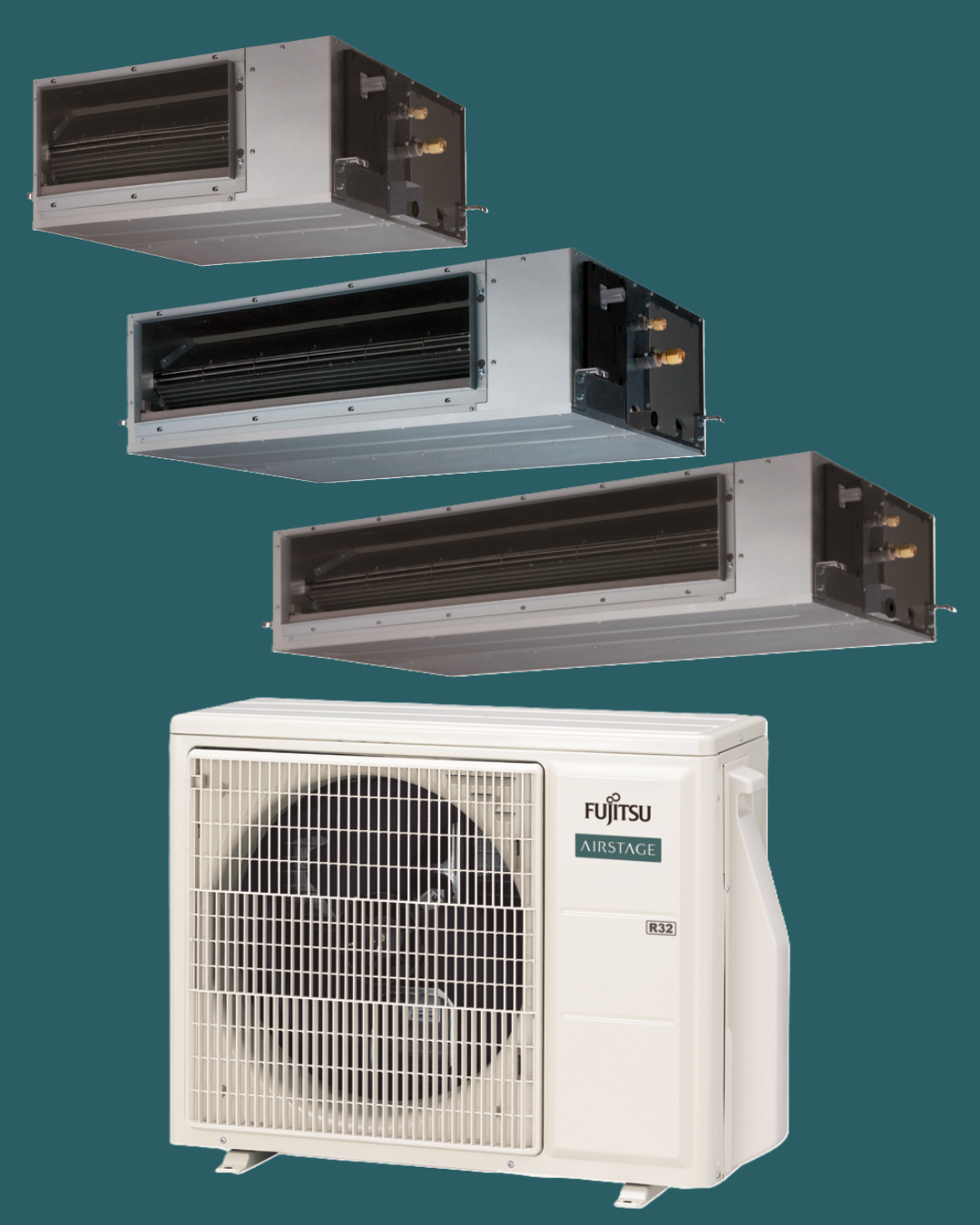

The Fujitsu Airstage KHTAP + KBTB Standard Medium Static Pressure Duct Compact Size range delivers efficient, high-capacity heating and cooling for regular to larger rooms and commercial spaces, while maintaining a compact indoor unit design ideal for restricted ceiling voids. Designed for consistent ducted airflow, quiet operation, and flexible installation, this single split system is well suited to hotels, offices, retail, restaurants, and high-end residential applications where performance and discretion are essential.

Brochure & Tech Specs Brochure & Tech Specs Fujitsu Medium Static Duct Compact 25 26 Fujitsu Airstage Features Summary 25 26 Fujitsu Airstage Controls Brochure 25 26 Outdoor Unit Installation Manual KHTAP Installation Manual

Please Note: Remote controller available separately.

Model Reference		Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Indoor Unit	Outdoor Unit	Cool Capacity (kW)	Heat Capacity (kW)	Max Pipe (m)	SCOP	SEER	Suggested MCB (A)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
ARXG12KHTAP	AOEG12KBTB	3.5	4.1	25	4.1	6.3	16	3/8	1/4	Single	Optional
ARXG14KHTAP	AOEG14KBTB	4.3	5.0	25	4.0	6.2	16	3/8	1/4	Single	Optional
ARXG18KHTAP	AOEG18KBTB	5.2	6.0	30	4.1	6.5	16	1/2	1/4	Single	Optional
ARXG22KHTAP	AOEG22KBTB	6.0	7.0	30	4.2	6.5	16	1/2	1/4	Single	Optional
ARXG24KHTAP	AOEG24KBTB	6.8	7.5	30	4.1	6.5	16	1/2	1/4	Single	Optional
ARXG30KHTAP	AOEG30KBTB	8.5	10.0	50	4.0	6.23	25	5/8	3/8	Single	Optional
ARXG36KHTAP	AOEG36KBTB	9.5	10.8	50	4.20	6.1	25	5/8	3/8	Single	Optional
ARXG45KHTAP	AOEG45KBTB	12.1	13.5	50	3.87	5.83	30	5/8	3/8	Single	Optional
ARXG54KHTAP	AOEG54KBTB	13.4	15.5	50	3.85	5.81	30	5/8	3/8	Single	Optional
ARXG36KHTAP	AOEG36KRTA	9.5	10.8	50	4.0	6.1	25	5/8	3/8	Three	Optional
ARXG45KHTAP	AOEG45KRTA	12.1	13.5	50	3.87	5.83	30	5/8	3/8	Three	Optional
ARXG54KHTAP	AOEG54KRTA	13.4	15.5	30	3.85	5.81	30	5/8	3/8	Three	Optional
	For more information, see Technical Specifications.

Key features

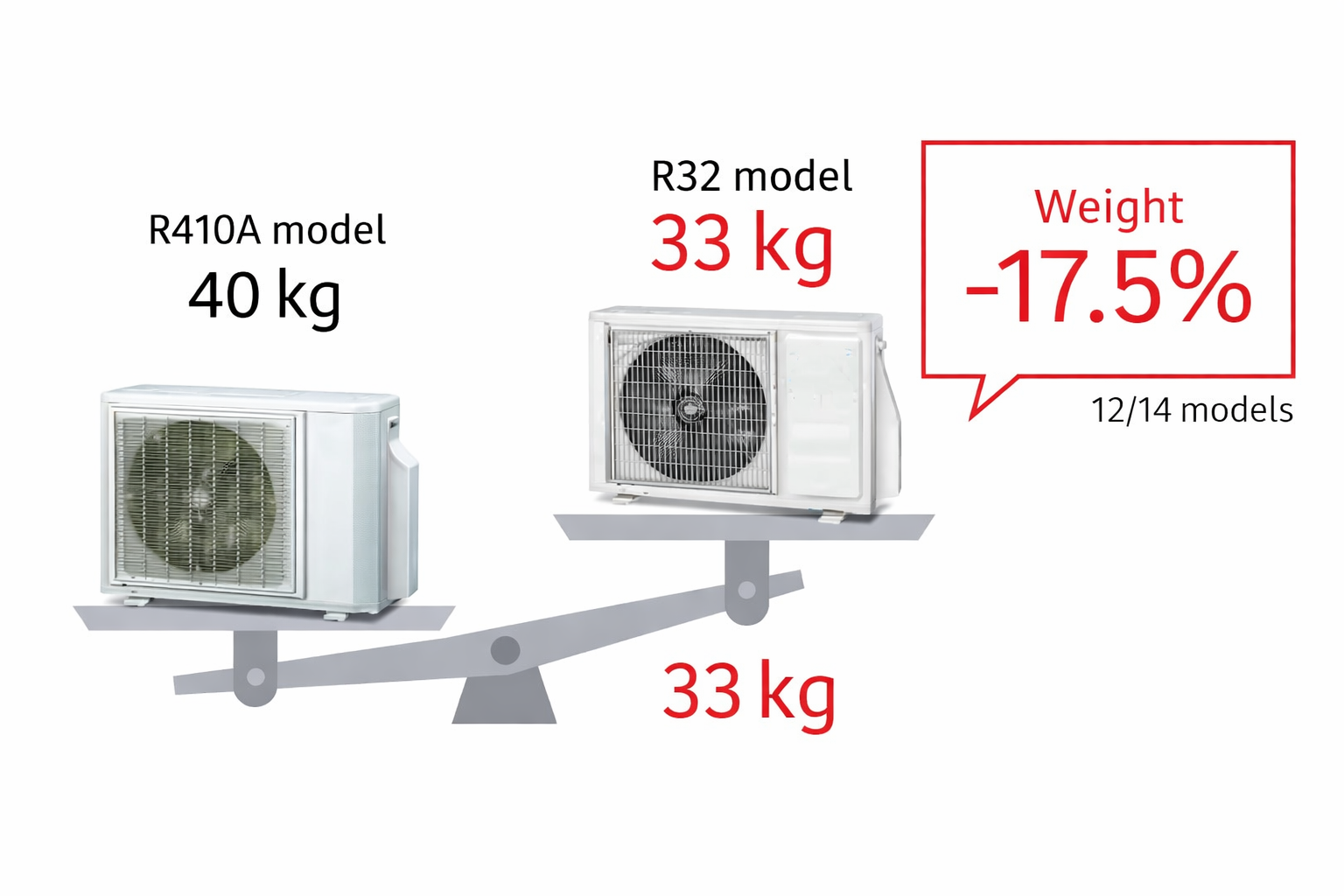

Redesigned Compact and Lightweight Outdoor Unit

The outdoor units used in the 45,000 BTU and 54,000 BTU models have been fully redesigned to deliver a smaller, lighter, and more installation-friendly format. This improved structure simplifies handling on-site and allows for easier placement in tight or challenging outdoor locations, enhancing both installation efficiency and flexibility.

Central Control System Integration (Optional)

For enhanced building management, the system can link with a range of central control platforms. By integrating via optional MODBUS or KNX interfaces, users can centrally monitor and control not only air conditioning but also other facility equipment, providing a unified and efficient control solution.

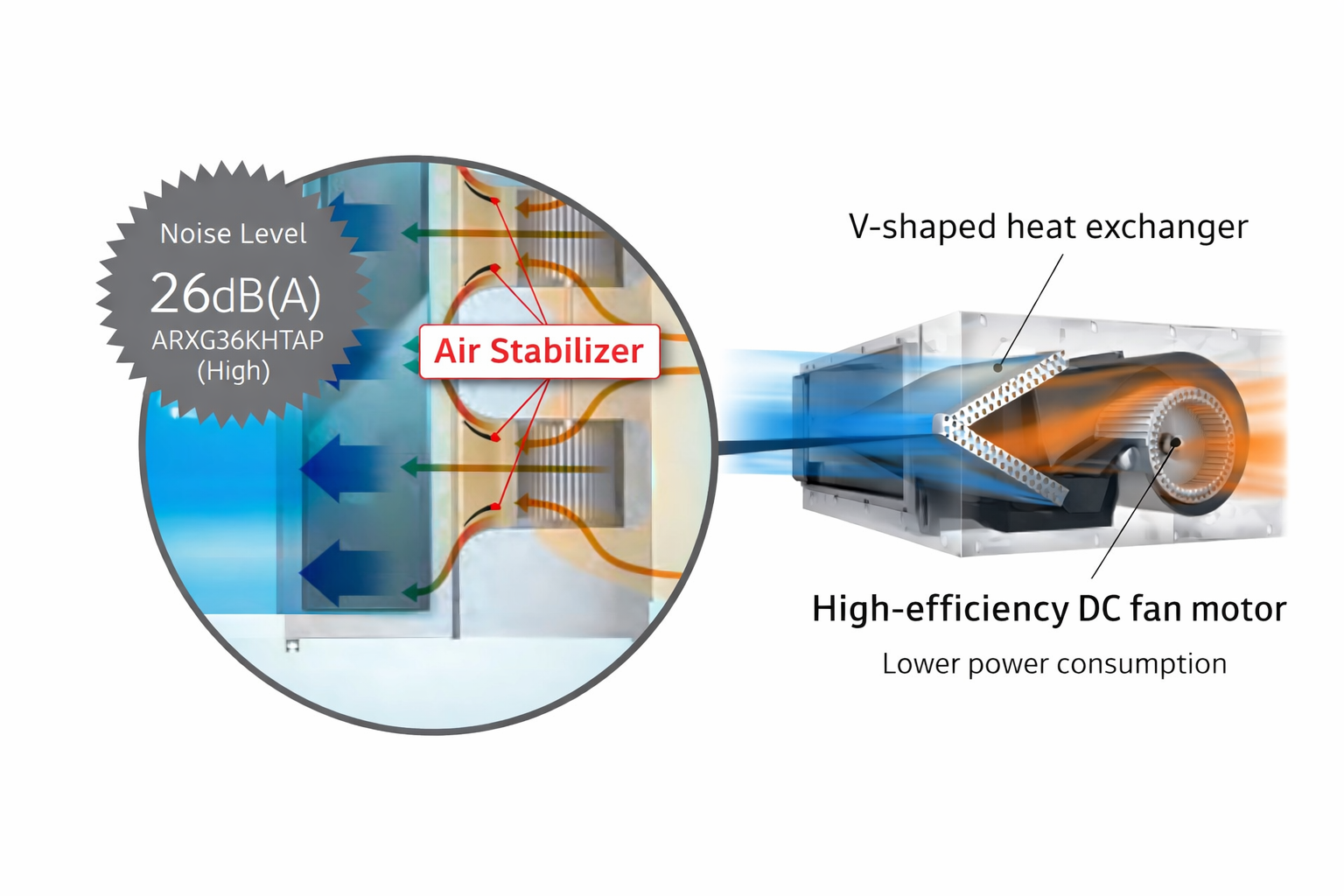

High-Efficiency, Low-Noise Performance

The combination of a V-shaped heat exchanger, air stabiliser, and high-efficiency DC fan motor delivers efficient operation with reduced noise levels, supporting reliable comfort in ducted air conditioning systems.

Automatic Airflow Adjustment for Optimised Performance

Automatic airflow adjustment detects system demand in each application and automatically regulates airflow volume for optimal performance.

Fujitsu Airstage Eco Medium Static Pressure Duct Compact Size - R32-Fujitsu Airstage-Oceanair

Fujitsu Airstage KE Series 2.0kW R32 Wall Mounted Split Air Conditioner inc Wi-Fi Silver ASEG07KETF-B-Fujitsu-Oceanair

Medium Static Pressure Duct Compact Size Standard Range Specification Table

Technical Data	Model Number (Indoor Unit + Outdoor Unit)
Technical Data	ARXG12KHTAP + AOEG12KBTB	ARXG14KHTAP + AOEG14KBTB	ARXG18KHTAP + AOEG18KBTB	ARXG22KHTAP + AOEG22KBTB	ARXG24KHTAP + AOEG24KBTB	ARXG30KHTAP + AOEG30KBTB	ARXG36KHTAP + AOEG36KBTB	ARXG45KHTAP + AOEG45KBTB	ARXG54KHTAP + AOEG54KBTB	ARXG36KHTAP + AOEG36KRTA	ARXG45KHTAP + AOEG45KRTA	ARXG54KHTAP + AOEG54KRTA
Power Source	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Single phase, ~230 V, 50 Hz	Three phase, ~400 V, 50 Hz	Three phase, ~400 V, 50 Hz	Three phase, ~400 V, 50 Hz
Cooling Capacity (Rated) kW	3.5	4.3	5.2	6.0	6.8	8.5	9.5	12.1	13.4	9.5	12.1	13.4
Heating Capacity (Rated) kW	4.1	5.0	6.0	7.0	7.5	10.0	10.8	13.5	15.5	10.8	13.5	15.5
Input Power (Cooling / Heating) kW	0.87 / 1.00	1.17 / 1.25	1.36 / 1.56	1.71 / 1.81	1.89 / 1.85	2.65 / 2.63	2.86 / 2.48	3.53 / 3.37	4.42 / 3.89	2.86 / 2.48	3.53 / 3.37	4.42 / 3.89
EER (Cooling) W/W	4.02	3.68	3.82	3.51	3.60	3.21	3.32	3.43	3.03	3.32	3.43	3.03
COP (Heating) W/W	4.10	4.00	3.85	3.87	4.06	3.80	4.35	4.01	3.98	4.35	4.01	3.98
Pdesign (Cooling / Heating -10°C) kW	3.5 / 3.4	4.3 / 3.8	5.2 / 4.4	6.0 / 4.8	6.8 / 6.0	8.5 / 8.0	9.5 / 8.7	-	-	9.5 / 8.7	-	-
SEER (Cooling) W/W	6.30	6.20	6.50	6.50	6.50	6.23	6.10	5.83*	5.81*	6.10	5.83*	5.81*
SCOP (Heating, Average) W/W	4.10	4.00	4.10	4.20	4.10	4.00	4.20	3.87*	3.85*	4.20	3.87*	3.85*
Energy Efficiency Class – Cooling	A++	A++	A++	A++	A++	A++	A++	-	-	A++	-	-
Energy Efficiency Class – Heating (Average)	A+	A+	A+	A+	A+	A+	A+	-	-	A+	-	-
Max Operating Current (Cooling / Heating) A	9.7/9.7	10.2/10.2	12.1/12.1	12.6/12.6	13.6/13.6	22.6/22.6	22.6/22.6	28.5/28.5	28.5/28.5	22.6/22.6	28.5/28.5	28.5/28.5
Annual Energy Consumption – Cooling (kWh/a)	194	243	280	323	366	477	544	-	–	544	-	–
Annual Energy Consumption – Heating (kWh/a)	1,159	1,328	1,501	1,597	2,048	2,796	2,898	-	–	2,898	-	–
Sound Pressure Level Indoor Cooling H/M/L/Q dB(A)	32/27/26/24	33/28/27/25	28/25/22/20	28/25/22/20	32/28/24/21	36/33/30/29	36/31/28/26	39/35/31/29	39/35/31/29	36/31/28/26	39/35/31/29	39/35/31/29
Sound Pressure Level Indoor Heating H/M/L/Q dB(A)	32/27/26/24	33/28/27/25	28/25/22/20	28/25/22/20	32/28/24/21	36/33/30/29	33/31/28/26	39/35/31/29	39/35/31/29	33/31/28/26	39/35/31/29	39/35/31/29
Sound Pressure Level Outdoor Cooling/Heating High dB(A)	47/47	49/49	50/50	51/51	53/54	53/55	55/55	57/57	57/59	55/55	57/57	57/59
Sound Power Level Indoor Cooling/Heating High dB(A)	57/58	59/60	54/54	57/57	57/57	63/65	64/63	67/69	67/69	64/63	67/69	67/69
Sound Power Level Outdoor Cooling/Heating High dB(A)	61/61	62/62	62/62	63/63	65/66	68/69	70/70	71/71	73/73	70/70	71/71	73/73
Airflow Rate Indoor/Outdoor Cooling High m³/h	850/1,580	950/1,670	1,050/2,160	1,050/2,240	1,360/2,700	1,700/3,750	2,050/3,750	2,550/4,450	2,550/4,450	2,050/3,750	2,550/4,450	2,550/4,450
Static Pressure Range (Standard) Pa	30 to 200 (35)	30 to 200 (35)	30 to 200 (35)	30 to 200 (35)	30 to 200 (35)	30 to 200 (47)	30 to 200 (47)	30 to 200 (60)	30 to 200 (60)	30 to 200 (47)	30 to 200 (60)	30 to 200 (60)
Net Dimensions Indoor (H × W × D) mm	300 × 700 × 700	300 × 700 × 700	300 × 1,000 × 700	300 × 1,000 × 700	300 × 1,000 × 700	300 × 1,000 × 700	300 × 1,400 × 700	300 × 1,400 × 700	300 × 1,400 × 700	300 × 1,400 × 700	300 × 1,400 × 700	300 × 1,400 × 700
Net Dimensions Outdoor (H × W × D) mm	542 × 799 × 290	542 × 799 × 290	632 × 799 × 290	632 × 799 × 290	716 × 820 × 315	788 × 940 × 320	788 × 940 × 320	998 × 940 × 320	998 × 940 × 320	788 × 940 × 320	998 × 940 × 320	998 × 940 × 320
Weight Indoor / Outdoor kg	27 / 33	27 / 33	35 / 36	35 / 38	36 / 42	36 / 52	46 / 52	46 / 67	46 / 67	46 / 52	46 / 67	46 / 67
Connection Pipe Diameter (Liquid / Gas) mm	6.35 / 9.52	6.35 / 9.52	6.35 / 12.70	6.35 / 12.70	6.35 / 12.70	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88	9.52 / 15.88
Max Pipe Length (Pre-charge) m	25 (15)	25 (15)	30 (20)	30 (20)	30 (20)	50 (30)	50 (30)	50 (30)	50 (30)	50 (30)	50 (30)	50 (30)
Operating Range – Cooling °CDB	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46	-15 to 46
Operating Range – Heating °CDB	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24	-15 to 24
Refrigerant Type (GWP)	R32 (675)
Refrigerant Charge kg (CO2eq-T)	0.85 (0.574)	0.85 (0.574)	1.02 (0.689)	1.25 (0.844)	1.25 (0.844)	1.90 (1.283)	1.90 (1.283)	2.70 (1.823)	2.70 (1.823)	1.90 (1.283)	2.70 (1.823)	2.70 (1.823)
