Fujitsu Airstage Standard Range KM Series Large Room Wall Mounted - R32

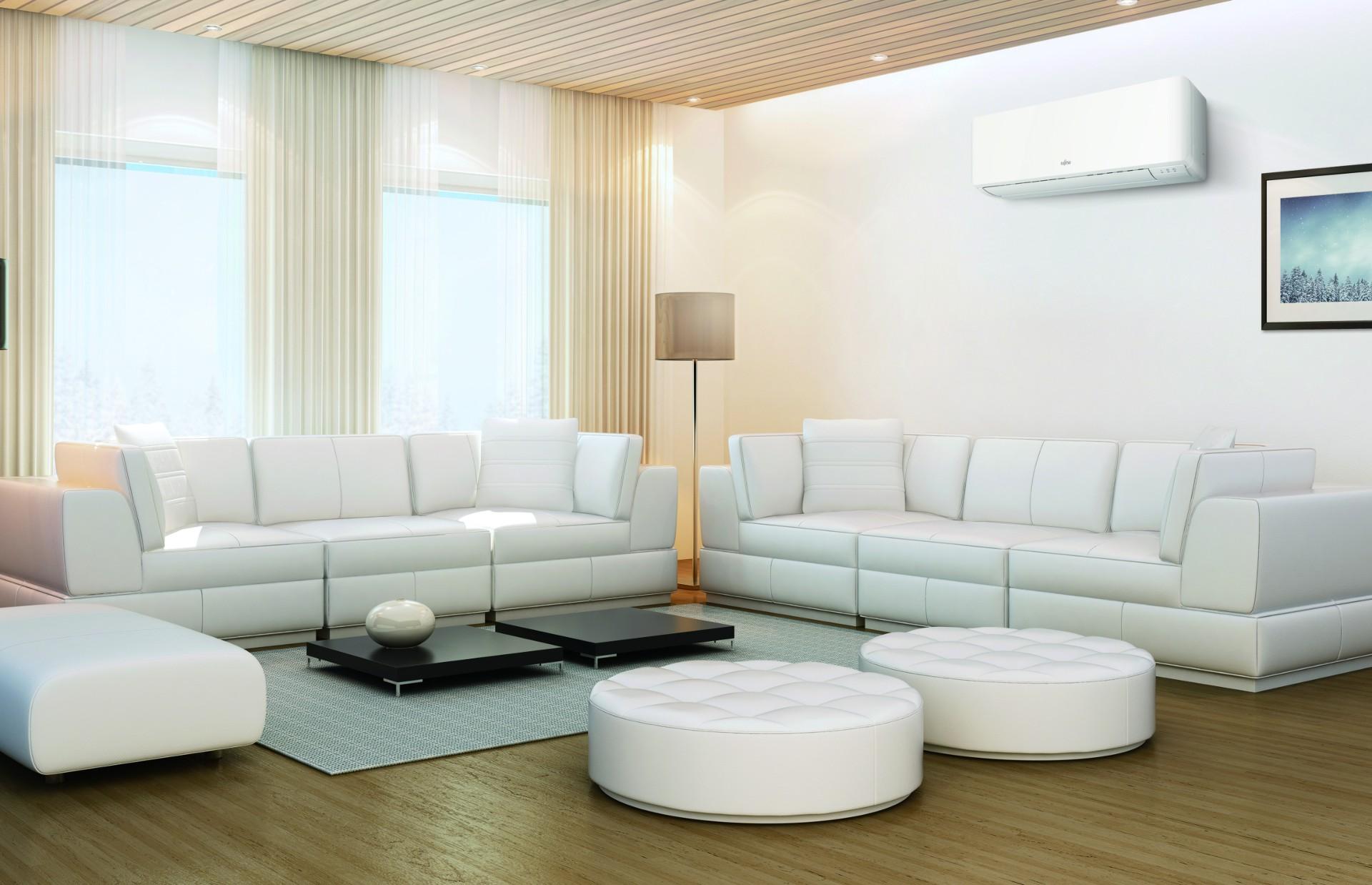

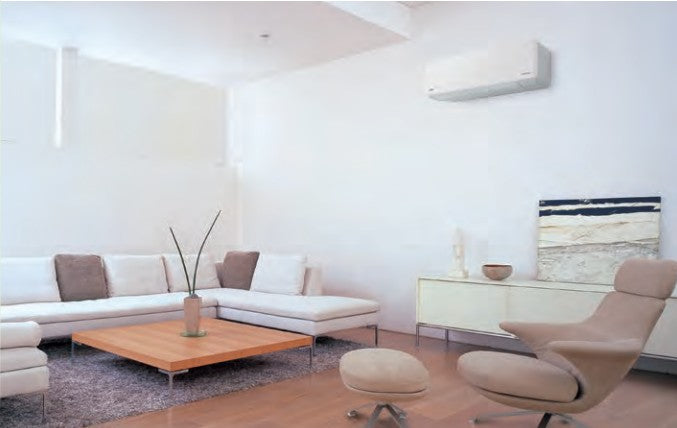

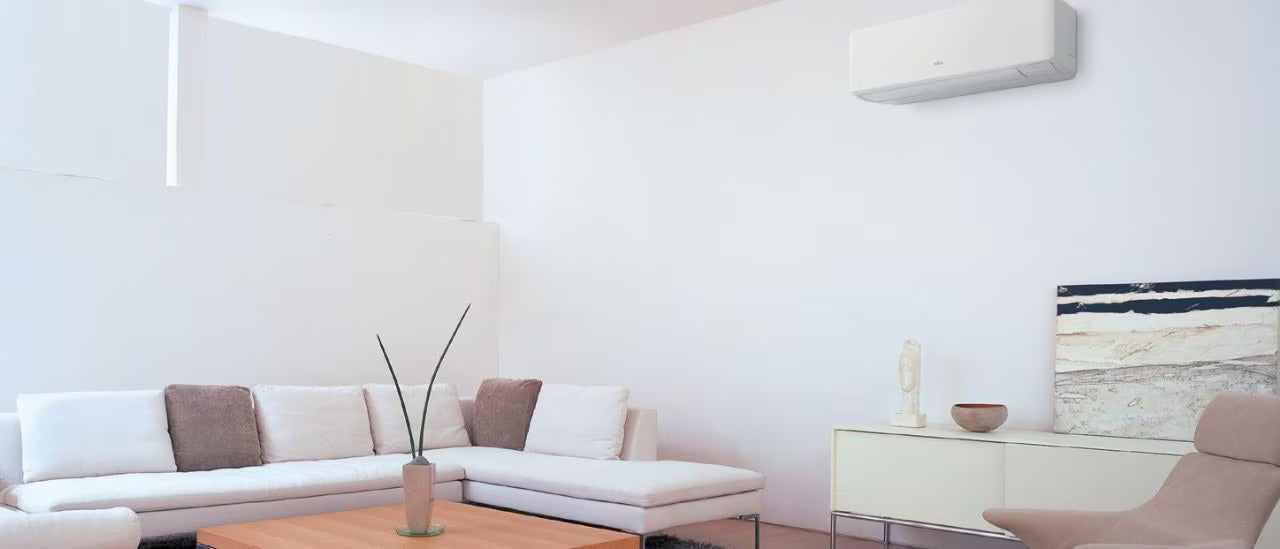

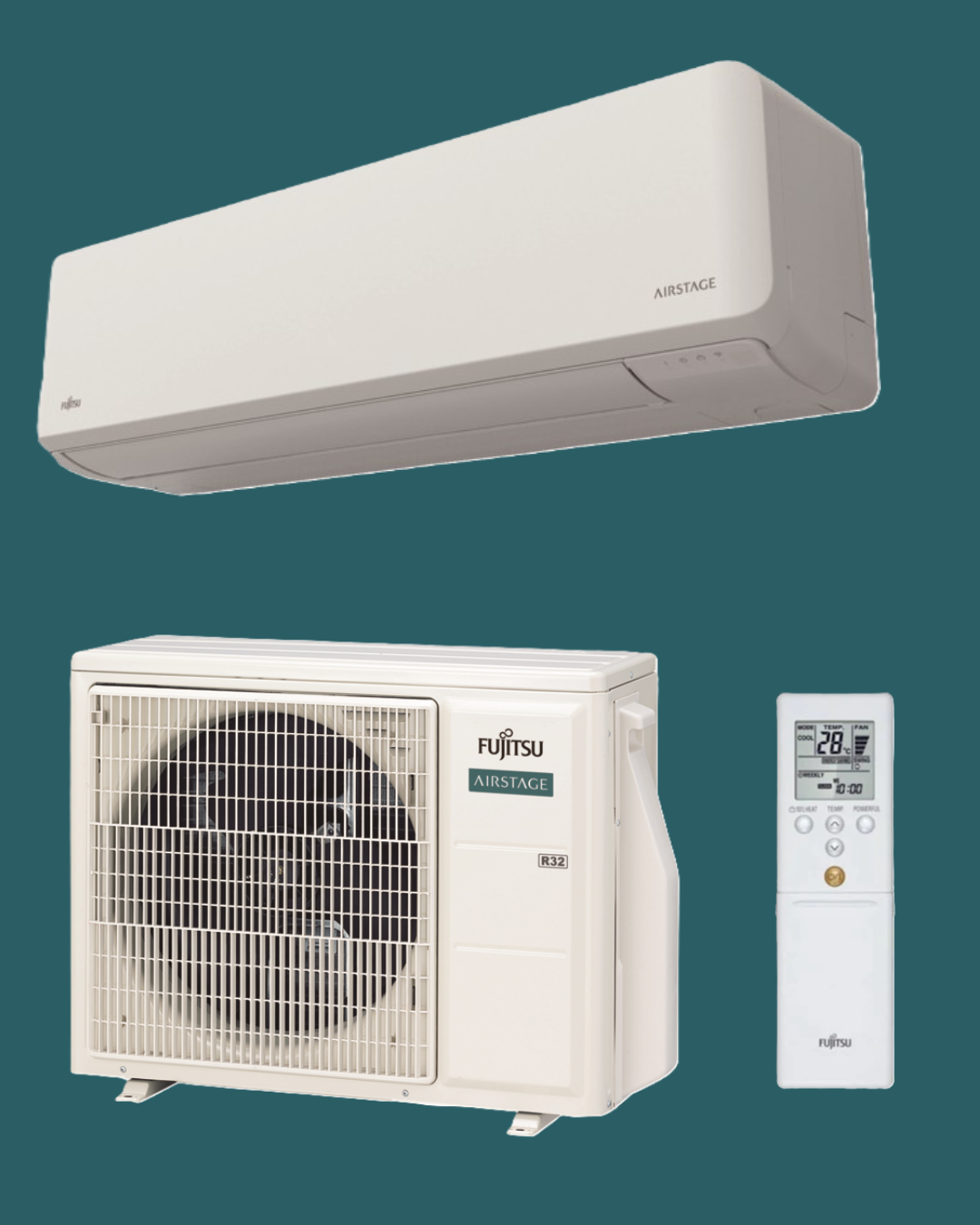

Designed for larger rooms, the Fujitsu AIRSTAGE KM Series (models ASEH18KMTGL/AOEH18KMTG and ASEH24KMTGL/AOEH24KMTG) delivers powerful, year-round comfort with high-efficiency inverter technology, ultra-quiet operation and the eco-friendly R32 refrigerant. Rated A++ for cooling and A+ for heating, the 7.1 kW model reaches heating output of 8.0 kW, making it ideal for sizable living spaces or open-plan areas. With built-in Wi-Fi control as standard, you can monitor and manage your environment from anywhere via smart device. Built for modern aesthetics, smart functionality and superior performance, this range brings reliable comfort and energy savings to larger rooms.
|
Model Reference |
Cool Capacity (kW) |
Heat Capacity (kW) |
Max Pipe (m) |
EuP Lot 10 Energy Rating |
Suggested MCB (A) |
Pipe Size Gas (inch) |
Pipe Size Liquid (inch) |
Electrical Supply |
Wi-Fi Control |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | SCOP | SEER | ||||||||
| ASEH18KMTGL | AOEH18KMTG | 5.2 | 6.3 | 25 | 4.60 | 7.77 | 16 | 1/2 | 1/4 | Single | Included |
| ASEH24KMTGL | AOEH24KMTG | 7.1 | 8.0 | 30 | 4.20 | 7.30 | 16 | 1/2 | 1/4 | Single | Included |
| For more information, see Technical Specifications. |
|||||||||||
Key features
High-Efficiency Performance for Maximum Energy Savings

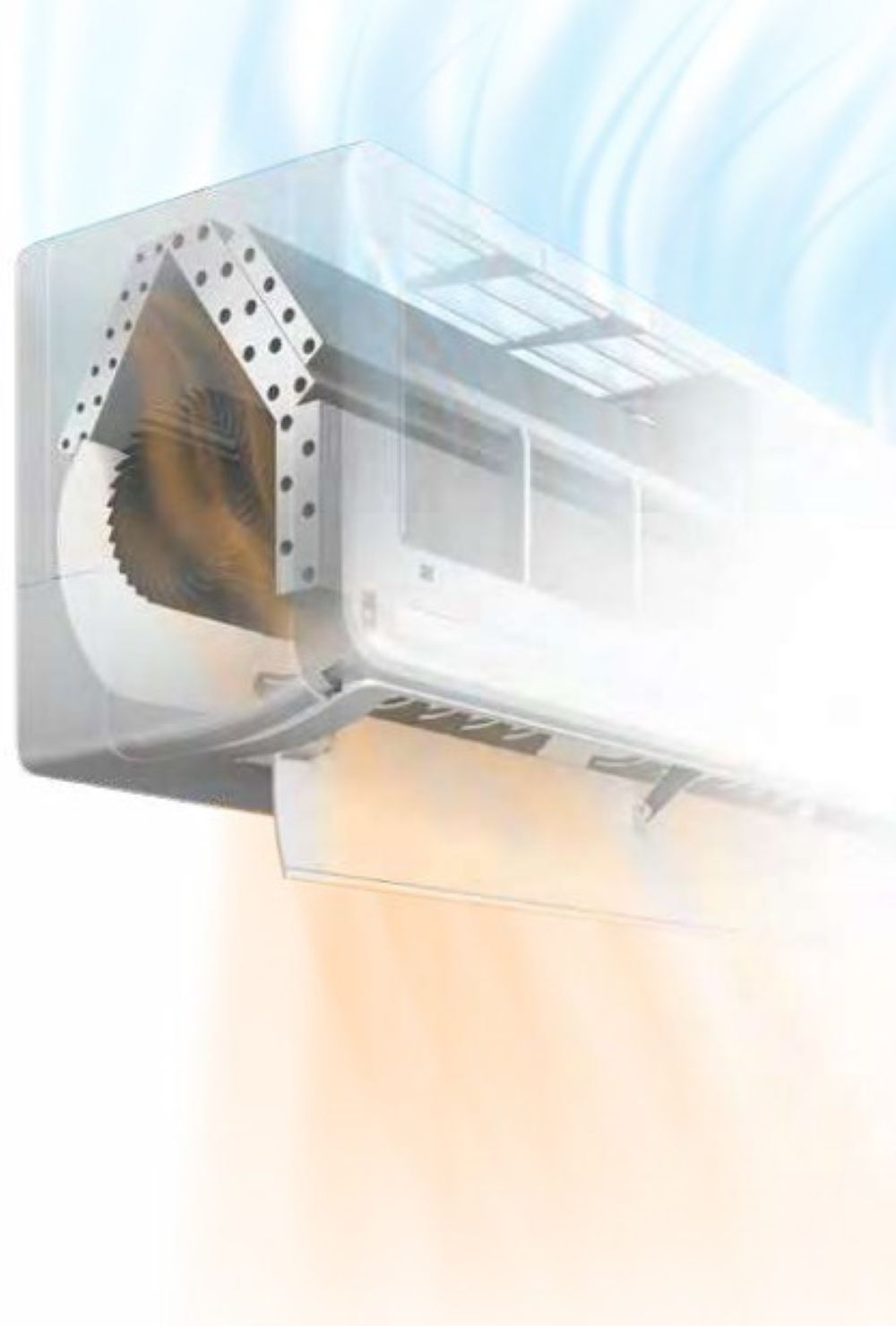

This system delivers exceptional energy efficiency through its advanced lambda-shaped hybrid heat exchanger, which significantly improves heat transfer to achieve top-level SEER and SCOP ratings. Combined with a large Ø107 cross-flow fan that moves air efficiently even at reduced power and the use of eco-friendly R32 refrigerant, the unit provides powerful, energy-saving performance designed for modern, low-consumption climate control.
Simplified Installation with Improved Pipe Access
The redesigned indoor unit allows easier access to the flare pipe connection, featuring a removable lower cover for left-side piping and an updated wall hook bracket for smoother center-outlet installations. With wider service space and an installer-friendly layout, the system ensures faster, more efficient setup and maintenance.
Smart Wi-Fi Control with Included WLAN Adapter
With a built-in WLAN adapter and the AIRSTAGE mobile app, you can monitor and control the air conditioner’s operation from anywhere—indoors or outdoors—using your smartphone or tablet.
Standard Range KM Series Large Room Specification Table
| Technical Data | Model Number (Indoor Unit + Outdoor Unit) | |
|---|---|---|
| ASEH18KMTGL | ASEH24KMTGL | AOEH18KMTG | AOEH24KMTG |
| Power Source | Single phase, ~230 V, 50 Hz | Single phase, ~230 V, 50 Hz |
| Cooling Capacity (kW) | 5.2 | 7.1 |
| Heating Capacity (kW) - Nominal | 6.35 | 8.0 |
| UK Total Cooling / UK Sensible Cooling | 4.91 / 3.76 | 6.70 / 4.93 |
| Input Power Cooling/Heating (kW) | 1.39 / 1.56 | 2.08 / 1.91 |
| EER (W/W) | 3.74 | 3.41 |
| COP (W/W) | 4.04 | 4.19 |
| Pdesign Cooling/Heating (-10°C) kW | 5.2 / 4.8 | 7.1 / 7.1 |
| SEER (W/W) | 7.77 | 7.30 |
| SCOP (W/W) | 4.60 | 4.20 |
| Energy Efficiency Class - Cooling | A++ | A++ |
| Energy Efficiency Class - Heating | A++ | A+ |
| Annual Energy Consumption Cooling / Heating (kWh/a) | 234 / 1460 | 340 / 2,362 |
| Moisture Removal Volume (L/h) | 1.7 | 2.7 |
| Sound Pressure Level Indoor Cooling - H/M/L/Q (dBA) | 45 / 40 / 35 / 29 | 49 / 40 / 35 / 29 |
| Sound Pressure Level Indoor Heating - H/M/L/Q (dBA) | 46 / 40 / 35 / 29 | 49 / 40 / 35 / 29 |
| Sound Pressure Level Outdoor Cooling / Heating - High (dBA) | 50 / 50 | 54 / 52 |
| Airflow Rate Indoor/Outdoor (Cooling) High (m3/h) | 980 / 2,350 | 1,170 / 3,240 |
| Airflow Rate Indoor/Outdoor (Heating) High (m3/h) | 1,020 / 2,100 | 1,170 / 2,820 |
| Net Dimensions H x W x D Weight - Indoor (mm / kg) | 280 × 980 × 240 / 12.5 | 280 × 980 × 240/ 12.5 |
| Net Dimensions H x W x D Weight - Outdoor (mm / kg) | 632 × 799 × 290 / 36 | 716 × 820 × 315 / 42 |
| Remote Controller Type (Supplied With Unit | Wireless | Wireless |
| Interconnecting Cable (Suggested cable size 1.5mm) | 3 Core + Earth | 3 Core + Earth |
| Suggested MCB Size (A) | 16 | 16 |
| Max. Operating Current - Cooling / Heating (A) | 9.5 / 13.5 | 13.5 / 16.0 |
| Connection Pipe Diameter - Liquid/Gas (Inch) | 1/4 & 1/2 | 1/4 & 1/2 |
| Max. Pipe Length (m) | 25 | 30 |
| Pre-Charge Pipe Length (m) | 15 | 15 |
| Max. Height Difference (m) | 20 | 20 |
| Refrigerant Type / Global Warming Potential | R32 / 675 | R32 / 675 |
| Refrigerant Charge / CO2eq-T (kg) | 1.02 / 0.689 | 1.32 / 0.891 |
| Refrigerant Additional Charge (g/m) | 20 | 20 |
| Operating Range - Cooling (°CDB) | -10 to 46 | -10 to 46 |
| Operating Range - Heating (°CDB) | -15 to 24 | -15 to 24 |
This table is intended as a guide only. Please consult manufacturer's information for more details.
