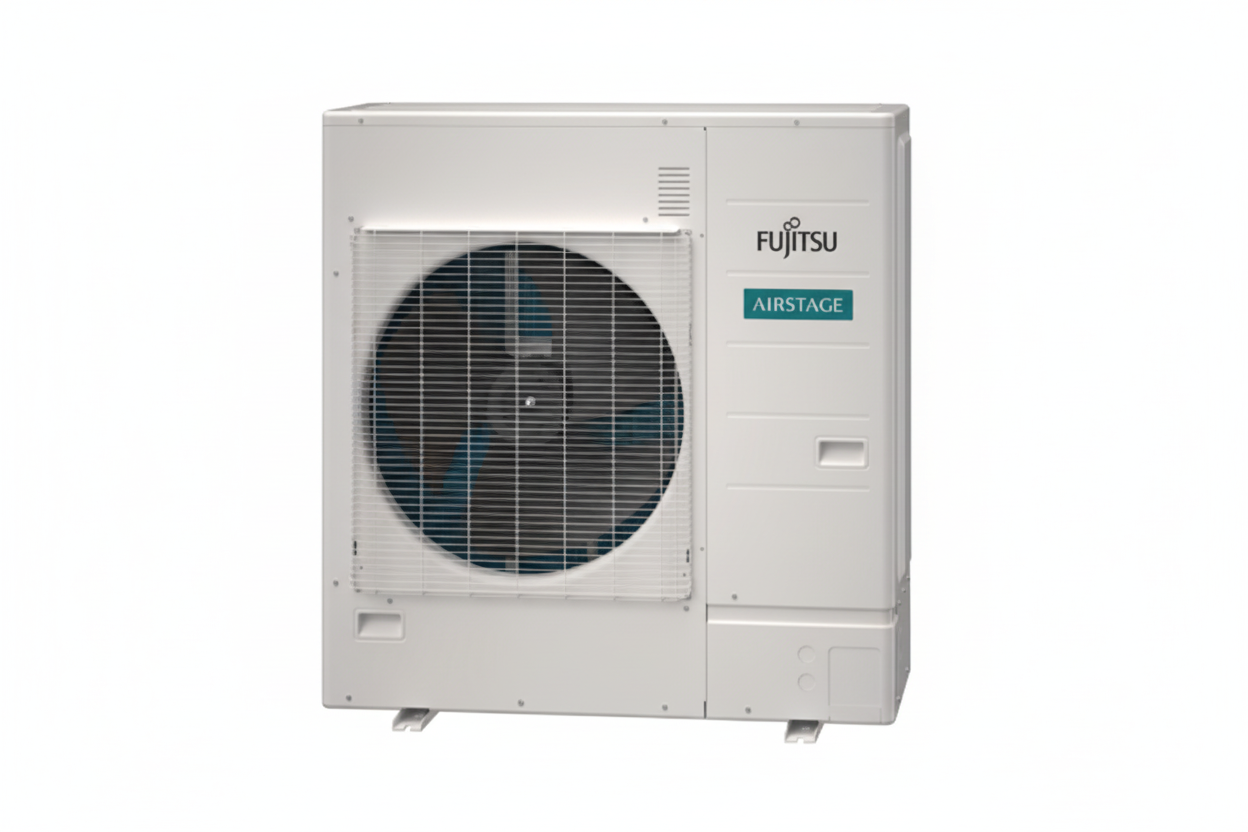

Fujitsu VRF Outdoor Units - J-IVS Series
Fujitsu's compact J-IVS Series VRF outdoor units deliver industry-leading multi-zone performance, connecting up to 13 indoor units with extended 80m piping flexibility. Space-saving sub-1m height design fits balconies and tight spaces, while intelligent refrigerant control optimizes energy efficiency and comfort. Uninterrupted operation during oil recovery and simplified installation make this the ideal solution for flexible, high-performance climate control.
| Outdoor Unit Technical Data | |||
|---|---|---|---|
| Rated Capacity Range (HP) | 4 | 5 | 6 |
| Model Number | AJY040LCLDH | AJY045LCLDH | AJY054LCLDH |
| Max. Connectable Indoor Units | 1-11 | 1-12 | 1-13 |
| Refrigerant Type | R410A | ||
| Power Source | Single phase, ~230 V, 50 Hz | ||
| Available Voltage Range | 198—264 V | ||
| Max. Cooling Capacity (kW) | 12.1 | 14.0 | 15.1 |
| Max. Heating Capacity (kW) | 13.6 | 16.0 | 16.5 |
| Max. System Pipe Length (m) | 80 | 80 | 80 |
| SEER | 5.83 | 5.58 | 5.47 |
| SCOP | 3.82 | 3.96 | 3.99 |
This table is intended as a guide only. Please refer to manufacturer's documentation for more details.
Key features
Compact Design & Extended Piping Flexibility

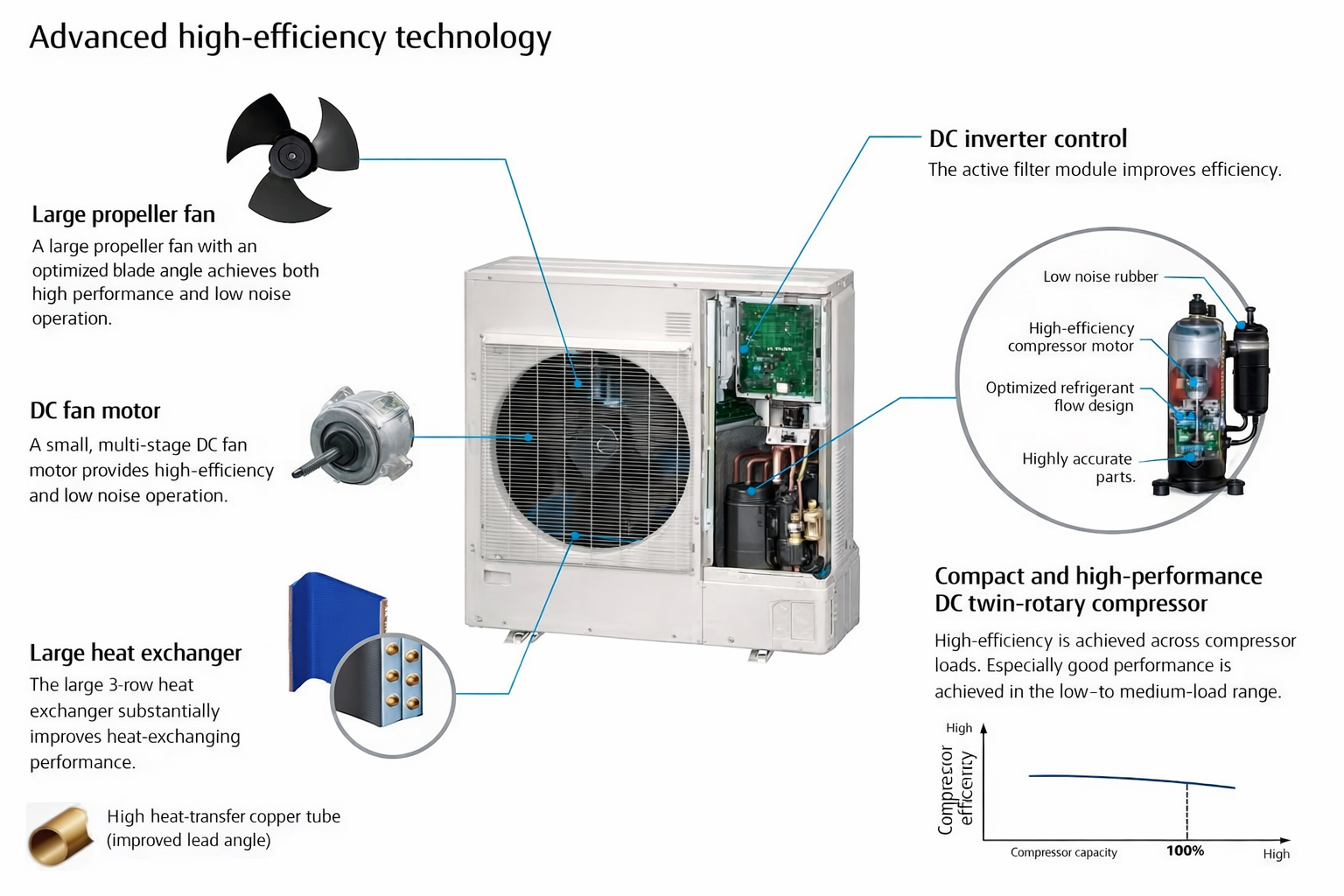

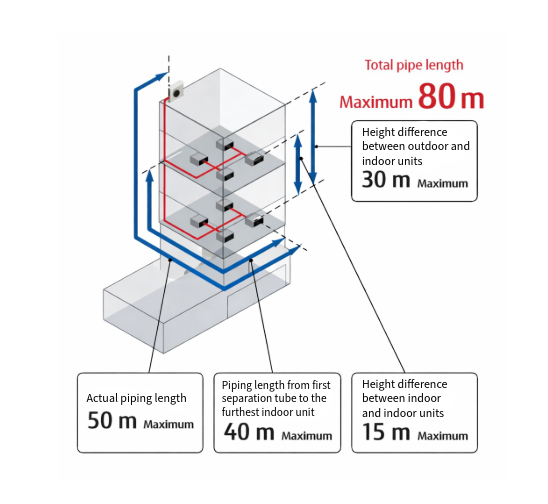

Space-saving outdoor units with sub-1m height fit easily on balconies below railings or in tight spaces under windows. Advanced refrigerant control technology enables piping runs up to 80m, delivering exceptional installation flexibility for complex building layouts.
The advanced refrigerant control technology also automatically adjusts refrigerant flow to match the room’s heat load, delivering enhanced comfort while improving overall energy efficiency.
Industry-Leading Multi-Zone Capacity
Connect up to 13 indoor units to a single outdoor unit for maximum multi-zone flexibility. Optimized heat exchanger design and compact yet powerful indoor units deliver best-in-class connectivity for comprehensive climate control across large spaces.
Uninterrupted Oil Recovery Operation
Continuous heating and cooling during oil recovery mode ensures consistent comfort without system interruptions. Advanced oil management maintains optimal performance while keeping your space at the desired temperature throughout the recovery cycle.
Simplified Installation & Setup
Quick-check run function verifies wiring connections and address settings instantly, reducing installation time and errors. Lightweight, portable design and streamlined setup process make installation faster and easier for technicians.
Compact Design & Extended Piping Flexibility
Space-saving outdoor units with sub-1m height fit easily on balconies below railings or in tight spaces under windows. Advanced refrigerant control technology enables piping runs up to 80m, delivering exceptional installation flexibility for complex building layouts.
The advanced refrigerant control technology also automatically adjusts refrigerant flow to match the room’s heat load, delivering enhanced comfort while improving overall energy efficiency.
Industry-Leading Multi-Zone Capacity
Connect up to 13 indoor units to a single outdoor unit for maximum multi-zone flexibility. Optimized heat exchanger design and compact yet powerful indoor units deliver best-in-class connectivity for comprehensive climate control across large spaces.
Uninterrupted Oil Recovery Operation
Continuous heating and cooling during oil recovery mode ensures consistent comfort without system interruptions. Advanced oil management maintains optimal performance while keeping your space at the desired temperature throughout the recovery cycle.
Simplified Installation & Setup
Quick-check run function verifies wiring connections and address settings instantly, reducing installation time and errors. Lightweight, portable design and streamlined setup process make installation faster and easier for technicians.
J-IVS VRF Outdoor Unit - 2 Pipe R410A 1 Ph Specification Table
| Technical Data | Model Number | ||
|---|---|---|---|
| AJY040LCLDH< | AJY045LCLDH | AJY054LCLDH | |
| Power Source | Single phase, ~230 V, 50 Hz | ||
| Cooling Capacity (kW) – Rated | 12.1 | 14.0 | 15.1 |
| Nominal Heating Capacity (kW) | 12.1 | 14.0 | 15.1 |
| Max. Heating Capacity (kW) | 13.6 | 16.00/td> | 16.5 |
| Input Power Cooling (kW) | 3.75 | 4.71 | 5.55 |
| Input Power Nominal Heating (kW) | 3.22 | 3.77 | 4.33 |
| Input Power Max. Heating (kW) | 3.99 | 5.04 | 5.32 |
| EER (W/W) | 3.22 | 2.97 | 2.72 |
| COP Nominal Heating (W/W) | 3.75 | 3.71 | 3.48 |
| COP Max. Heating (W/W) | 3.40 | 3.17 | 3.10 |
| SEER | 5.83 | 5.58 | 5.47 |
| SCOP | 3.82 | 3.96 | 3.99 |
| ηc Cooling (%) | 230.2 | 220.2 | 215.8 |
| ηh Heating (%) | 149.8 | 155.4 | 156.6 |
| Airflow Rate (m3 /h) | 4,240 | 4,400 | 4,400 |
| Sound pressure level/ Power level Cooling dB(A) | 53 / 67 | 53 / 69 | 54 / 70 |
| Sound pressure level/ Power level Heating dB(A) | 54 / 68 | 56 / 69 | 56 / 70 |
| Heat Exchanger Fin | Blue fin | ||
| Net Dimensions H X W X D (mm) | 998 X 970 X 370 | ||
| Weight (kg) | 88 | ||
| Refrigerant Type (Global Warming Potential) | R410A (2,088) | ||
| Refrigerant Charge kg (CO2eq-T) | 4.0 (8.4) | ||
| Connection Pipe Diameter Liquid / Gas (mm) | 9.52 / 15.88 | ||
| Total Pipe Length (m) | 80 | ||
| Max. Height Difference (m) | 30 | ||
| Operating Range Cooling (˚C) | -5 to 46 | ||
| Operating Range Heating (˚C) | -20 to 21 | ||
Note: Specifications are based on the following conditions. Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB. Heating: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB. Pipe length: 7.5 m; Height difference between outdoor unit and indoor unit: 0 m. The protective function may work when using it outside the operation range. This table is intended as a guide only. Please consult manufacturer's information for more details.
