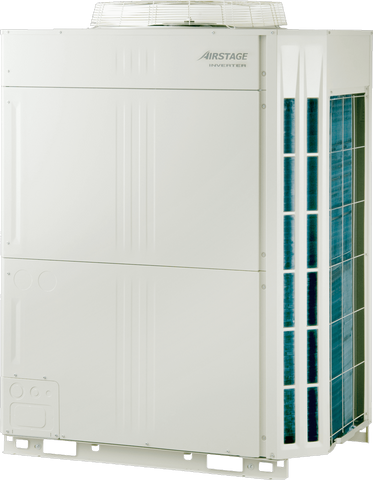

Fujitsu VRF Outdoor Units - VR-IV Series
VRFProduct code: VR-IV Series

Fujitsu VRF Outdoor Units - VR-IV Series

Airstage VR-IV. 3 Pipe Variable Refrigerant Flow System

Outdoor unit lineup

  Space saving combination Energy efficiency combination
8 HP AJY072GALDH
10 HP AJY090GALDH
12 HP AJY108GALDH
14 HP AJY126GALDH
16 HP AJY144GALDH AJY144GALDHH
18 HP AJY162GALDH
20 HP AJY180GALDH
22 HP AJY198GALDH AJY198GALDHH
24 HP AJY216GALDH AJY216GALDHH
26 HP AJY234GALDH AJY234GALDHH
28 HP AJY252GALDH AJY252GALDHH
30 HP AJY270GALDH AJY270GALDHH
32 HP AJY288GALDH AJY288GALDHH
34 HP AJY306GALDH AJY306GALDHH
36 HP AJY324GALDH AJY324GALDHH
38 HP AJY342GALDH AJY342GALDHH
40 HP AJY360GALDH AJY360GALDHH
42 HP AJY378GALDH AJY378GALDHH
44 HP AJY396GALDH AJY396GALDHH
46 HP AJY414GALDH
48 HP AJY432GALDH

Key features

Air Conditioning Solution for large scale buildings

Air Conditioning Solution for large scale buildings

  • Greater energy efficiency
  • Better comfort
  • Long Piping System Design
  • Easy service and maintenance

Excellent energy saving

Excellent energy saving

Heat pump inverter type realizes the highly energy saving air conditioning for individual cooling and heating operation by all inverter technology for seasonal efficiency.

High design flexibility for various building air conditioning

High design flexibility for various building air conditioning

High design flexibly meets the various needs of high-rise building air conditioning such as outdoor unit roof top concentrated installation and each floor installation by large capacity combination, sufficient connection capacity, and high static pressure design.

Easy installation and maintenance

Easy installation and maintenance

The flexible communication method and piping connections makes installation and maintenance easy even for large systems.

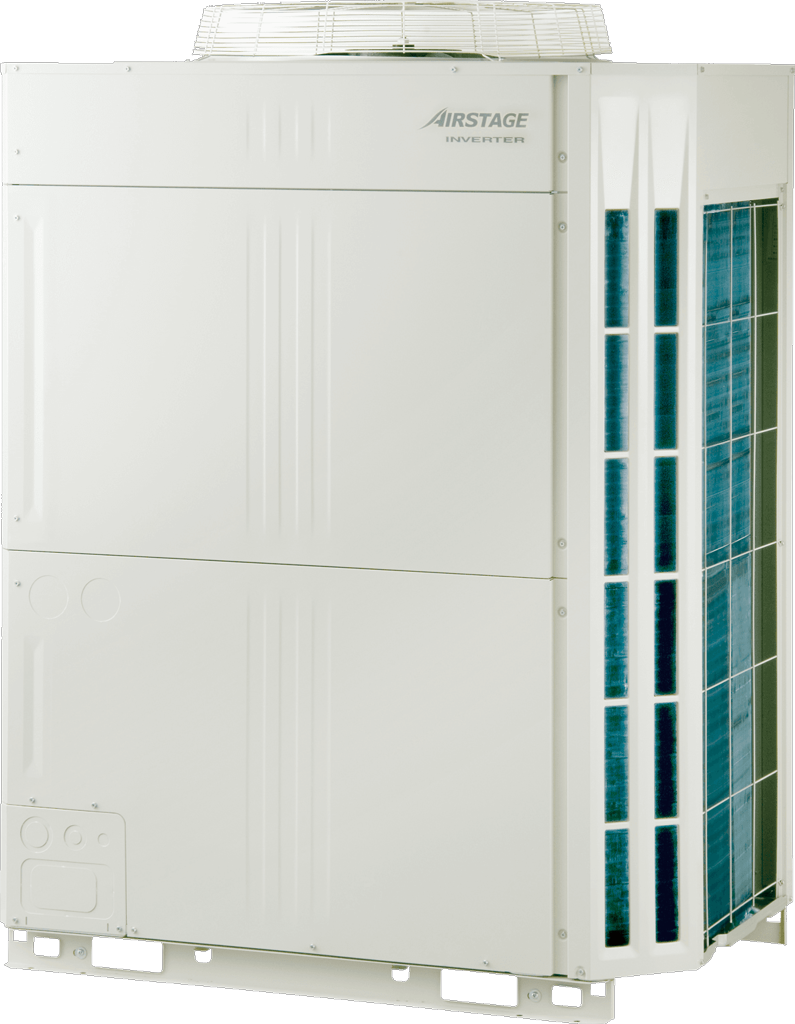

Fujitsu AJY162LALBH 50.0kW V-III VRF Outdoor Unit-Fujitsu-Oceanair
Fujitsu AJY144GALDH 45.0kW VR-IV VRF Outdoor Unit-Fujitsu-Oceanair
Fujitsu AJY144GALDH 45.0kW VR-IV VRF Outdoor Unit-Fujitsu-Oceanair

Information

Video guides offering insight in to the manufacturers product range.

VRF Lineup

Documents

PDF product guides and information.

Fujitsu VR-IV Series

New intelligent refrigerant control

Fujitsu General is proposing outdoor units equipped with refrigerant control function.

The refrigerant control operates with subtle control corresponding to the heat load of the room and offers a more comfortable environment. The refrigerant control can also provide increased energy savings.

* The improvements due to the control and the actual sine wave vary depending on the combination of the indoor unit and system operating conditions.

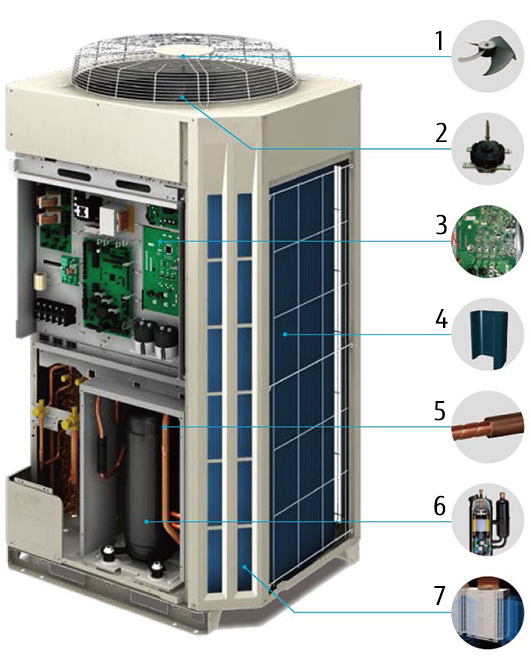

The energy-saving technology that boosted operation efficiency

1. Powerful large propeller fan

The fan uses CFD* technology to achieve both high performance and low noise operation.

*CFD: Computational Fluid Dynamics

2. 3-phase DC fan motor

The use of a DC fan motor with sophisticated driver control improves energy efficiency substantially. In addition, low noise is realized by the DC fan motor.

3. Sine-wave DC inverter control

High-efficiency is realized by the adoption of reduced switching loss IPM.

4. 4-face heat exchanger

The 4-face heat exchanger increases the effective surface area and significantly improves heat-exchanging efficiency.

5. Subcooling heat exchanger

High heat exchange efficiency is achieved by using an internal projection-shape double-pipe construction.

6. High-efficient, large-capacity DC twin-rotary compressor

Large-capacity high-efficient DC twin-rotary compressor with excellent intermediate capability.

7. Front intake port (Corner cut air inlet structure)

In multiple outdoor unit installations, the unique front intake design improves airflow into the heat exchanger.
