Product code: H000242

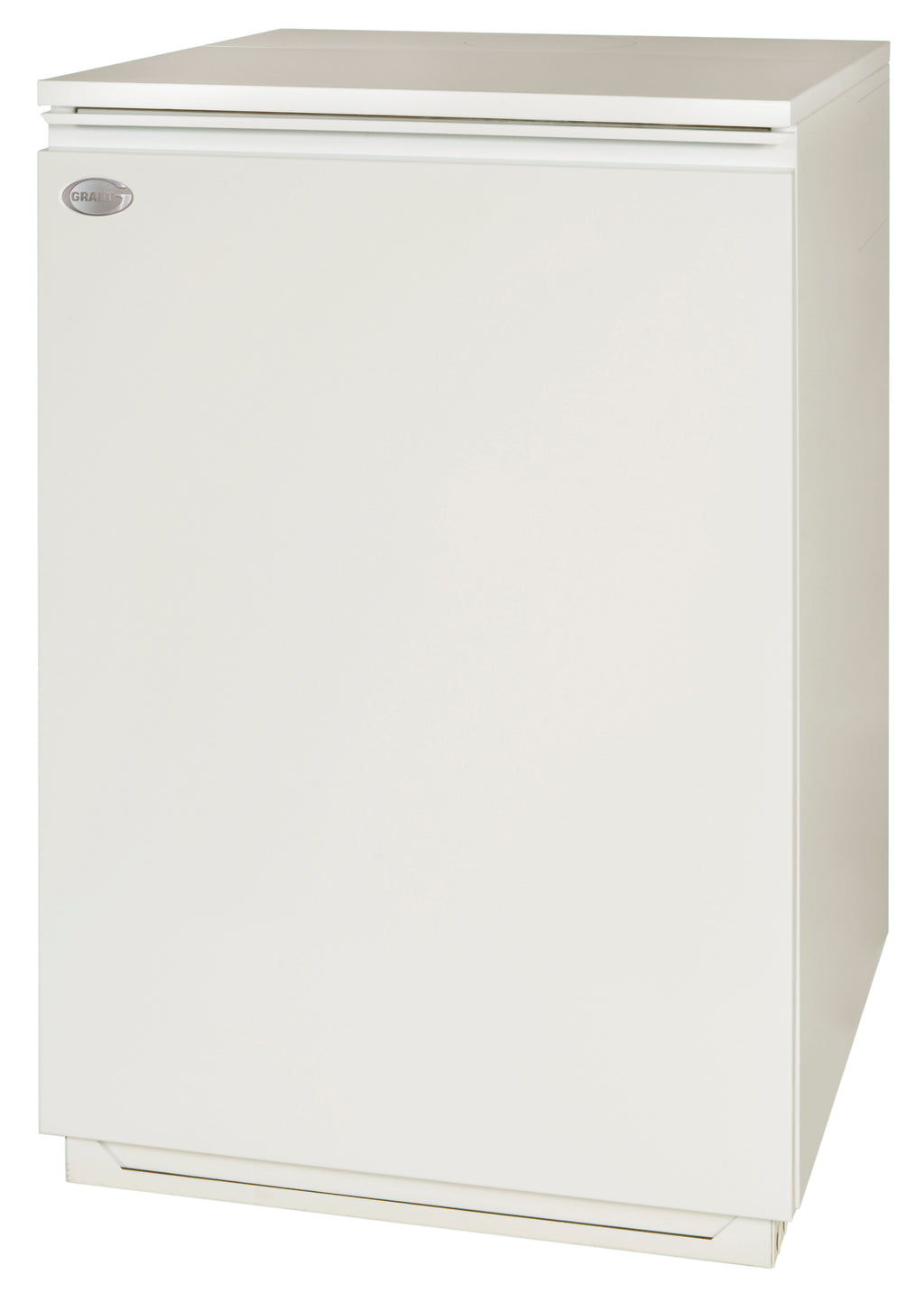

Grant Vortex Pro Combi Oil Boiler 36kW VTXCOMBI36
The Grant Vortex Pro Combi 36 is a floor-standing boiler that delivers efficient hot water, with a smart white casing ideal for utility rooms.
Read more- Can an replace an older oil-fired combi due to 515mm width
- 24ltr expansion vessel with all models
- Grant EZ-Fit flue systems compatible
- Compatible with biofuel (type and blend dependant)
- User-friendly operation with neon diagnostic indicators

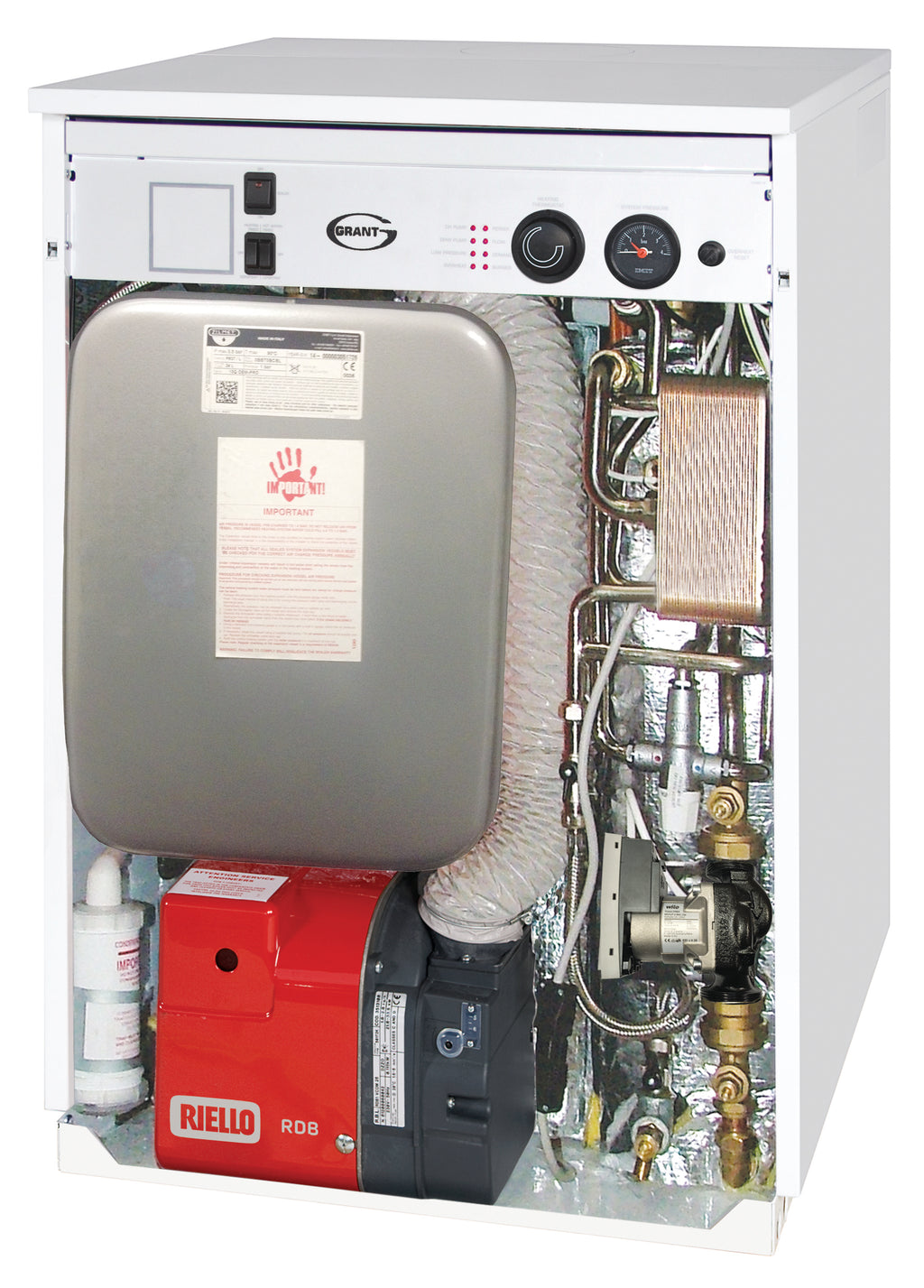

- Large heat exchangers with low water content and increased surface area for enhanced hot water performance
Description
The Grant Vortex Pro Combi 36 provides efficient and effective hot water performance with its sleek white cased appearance. This floor standing boiler is ideal for utility room installations and is available in a variety of sizes, including the slimline Combi XS for limited spaces.
For more information and advice, please contact Oceanair.
- Can an replace an older oil-fired combi due to 515mm width
- 24ltr expansion vessel with all models
- Grant EZ-Fit flue systems compatible
- Compatible with biofuel (type and blend dependant)
- User-friendly operation with neon diagnostic indicators
- Large heat exchangers with low water content and increased surface area for enhanced hot water performance
* See Technical Attachments for more precise details.
Specification
Boiler Depth
606mm
Boiler Height
900mm
Boiler Type
Combi Boiler
Boiler Width
614mm
Brand
Grant
BTU Rating
123,000 BTU
Colour
White
Compatible with Solar Panels
Compatible with Solar Panels
Display
Easy to Read LED Indicators
Energy Rating (Heating)
A
Energy Rating (Water)
B
Filling Loop Supplied
Incorporated Filling Valve
Fitting Requirements
Must be Fitted by a Qualified Installer
Fixing Jig Supplied
Fixing Jig Not Supplied
Flow Rate (Ltr/Min)
20 Ltr/min
Flow Temperature Range (Heating)
65 - 75 °C
Flue Connection Diameter
100mm
Flue Supplied
Flue Not Supplied
Frost Protection
Frost Protection Setting
Fuel Type
Oil
Manufacturer Guarantee/ Manufacturer Warranty
*10 year guarantee when installed by a G1 Installer (Terms and Conditions apply)
Manufacturer's Model No
VTXCOMBI36
Max. Heat Output DHW (Pn)
36 kW
Model Name
Vortex Pro
NOx Class
2
Pack Size
1
Pieces in Pack
1
Product Contents
Boiler and accessory pack (drain cock, oil hose, 3/8" to ¼" male adapter and bypass screw)
Range Description
Combi Boilers
SAP Seasonal Efficiency
94.56%
SEDBUK SAP 2005 Rating
A
SEDUK SAP 2009 Rating
89.40%
Sound Pressure Level
53.7 dB
Suitable for Underfloor Heating
Suitable for Underfloor Heating
Temperature Range (Water)
65 °C
Type
Oil Combi Boiler
