Product code: H001552

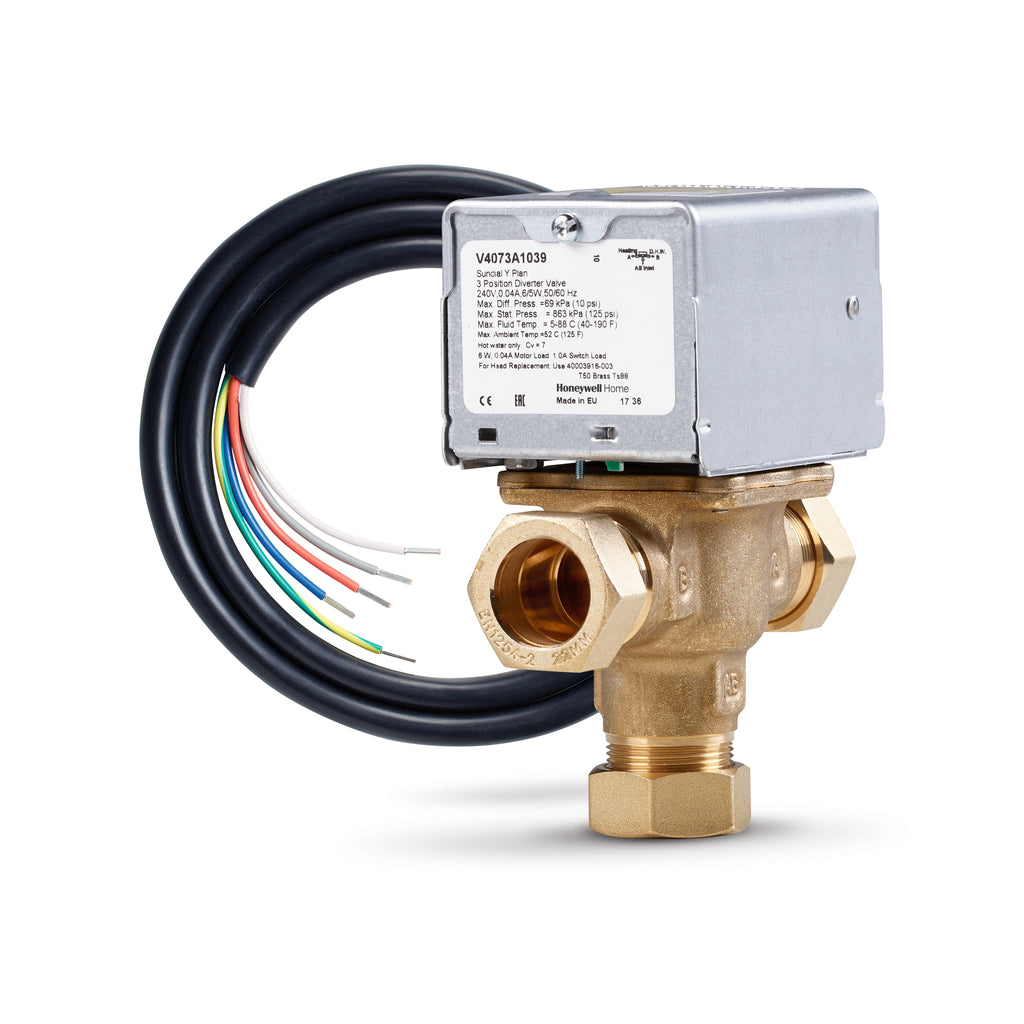

Honeywell Home 3 Port V4073A Replacement Powerhead 40003916-003
This actuator is specifically made for easily replacing the heads of 3-port motorised valves in the field ...
Read more- Spring return action and motor open
- Manual lever for draining and filling the system
- Powerhead replacement without draining the system
- Minimal power consumption with quiet operation
- Polarity free 2 wire connection
View all products by Honeywell Home
Description
This actuator is specifically made for easily replacing the heads of 3-port motorised valves in the field. No system drainage is required, as this positive head can replace removable valve heads seamlessly. Its installation is simple and only requires 2 screws and 2 locating pegs to connect to the body. It operates quietly and efficiently, consuming only 6W of power.
- Spring return action and motor open
- Manual lever for draining and filling the system
- Powerhead replacement without draining the system
- Minimal power consumption with quiet operation
- Polarity free 2 wire connection
Specification
Brand
Honeywell
Cable Length
1m
Connection Size
22mm
Connection Type
Compression
Current Type
AC
Fitting Requirements
Must be Fitted by a Qualified Installer
Hertz (Hz)
50/60Hz
Manufacturer Guarantee/ Manufacturer Warranty
5 Year Warranty
Manufacturer's Model No
40003916-003/U
Material
Brass
Max. Load (Inductive)
2.2A
Max. Load (Resistive)
2.2A
Max. Static Pressure
8.6 bar
Motorised Valve Operation Type
Spring-Return Action
No. of Ports
3 Port
Operating Temperature Range
5 - 88°C
Override Facility
Manual Lever for Filling or Draining Down
Power Consumption
6W
Power Voltage Supply
240V
Product Depth
60mm
Product Height
54mm
Product Width
87mm
Range Description
Honeywell Home V4073 Valves
Suitable System
Suitable for Hot Water Central Heating Systems
Type
Replacement Powerhead
Wiring Installation
5-Wire Installation
Honeywell Home 3 Port V4073A Replacement Powerhead 40003916-003
In stock
