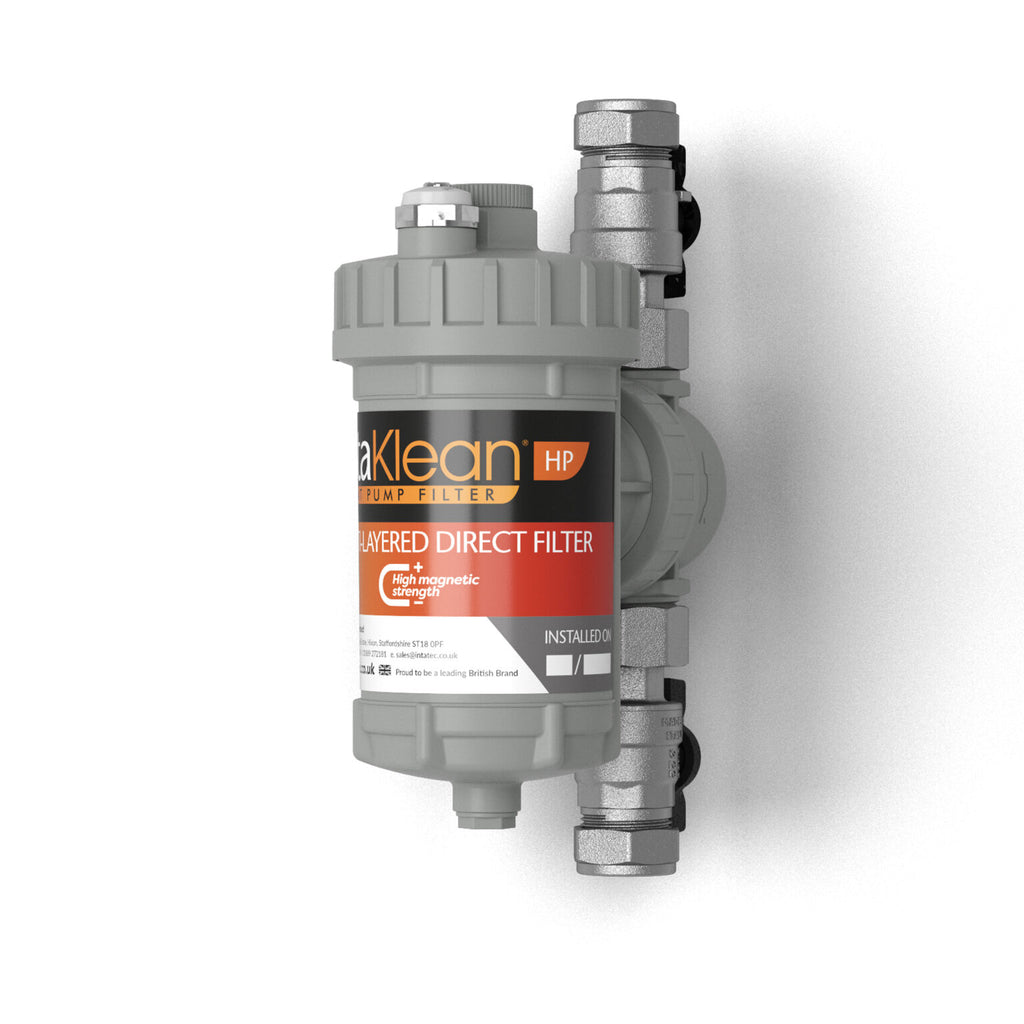

IntaKlean Heat Pump Magnetic Filter 28mm IKHPMF28

Description

The IntaKlean HP Magnetic Filter for Air Source Heat Pumps 28mm (IKHPMF28) is designed to protect heat pump systems by removing both magnetic and non-ferrous debris from circulating fluid. Featuring Inta’s unique direct multi-layered filtration system, the unit forces system debris directly into the filter core, capturing contaminants before they can cause damage or reduce efficiency. A 300 micron stainless steel fine gauze filter works alongside an 800 micron mesh filter to target non-ferrous particles, while an 11,000 gauss rare earth magnet captures magnetite. With a built-in air vent, full bore isolation valves and a low-profile drain valve, the IntaKlean HP provides a complete, service-friendly solution for maintaining performance and extending system life in air source heat pump installations.

• Removes magnetic and non-ferrous system debris
• 11,000 gauss neodymium magnet captures magnetite

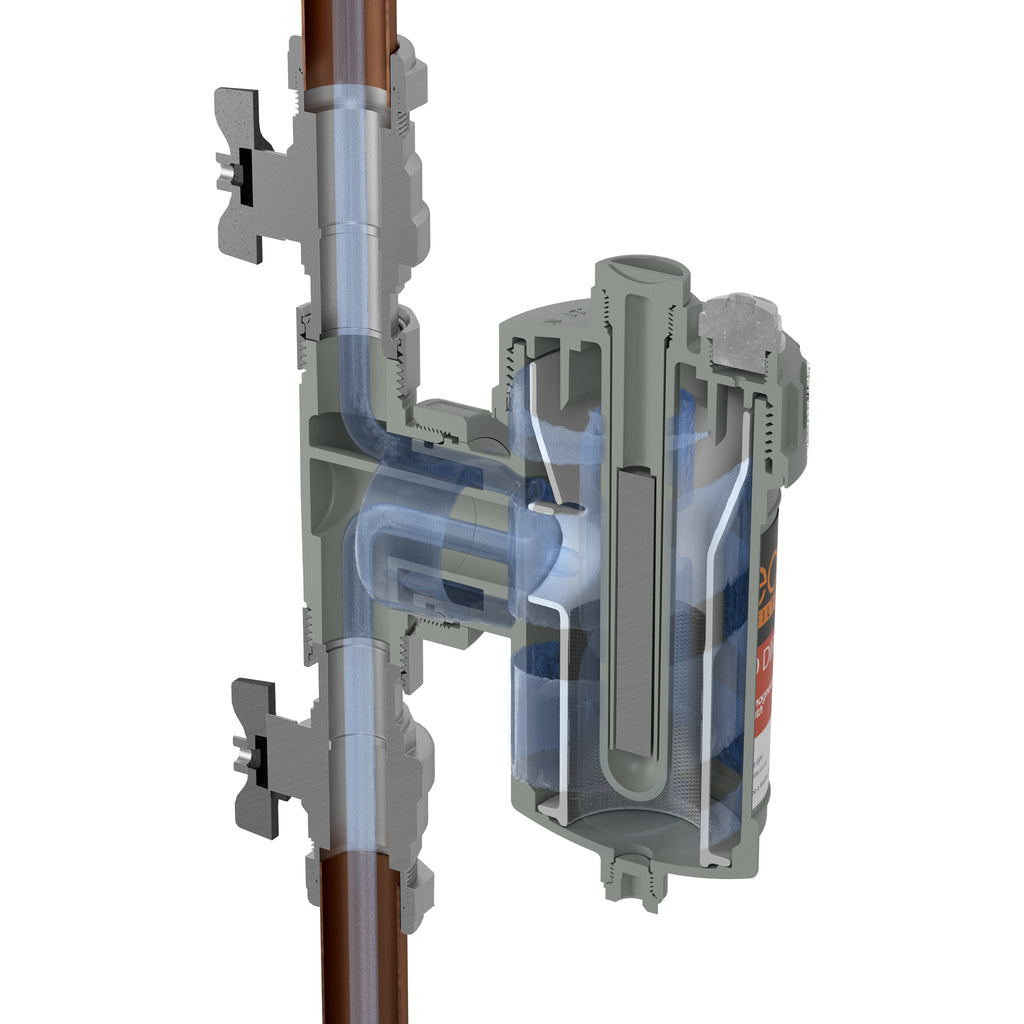

• Unique direct filtration system forces debris into the filter core
• Multi-layered filtration with 300 micron fine filter and 800 micron mesh
• Manual air vent for air removal
• Full bore isolation valves for easy servicing
• 360° rotation for flexible installation and maintenance
• Low profile drain valve for simple cleaning
• Serviceable under live conditions with removable magnet
• Suitable for water and glycol mixtures up to 50%
• Max operating pressure: 4 bar
• Max working temperature: 90°C
• 5-year warranty

Specification
