Designed to maximise under-basin storage space, this self-cleaning waste valve uses a pressure-activated membrane to allow free discharge while sealing shut to prevent foul odours and sewer gases, eliminating the need for secondary ventilation and offering greater plumbing design flexibility; with no water seal to dry out, it remains effective even when unused and can be easily cleaned from the front without dismantling pipework.
Product code: P003028

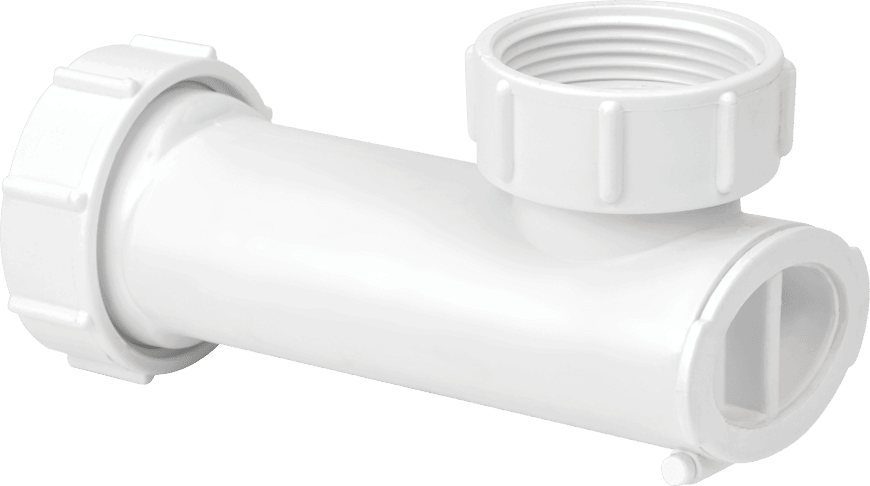

McAlpine Space Saver Basin Waste with Self-Closing Waste Valve WHB-1
Designed to maximise under-basin storage space, this self-cleaning waste valve uses a pressure-activated membrane to allow free discharge while sealing shut to prevent foul odours and sewer gases, eliminating the need for secondary ventilation and offering greater plumbing design flexibility; with no water seal to dry out, it remains effective even when unused and can be easily cleaned from the front without dismantling pipework. * See technical attachments for more details. ...
Read more- Maximises under-basin storage space within cabinets or furniture
- White finish
- 1¼" BSP female inlet nut x 1¼" universal compression outlet
- Front-access, easy-clean design with no pipework dismantling required
- No water seal, so it cannot dry out through evaporation or infrequent use
- Suitable for basins
Description
- Maximises under-basin storage space within cabinets or furniture
- White finish
- 1¼" BSP female inlet nut x 1¼" universal compression outlet
- Front-access, easy-clean design with no pipework dismantling required
- No water seal, so it cannot dry out through evaporation or infrequent use
- Suitable for basins
* See technical attachments for more details.
Specification
Brand
McAlpine
Colour
White
Connection Size
1 1/4"
Connection Type
BSP Female X Compression
Inlet Connection
1 1/4" Female BSP Nut
Manufacturer Guarantee / Manufacturer Warranty
10 Year Guarantee
Manufacturer's Model No
WHB-1
Material
Plastic
Outlet Connection
1 1/4" Universal Compression
Pipe Fitting System
Multifit
Product Contents
Body, nut, washer and valve.
Product Diameter
58mm
Product Height
140mm
Range Description
McAlpine Waste Traps
Trap Application
Basin
Type
Basin Waste
