Panasonic 4 Way 60 x 60 Cassette for Free Multi

Name: Panasonic 4 Way 60 x 60 Cassette for Free Multi
Brand: Panasonic
Availability: InStock

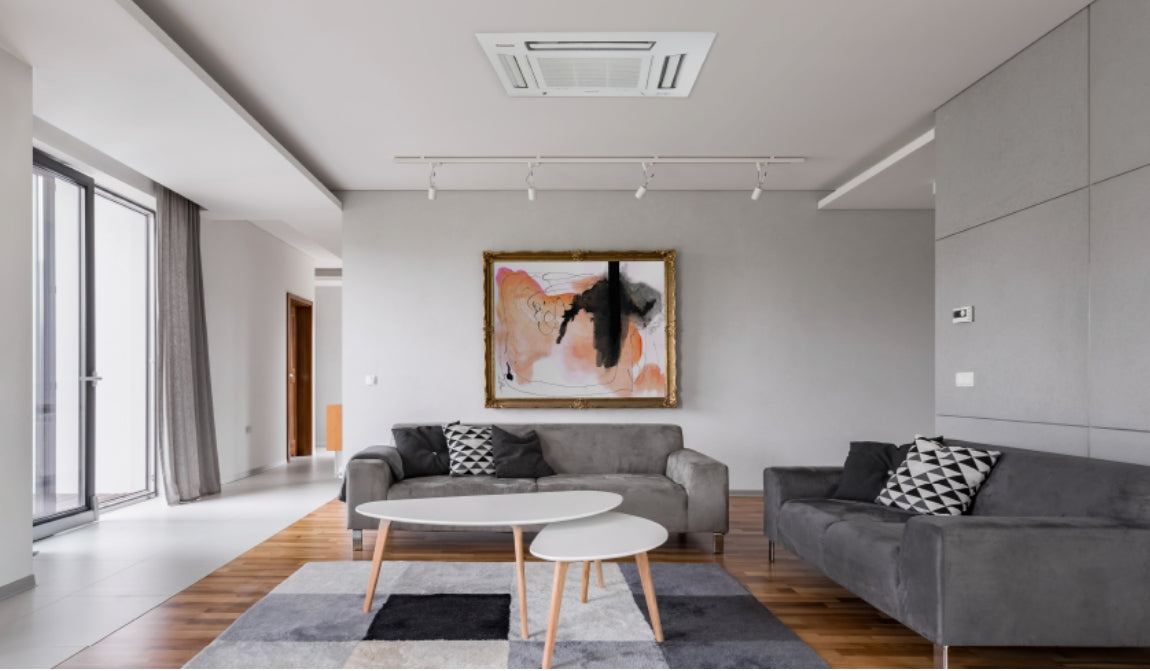

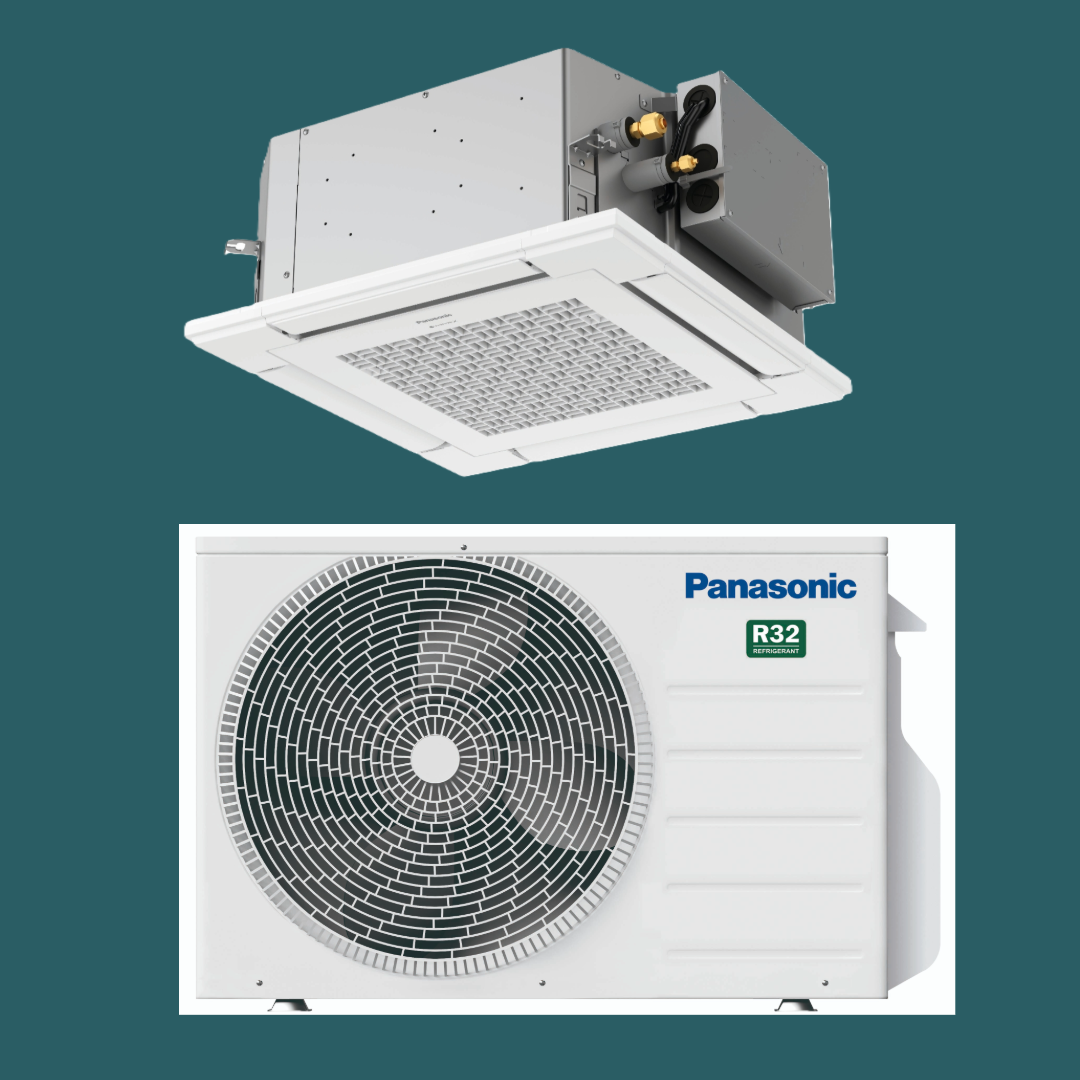

The Panasonic Free Multi System Z delivers flexible multi-room climate control by connecting up to five indoor units—including Etherea and TZ wall-mounted models, Floor Consoles, PACi NX 4-way 60x60 cassettes, and low static pressure hide-aways—to a single compact outdoor unit. With A+++ energy efficiency, nanoe™ X air purification, and smart Wi-Fi control via the Panasonic Comfort Cloud App plus Google Assistant and Amazon Alexa compatibility, the Free Multi Z ensures powerful performance, cleaner indoor air, and tailored comfort in every room. The PACi NX PY3 cassette integrates seamlessly into standard 600x600 mm ceiling grids with a sleek design requiring just 250 mm depth. Featuring A++ energy ratings, an internal cleaning function to suppress mould, and four-motor individual flap control for precise air distribution, it provides both style and superior comfort in residential and commercial spaces.

Free Multi Z Sales Leaflet 4 Way Cassette Leaflet Free Multi Combinations 25 26 Free Multi System Unit Compatibility Conex Leaflet Free Multi Z Service Manual Free Multi Z Operating Manual nanoe™ X Leaflet Panasonic RAC Wiring Diagrams Wiring Diagram

Model Reference (Indoor Unit)	Nom. Cool (kW)	Nom. Heat (kW)	Max Pipe (m)	EuP Lot 10 Energy Rating		Fuse (Amps)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
Model Reference (Indoor Unit)	Nom. Cool (kW)	Nom. Heat (kW)	Max Pipe (m)	SCOP	SEER	Fuse (Amps)	Pipe Size Gas	Pipe Size Liquid	Electrical Supply	Wi-Fi Control
S-M20PY3E	2.00	3.20	Please refer to Free Multi Outdoor Unit information or contact Oceanair.				1/2	1/4	Single	Optional
S-25PY3E	2.50	3.60					1/2	1/4	Single	Optional
S-36PY3E	3.50	3.60					1/2	1/4	Single	Optional
S-50PY3E	5.00	6.80					1/2	1/4	Single	Optional
S-60PY3E	6.00	8.50					1/2	1/4	Single	Optional
	For more information, see Technical Specifications.

Key features

Versatile: install up to 5 indoor units per outdoor unit

The Panasonic Multi Split system offers outstanding flexibility, allowing up to 5 indoor units to connect to a single outdoor unit. Each room can be individually controlled for precise comfort, while the compact design and long connection distances make installation easier and more versatile for modern homes and businesses.

Compact & stylish - only 250mm ceiling depth required

The Panasonic 4 way cassette features a compact, stylish design requiring only 250 mm ceiling depth, with a built-in drain pump for easy, reliable installation.

Compatible with BMS control

Seamlessly integrate Panasonic air conditioning into your BMS projects with full flexibility for KNX, Modbus, and BACnet systems, enabling bi-directional monitoring and control of all key operating parameters for smarter, more efficient management.

nanoe™ X technology for cleaner air

Enjoy cleaner, fresher air with nanoe™ X technology, which uses the power of hydroxyl radicals to purify your indoor environment of bacteria, mould and more, to help create a healthier and more comfortable space all day long. See nanoeX leaflet for more details.

Panasonic 4 Way 60 x 60 Cassette for Free Multi-Panasonic-Oceanair

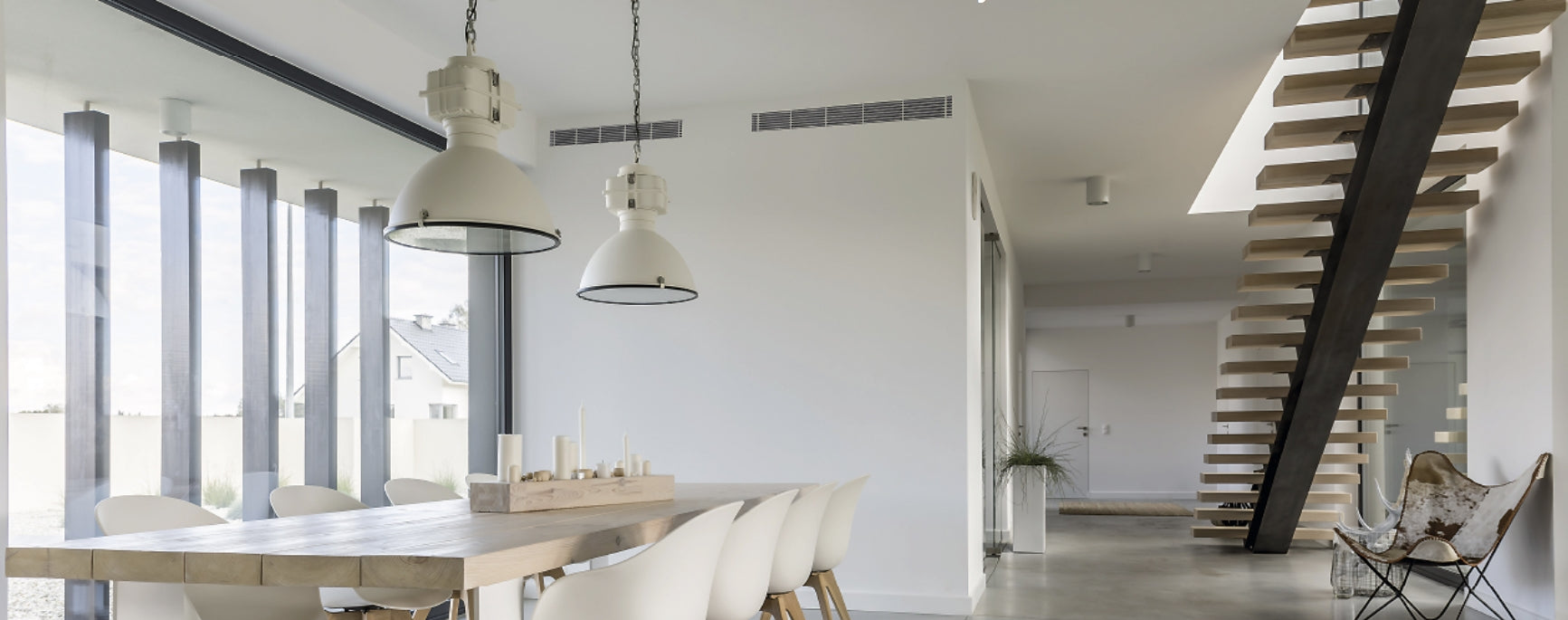

Panasonic Low Static Pressure Hide-Away for Free Multi-Panasonic-Oceanair

Panasonic Etherea CS-XZ20ZKEW Wall Mount Air Conditioner Unit Wi-Fi R32 Silver-Panasonic-Oceanair

4 Way Cassette Indoor Unit Specification Table

Indoor Unit Technical Data	Model Number
Indoor Unit Technical Data	S-25PY3E	S-36PY3E	S-50PY3E	S-60PY3E
Cooling (kW) - Nominal	2,50(0,85-3,20)	3,50(0,85-4,00)	5,00(0,90-5,80)	6,00(0,90-6,35)
Heating (kW) - Nominal	3,20(0,85-4,80)	4,50(0,85-5,60)	5,60(0,90-7,10)	7,00(0,90-8,00)
Sound Pressure - Cooling Hi / Lo / Q-Lo (dBA)	34/25/22	34/26/23	37/28/25	42/32/29
Sound Pressure - Heating Hi / Lo / Q-Lo (dBA)	35/28/25	35/28/25	38/29/26	43/32/29
Unit Height (mm)	260	260	260	260
Panel Height (mm)	51	51	51	51
Width (mm)	575	575	575	575
Depth (mm)	575	575	575	575
Weight (kg)	18	18	18	18
nanoe X Generator	Mark 2	Mark 2	Mark 2	Mark 2
