Product code: H003167

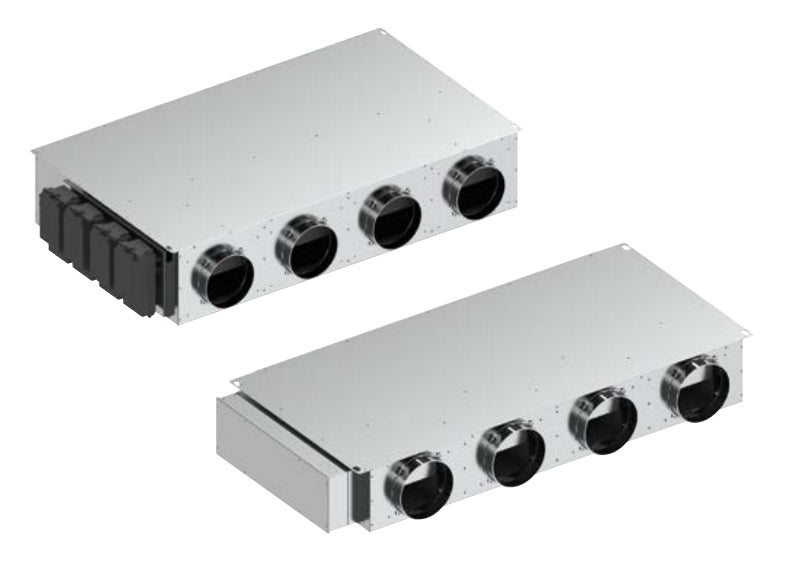

Panasonic Aquarea Air Smart Fan Coil Multi Thin Duct Wall Control & Left Piping P-FTQ65O05-RE

Panasonic Aquarea Air Smart Fan Coil Multi Thin Duct with PCB & Left Piping P-FTQ60O05-JE-Panasonic-Oceanair

Aquarea Air Smart fan coils feature a slim, discreet design that fits easily into any home or office décor.

Read more
  • Integrated efficient multi zone management (2-5 zones)
  • Suitable for use with Panasonic Aquarea Heat Pumps
  • Quiet operation
  • Slim profile, just 185mm deep, for walls or false ceilings
  • Flexible horizontal or vertical installation
  • Versatile wall-mounted control with Modbus or integrated Wi-Fi (Sold Separately)
View more details
£2,768.00 excl. VAT
£3,321.60inc. VAT
Available

Description

The Panasonic Aquarea Air Smart high-efficiency thin ducted fan coil unit offers exceptional comfort and quiet performance, thanks to self-modulating airflow control. Designed for both heating and cooling in a compact form, it delivers optimal energy savings when paired with Aquarea Heat Pumps. Features include multi-zone management for 2 to 5 zones, a slim 185 mm profile (thin version), energy-efficient DC inverter, quiet centrifugal fan with a single motor impeller, and modulating airflow. It supports left or right water connections, optional 2 or 3-way valves, and can be controlled via a wall-mounted interface or PCB with 0–10V analog input.

As fan coils can be paired with various units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Integrated efficient multi zone management (2-5 zones)
  • Suitable for use with Panasonic Aquarea Heat Pumps
  • Quiet operation
  • Slim profile, just 185mm deep, for walls or false ceilings
  • Flexible horizontal or vertical installation
  • Versatile wall-mounted control with Modbus or integrated Wi-Fi (Sold Separately)
  • Includes left-hand water connections
  • Flexible installation with single or multiple air outlets per zone
  • DC Inverter technology for enhanced comfort and energy efficiency
  • Adjustable, modulated airflow
  • Also available with right-hand water connections
  • Also available with PCB for analog input (0-10 V) control option

* See Technical Attachments for more details.

 Efficiency Data Notes: Min / Med / Max relates to fan standard factory set speeds. 1) According to Eurovent standard. Air: 27 °C DB/19 °C WB, chilled water: 7 °C/12 °C. 2) Pressure loss by corresponding nominal flow. 3) According to Eurovent standard. Air: 20 °C, hot water: 45 °C/40 °C.



Specification

Brand Panasonic
Colour Grey
Compatibility Compatible with Panasonic Aquarea Air Source Heat Pumps. Compatible with 3 way valve kit (PCZ-V30361) and 2 way valve kit (PCZ-V20139). Contact Oceanair for more details.
Compatible Control Options Wall-mounted control with Modbus (PCZ-EEB749), with integrated Wi-Fi (PCZ-EFB749). Sold Separately.
Air Flow Min / Med / Max 360/720/1200 m³/h
Single Zone Air Flow Min / Med / Max 50/160/240 m³/h
Total Cooling Capacity (1) Min / Med / Max 2,09/4,15/6,40 kW
Sensible Capacity (1) Min / Med / Max 1,61/3,08/4,60 kW
Single Zone Cooling Capacity (1) Min / Med / Max 0,49/1,30/1,70 kW
Single Zone Sensible Capacity (1) Min / Med / Max 0,31/0,89/1,23 kW
Water Flow (1) Min / Med / Max 358/713/1220 l/h
Water Pressure Drop (1, 2) Min / Med / Max 1,0/4,0/9,0 kPa
Heating Capacity (3) Min / Med / Max 2,67/4,75/7,65 kW
Single Zone Heating Capacity (3) Min / Med / Max 0,42/1,29/1,85 kW
Water Flow (3) Min / Med / Max 464/826/1305 l/h
Water Pressure Drop (2,3) Min / Med / Max 2,0/5,0/10,0 kPa
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No P-FTQ65O05-RE
Maximum Static Pressure 100 Pa
Number of Fans 5
Orientation Vertical or Horizontal Installation
Phase Single Phase
Power Supply 230V, 50Hz
Power Consumption 76/162/325 W
IP Rating IP X0
Product Depth 575mm
Product Height 185mm
Product Width 1440mm
Product Weight 56kg
Remote Controller Included Controls Not Included. Please Order Separately.
Sound Power Min / Med / Max 43/53/62 dB(A)
Water (Hydraulic) Connections Type Eurokonus
Water (Hydraulic) Connections Size 3/4"
Condensate Drainage Connection 20mm
Intake Air Connection (Base x Height) 160mm
Return Air Connection (Base x Height) 1320mm x 100mm
System Suitability Suitable for use with Air Source Heat Pumps. Suitable for Domestic & Commercial Use. Contact Oceanair for details.
Type Multi Zone Ducted Fan Coil Unit
Wi-Fi Enabled Wi-Fi available with WLAN adapter (sold separately)

Visit your local branch or contact us for more information.
