Product code: H003105

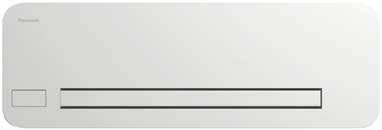

Panasonic Aquarea Air Smart Fan Coil Wall-Mounted with Wall Control & Left Piping P-FMM10SC-R0E

Delivers both heating and cooling in a single compact unit, Aquarea Air Smart fan coils optimise energy efficiency.

Ultra-slim chassis, just 128mm deep
Finished in RAL 9003
Includes wall-mounted control and left-hand water connections
DC Inverter technology for enhanced comfort and energy efficiency
Adjustable, modulated airflow
Also available with left-hand water connections

Description

The Aquarea Air Smart wall-mounted fan coil features a sleek, slimline design with a compact 128mm chassis and a modern RAL 9003 finish. Designed for optimal comfort and energy efficiency, it incorporates a DC inverter and offers modulated airflow for precise climate control. With adaptable left or right-side water connections, it supports 2-way or 3-way valve accessories. Control options include onboard, wall-mounted, or analog input (0-10V) via PCB.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

Ultra-slim chassis, just 128mm deep
Finished in RAL 9003
Includes wall-mounted control and left-hand water connections
DC Inverter technology for enhanced comfort and energy efficiency
Adjustable, modulated airflow
Also available with left-hand water connections
Compatible with optional 2-way or 3-way valves
Control options: integrated unit control, wall-mounted control, or analogue input PCB (0-10V)

* See Technical Attachments for more details.

Efficiency Data Notes: All efficiency data is calculated based on max. fan speed. 1) According to Eurovent standard. Air: 27°CDB / 19°CWB, chilled water: 7°C / 12°C. 2) According to Eurovent standard. Air: 20°C, hot water: 45°C / 40°C. 3) Informative Data, considering a hypothetical sound attenuation of the room and installation of 9 dB(A).

Specification

Brand Panasonic

Colour White

Compatibility Compatible with Panasonic Aquarea Air Source Heat Pumps. Compatible with Wall-mounted Modbus Control PCZ-EEB749 or integrated Wi-Fi PCZ-EFB749.

Air Flow 228 m³/h

Total Cooling Capacity (1) 1.24 kW

Sensible Capacity (1) 0.98 kW

Water Flow (1) 212.40 l/h

Water Pressure Drop (1) 11.7 kPa

Heating Capacity (2) 1.45 kW

Water Flow (2) 264.50 l/h

Water Pressure Drop (2) 16.7 kPa

Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty

Manufacturer's Model No P-FMM10SC-R0E

Phase Single Phase

Power Supply 230V, 50Hz

Product Depth 128mm

Product Height 335mm

Product Width 815mm

Product Weight 14kg

Remote Controller Included Wall-mounted Controller Included

Sound Power 53 dB(A)

Sound Pressure (3) 40 dB(A)

Water (Hydraulic) Connections Type Eurokonus

Water (Hydraulic) Connections Size 3/4"

System Suitability Suitable for use with Air Source Heat Pumps. Suitable for Domestic & Commercial Use.

Type Wall-Mounted Fan Coil Unit

Wi-Fi Enabled Wi-Fi available with WLAN adapter (sold separately)

Downloads

Panasonic Aquarea Air Smart Fan Coils Tech Specs Panasonic Aquarea Fan Coils Leaflet
