Panasonic Big PACi S-200PE4E High Static Pressure Hide-Away Duct Indoor Unit 20.0kW R32

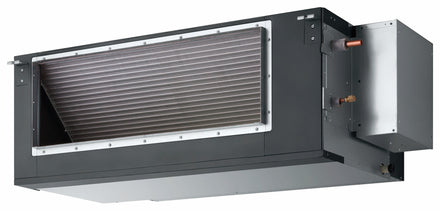

Panasonic Big PACi S-200PE3E5B High Static Pressure Hide-Away Duct Indoor Unit 20.0kW R32-Panasonic-Oceanair
Panasonic Aquarea High Performance K Generation R32 Heat Pump 5kW Outdoor Unit 1Ph WH-UDZ05KE5-Panasonic-Oceanair
Panasonic Big PACi S-200PE3E5B High Static Pressure Hide-Away Duct Indoor Unit 20.0kW R32-Panasonic-Oceanair
Panasonic Aquarea High Performance K Generation R32 Heat Pump 5kW Outdoor Unit 1Ph WH-UDZ05KE5-Panasonic-Oceanair
Panasonic Big PACi S-200PE4E High Static Pressure Hide-Away Duct Indoor Unit 20.0kW R32

The Big PACi series has been fully renewed with a redesigned indoor unit ...

Read more
  • Part of the Panasonic Big PACi series which is also compatible with PACi water heat exchanger
  • Suitable for single and multi split systems
  • Suitable for small to medium retail applications
  • Highly efficient with splitable design for easier installation and piping in narrow spaces
  • Lightweight indoor unit for easier installation and siting
  • Suitable for commercial heating and cooling applications
View more details

View all products by Panasonic

This product will be available soon, please contact us for more information on this product.

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Big PACi series has been fully renewed with a redesigned indoor unit. It provides a cost-effective and versatile solution for small to mid-sized projects and can also be integrated with VRF systems. Featuring a compact, lightweight indoor unit—16kg lighter than conventional 10 HP models—it offers high efficiency and a split-able design for easy piping in narrow spaces. Additional features include Panasonic Cloud control compatibility and 0-10V demand control for improved system management.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Part of the Panasonic Big PACi series which is also compatible with PACi water heat exchanger
  • Suitable for single and multi split systems
  • Suitable for small to medium retail applications
  • Highly efficient with splitable design for easier installation and piping in narrow spaces
  • Lightweight indoor unit for easier installation and siting
  • Suitable for commercial heating and cooling applications
  • Wi-Fi available with commercial Wi-Fi adaptor (sold separately)
  • Compatible with CONEX controls with IoT integration
  • Environmentally friendly R32 refrigerant

*See Technical Attachments for more precise parameters and conditions.



Specification

Air Flow Rate (Cooling) @ High 72 m³/min
Brand Panasonic
Certifications Met EN14511
Colour Grey
Compatible with Compatible with various Panasonic PACi indoor units and outdoor units. Compatible with Panasonic Big PACi U-200PZH4E8 Split Outdoor Unit. Contact Oceanair for mor details.
COP* 3.55
EER* 3.20
Energy Rating (Cooling)* 237.5%
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty (Ts and Cs Apply)
Manufacturer's Model No S-200PE4E
Nom. Cooling Capacity 19.0kW
Nom. Heating Capacity 22.4kW
Phase Three Phase
Power Rating (Watts kW) 20.0kW
Power Source 380 - 400 - 415V, 50Hz
Product Depth 916mm
Product Height 486mm
Product Width 1456mm
Range Description Panasonic Big PACi Series
Refrigerant Type R32
Remote Controller Included No Controller Supplied. Compatible with a variety of remote controllers. Contact Oceanair to discuss your requirements.
Sound Pressure Level (Lo) 41 dBA
Static Pressure Range (Pa) Up to 180 Pa
System Suitability Suitable for commercial use. Suitable for small to medium retail stores.
Type High Static Ducted Indoor Unit
Wi-Fi Enabled Wi-Fi available with WLAN adapter (sold separately)
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section. EER and COP calculation is based in accordance to EN14511. SEER and SCOP is calculated based on values of EU/626/2011 or EN 14825 depending on kW.
