Panasonic Floor Console 5.0kW Air Conditioning System
Description
Bring efficient comfort to your home with this complete Panasonic air-conditioning package. Combining the floor-mount indoor unit with the single split inverter outdoor unit, this system delivers powerful cooling and heating using eco-friendly R32 refrigerant. Its compact floor console fits neatly under windows or low walls, while the quiet inverter compressor ensures smooth, energy-saving performance in all seasons - even down to -15 °C in heating mode.

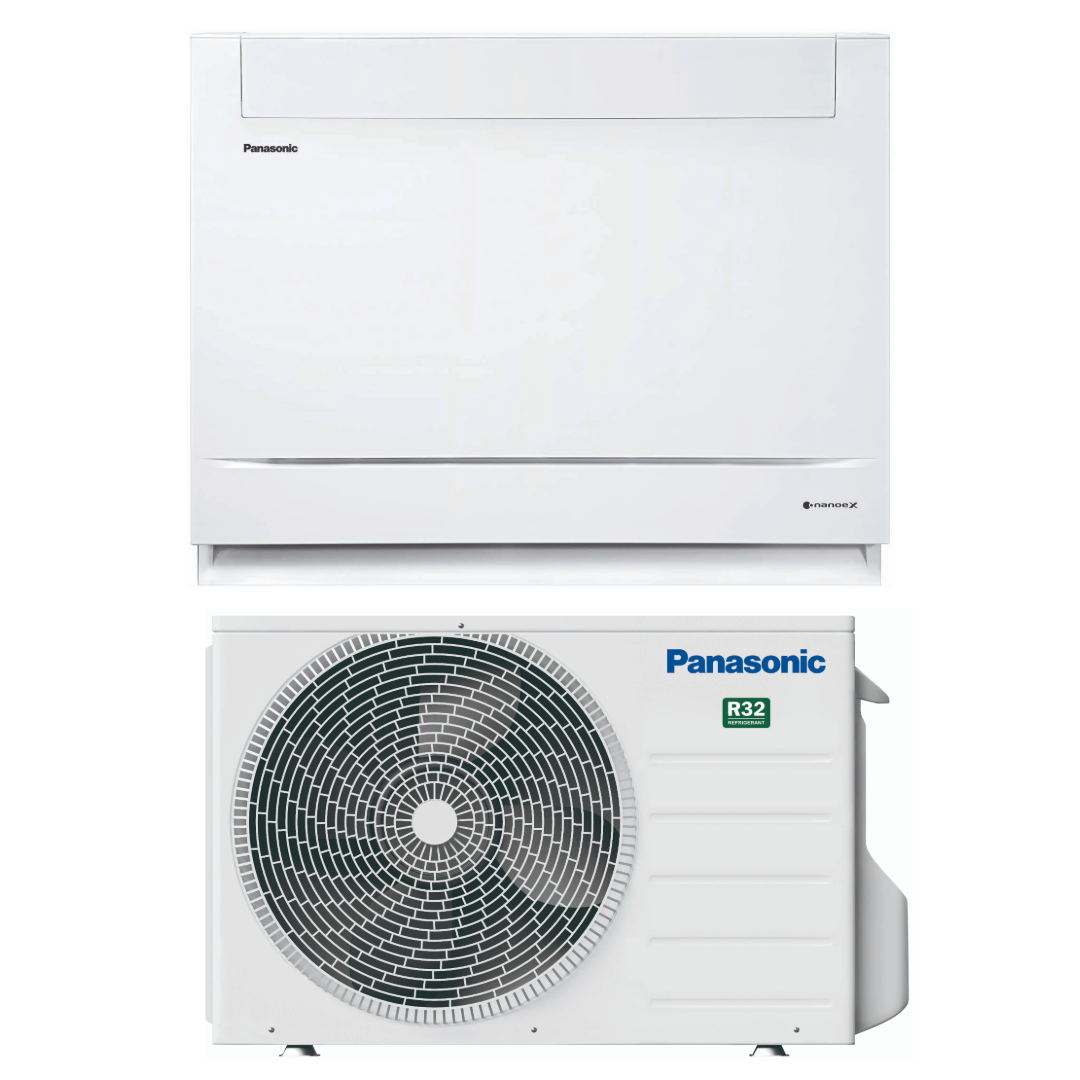

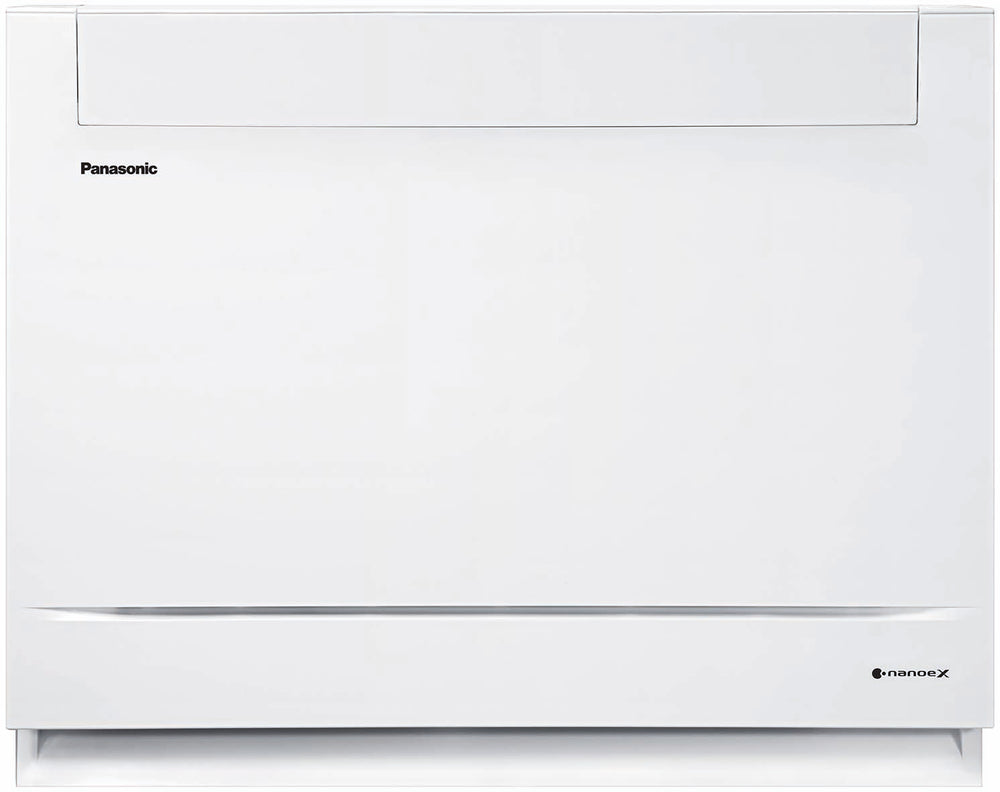

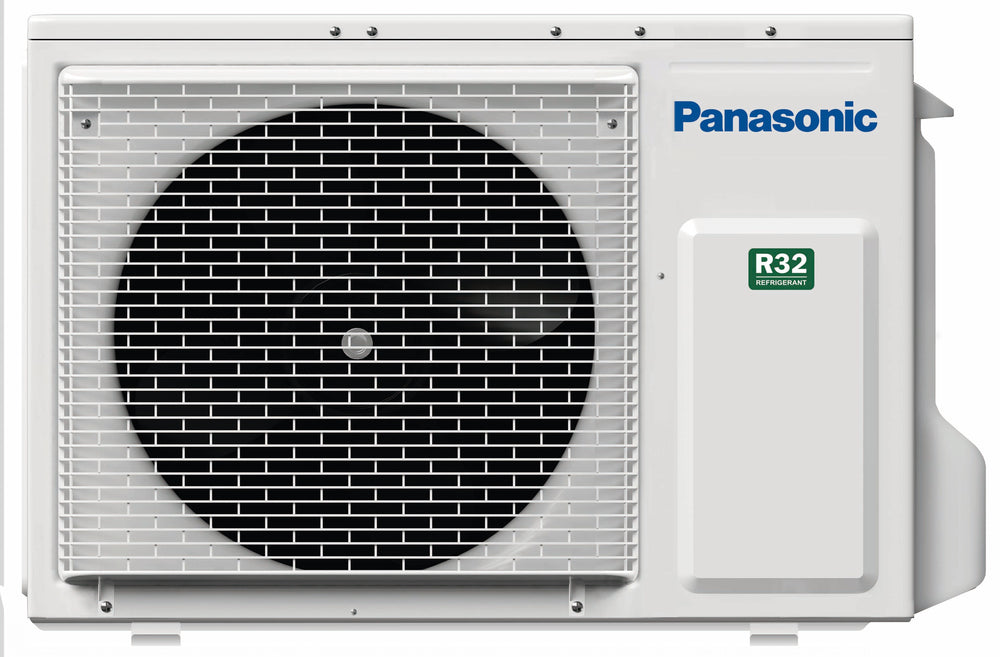

Please note: This air conditioning system includes a Panasonic Floor Console indoor unit CS-Z50CFEAW and a CU-Z50CBEA single split outdoor unit.
- Single split air conditioning system
- 3 year warranty
- Reduces impact of climate change with R32 refrigerant
- Features nanoe™ X air-purifying system inhibits certain bacteria and virus growth
- Includes remote controller
- Improved heating and cooling comfort with double airflow
- Light elegant design
- Easy to install
- Suitable for residential use
- Compatible with single split systems
- Compatible with multi split systems
- Super quiet operation for increased comfort
- Suitable for replacing old boiler heating systems
- Built-in Wi-Fi for smart device control
- Flexible installation to complement any style with floor-standing, half-concealed, embedded and wall mount installation options
*See Technical Attachments for more precise parameters and conditions.
Specification
Air Flow Rate (Cooling) @ High
11.6 m³/min
Brand
Panasonic
Certifications Met
EN14511
Colour
White
Compatible with
Compatible with Panasonic single split systems. Compatible with Panasonic multi split systems. Compatible with CU-Z50CBEA outdoor unit. Contact Oceanair for more details.
COP*
3.74
EER*
3.6
Energy Rating (Cooling)*
A++
Fitting Requirements
Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size
12.7mm
Liquid Pipe Size
6.35mm
Manufacturer Guarantee/ Manufacturer Warranty
3 Year Warranty (Ts and Cs Apply)
Manufacturer's Model No
CS-Z50CFEAW and CU-Z50CBEA
Nom. Cooling Capacity
5.0kW
Nom. Heating Capacity
5.8kW
Operating Temperature Range (Cooling)
-10°C to 43°C
Operating Temperature Range (Heating)
-15°C to 24°C
Pack Contents
1 x Floor Console Indoor Unit, 1 x Outdoor Unit
Phase
Single Phase
Power Source
230V, 50Hz
Product Depth
207mm
Product Height
600mm
Product Width
750mm
Range Description
Panasonic Free Multi System Z Air Conditioning
Refrigerant Type
R32
Remote Controller Included
Wireless Remote Controller Included
SCOP*
4.3
SEER*
6.7
Sound Pressure Level
44 dBA
System Suitability
Suitable for Domestic Use.
Type
Split Air Conditioner Floor Mount System
Wi-Fi Enabled
Wi-Fi available with WLAN adapter (sold separately)
* Efficiency Data Notes
All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section. EER and COP calculation is nominal and based in accordance to EN 14511
