Panasonic Floor Console for Free Multi
Multi SplitProduct code: Floor Console Free Multi

Panasonic Floor Console for Free Multi

The Panasonic Free Multi System Z offers the ultimate in flexible climate control, connecting up to five indoor units—including stylish Etherea, TZ wall-mounted, floor consoles, cassettes, and hide-away ducts—to a single compact outdoor unit. With A+++ energy efficiency, smart Wi-Fi control via Panasonic Comfort Cloud, and voice assistant compatibility, the system delivers powerful, intelligent comfort across multiple rooms while minimising exterior space usage. Among the indoor options, the Panasonic Floor Console range provides superquiet operation at just 20dB(A), advanced nanoe™ X air purification, and reliable year-round heating and cooling. Compatible with eco-friendly R32 refrigerant and powered by Panasonic’s original inverter compressor, these consoles ensure consistent performance even at -15°C, while inhibiting bacteria, viruses, allergens, and odours for a fresher, healthier indoor environment. Combining flexibility, efficiency, and whisper-quiet comfort, Panasonic’s Free Multi and Floor Console solutions meet the highest standards for sustainable, modern climate control in both homes and offices.

Panasonic Floor Console for Free Multi
(inc. Infra Red Controller)

Model Reference (Indoor Unit)


Nom.
Cool
(kW)

Nom.
Heat
(kW)

Max
Pipe
(m)
EuP Lot 10
Energy Rating

Fuse
(Amps)

Pipe
Size
Gas

Pipe
Size
Liquid

Electrical
Supply

Wi-Fi
Control
SCOP SEER
CS-MZ20UFEA 2.00 3.20 Please refer to Free Multi Outdoor Unit information or contact Oceanair. 3/8 1/4 Single Optional
CS‑Z25UFEAW 2.50 3.40 3/8 1/4 Single Optional
CS‑Z35UFEAW 3.50 4.30 3/8 1/4 Single Optional
CS‑Z50UFEAW 5.00 5.80 1/2 1/4 Single Optional

For more information, see Technical Specifications.

Key features

Versatile: install up to 5 indoor units per outdoor unit

Versatile: install up to 5 indoor units per outdoor unit

The Panasonic Multi Split system offers outstanding flexibility, allowing up to 5 indoor units to connect to a single outdoor unit. Each room can be individually controlled for precise comfort, while the compact design and long connection distances make installation easier and more versatile for modern homes and businesses.

Optional Wi-Fi compatible with Voice Assistant

Optional Wi-Fi compatible with Voice Assistant

With optional CZ-TACG1 and Panasonic Comfort Cloud app in your Smartphone manage all functions up to 200 units, have access to energy statistics, set up advance scheduling and define different access rights to other users. This works with Google Assistant and Amazon Alexa.*

* Google, Android, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Availability of Voice Assistant services varies depending on country and language. More information about set up procedures: Panasonic Comfort Cloud & Voice Assistant Set up

Smart, modern replacement for boiler heating systems

Smart, modern replacement for boiler heating systems

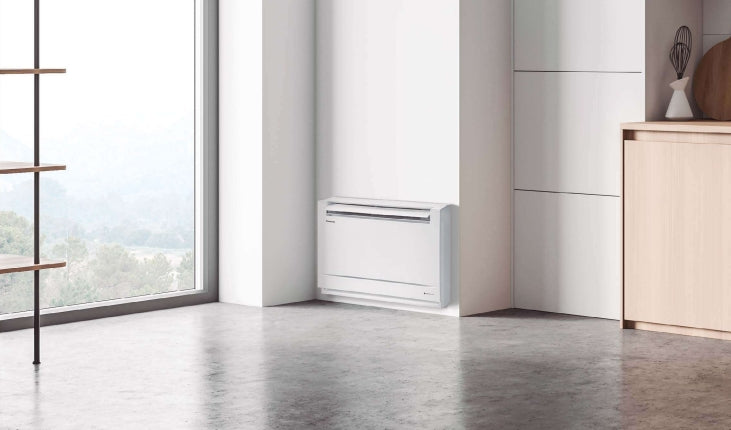

The Panasonic Floor Console is the perfect replacement for old boiler systems, offering a compact, stylish design that blends seamlessly into any home or office. With flexible installation options - floor, wall, half-concealed, or fully concealed - it delivers both elegance and practicality for modern interiors.

Highly efficient with double airflow technology

Highly efficient with double airflow technology

Awarded the iF Product Design Award 2019, this stylish unit also delivers super-quiet, highly efficient heating, capturing outdoor heat energy to keep your home or office warm even at -15°C. With double airflow technology, it distributes warm air from both the top and bottom vents for improved comfort and even temperature dispersion throughout the room.

Panasonic Floor Console - R32-Panasonic-Oceanair
Panasonic Floor Console - R32-Panasonic-Oceanair
Panasonic Floor Console - R32-Panasonic-Oceanair
Panasonic Floor Console - R32-Panasonic-Oceanair
Panasonic Floor Console - R32-Panasonic-Oceanair
Panasonic Etherea CS-XZ20ZKEW Wall Mount Air Conditioner Unit Wi-Fi R32 Silver-Panasonic-Oceanair
Versatile: install up to 5 indoor units per outdoor unit

Versatile: install up to 5 indoor units per outdoor unit

The Panasonic Multi Split system offers outstanding flexibility, allowing up to 5 indoor units to connect to a single outdoor unit. Each room can be individually controlled for precise comfort, while the compact design and long connection distances make installation easier and more versatile for modern homes and businesses.

Optional Wi-Fi compatible with Voice Assistant

Optional Wi-Fi compatible with Voice Assistant

With optional CZ-TACG1 and Panasonic Comfort Cloud app in your Smartphone manage all functions up to 200 units, have access to energy statistics, set up advance scheduling and define different access rights to other users. This works with Google Assistant and Amazon Alexa.*

* Google, Android, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Availability of Voice Assistant services varies depending on country and language. More information about set up procedures: Panasonic Comfort Cloud & Voice Assistant Set up

Smart, modern replacement for boiler heating systems

Smart, modern replacement for boiler heating systems

The Panasonic Floor Console is the perfect replacement for old boiler systems, offering a compact, stylish design that blends seamlessly into any home or office. With flexible installation options - floor, wall, half-concealed, or fully concealed - it delivers both elegance and practicality for modern interiors.

Highly efficient with double airflow technology

Highly efficient with double airflow technology

Awarded the iF Product Design Award 2019, this stylish unit also delivers super-quiet, highly efficient heating, capturing outdoor heat energy to keep your home or office warm even at -15°C. With double airflow technology, it distributes warm air from both the top and bottom vents for improved comfort and even temperature dispersion throughout the room.

Floor Console Indoor Unit Specification Table

Indoor Unit Technical DataModel Number
CS‑Z25UFEAWCS‑Z35UFEAWCS‑Z50UFEAW
Cooling (kW) - Nominal2.50 (0.85 - 3.40)3.50 (0.85 - 3.80)5.00 (0.90 - 5.70)
Heating (kW) - Nominal3.40 (0.85 - 5.00)4.30 (0.85 - 6.00)5.80 (0.90 - 8.10)
Sound Pressure - Cooling Hi / Lo / Q-Lo (dBA)38 / 25 / 2039 / 26 / 2044 / 31 / 27
Sound Pressure - Heating Hi / Lo / Q-Lo (dBA)38 / 25 / 1939 / 26 / 1946 / 33 / 29
Height (mm)600600600
Width (mm) (dBA)750750750
Depth (mm)207207207
Weight (kg)131313
Max Air Flow - Cooling (m³/min)9.69.911.6
Max Air Flow - Heating (m³/min)9.910.013.2
Moisture Removal Volume (L/h)1.52.02.8
nanoe™ X GeneratorMark 1Mark 1Mark 1
