Panasonic Free Multi Wall TZ - R32
Multi SplitProduct code: Free Multi Wall TZ

Panasonic Free Multi Wall TZ - R32

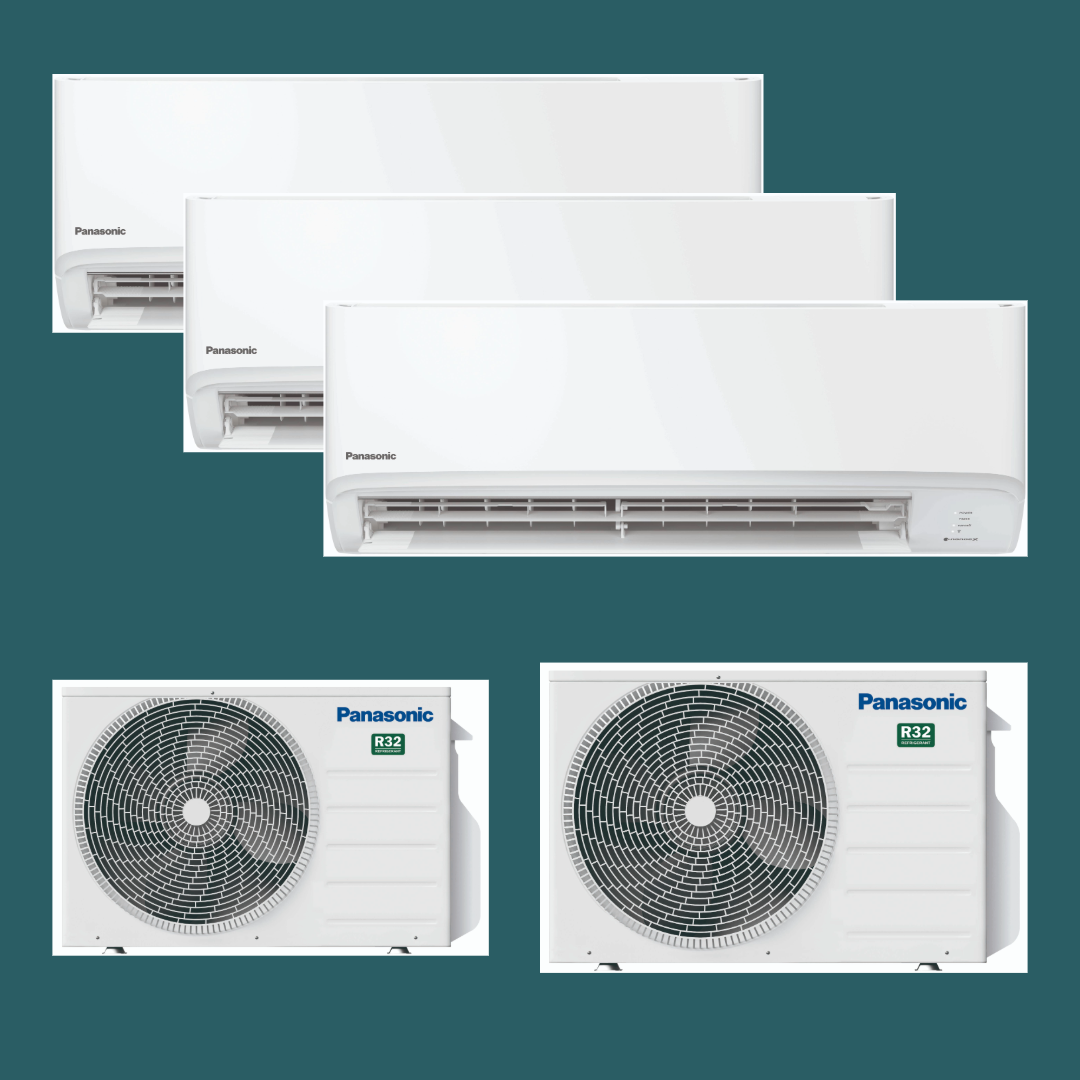

The Panasonic Free Multi Wall TZ Compact system is the ideal solution for providing efficient heating and cooling across multiple rooms with just one compact outdoor unit. Capable of connecting up to three TZ wall-mounted indoor units, it saves valuable space outside while giving each room independent temperature control for maximum comfort and energy efficiency. Designed with the latest R32 refrigerant, the system achieves up to A++ energy performance, reducing environmental impact without compromising on power. Perfect for homes and offices, the TZ Free Multi Compact range delivers precise climate control, energy savings, and modern reliability in a space-saving design.

Panasonic Free Multi Wall TZ - R32
Sales Leaflet Panasonic Free Multi & TZ 25 26 Panasonic RAC Wiring Diagrams Unit Dimensions TZ Super Compact Catalogue 25 26 Panasonic nanoe™ X brochure

These condensers are designed exclusively for use with TZ Wall Mounted indoor units and are not compatible with any other Panasonic models.

Model Reference
Nom.
Cool
(kW)
Nom.
Heat
(kW)
Max
Pipe per leg
(m)
Max Pipe (m)		 EuP Lot 10
Energy Rating
Fuse
(Amps)
I/C Cable (Core)
Pipe
Size
Gas
Pipe
Size
Liquid
Electrical
Supply

(Min / Max) I/U Conn.

 Outdoor Unit SCOP SEER
2-2 CU-2TZ41TBE 4.10 4.40 20 30 4.30 7.10 16 3C + E Per Indoor Unit Power Fed From Outdoor Unit 3/8 (9.52) 1/4 (6.35) Single
2-2 CU-2TZ50TBE 5.00 5.70 20 30 4.20 7.00 16 3/8 (9.52) 1/4 (6.35) Single
2-3 CU-3TZ52TBE 5.20 6.80 25 50 4.20 7.60 16 3/8 (9.52) 1/4 (6.35) Single

For more information, see Technical Specifications.


Key features

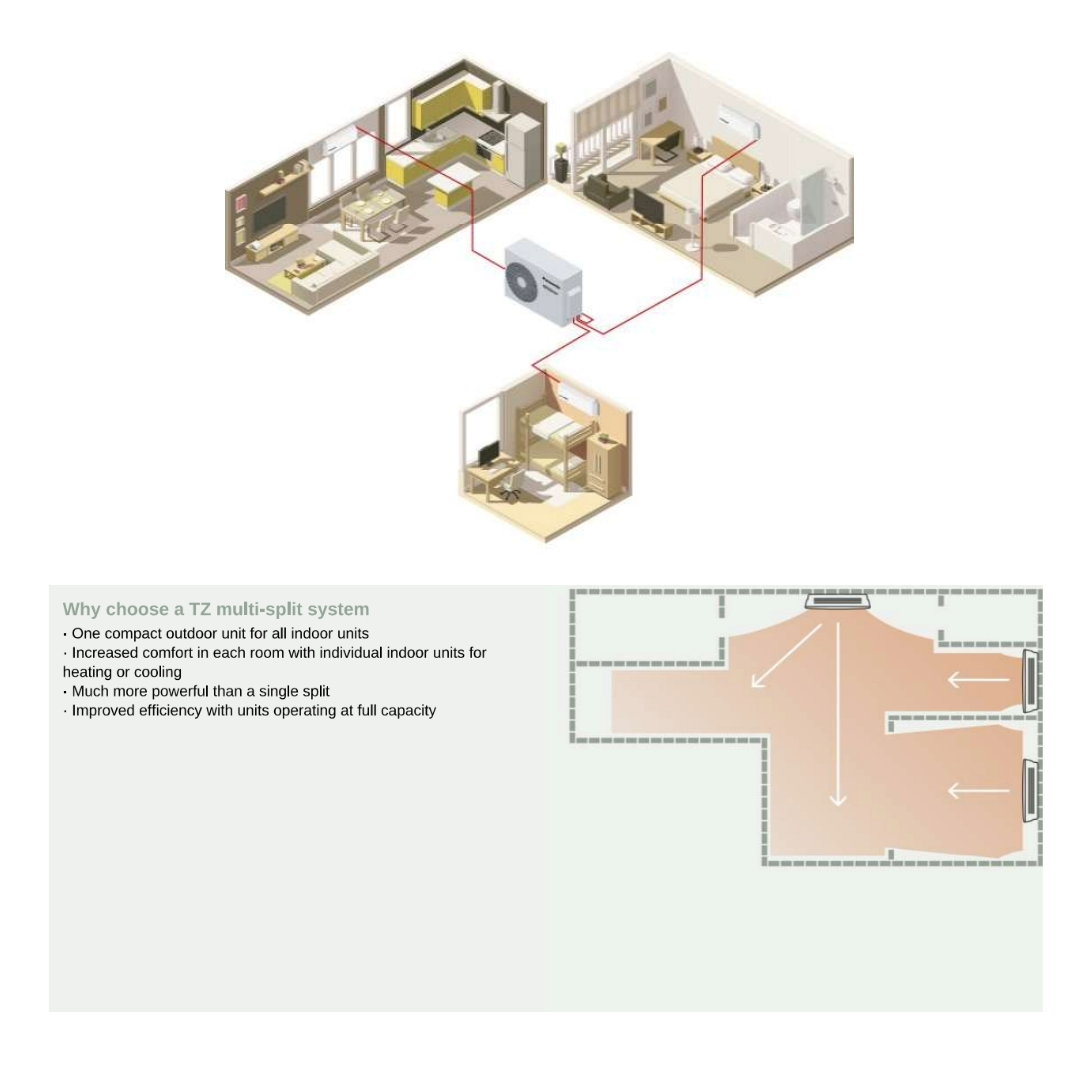

Versatile: install 2 or 3 indoor units per outdoor unit

Versatile: install 2 or 3 indoor units per outdoor unit

Enjoy maximum flexibility with the Panasonic system, allowing up to 3 rooms to be controlled individually. The compact and elegant indoor unit is just 779mm wide, offering versatile installation options with long connection distances for greater convenience.

nanoe™ X technology for cleaner air

nanoe™ X technology for cleaner air

Enjoy cleaner, fresher air with nanoe™ X technology, which uses the power of hydroxyl radicals to purify your indoor environment of bacteria, mould and more, to help create a healthier and more comfortable space all day long. See nanoeX leaflet for more details.

Built-in Wi-Fi for smart control & voice assistant

Built-in Wi-Fi for smart control & voice assistant

Take full control with smart connectivity, featuring built-in Wi-Fi for quick setup, advanced smartphone management, and voice control compatibility with Google Assistant and Amazon Alexa*

* Google, Android, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Availability of Voice Assistant services varies depending on country and language. More information about set up procedures: Panasonic Comfort Cloud & Voice Assistant Set up



Compatible with BMS control

Compatible with BMS control

Seamlessly integrate Panasonic air conditioning into your BMS projects with full flexibility for KNX, Modbus, and BACnet systems, enabling bi-directional monitoring and control of all key operating parameters for smarter, more efficient management.

Panasonic Free Multi Wall TZ - R32-Panasonic-Oceanair
Panasonic Free Multi Wall TZ - R32-Panasonic-Oceanair
Panasonic Free Multi Wall TZ - R32-Panasonic-Oceanair
Panasonic Free Multi Wall TZ - R32-Panasonic-Oceanair
Panasonic Etherea CS-XZ20ZKEW Wall Mount Air Conditioner Unit Wi-Fi R32 Silver-Panasonic-Oceanair
Versatile: install 2 or 3 indoor units per outdoor unit

Versatile: install 2 or 3 indoor units per outdoor unit

Enjoy maximum flexibility with the Panasonic system, allowing up to 3 rooms to be controlled individually. The compact and elegant indoor unit is just 779mm wide, offering versatile installation options with long connection distances for greater convenience.

nanoe™ X technology for cleaner air

nanoe™ X technology for cleaner air

Enjoy cleaner, fresher air with nanoe™ X technology, which uses the power of hydroxyl radicals to purify your indoor environment of bacteria, mould and more, to help create a healthier and more comfortable space all day long. See nanoeX leaflet for more details.

Built-in Wi-Fi for smart control & voice assistant

Built-in Wi-Fi for smart control & voice assistant

Take full control with smart connectivity, featuring built-in Wi-Fi for quick setup, advanced smartphone management, and voice control compatibility with Google Assistant and Amazon Alexa*

* Google, Android, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Availability of Voice Assistant services varies depending on country and language. More information about set up procedures: Panasonic Comfort Cloud & Voice Assistant Set up



Compatible with BMS control

Compatible with BMS control

Seamlessly integrate Panasonic air conditioning into your BMS projects with full flexibility for KNX, Modbus, and BACnet systems, enabling bi-directional monitoring and control of all key operating parameters for smarter, more efficient management.

TZ Indoor Unit Specification Table

Indoor Unit Technical DataModel Number
CS-MTZ16ZKECS-TZ20ZKEWCS-TZ25ZKEWCS-TZ35ZKEWCS-TZ42ZKEWCS-TZ50ZKEW
Cooling Capacity (kW) 1.62.002.50 3.50 /td>4.20 5.00
Heating Capacity (kW)2.603.203.604.50 5.60 6.80)
Connection In / Out (mm²) 4x1,5 4x1,5 4x1,5 4x1,5 4x1,5 4x2,5
Sound Pressure - Cooling Hi / Lo / Q-Lo (dBA)38 / 27 / 2237 / 25 / 2040 / 26 / 2042 / 30 / 2044 / 31 / 2944 / 37 / 33
Sound Pressure - Heating Hi / Lo / Q-Lo (dBA)39 / 28 / 2438 / 26 / 2240 / 27 / 2242 / 33 / 2244 / 35 / 3444 / 37 / 33
Height (mm)290290290290290295
Width (mm)7797797797797791040
Depth (mm)209209209209209209
Weight (kg)888888
nanoe X GeneratorMark 1Mark 1Mark 1Mark 1Mark 1Mark 1



Free Multi TZ Outdoor Unit Specification Table

<
Outdoor Unit Technical DataModel Number
CU‑2TZ41TBECU‑2TZ50TBECU‑3TZ52TBE
Indoor nominal capacity (Min - Max)3,2 ~ 6,0 kW3,2 ~ 7,7 kW 4,5 ~ 9,5 kW
Cooling Capacity (Nom. Min-Max) - kW4,10 (1,50 - 4,70) 5,00 (1,50 - 5,40) 5,20 (1,80 - 6,60)
EER4,14 (5,56 - 3,41)3,85 (5,56 - 3,33)4,52 (3,67 - 5,00)
SEER7,10 A++7,00 A++7,60 A++
Pdesign (Cooling) kW4.105.005.20
Input Power Cooling (Nom. min-max) kW 0,99 (0,27 - 1,38 1,30 (0,27 - 1,62)1,15 (0,36 - 1,80)
Annual Electricity Consumption Cooling kWh/a202250239
Heating Capacity (Nom. Min-Max) kW 4,40 (1,10 - 6,305,70 (1,10 - 6,40) 6,80 (1,60 - 7,50)
Heating Capacity at -7°C - kW 3.753.80~
COP4,44 (5,00 - 3,54)4,35 (5,00 - 3,62)4,28 (3,87 - 5,00)
SCOP4,30 A+ 4,20 A+ 4,20 A+
Pdesign at -10°C - kW3.504.505.00
Input Power Heating - kW 0,99 (0,22 - 1,78)1,31 (0,22 - 1,77) 1,59 (0,32 - 1,94)
Annual Electricity Consumption (Heating) - kWh/a 1 139 1 5001 667
Current (Cool/Heat) - Amps 4,60 / 4,606,00 / 6,005,30 / 7,30
Power Supply (V)230230230
Sound Pressure (Cool/Heat Hi) - dBA48 / 5050 / 5248 / 48
Height (mm)542542795
Width (mm)780780875
Depth (mm)289289320
Weight (kg)353571
Piping Diameter - Liquid Inch (mm)1/4 (6.35mm)1/4 (6.35mm)1/4 (6.35mm)
Piping Diameter - Gas Inch (mm)3/8 (9.52mm)3/8 (9.52mm)3/8 (9.52mm)
Pipe Length Range (m)6~306~306~50
Pipe Length Range to One Unit (m)3~203~203~25
Elevation Difference (in / out) m101015
Pre-charged Pipe Length (m)202030
Additional Gas Amount (g/m)151520
Refrigerant (R32) / CO2 Eq. (kg / T) 0,9 / 0,60750,9 / 0,60752,1 / 1,4175
Operating Range Cool (Min - Max °C) -10~+46-10~+46-10~+46
Operating Range Heat (Min - Max °C)-15~+24-15~+24-15~+24
