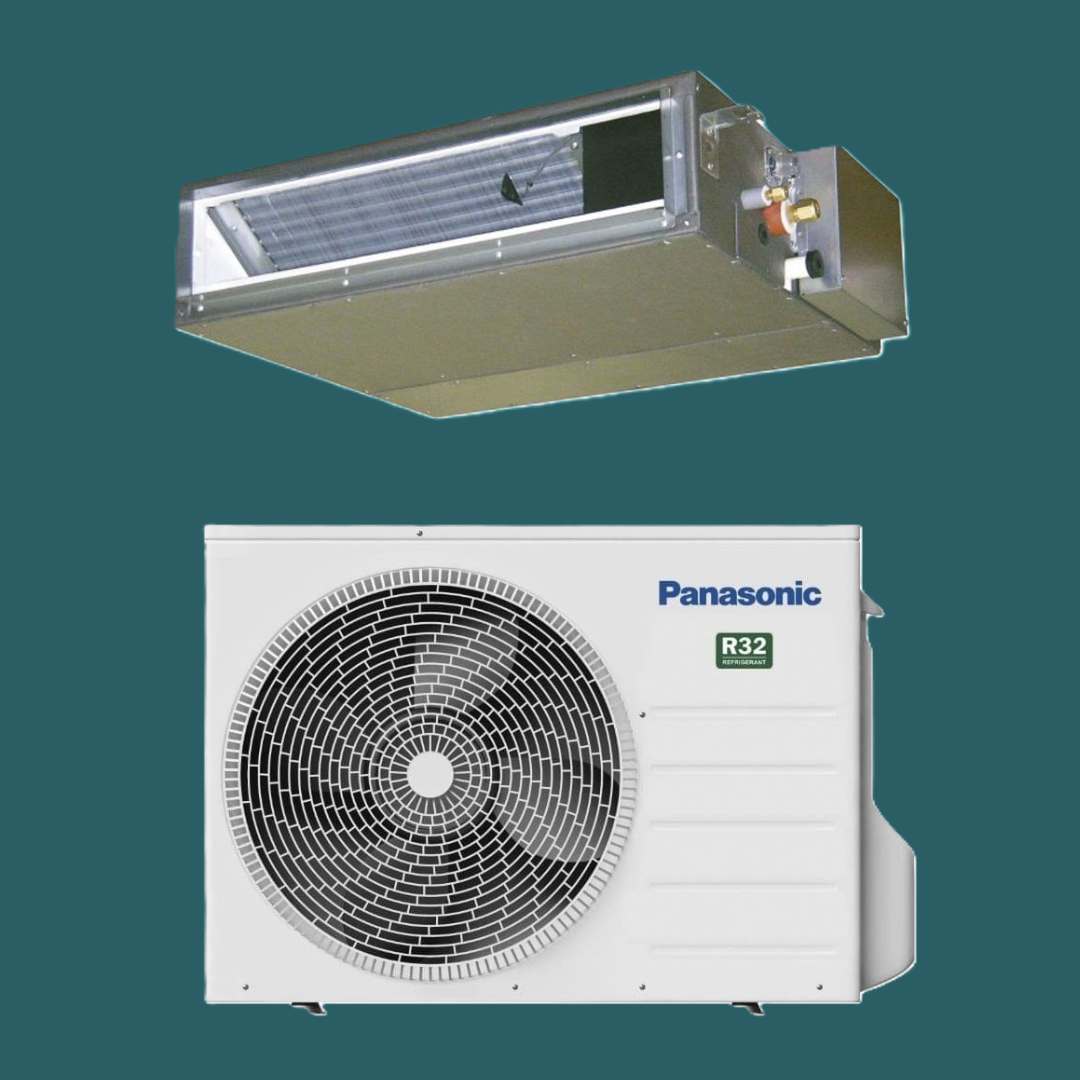

Panasonic Low Static Pressure Hide-Away - R32
The Panasonic Low Static Pressure Hide-Away (R32) range delivers a compact, discreet ducted air conditioning solution ideal for residential and light commercial spaces. At just 200mm high, these ultra-slim units fit tight ceiling voids without sacrificing performance, while Eco Mode cuts energy use by up to 20%, supported by a weekly timer with 42 settings and an easy check mode for quick fault detection. With a built-in drain pump and full compatibility with KNX and Modbus smart building systems, they offer flexible installation, advanced connectivity, and year-round efficiency.
|
Model Reference |
Nom. Cool (kW) |
Nom. Heat (kW) |
Max Pipe (m) |
EuP Lot 10 Energy Rating |
Fuse (Amps) |
Pipe Size Gas |
Pipe Size Liquid |
Electrical Supply |
Wi-Fi Control |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | SCOP | SEER | ||||||||
| CS‑Z25UD3EAW | CU‑Z25UBEA | 2.50 | 3.20 | 20 | 4.20 | 5.90 | 16 | 3/8 | 1/4 | Single | Optional |
| CS‑Z35UD3EAW | CU‑Z35UBEA | 3.50 | 4.20 | 20 | 4.10 | 5.80 | 16 | 3/8 | 1/4 | Single | Optional |
| CS‑Z50UD3EAW | CU‑Z50UBEA | 5.10 | 6.10 | 30 | 4.10 | 5.90 | 16 | 1/2 | 1/4 | Single | Optional |
| CS‑Z60UD3EAW | CU‑Z60UBEA | 6.00 | 7.00 | 30 | 4.10 | 5.60 | ~ | 1/2 | 1/4 | Single | Optional |
| For more information, see Technical Specifications. |
|||||||||||
Key features
Designed for flexibility
The Panasonic Low Static Pressure Hide-Away is designed for maximum flexibility with a super-compact 200mm-high indoor unit, flexible piping options, and a compact outdoor design. Featuring a built-in drain pump and compatibility with both R410A and existing R22 piping systems, it ensures easy installation and reliable performance in a wide range of applications.
Ideal for small spaces, domestic and commercial alike

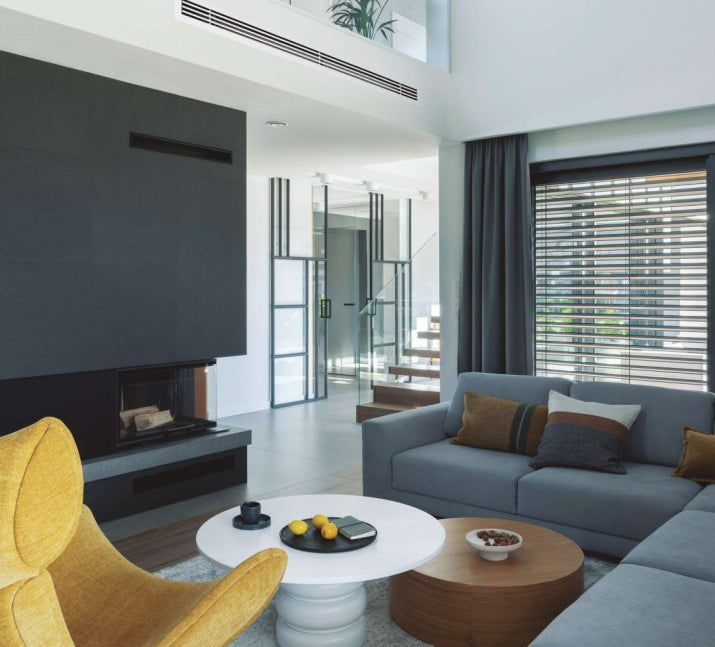

Ideal for homes, offices, retail spaces, and restaurants, this ducted unit is perfect for small rooms where seamless integration of heating and cooling is required, delivering high comfort and energy efficiency in a compact, discreet design.
The unit’s whisper-quiet operation ensures it remains virtually unnoticed- discreet to both sight and sound for total comfort.
Compatible with BMS control
Seamlessly integrate Panasonic air conditioning into your BMS projects with full flexibility for KNX, Modbus, and BACnet systems, enabling bi-directional monitoring and control of all key operating parameters for smarter, more efficient management.
Optional Wi-Fi compatible with Voice Assistant
With optional CZ-TACG1 and Panasonic Comfort Cloud app in your Smartphone manage all functions up to 200 units, have access to energy statistics, set up advance scheduling and define different access rights to other users. This works with Google Assistant and Amazon Alexa.*
* Google, Android, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Availability of Voice Assistant services varies depending on country and language. More information about set up procedures: Panasonic Comfort Cloud & Voice Assistant Set up
Designed for flexibility
The Panasonic Low Static Pressure Hide-Away is designed for maximum flexibility with a super-compact 200mm-high indoor unit, flexible piping options, and a compact outdoor design. Featuring a built-in drain pump and compatibility with both R410A and existing R22 piping systems, it ensures easy installation and reliable performance in a wide range of applications.
Ideal for small spaces, domestic and commercial alike
Ideal for homes, offices, retail spaces, and restaurants, this ducted unit is perfect for small rooms where seamless integration of heating and cooling is required, delivering high comfort and energy efficiency in a compact, discreet design.
The unit’s whisper-quiet operation ensures it remains virtually unnoticed- discreet to both sight and sound for total comfort.
Compatible with BMS control
Seamlessly integrate Panasonic air conditioning into your BMS projects with full flexibility for KNX, Modbus, and BACnet systems, enabling bi-directional monitoring and control of all key operating parameters for smarter, more efficient management.
Optional Wi-Fi compatible with Voice Assistant
With optional CZ-TACG1 and Panasonic Comfort Cloud app in your Smartphone manage all functions up to 200 units, have access to energy statistics, set up advance scheduling and define different access rights to other users. This works with Google Assistant and Amazon Alexa.*
* Google, Android, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Availability of Voice Assistant services varies depending on country and language. More information about set up procedures: Panasonic Comfort Cloud & Voice Assistant Set up
Low Static Pressure Hide-Away Indoor Unit Specification Table
| Indoor Unit Technical Data | Model Number | |||
|---|---|---|---|---|
| CS‑Z25UDEAW | CS‑Z35UDEAW | CS‑Z50UDEAW | CS‑Z60UDEAW | |
| Cooling (kW) - Nominal | 2.50 (0.85 - 3.20) | 3.50 (0.85 - 4.00) | 5.10 (0.90 - 5.70) | 6.00 (0.90 - 6.50) |
| Heating (kW) - Nominal | 3.20 (0.85 - 4.60) | 4.20 (0.85 - 5.10) | 6.10 (0.90 - 7.20) | 7.00 (0.90 - 8.00) |
| Sound Pressure - Cooling Hi / Lo / Q-Lo (dBA) | 33 / 27 / 24 | 33 / 27 / 24 | 39 / 29 / 26 | 41 / 30 / 27 |
| Sound Pressure - Heating Hi / Lo / Q-Lo (dBA) | 33 / 27 / 24 | 33 / 27 / 24 | 39 / 30 / 27 | 41 / 32 / 29 |
| Height (mm) | 200 | 200 | 200 | 200 |
| Width (mm) | 750 | 750 | 750 | 750 |
| Depth (mm) | 640 | 640 | 640 | 640 |
| Weight (kg) | 19 | 19 | 19 | 19 |
| Max Air Flow - Cooling (m³/min) | 10.5 | 11.2 | 15.3 | 15.7 |
| Max Air Flow - Heating (m³/min) | 10.5 | 11.2 | 15.3 | 15.7 |
| Moisture Removal Volume (L/h) | 1.5 | 2.0 | 2.8 | 3.3 |
| Max Air Flow - Cooling (m³/min) | 10.5 | 10.8 | 12.5 | 12.7 |
| Max Air Flow - Heating (m³/min) | 9.5 | 11.3 | 13.2 | 13.6 |
| Moisture Removal Volume (L/h) | 1.5 | 1.9 | 2.8 | 3.3 |
| External Static Pressure (Pa) | 15 - 45 | 15 - 45 | 15 - 50 | 15 - 50 |
Low Static Pressure Hide-Away Outdoor Unit Specification Table
| Outdoor Unit Technical Data | Model Number | ||||||
|---|---|---|---|---|---|---|---|
| CU‑Z25UBEA | CU‑Z35UBEA | CU‑Z50UBEA | CU‑Z60UBEA | ||||
| Max Air Flow - Cooling (m³/min) | 28.7 | 34.3 | 39.7 | 39.7 | |||
| Max Air Flow - Heating (m³/min) | 27.2 | 33.5 | 38.6 | 38.6 | |||
| Sound Pressure - Cooling Hi (dBA) | 46 | 48 | 48 | 48 | |||
| Sound Pressure - Heating Hi (dBA) | 47 | 48 | 48 | 48 | |||
| Piping Diameter - Liquid Inch (mm) | 1/4 (6.35) | 1/4 (6.35) | 1/4 (6.35) | 1/4 (6.35) | |||
| Piping Diameter - Gas Inch (mm) | 3/8 (9.52) | 3/8 (9.52) | 1/2 (12.70) | 1/2 (12.70) | |||
| Pipe Length Range (m) | 3 ~ 20 | 3 ~ 20 | 3 ~ 30 | 3 ~ 30 | |||
| Elevation Difference In / Out (m) | 15 | 15 | 20 | 20 | |||
| Pre-Charged Pipe Length (m) | 7.5 | 7.5 | 7.5 | 7.5 | |||
| Additional Gas Amount (g/m) | 10 | 10 | 15 | 15 | |||
| Refrigerant (R32) / CO₂ Eq. (kg / T) | 0.88 / 0.594 | 0.93 / 0.628 | 1.13 / 0.763 | 1.13 / 0.763 | |||
| Operating Range Cool (Min - Max °C) | -10 ~ +43 | -10 ~ +43 | -10 ~ +43 | -10 ~ +43 | |||
| Operating Range Heat (Min - Max °C) | -15 ~ +24 | -15 ~ +24 | -15 ~ +24 | -15 ~ +24 | |||
| Height (mm) | 542 | 542 | 542 | 542 | |||
| Width (mm) | 780 | 780 | 780 | 780 | |||
| Depth (mm) | 289 | 299 | 320 | 320 | |||
| Weight (kg) | 33 | 35 | 43 | 43 | |||
| Phase | Single | Single | Single | Single | |||
| Power Supply (V) | 230 | 230 | 230 | 230 | |||
| Recommended Fuse (A) | 16 | 16 | 16 | ~ | |||
| Connection Indoor / Outdoor (mm²) | 4 x 1.5 - 2.5 | 4 x 1.5 - 2.5 | 4 x 1.5 - 2.5 | ~ | |||
