Light CommercialProduct code: PACi NX 4 Way 60 x 60 Cassette

Panasonic PACi NX 4 Way 60 x 60 Cassette - R32

Name: Panasonic PACi NX 4 Way 60 x 60 Cassette - R32
Brand: Panasonic
Availability: InStock

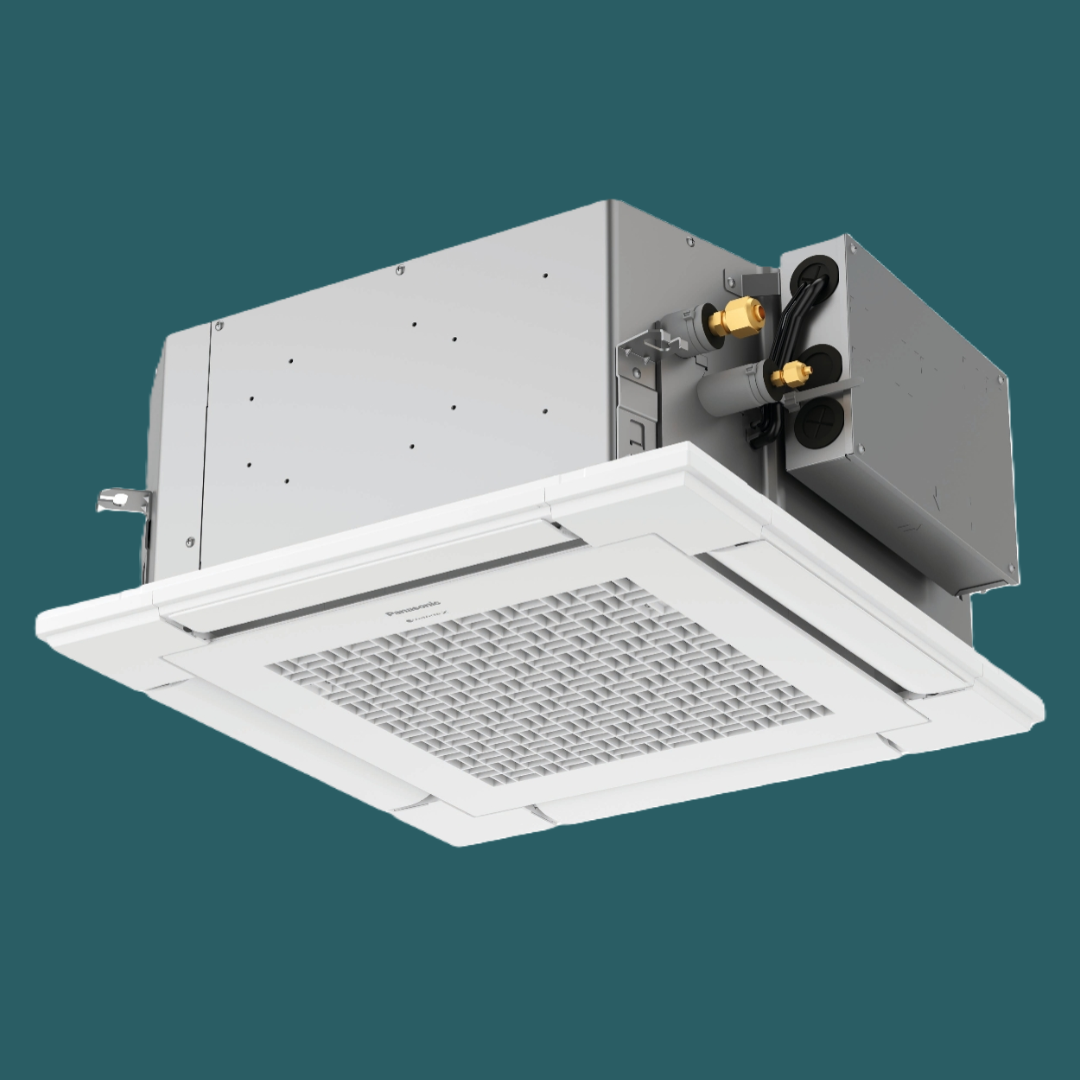

The new Panasonic NX Series brings together refined temperature control and clean air with nanoe™ X built in as standard, elevating indoor comfort for commercial environments. Its DC fan and optional intelligent Econavi sensor boost energy efficiency, while compact design, lightweight piping, and an integrated drain pump ensure fast, tidy installation. The NX 4-way 60×60 cassette (PY3) model fits seamlessly into compact ceiling layouts with only 250 mm depth and features internal cleaning via nanoe™ X circulation to inhibit mould growth. With advanced remote control via Bluetooth® and optional IoT or Wi-Fi connectivity, the NX Series delivers performance, purity, and practicality in one sleek system. Delivers exceptional results with both PACi NX Standard and Elite outdoor units.

PACi NX 60 x 60 cassette leaflet 25 26 PACi NX 60 x 60 Cassette Sales Leaflet PACi NX Leaflet & Wiring Info 25 26 Conex Leaflet nanoe™ X Leaflet PACi NX Commercial, Twin, Triple & Double Twin 25/26 Commercial Dimensions Wiring Diagrams 25 26 Operating Instructions

Model Reference (Indoor Unit)	Nom. Cool (Standard Inverter) (kW)	Nom. Cool (Elite Inverter) (kW)	Nom. Heat (Standard Inverter) (kW)	Nom. Heat (Elite Inverter) (kW)	Sound Pressure - Hi / Med / Lo (dBA)	Sound Power - Hi / Med / Lo (dBA)	Height - mm (Grille)	Width - mm (Grille)	Depth - mm (Grille)	Weight - kg (Grille)	Max. Air Flow Rate (m³/min)	Fused Spur (A)	nanoe X Generator
Model Reference (Indoor Unit)	Nom. Cool (Standard Inverter) (kW)	Nom. Cool (Elite Inverter) (kW)	Nom. Heat (Standard Inverter) (kW)	Nom. Heat (Elite Inverter) (kW)	Sound Pressure - Hi / Med / Lo (dBA)	Sound Power - Hi / Med / Lo (dBA)	Height - mm (Grille)	Width - mm (Grille)	Depth - mm (Grille)	Weight - kg (Grille)	Max. Air Flow Rate (m³/min)	Fused Spur (A)	nanoe X Generator	S-25PY3E	2.50	-	3.20	-	31 / 28 / 25	46 / 43 / 40	243 (30)	575 (625)	575 (625)	15 (2.8)	8.50	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-36PY3E	3.60	3.60	3.60	4.00	34 / 30 / 25	49 / 45 / 40	243 (30)	575 (625)	575 (625)	15 (2.8)	9.50	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-50PY3E	5.00	2.50	5.00	5.60	39 / 34 / 27	54 / 49 / 42	243 (30)	575 (625)	575 (625)	15 (2.8)	12.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-60PY3E	6.00	6.00	6.00	7.00	43 / 37 / 31	58 / 52 / 46	243 (30)	575 (625)	575 (625)	15 (2.8)	14.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
	For more information, see Technical Specifications.

Unless otherwise stated, all figures in the above table relate to pairings with PACi NX Series standard 1ph outdoor units.

Key features

Easy installation & optional Bluetooth® or Wi-Fi connectivity

The Panasonic PACi NX 4-Way Cassette is designed for quick and easy installation, featuring a lightweight design, simple piping layout, and an integrated drain pump for hassle-free setup. Choose the optional CZ-RTC6WBL / CZ-RTC6BL wired remote controllers for Bluetooth® connectivity, or the CZ-CAPWFC2 commercial Wi-Fi adaptor for easy system configuration and precise control.

Compatible with BMS control

Seamlessly integrate Panasonic air conditioning into your BMS projects with full flexibility for KNX, Modbus, and BACnet systems, enabling bi-directional monitoring and control of all key operating parameters for smarter, more efficient management.

Improved indoor air quality & self-cleaning function

Enhances indoor air quality with built-in nanoe™ X technology, providing continuous air purification and an internal self-cleaning function. With the optional CZ-FDU3 and CZ-ATU2 kits, it also supports a high fresh air intake, ensuring a cleaner, healthier indoor environment.

Excellent seasonal efficiency & optional Econavi intelligent sensors

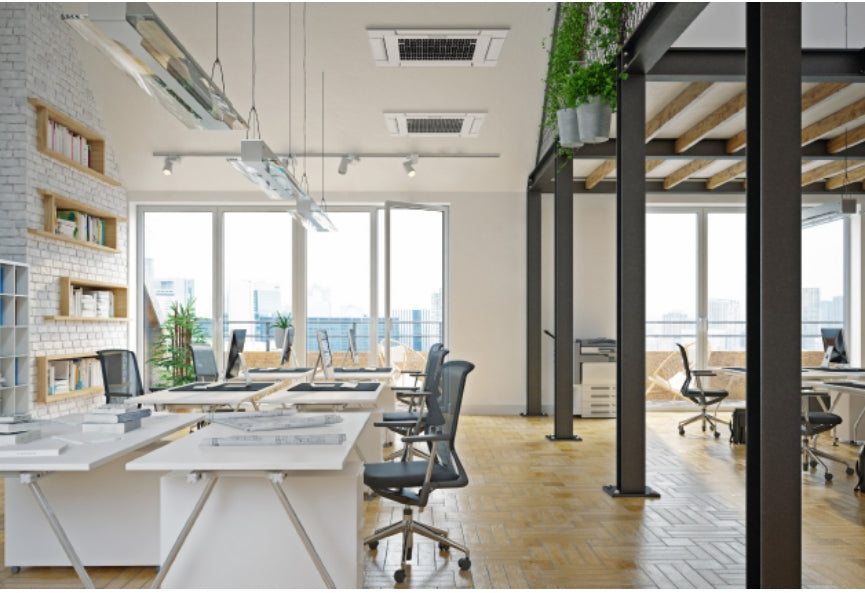

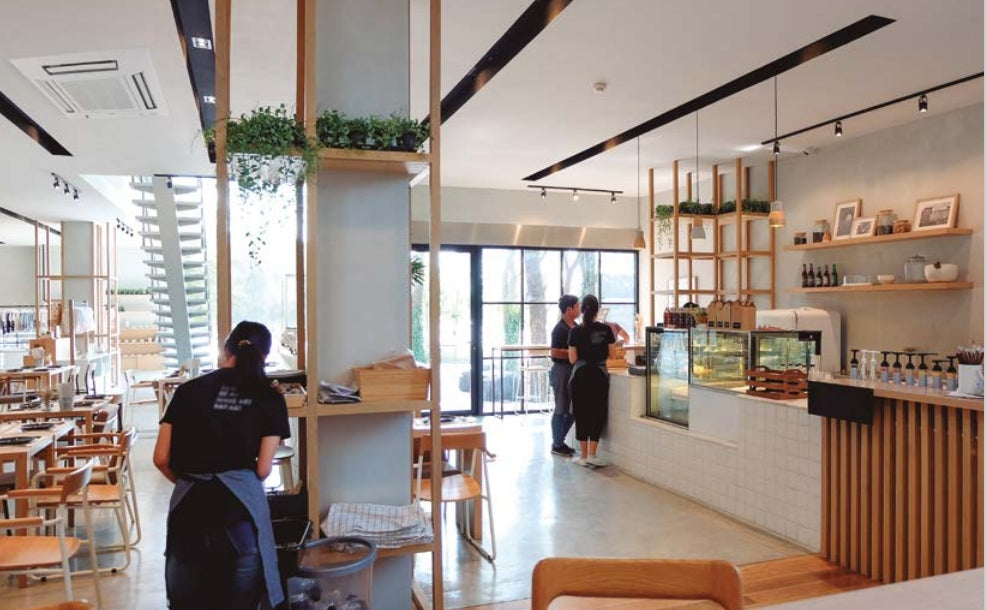

Delivers superior energy efficiency and comfort, achieving top-tier performance with a maximum SEER of up to 7.3 (A++) and SCOP of up to 4.7 (A++). With optional Econavi intelligent sensors, it optimises energy use based on room conditions, reducing waste while enhancing comfort. Operating quietly, it ensures powerful yet comfortable performance, ideal for offices, retail, and hospitality spaces.
