Light CommercialProduct code: PACi NX Adaptive Ducted Indoor Units

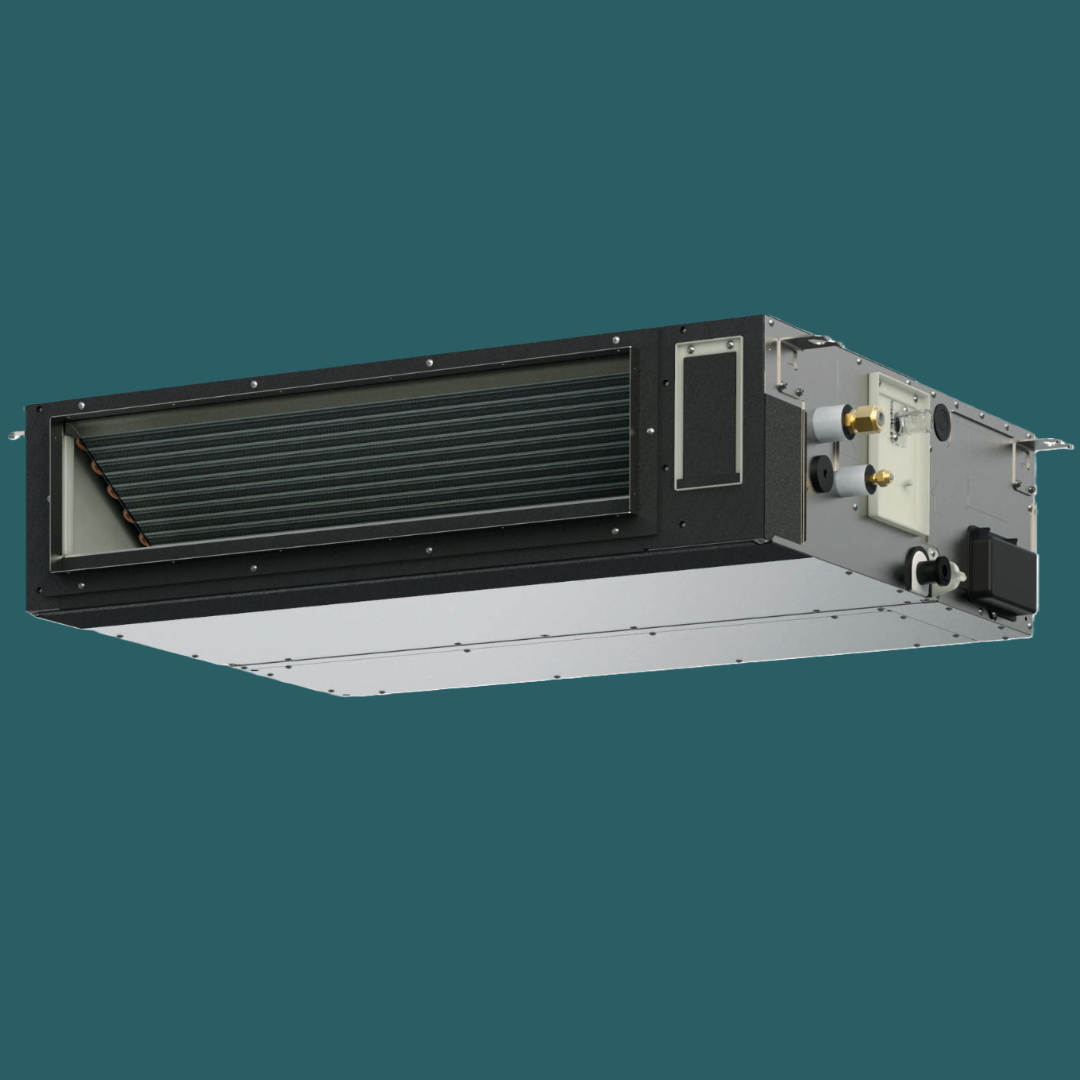

Panasonic PACi NX Adaptive Ducted - R32

Name: Panasonic PACi NX Adaptive Ducted - R32
Brand: Panasonic
Availability: InStock

The Panasonic PACi NX Series Adaptive Ducted Units (PF3, R32) offer maximum installation flexibility and reliable comfort for a wide range of commercial applications. With the ability to be installed in either horizontal or vertical positions and a high external static pressure of 150Pa, they are ideal for long duct runs and complex layouts. Featuring selectable rear or bottom air inlets, an improved drain pan, and an integrated drain pump, installation is simple and efficient. Equipped with nanoe™ X (Generator Mark 2) technology as standard, these ducted units provide continuous air purification by reducing pollutants, allergens, and odours, ensuring healthier indoor environments. For added protection, an optional BION air filter removes harmful pollutants such as NO₂, NOx, and ozone (O₃). Compatible with both PACi NX Series Standard and Elite outdoor units, it offers up to A++ energy efficiency and heating down to –20°C.

PACi Ducted Catalogue 25 26 PACi NX Elite Adaptive Ducted Leaflet PACi NX Standard Adaptive Ducted Leaflet Operating Instructions Installation Manual PACi NX Leaflet & Wiring Info 25 26 Conex Leaflet nanoe™ X Leaflet PACi NX Commercial, Twin, Triple & Double Twin 25/26 Commercial Dimensions Wiring Diagrams 25 26

Model Reference (Indoor Unit)	Nom. Cool (Standard Inverter) (kW)	Nom. Cool (Elite Inverter) (kW)	Nom. Heat (Standard Inverter) (kW)	Nom. Heat (Elite Inverter) (kW)	Sound Pressure - Hi / Med / Lo (dBA)	Sound Power - Hi / Med / Lo (dBA)	Height (mm)	Width (mm)	Depth (mm)	Weight (kg)	Max. Air Flow Rate (m³/min)	Fused Spur (A)	nanoe X Generator
Model Reference (Indoor Unit)	Nom. Cool (Standard Inverter) (kW)	Nom. Cool (Elite Inverter) (kW)	Nom. Heat (Standard Inverter) (kW)	Nom. Heat (Elite Inverter) (kW)	Sound Pressure - Hi / Med / Lo (dBA)	Sound Power - Hi / Med / Lo (dBA)	Height (mm)	Width (mm)	Depth (mm)	Weight (kg)	Max. Air Flow Rate (m³/min)	Fused Spur (A)	nanoe X Generator	S-3650PF3E	3.40	3.60	3.40	4.00	30 / 27 / 22	53 / 50 / 45	250	800	730	25	14.00	5 (Power to Outdoor Unit)	Mark 2
S-3650PF3E	5.00	5.00	5.00	5.60	34 / 30 / 25	57 / 53 / 48	250	800	730	25	16.00	5 (Power to Outdoor Unit)	Mark 2
S-6071PF3E	5.70	5.70	5.70	7.00	30 / 26 / 23	53 / 49 / 46	250	1000	730	30	21.00	5 (Power to Outdoor Unit)	Mark 2
S-6071PF3E	6.80	6.80	6.80	7.50	30 / 26 / 23	53 / 49 / 46	250	1000	730	30	21.00	5 (Power to Outdoor Unit)	Mark 2
S-1014PF3E	9.50	9.50	9.50	10.80	33 / 29 / 25	56 / 52 / 48	250	1400	730	39	32.00	5 (Power to Outdoor Unit)	Mark 2
S-1014PF3E	12.10	12.10	12.10	13.50	35 / 31 / 27	58 / 54 / 50	250	1400	730	39	34.00	5 (Power to Outdoor Unit)	Mark 2
S-1014PF3E	13.40	13.40	13.40	15.50	39 / 35 / 29	62 / 58 / 52	250	1400	730	39	36.00	5 (Power to Outdoor Unit)	Mark 2
	For more information, see Technical Specifications.

Unless otherwise stated, all figures in the above table relate to pairings with PACi NX Series standard 1ph outdoor units.

Key features

Flexible installation with powerful airflow

Choose between horizontal or vertical installation to suit any layout, with an external static pressure of 150 Pa for remote placement and strong airflow. A single integrated drain pan is used for both orientations—no unit modification required—making installation faster and more efficient.

There's also the option to equip adaptive ducted units with BION air filters for pollutants such as nitrogen dioxide (NO2), nitrogen oxides (NOX) and Ozone (O3).

Easy installation & connectivity

The Panasonic PACi NX indoor units are designed for quick and easy installation, featuring a lightweight design, and simple piping layout for hassle-free setup. Choose the optional CZ-RTC6WBL / CZ-RTC6BL wired remote controllers for Bluetooth® connectivity, or the CZ-CAPWFC2 commercial Wi-Fi adaptor for easy system configuration and precise control.

nanoe™ X technology for cleaner air

Enjoy cleaner, fresher air with nanoe™ X technology, which uses the power of hydroxyl radicals to purify your indoor environment of bacteria, mould and more, to help create a healthier and more comfortable space all day long. See nanoeX leaflet for more details.
