Light CommercialProduct code: PACI NX Series Elite

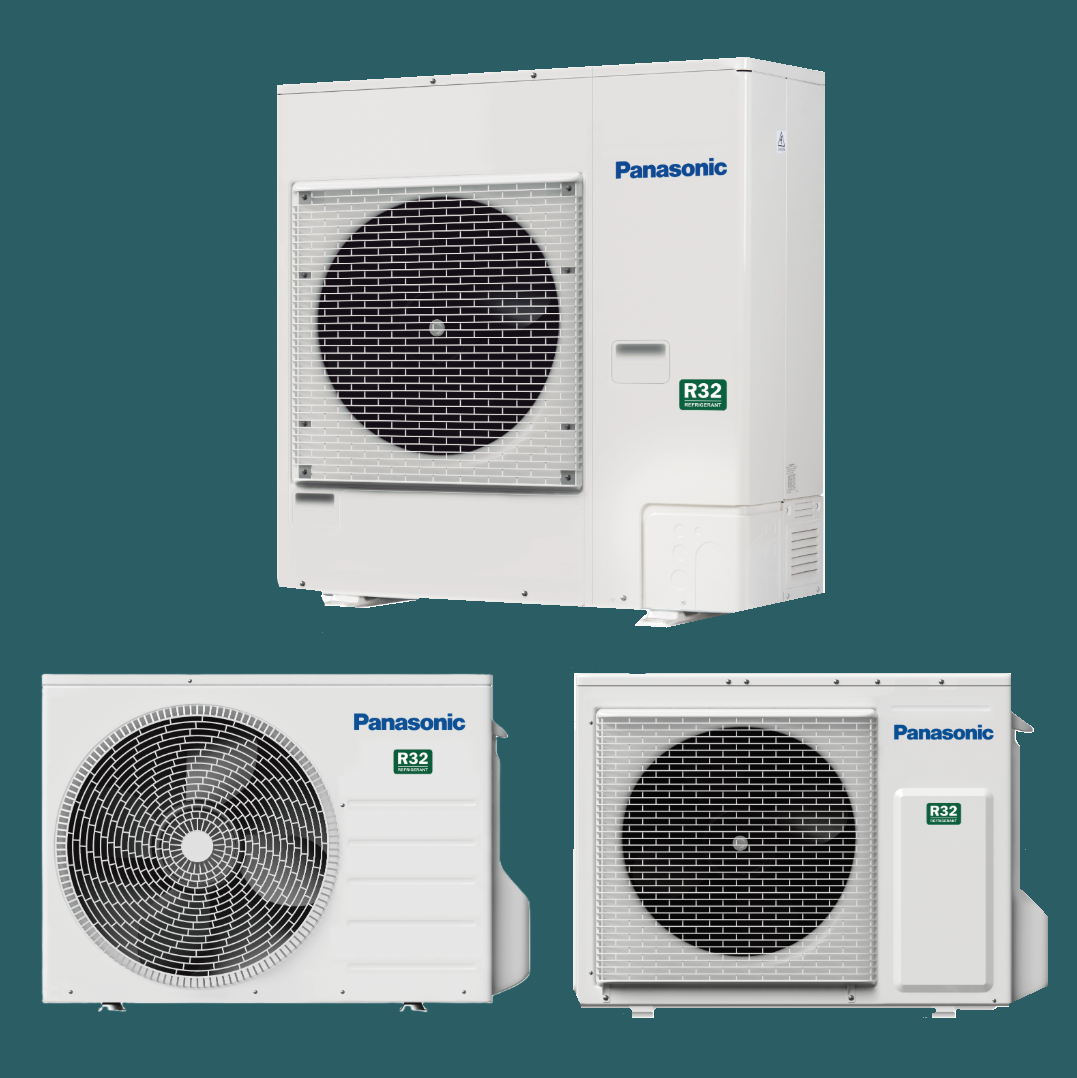

Panasonic PACi NX Elite Outdoor Units - R32

Name: Panasonic PACi NX Elite Outdoor Units - R32
Brand: Panasonic
Availability: InStock

The Panasonic PACi NX Elite outdoor units deliver premium performance for demanding commercial and multi-room installations. These units support twin, triple, and double-twin applications, allowing a single condenser to power up to 4 indoor units simultaneously with streamlined operation. Equipped with R32 refrigerant and engineered for high seasonal efficiency (SEER/SCOP up to A+++/A+++), the Elite line handles extreme temperatures—from heated operation at –20 °C to cooling beyond 46 °C—while maintaining reliability and energy savings. The outdoor units also feature a compact, lightweight design for flexible installation in tight spaces, making them ideal where space is limited. With PACi NX Elite, you can offer clients a scalable, efficient, and high-performing HVAC solution that adapts to varied indoor configurations—without needing multiple outdoor units.

PACi NX Leaflet & Wiring Info 25 26 PACi NX Commercial, Twin, Triple & Double Twin 25/26 Conex Leaflet

Outdoor Unit Technical Data	Model Number
Outdoor Unit Technical Data	U-36PZH3E5	U-50PZH3E5	U-60PZH3E5	U-71PZH4E5 U-71PZH4E8	U-100PZH4E5 U-100PZH4E8	U-125PZH4E5 U-125PZH4E8	U-140PZH4E5 U-140PZH4E8
Air Flow - Cool / Heat (m³/min)	34.1 / 36.4	42.0 / 42.0	42.0 / 42.0	62.0/66.0	76.0/70.0	86.0/78.0	89.0/83.0
Sound Pressure - Cool / Heat Hi (dBA)	43 / 44	46 / 48	47 / 50	48 / 50	52 / 52	55 / 55	56 / 56
Sound Power- Cool / Heat Hi (dBA)	62 / 64	64 / 67	65 / 69	65 / 67	69 / 69	73 / 73	74 / 74
Piping Diameter - Liquid Inch (mm)	1/4 (6.35)	1/4 (6.35)	1/4 (6.35)	3/8 (9.52)	3/8 (9.52)	3/8 (9.52)	3/8 (9.52)
Piping Diameter - Gas Inch (mm)	1/2 (12.70)	1/2 (12.70)	1/2 (12.70)	5/8 (15.88)	5/8 (15.88)	5/8 (15.88)	5/8 (15.88)
Max Pipe Run (m)	40	40	40	60	100	100	100
Max Pipe Lift (m)	15 (15 if condenser is lower than IU) Please contact Oceanair for more information.			30 (15 if condenser is lower than IU) Please contact Oceanair for more information.
Pre-Charged Pipe Length (m)	7.5	7.5	7.5	30	30	20	20
Additional Gas Amount (g/m)	15	15	15	30	40g/m to 80m then 25g/m to 100m
Refrigerant	R32	R32	R32	R32	R32	R32	R32
Operating Range Cool (Min - Max °C)	-15~ +46	-15~ +46	-15~ +46	-15~ +52	-15~ +52	-15~ +52	-15~ +52
Operating Range Heat (Min - Max °C)	-20~ +24	-20~ +24	-20~ +24	-20~ +24	-20~ +24	-20~ +24	-20~ +24
Height (mm)	695	695	695	996	996	996	996
Width (mm)	875	875	875	980	980	980	980
Depth (mm)	320	320	320	370	370	370	370
Weight (kg)	42	42	43	66	84 / 82	86 / 84	86 / 84
Combinations	1	1-2	1	1-3	2-4	2-4	2-4
Connection Indoor / Outdoor (mm²)	-	2x1,5 or 2,5	-	2x1,5 or 2,5	2x1,5 or 2,5	2x1,5 or 2,5	2x1,5 or 2,5
Power Supply (V)	220 - 230 - 240 (1ph)			220 - 230 - 240 ( 1ph) / 380 - 400 - 415 (3ph)
Interconnecting	3 Core plus earth
Twin Pipe Kit	N/A	CZ-P224BK2BM (2 x 25)	Twin Combination Not Possible	CZ-P224BK2BM (2 x 36)	CZ-P224BK2BM (2 x 50)	CZ-P224BK2BM (2 x 60)	CZ-P224BK2BM (2 x 71)
Triple Pipe Kit	N/A	N/A	N/A	CZ-P3HPC2BM (3 x 25)	CZ-P3HPC2BM (3 x 36)	CZ-P3HPC2BM (3 x 45)	CZ-P3HPC2BM (3 x 50)
Double-Twin Pipe Kit	N/A	N/A	N/A	N/A	CZ-P224BK2BM x 3 (4 x 25)	CZ-P224BK2BM x 3 (4 x 26)	No Combination
Fuse Rating (A)	20	20	25	25	32 (16)	40 (16)	40 (16)

Key features

5 year compressor warranty

Panasonic air conditioners come with peace of mind built in, offering a 5-year warranty on the compressor and 2 years on components, ensuring long-lasting reliability and trusted performance.

Flexible multi-unit connection for powerful performance

The PACi NX Elite outdoor units (5.0–14.0 kW) support twin, triple, and double-twin installations, allowing up to four indoor units to connect to a single system. All units operate simultaneously with the same settings, providing consistent comfort, simplified control, and efficient climate management across larger spaces.

Compact, durable design with Flexible installation and operation

Each model features a single-fan compact outdoor unit built for easy installation and reliable operation, even in space-limited areas, while enjoying long piping runs up to 100 m, twin, triple, and double-twin configurations for flexible installation.

Outstanding energy efficiency and reliability

Achieving up to SEER 8.9 A+++ and SCOP 5.1 A+++ (at 3.6 kW with 90x90 cassette), the range ensures top-class performance and lower running costs.

The PACi NX Elite range also operates in extreme conditions—up to 52 °C in cooling and –20 °C in heating— and features auto-restart after power outages for seamless, dependable performance year-round.
