Panasonic PACi NX Jet Air Stream Indoor Units - R32
Light CommercialProduct code: PACi NX Jet Air Stream

Panasonic PACi NX Jet Air Stream Indoor Units - R32

Experience high-speed comfort with the Panasonic Jet Air Stream range, engineered to deliver powerful, long-distance airflow using Panasonic’s jet engine-inspired technology. Available in Smart, Standard, and Ducted variants, this range offers flexible installation options for commercial spaces. Jet Air Stream units provide fast, even cooling and heating, ultra-quiet performance, and high energy efficiency using R32 refrigerant and inverter compressor technology.

Panasonic PACi NX Jet Air Stream Indoor Units - R32

Model Reference


Nom.
Cool
(kW)

Nom.
Heat
(kW)

Ext
Static
Pressure
(Pa)
EuP Lot 10
Energy Rating

Fuse
(A)


Pipe
Size
Gas
(Inch)


Pipe
Size
Liquid
(Inch)

Electrical
Supply

Air
Flow
(m³/h)
Indoor Unit Outdoor Unit COP EER
P-VTVF140M/N/PC5-PE U-140PZH4E5 14.10 14.00 170 3.88 3.46 40 5/8 3/8 Single 2560
P-VTVF140M/N/PC5-PE U-140PZH4E8 14.10 14.00 170 3.88 3.46 16 5/8 3/8 Three 2560
P-VTVF250M/N/PC5-PE U-250PZH4E8 24.2 26.7 170  3.74 3.80 30 7/8 1/2 Three 5010

For more information, see Technical Specifications.

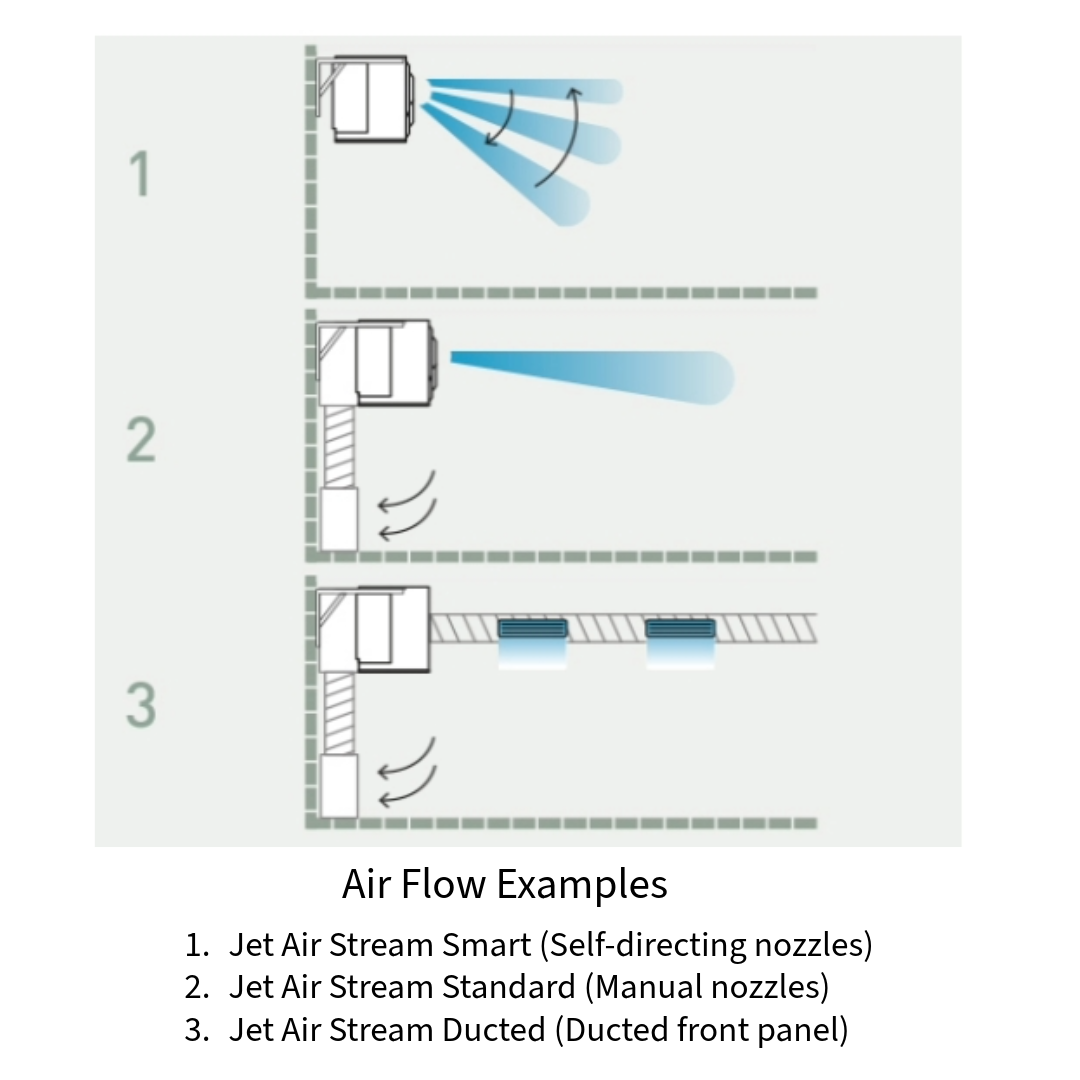

Note: In 'Model Reference' (M) denotes Jet Air Stream Smart, (N) denotes Jet Air Stream Standard, (P) denotes Jet Air Stream Ducted models. All models exhibit the same technical data according to their class.

Key features

Efficient Climate Control for Large, High-Ceiling Spaces

Efficient Climate Control for Large, High-Ceiling Spaces

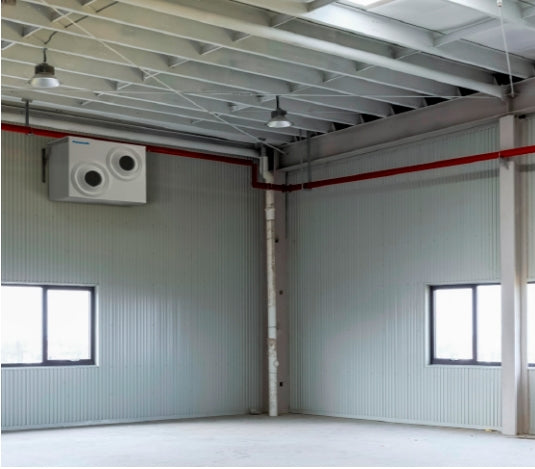

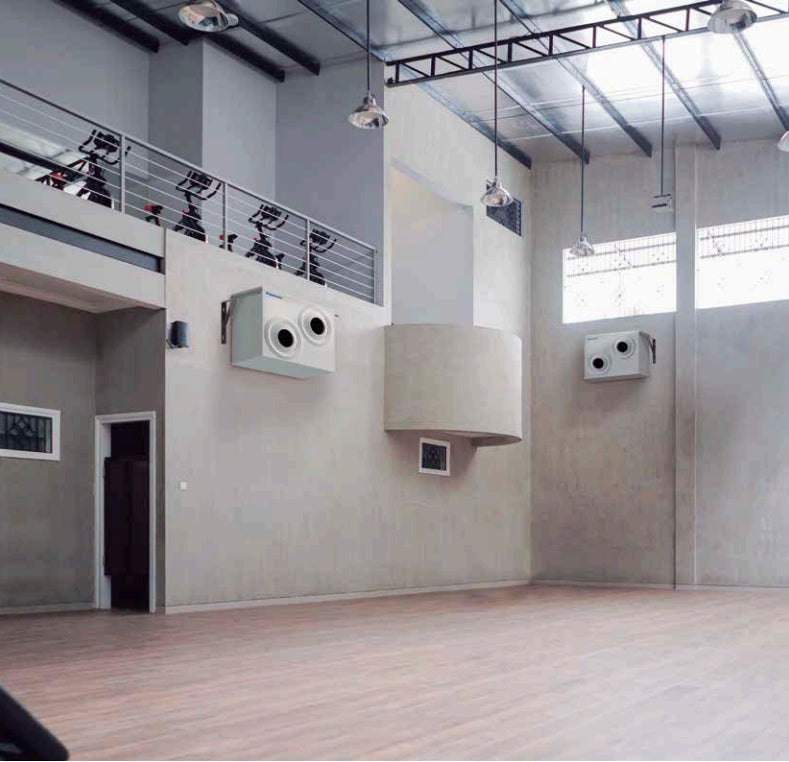

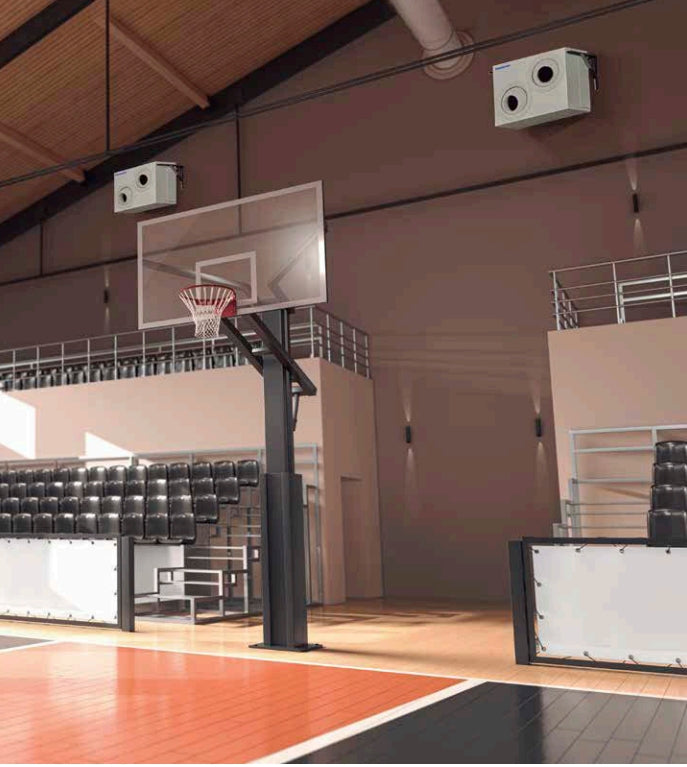

The Panasonic Jet Air Stream is the ideal HVAC solution for warehouses, gyms, and retail spaces, replacing noisy, inefficient fossil fuel systems with a quiet, energy-efficient alternative. Designed for powerful, long-distance airflow, it provides sustainable year-round heating and cooling, delivering superior comfort, simple installation, and reduced operating costs — all with Panasonic’s advanced inverter and R32 refrigerant technology.

High-Performance Efficiency & Long Air Throw

High-Performance Efficiency & Long Air Throw

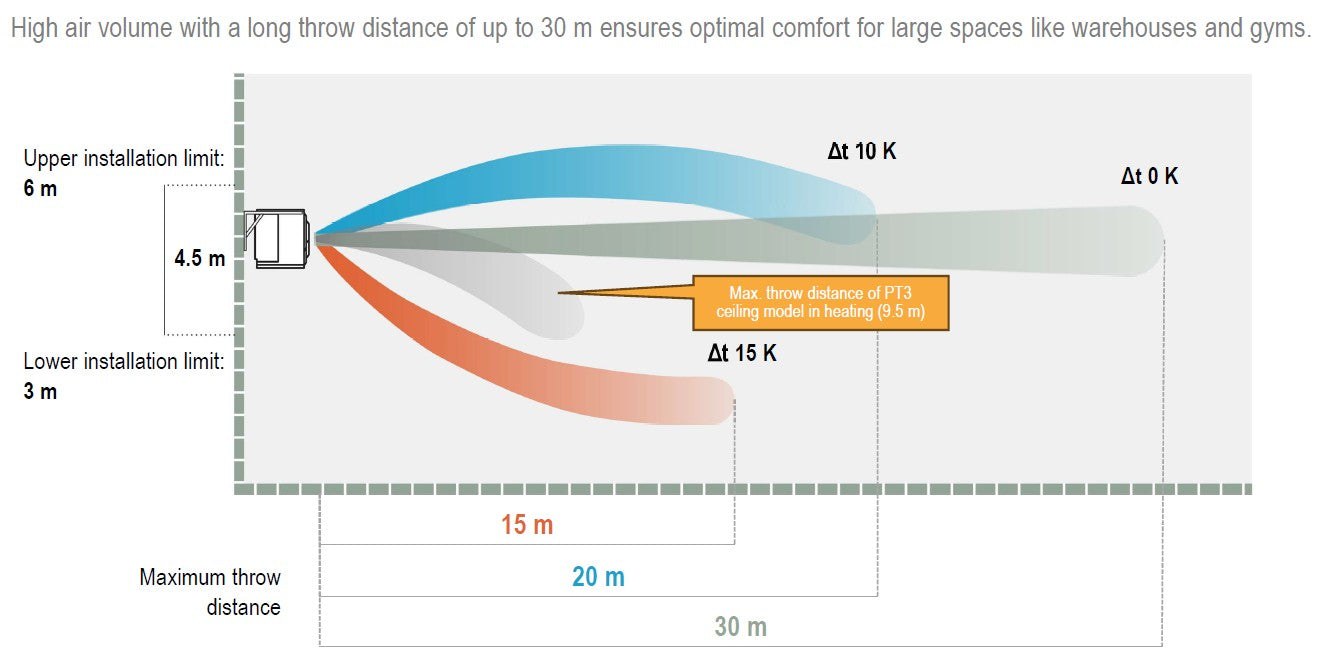

Engineered for expansive spaces, the Panasonic Jet Air Stream provides powerful year-round heating and cooling with outstanding seasonal efficiency—ηs,c 250% in cooling and ηs,h 155% in heating (25kW model). With an impressive air volume of up to 5,000m³/h and a 30m maximum air throw distance, it ensures optimal comfort and energy savings even in the largest, high-ceilinged areas.

Smart Jet Technology for Optimal Comfort

Smart Jet Technology for Optimal Comfort

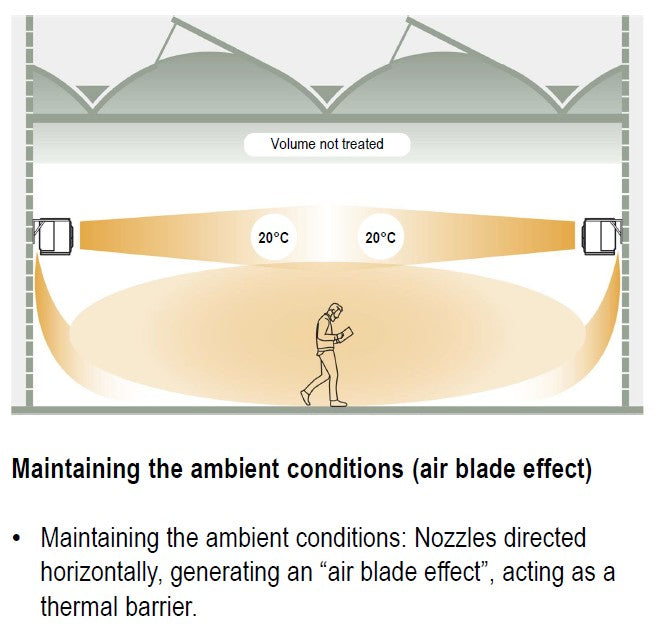

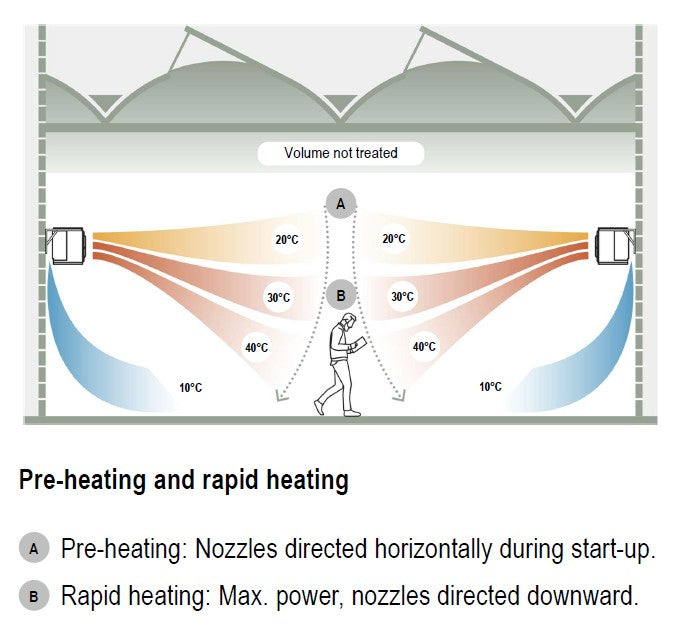

The Panasonic Smart Jet Air Stream features self-directing nozzles that deliver precise temperature control and even air distribution. By preventing air stratification and focusing airflow only in occupied zones, it maintains consistent comfort and energy efficiency in large or high-ceiling spaces.

Advanced Touch Panel Control with Modbus Integration

Advanced Touch Panel Control with Modbus Integration

The Panasonic PCZ-AHRX0012 touch panel controller offers intuitive system management with Modbus integration and group control for up to 8 Jet Air Stream units. Ideal for commercial environments, it provides precise temperature control, streamlined operation, and efficient management of multiple units from a single interface.

Panasonic PACi NX Jet Air Stream Indoor Units - R32-Panasonic-Oceanair
Panasonic PACi NX Jet Air Stream Indoor Units - R32-Panasonic-Oceanair
Panasonic PACi NX Jet Air Stream Indoor Units - R32-Panasonic-Oceanair
Panasonic PACi NX Under Ceiling - R32-Panasonic-Oceanair
Panasonic PACi NX Jet Air Stream Indoor Units - R32-Panasonic-Oceanair
Panasonic PACi NX Jet Air Stream Indoor Units - R32-Panasonic-Oceanair
Panasonic PACi NX Jet Air Stream Indoor Units - R32-Panasonic-Oceanair
Panasonic PACi NX Jet Air Stream Indoor Units - R32-Panasonic-Oceanair

PACi NX Jet Air Stream Indoor Unit Specification Table

Indoor Unit Technical DataModel Number
P-VTVF140MPC5-PEP-VTVF140MPC5-PEP-VTVF250MPC5-PE
Cooling (kW) - Nominal14,1 (3,3 - 18,0)14,1 (3,3 - 18,0)24,2 (6,1 - 25,6)
Heating (kW) - Nominal14,1 (3,3 - 18,0)14,1 (3,3 - 18,0)26,7 (5,5 – 27,6)
ηs,c227% 227% 250%
ηs,h155% 155% 155%
Sound Pressure - Cool / Heat (dBA)42 42 46
External Static Pressure (Pa)170 170 170
Height (mm)8028021026
Width (mm) 110511051458
Depth (mm)893893953
Weight (kg)8888130
Air Flow (m³/h)25602560 5010

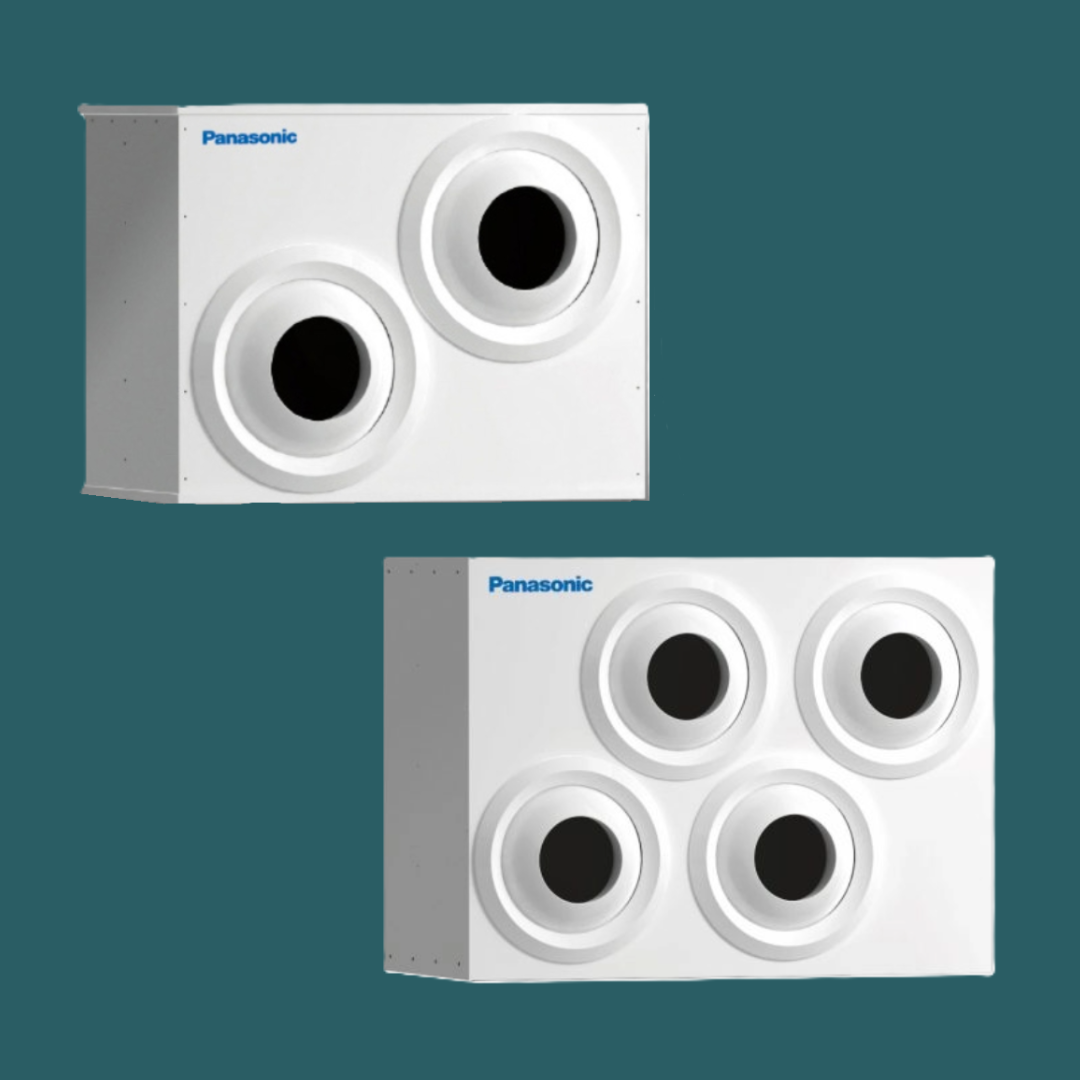

Nozzles TypeSmart Jet - Self-Directing NozzlesSmart Jet - Self-Directing NozzlesSmart Jet - Self-Directing Nozzles
Number of Nozzles224



PACi NX Elite Outdoor Unit Specification Table

Outdoor Unit Technical DataModel Number
U-140PZH4E5U-140PZH4E8U-250PZH4E8
Sound Pressure - Cool / Heat Hi (dBA)56 / 5656 / 5659 / 63
Piping Diameter - Liquid Inch (mm)3/8 (9,52)3/8 (9,52)1/2 (12,70)
Piping Diameter - Gas Inch (mm)5/8 (15,88)5/8 (15,88)1/2 (12,70)
Pipe Length Range (m)5 ~ 1005 ~ 1005 ~ 100
Elevation Difference In / Out (m)15/3015/3015/30
Pre-Charged Pipe Length (m)303030
Additional Gas Amount (g/m)404080
Refrigerant (R32) / CO₂ Eq. (kg / T)3,00 / 2,033,00 / 2,034,8 / 3,24
Operating Range Cool (Min - Max °C)-20 ~ +52-20 ~ +52-15 ~ +52
Operating Range Heat (Min - Max °C)-20 ~ +24-20 ~ +24-20 ~ +35
Height (mm)996996996
Width (mm)9809801140
Depth (mm)370370460
Weight (kg)8684109
PhaseSingleThreeThree
Power Supply (V)220 - 230 - 240380 - 400 - 415380 - 400 - 415
Recommended Fuse (A)401630
