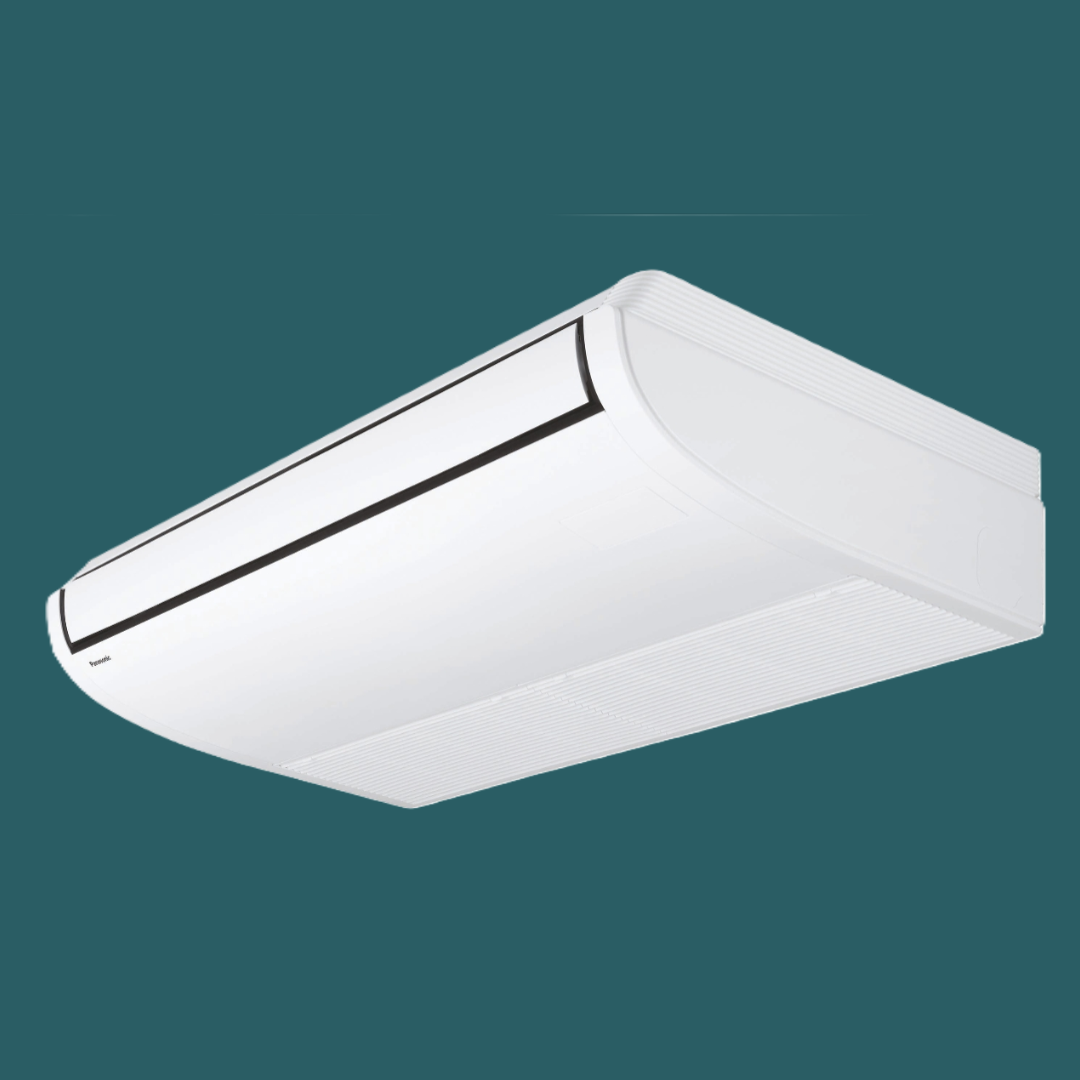

Panasonic PACi NX Under Ceiling PT3 - R32

Name: Panasonic PACi NX Under Ceiling PT3 - R32
Brand: Panasonic
Availability: InStock

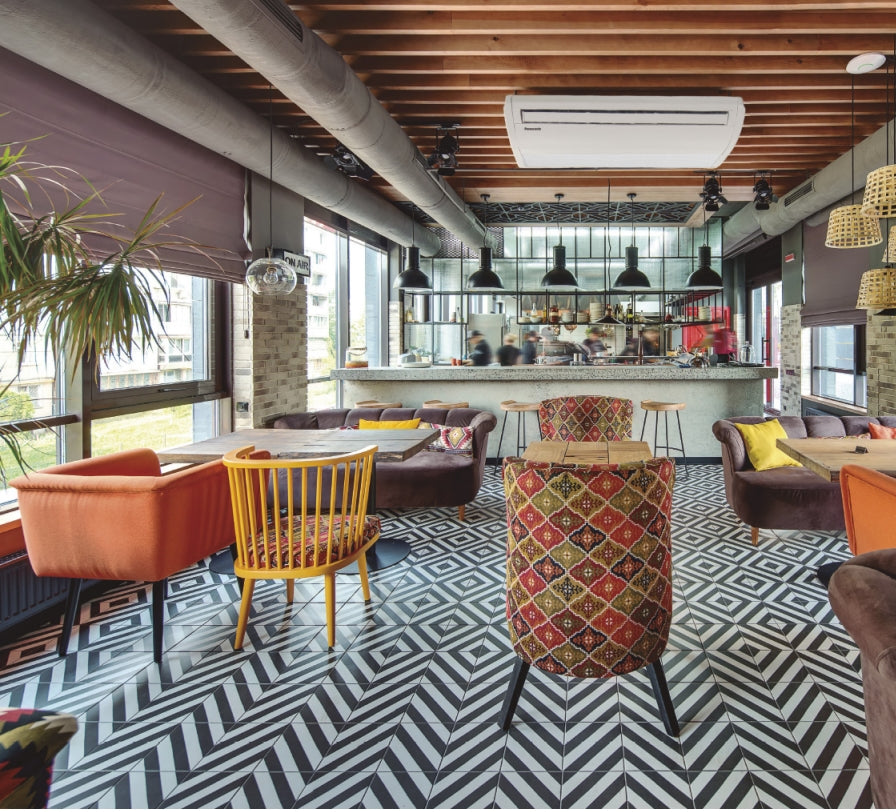

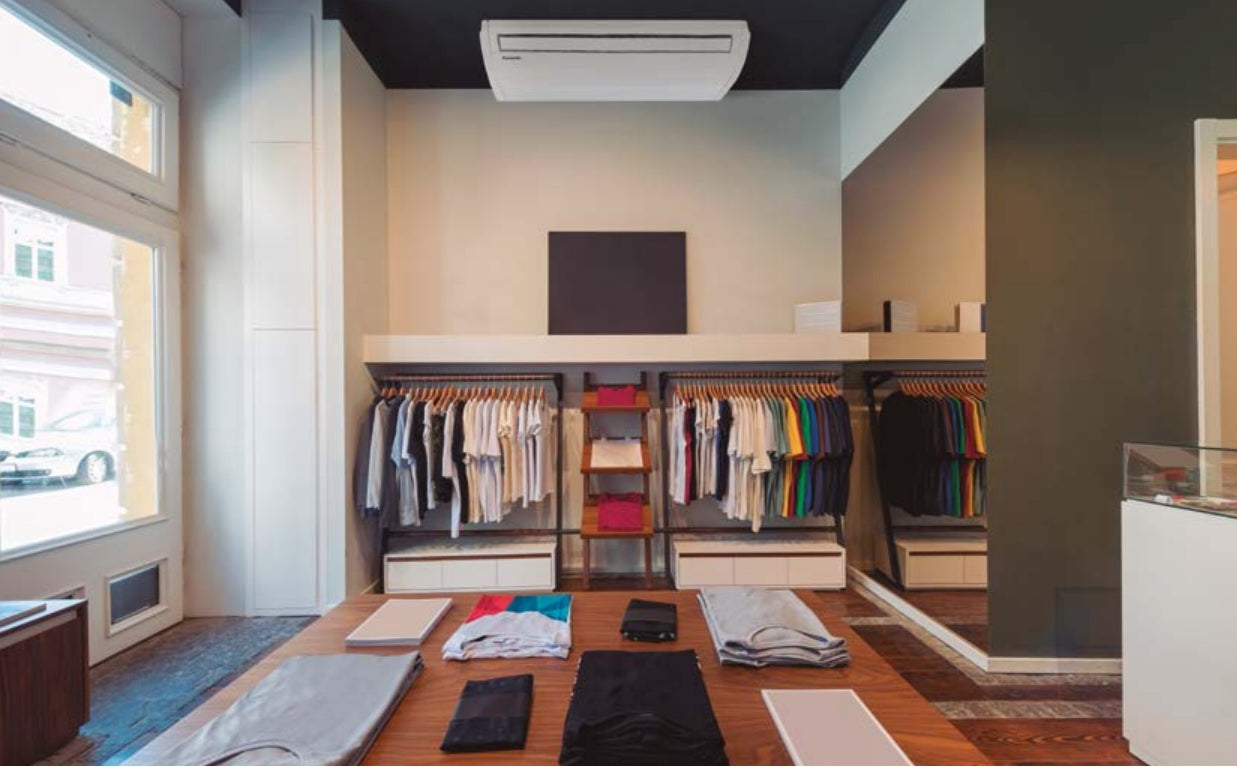

The Panasonic PACi NX Series Standard Ceiling units (PT3, R32) delivers powerful, even air distribution for large spaces with a slim 235mm profile for easy installation. Featuring nanoe™ X (Generator Mark 2) for cleaner, healthier air, it provides quiet operation, flexible airflow up to 9.5m, and optional simple Bluetooth® remote control or Wi-Fi connectivity. Compatible with both PACi NX Series Standard and Elite outdoor units, it offers A++ energy efficiency, heating down to –15°C, and offers twin indoor connection options. Combining reliability, comfort, and cost-effective performance, the PT3 is ideal for commercial environments needing dependable, efficient climate control, such as retail stores and schools.

PACi Under Ceiling Catalogue Pages 25 26 PACi NX Elite Ceiling Leaflet PACi NX Standard Ceiling Leaflet PACi NX Leaflet & Wiring Info 25 26 Conex Leaflet nanoe™ X Leaflet PACi NX Commercial, Twin, Triple & Double Twin 25/26 Commercial Dimensions Wiring Diagrams 25 26 Operating Instructions Installation Instructions

Model Reference (Indoor Unit)	Nom. Cool (Standard Inverter) (kW)	Nom. Cool (Elite Inverter) (kW)	Nom. Heat (Standard Inverter) (kW)	Nom. Heat (Elite Inverter) (kW)	Sound Pressure - Hi / Med / Lo (dBA)	Sound Power - Hi / Med / Lo (dBA)	Height (mm)	Width (mm)	Depth (mm)	Weight (kg)	Max. Air Flow Rate (m³/min)	Fused Spur (A)	nanoe X Generator
Model Reference (Indoor Unit)	Nom. Cool (Standard Inverter) (kW)	Nom. Cool (Elite Inverter) (kW)	Nom. Heat (Standard Inverter) (kW)	Nom. Heat (Elite Inverter) (kW)	Sound Pressure - Hi / Med / Lo (dBA)	Sound Power - Hi / Med / Lo (dBA)	Height (mm)	Width (mm)	Depth (mm)	Weight (kg)	Max. Air Flow Rate (m³/min)	Fused Spur (A)	nanoe X Generator	S-3650PT3E	3.50	3.60	3.50	4.00	36 / 32 / 28	54 / 50 / 46	235	960	690	26	14.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-3650PT3E	5.00	5.00	5.00	5.60	37 / 33 / 28	55 / 51 / 46	235	960	690	26	15.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-6071PT3E	6.00	5.70	6.00	7.00	38 / 34 / 29	56 / 52 / 47	235	1275	690	34	20.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-6071PT3E	6.80	6.80	6.80	8.00	39 / 35 /30	57 / 53 / 48	235	1275	690	34	21.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-1014PT3E	10.00	9.50	10.00	11.20	42 / 37 / 34	60 / 55 / 52	235	1590	690	40	30.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-1014PT3E	12.50	12.10	12.50	14.00	46 / 40 / 35	64 / 58 / 53	235	1590	690	40	34.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
S-1014PT3E	14.00	13.40	14.00	16.00	47 / 41 / 36	65 / 59 / 54	235	1590	690	40	35.00	5 (Power 3X & E from Outdoor Unit)	Mark 2
	For more information, see Technical Specifications.

Unless otherwise stated, all figures in the above table relate to pairings with PACi NX Series standard 1ph outdoor units.

Key features

Optimised air distribution for lasting comfort

The redesigned outlet ensures long-distance, horizontal airflow, allowing cool or warm air to reach every corner—even in long rooms—for consistent, all-round comfort. Also, equipped with a fresh air connection to enhance indoor air quality.

Compact, elegant one-motion design

With its slim, streamlined profile, the unit offers a sleek and unobtrusive appearance in any space. When switched off, the louver closes fully for a refined, modern look while preventing dust build-up and keeping the unit clean.

Energy-efficient design for superior performance

The optimised casing and fan design enhance airflow and boost efficiency, while the advanced DC fan motor and large diagonal fan deliver industry-leading energy savings and top-class performance. The Panasonic PACi NX Ceiling PT3 can achieve SEER and SCOP of up to A++, ensuring lower running costs without compromising on power.

Easy installation & connectivity

The Panasonic PACi NX indoor units are designed for quick and easy installation, featuring a lightweight design, and simple piping layout for hassle-free setup. Choose the optional CZ-RTC6WBL / CZ-RTC6BL wired remote controllers for Bluetooth® connectivity, or the CZ-CAPWFC2 commercial Wi-Fi adaptor for easy system configuration and precise control.
