Product code: C004146

Panasonic RAC Solo 3.0kW | No Outdoor Unit Air Conditioner | P-MOZ30IC5-UK

Panasonic RAC Solo Compact Heating Air Conditioner without Outdoor Unit 3.0kW P-MOZ30IC5-E-Panasonic-Oceanair
Panasonic RAC Solo Compact Heating Air Conditioner without Outdoor Unit 3.0kW P-MOZ30IC5-E-Panasonic-Oceanair
Panasonic RAC Solo Compact Heating Air Conditioner without Outdoor Unit 3.0kW P-MOZ30IC5-E-Panasonic-Oceanair
Panasonic RAC Solo Compact Heating Air Conditioner without Outdoor Unit 3.0kW P-MOZ30IC5-E-Panasonic-Oceanair
Panasonic Aquarea High Performance K Generation R32 Heat Pump 5kW Outdoor Unit 1Ph WH-UDZ05KE5-Panasonic-Oceanair

The Panasonic RAC Solo is an innovative air conditioning solution ideal for spaces where installing a conventional outdoor unit isn't feasible.

Read more
  • No outdoor unit — just two 202mm wall holes required
  • Heats and cools — operating range -15°C to +43°C
  • A-rated SCOP of 3.40 for efficient year-round heating
  • Quiet operation — as low as 29dB(A) internally
  • DC Inverter technology with Dual Power mode
  • R32 refrigerant — environmentally responsible

View all products by Panasonic

£1,899.03 excl. VAT
£2,278.84inc. VAT


Available


Important Notice: This unit requires additional products stated in "Specification" table below for installation and operation.

Description

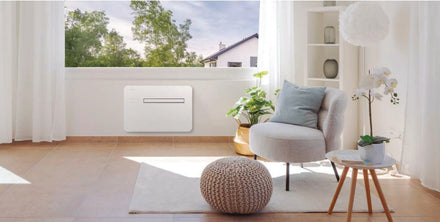

The Panasonic RAC Solo 3.0kW is the most powerful model in the RAC Solo range — a complete heating and cooling system that requires no outdoor unit and no refrigerant connections. Ideal for larger rooms up to approximately 30m², it operates quietly and efficiently using DC Inverter technology with R32 refrigerant.

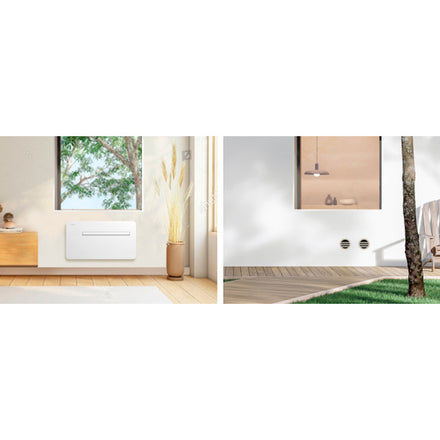

Just two 202mm holes in a perimeter wall are all that's needed for installation — no F-Gas certification required, no outdoor unit and no planning permission in most cases. The unit can be installed high on the wall or low at floor level for maximum flexibility.

Also available as a complete bundle with external grilles and insect protection kit — everything you need for installation in one purchase.

  • No outdoor unit — just two 202mm wall holes required
  • Heats and cools — operating range -15°C to +43°C
  • A-rated SCOP of 3.40 for efficient year-round heating
  • Quiet operation — as low as 29dB(A) internally
  • DC Inverter technology with Dual Power mode
  • R32 refrigerant — environmentally responsible
  • Wi-Fi control via the Panasonic Aquarea Home App
  • No F-Gas certification required for installation
  • Available as unit only or as a complete bundle with accessories

Efficiency Data Notes: 1) EER and COP calculation is based in accordance to EN 14511. 2) Energy Label Scale from A+++ to D. 3) The sound pressure shows the value measured at 2 m, according to ISO 7779.

*See Technical Attachments for more precise parameters and conditions.

Specification

Brand Panasonic
Colour Matt White
Compatibility Compatible with various accessories such as Panasonic External Grille Kit PCZ-GB1091, Panasonic Side Exit Framework PCZ-L00773. Contact Oceanair for more details.
Installation Configuration Down Installation or Overhead Installation
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No P-MOG30IC5-UK
Orientation Horizontal
Phase Single Phase
Range Description Panasonic RAC Solo
Air Flow Min / Average / Max 7,5 / 5,8 / 5,0 m³/min
External Air Flow Min / Average / Max 9,2 / 7,7 / 6,7 m³/min
Moisture Removal Volume 1,2 L/h
Cooling Capacity Nominal (Min-Max) 2,87 (1,40 - 3,50) kW
EER (1) 2,74 W/W
SEER (2) 4,10 B
Input Power 1,04 kW
Heating Capacity Nominal (Min-Max) 2,75 (1,35 - 3,50)
Heating Capacity at -7 °C 1,81 kW
COP (1) 3,12 W/W
SCOP (2) 3,40 A
Input Power 0,88 kW
Power Supply 230 V
Maximum Current 6,30 A
Sound Pressure (3) Hi / Lo / Q-Lo 43 / 33 / 29 dB(A)
Outside Sound Pressure (3) Hi / Lo 53 / 40 dB(A)
Refrigerant / Charge R32 / 0.5 kg
Product Contents RAC Solo unit
Product Depth 165mm
Product Height 549mm
Product Width 1010mm
Product Weight 41 kg
Wall Hole Diameter 202mm
Distance Between Wall Holes 293mm
Cooling Operating Range Min - Max -5 ~ +43 °C
Heating Operating Range Min - Max -15 - +18 °C
Suitable System Suitable for Domestic Heating Systems. Suitable for HVAC Systems. Contact Oceanair for more details.
Type Compact Heating Air Conditioner
Wi-Fi Enabled Built in Wi-Fi
Works with iOS App Works with iOS App
Works with Android App Works with Android App
Required for Installation PCZ-GB1091 Panasonic External Aluminium Grids (202 mm), PCZ-GB0755 Panasonic Insect protection kit for RAC Solo. All sold separately.
